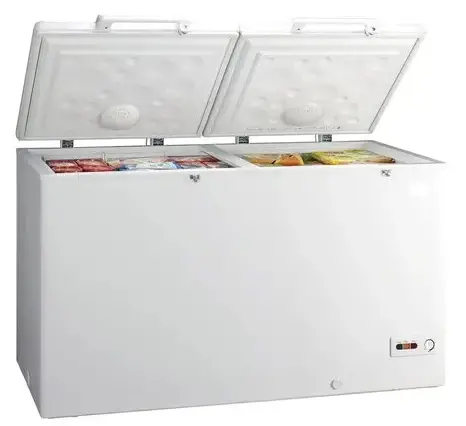

FISHER PAYKEL 26055-A 519L Chest Freezer Owner
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 220-240 50Hz | RC719W2 FP AA | 26055-A |
MODELS
The models covered by this manual are listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |
| NZ | AU | ||
| tel: | 09 273 0600 | tel: | 07 3826 9100 |
| fax: | 09 273 0656 | fax: | 07 3826 9164 |

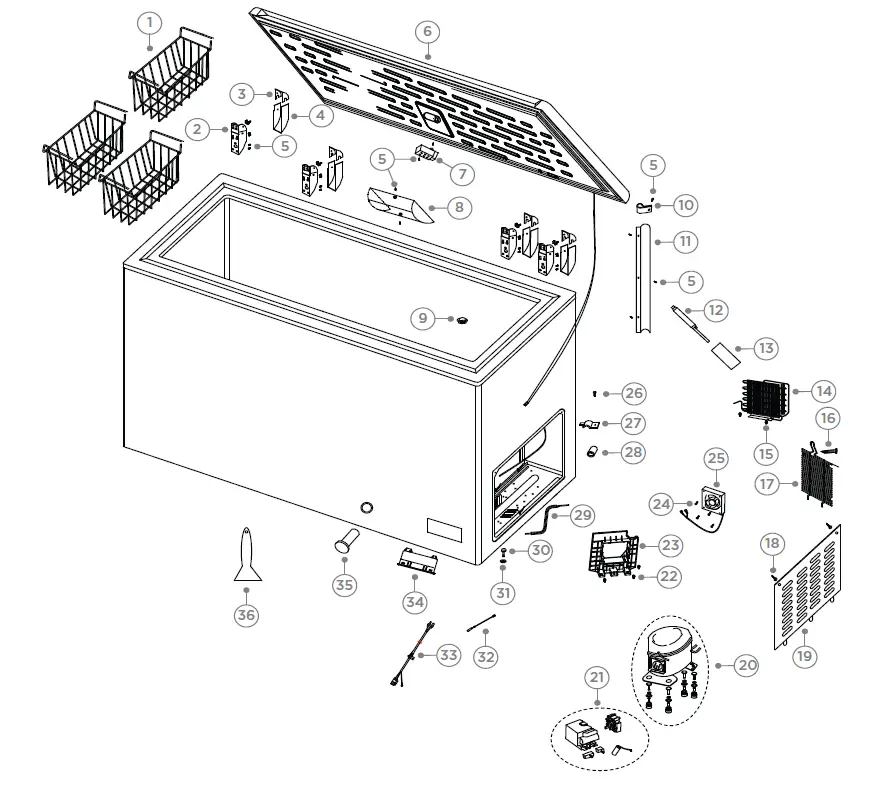

FREEZER COMPONENTS
FREEZER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0070108305 | BASKET RC719 |
| 2 | H0070827942 | HINGE ASSY |
| 3 | H0070206978 | HINGE COVER |
| 4 | H0070206979 | HINGE COVER |
| 5 | H0070601302 | SCREW |
| 6 | H0070827601 | LID ASSY RC719 |
| 7 | H0074000498 | LED LIGHT |
| 8 | H0070206158 | LAMP COVER |
| 9 | H0072040012C | DRAIN PLUG |
| 10 | H0072060002 | LINE HOLDER |
| 11 | H0070202453 | LID LAMP WIRE COVER(SHORT) |
| 12 | H0074180006A | FILTER DRIER |
| 13 | H0070300427 | CONDUIT PIPE |
| 14 | H0070803664BJ | CONDENSER |
| 15 | H0070600031 | SCREW |
| 16 | H0077010036 | SCREW PHILIPS |
| 17 | H0070103022 | COVER COMPRESSOR COMPARTMENT |
| 18 | H0077010059 | SCREW |
| 19 | H0070106186PB | GRILLE CF |
| 20 | H0074001238 | COMPRESSOR |
| 21 | H0074000494FJ | ANCILL PARTS COMP |
| 22 | H0070600031 | SCREW |
| 23 | H0070203962A | MOUNTING BRACKET FAN |
| 24 | H0070601305 | SCREW CLAMP POWER CORD HCF148A |
| 25 | H0074001205 | FAN MOTOR |
| 26 | H0070601305 | SCREW CLAMP POWER CORD HCF148A |
| 27 | H0070104651 | CLAMP POWER CORD HCF |
| 28 | H0070400259 | GROMMET & SADDLE POWER CORD |
| 29 | H0070700800A | PROCESS PIPE |
| 30 | H0077050006 | SCREW COMPRESSOR HCF |
| 31 | H0070601303 | WASHER SERATED |
| 32 | H0070400497 | TEMPERATURE SENSOR |
| 33 | H0070400755 | POWER CORD |
| 34 | H0070825037C | POWER CONTROLLER |
| 35 | H0072040060 | DRAIN PLUG |
| 36 | H0070202413 | SCRAPER DEFROST |
