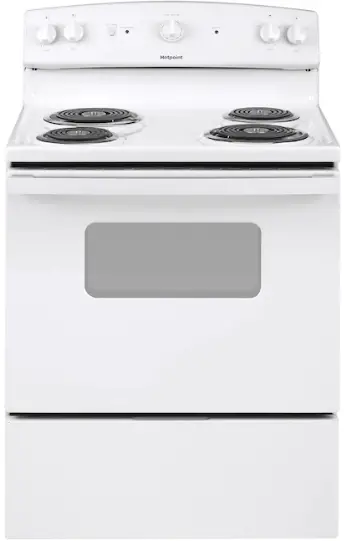

Hotpoint RBS330DR 30 Inch Free-Standing Electric Range Instructions

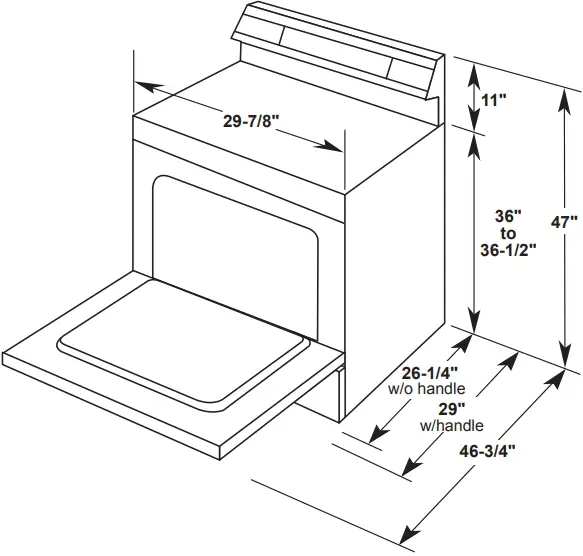

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS

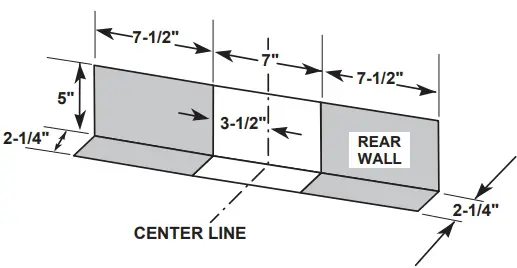

Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of nlectrical outlet box. Recommended outlet locations allow range to be installed directly against wall.
NOTE: This appliance has been approved for 0″ spacing to adjacent surfaces above the cooktop. However, a 6″ minimum spacing to surfaces less than 15″ above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION
Before installing, consult installation instructions for current dimensional data and additional requirements.
KW RATING | |
240V | 10.2 |
208V | 7.6 |
BREAKER SIZE | |
240V | 40 Ampst |
208V | 40 Ampst |
NOTE: Check local codes for required breaker size.
FEATURES AND BENEFITS
- 5.0 cu. ft. oven capacity – Cook more dishes at once
- Standard clean oven – Smooth surface and rounded corners make clean-up quick and easy.
- Sensi-Temp Technology – Enjoy the same cooking power as a traditional coil with an added safety feature that meets new UL858 Household Electric Ranges Standard for Safety.
- Dual-element Bake – Upper and lower elements produce even heat and great results.
- Removable full-width storage drawer – Store cookware or kitchen accessories

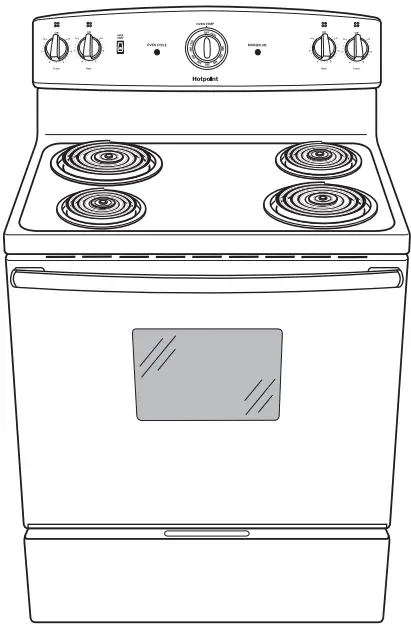

Model RBS330DRBB – Black
Model RBS330DRWW – White
CUSTOMER SERVICE
For answers to your Hotpoint product questions, visit our website at www.hotpoint.com or call 800.626.2000.
