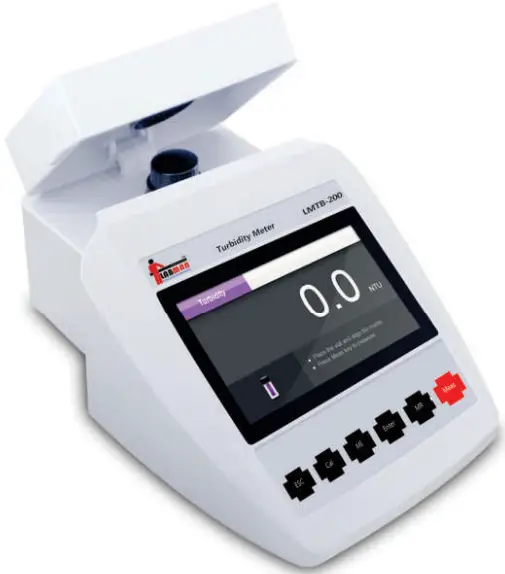

LMTB200 Turbidity Meter
User Guide
Salient Features
- Turbidity meter with TSS measurement mode, selectable four turbidity units
- Turbidity meter is equipped with a 4.5″ TFT display.
- 2 to 7 points calibration using the Formazin Standards.
- Selectable four turbidity units, including the NTU, FNU, EBC and ASBC.
- TSS conversion factor ensures accurate measurement for Total Suspended Solids.
- Continuous measurement mode that can used for indexing and matching the sample vials.
- Hold function freezes current reading for easy viewing and recording.
- Password protection prevents the unauthorized calibration and settings.
- Help message as a operational guide that helps user quickly begin using the meter.
- System menu allows setting the 9 parameters, including the date and time, resolution, etc.
- Reset feature automatically resumes all settings back to factory default settings.
SPECIFICATIONS
| MODEL | LMTB200 |
| Make | LABMAN |
| Measurement Range | 0-2000 NTU, 0-500 EBC, 0-9999 ASBC, |
| Resolution | 0.01 (0-100 NTU), 0.1 (100-999 NTU), 1(999^2000 NTU) |
| Accuracy | ±2% of reading for 0-500 NTU, ±3% of reading for 50172000 NTU |
| Calibration Points | 2 to7 points ( 0.02, 10.00, 200, 500, 1000, 1500, 2000 NTU ) |
| TSS Range | deponding on the TSS conversion factor |
| TSS Accuracy | ±3% of reading |
| Light Source | Infrared-emitting diode (850 nm wavelength) |
| Detector | Silicon Photodiode |
| Stray Light | < 0.02 NTU |
| Sample Vials | 60 (H) x 25 (Dia)mm |
| Memory | Stores up to 200 data sets |
| Display | 4.5″ TFT display |
| Operating Temperature | 0∼50°C |
| Power Requirements | DC12V/2A, using AC adapters, 220VAC/50Hz |
| Dimensions LxWxH (mm) & Weight | 250 x 177 x 96 mm & 1.2kg |
* Specifications are subject to change without notice.
Catalogue 2021-22
HSN Code: 90275090
STANDARD ACCESSORIES:
Empty Vial – 1no, Calibration Standards – 3
(200NTU, SOONTU, 1000NTU)
Cloth, 12V Power Adaptor, Test Cer tificate
