DIO 59 Bidet

Read the instructions carefully before use and keep them for future reference! For daily cleaning use only commercial bath clea ners. Lime scale and soap residue can be removed with commercial lime remover or vinegar cleaners.

Assembly Instructions Wall-Mounted Toilet

Electrical work and repairs may only be carried out by qualified electricians.
The respective national installation regulations must be observed during installation.
The device must not be modified in any way. Electric shock and risk of accident.
Always make sure that the power supply is disconnected before installation.
If the power cord is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid hazards.

The appliances must be earthed.
The instructions concerning persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge and children playing with the appliance are not applicable.
Children being supervised not to play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The shower toilet set is used for comfortable cleaning and drying of the buttocks and vaginal area after using the toilet. Any other use automatically voids all liability and warranty claims.
Symbols used
Danger
CE SYMBOL Complies with relevant safety standards
Protection class 1
IPX4 Protection against splashing water on all sides

Cleaning

Before cleaning, always disconnect the unit from the power supply. Please use only commercially available cleaning agents and disinfectants and a soft damp cloth. Never use aggressive cleaners, scouring agents or products containing chlorine or solvents.

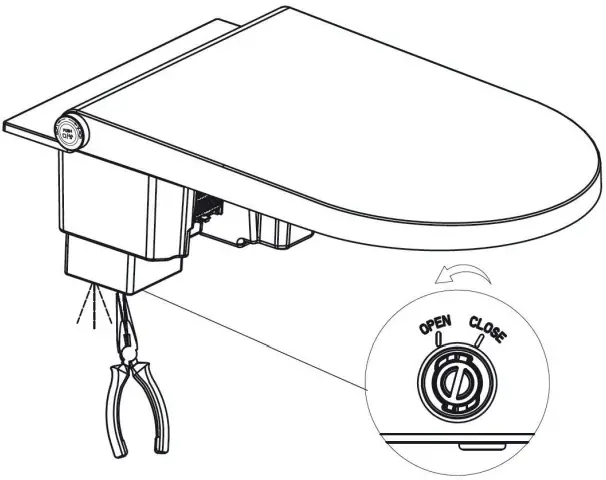

Water drainage

In case of transport or disassembly, you must empty the unit.Turn off the water supply. Disconnect the appliance from the mains. Loosen the drain plug by turning it anticlockwise. Remove the drain plug and empty the appliance.
Please never turn the unit over before you have drained it. You may permanently damage the electronics.

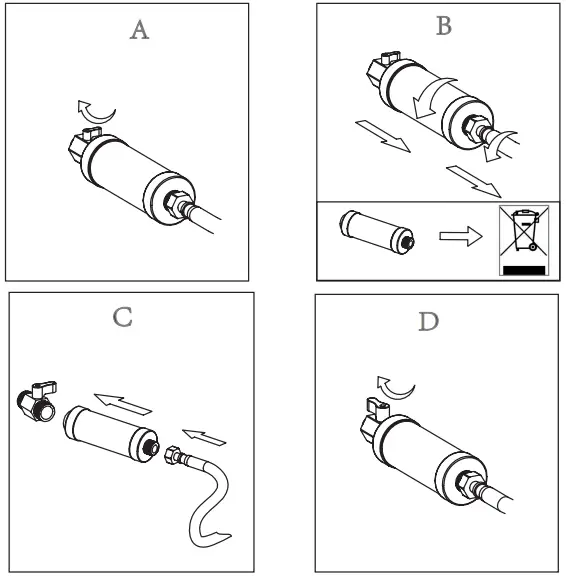

Replacing the limescale filter

The limescale filter is located in the supply line of the shower toilet and prevents the unit from becoming clogged with limescale deposits. The service life is 1/2 year on average, but this period is reduced if the water contains a lot of limescale. You can find out the respective degree of hardness from your public utility company. Replacement is necessary when the water pressure drops significantly. A replacement filter is already included in the scope of delivery! You can obtain further replacement filters from the dealer from whom you purchased the product.

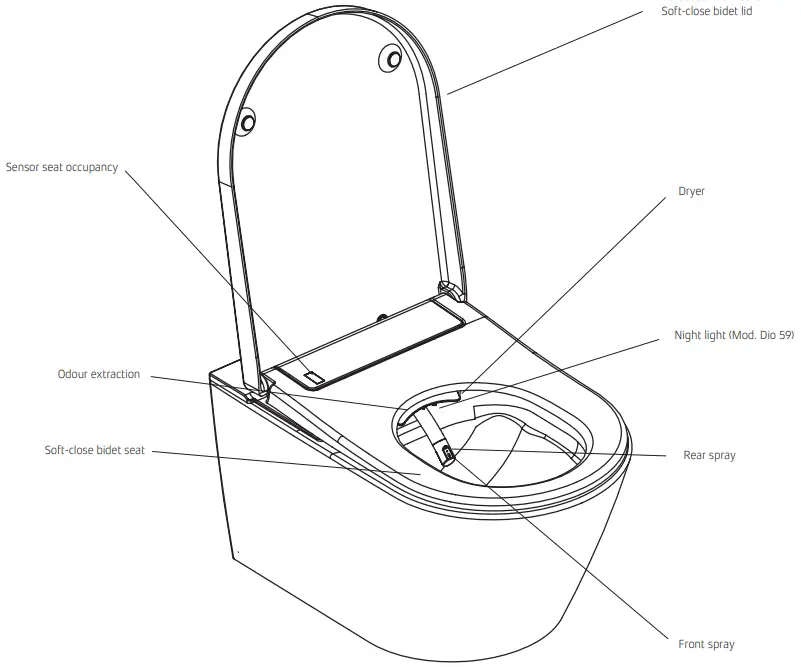

Function overview

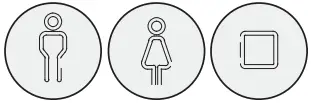

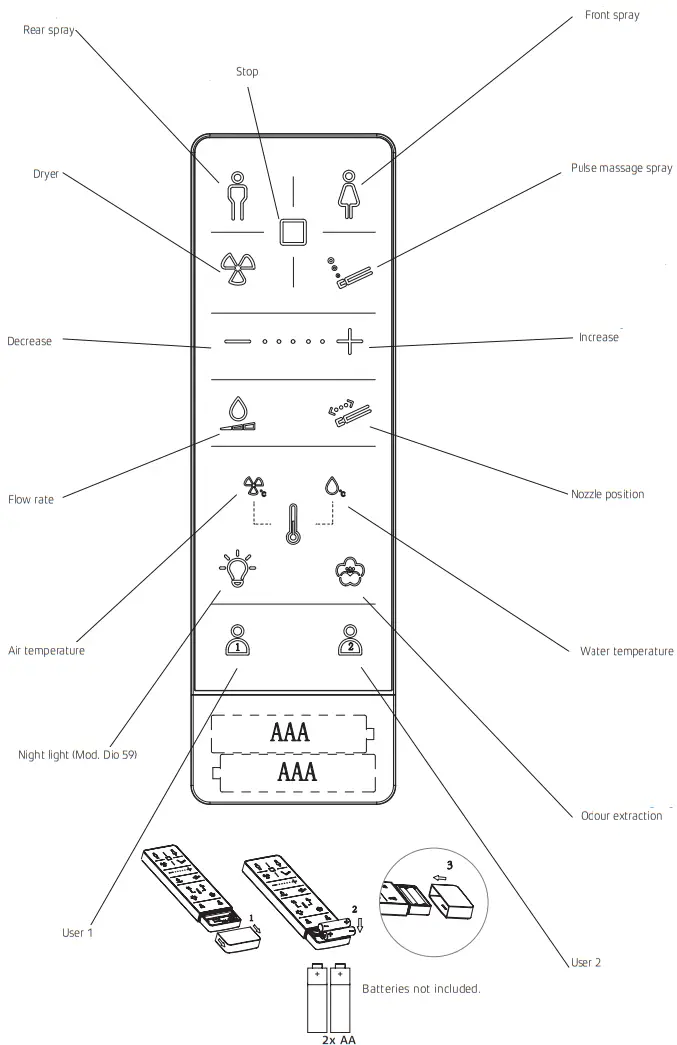

Remote control Dio 59Rear spray / Front spraySit on the bidet. Press the “Rear spray” or “Front spray” button on the remote control; the bidet begins cleansing. Cleansing ends automatically after 3 minutes. You can also stop the cleansing process beforehand by pressing the “Stop” button.
DryerSit on the bidet. Press the “Dryer” button on the remote control; the bidet begins drying. Drying ends after 3 minutes. You can also stop the cleansing process beforehand by pressing the “Stop” button.
Pulse massage spraySit on the bidet. Start the “Rear spray” or “Front spray” programme. Then repeatedly press the “Massage” button on the remote control until you’ve reached your desired spray mode. The indicators on the remote control show the function.
Oscillating: 1 indicator lights up; Pulsating: 2 indicators light up;
Oscillating + Pulsating: 3 indicators light up

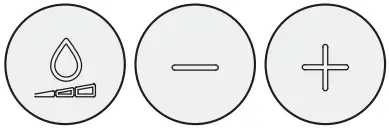

Adjusting the flow rateSit on the bidet. Start the “Rear spray” or “Front spray” programme. Press the “Adjusting the flow rate” button on the remote control and then the “Decrease” or “Increase” button to adjust the flow rate.
Adjusting the nozzle positionSit on the bidet. Start the “Rear spray” or “Front spray” programme. Press the “Nozzle position” button on the remote control and then the “Decrease” or “Increase” button to move the position of the nozzle forward or backward. The preset position is 5.
Adjusting the water temperatureSit on the bidet. Start the “Rear spray” or “Front spray” programme. Repeatedly press the “Adjusting the water temperature” button on the remote control until the water temperature symbol lights up. Then press the “Increase” or “Decrease” button to adjust the water temperature.
Setting the night light The default night light mode is “Always on”. Repeatedly press the “Night light” button on the remote control to toggle through the different modes. “Close” mode: One indicator lights up; “Always on” mode: Two indicators light up; “Smart” mode: Three indicators light up. PLEASE NOTE: In “Smart” mode, the night light turns on when its dark and turns off when it’s bright.
Setting the odour extractionThe standard deodorising mode is “Smart”. The odour extraction is switched on when the user sits down and switched off one minute after the user stands up. If no washing or drying function was activated while the user was seated, it is switched off after 15 minutes. Repeatedly press the “Odour extraction” button on the remote control to activate or deactivate the function. “Close” mode: One indicator lights up; “Smart” mode: Two indicators light up

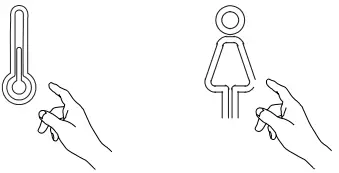

Setting the soundBy default, the sound is on. A BEEP sounds when the bidet receives commands or signals. Press and hold the “Set temperature” button on the remote control and then press the “Front spray” button. Off: One indicator lights up; On: Two indicators light up
User settings

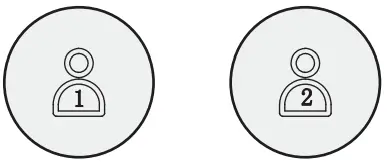

Saving user settings After adjusting the flow rate, temperature and nozzle position, press and hold the “User 1” or “User 2” button on the remote control for more than 3 seconds to save the settings for “User 1” or “User 2”. Activating user settings Before washing or drying, press the “User 1” or “User 2” button and then start washing or drying. The bidet activates the settings for flow rate, water temperature, nozzle position and air temperature saved for the active user.
Self-cleaning the water tank
PLEASE NOTE: If the appliance has not been used for more than 72 hours and a user using the washing function, the self-cleaning function activates for 30 seconds. During self-cleaning, all buttons are inactive and will be reactivated after self-cleaning.

Descaling

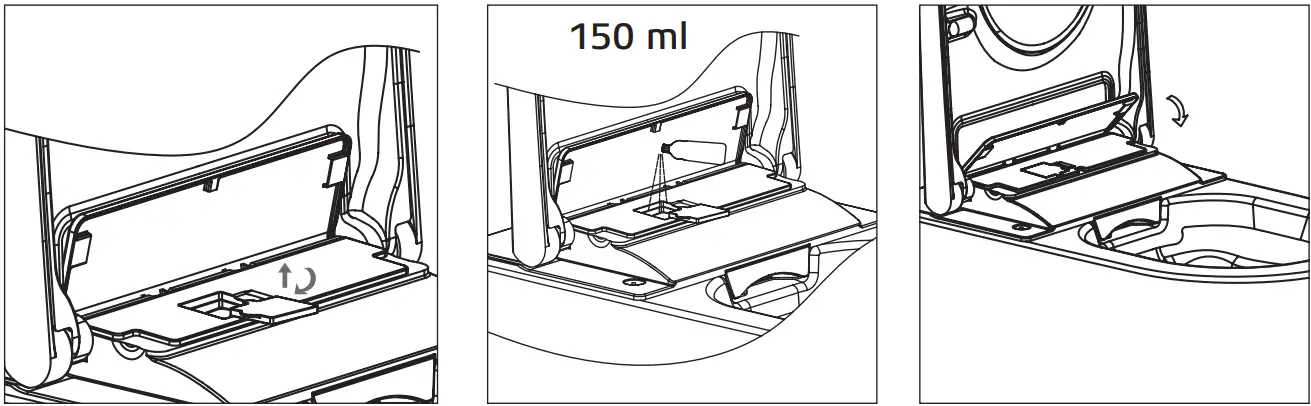

You need to descale the appliance at least once a year, or more often, depending on the number of cleaning cycles you’ve run and the quality of the water in your area. During descaling, you can continue to use the toilet, however, without the washing function. Descaling takes up to 30 minutes. During this time, the night light flashes continuously. When the night light stops flashing and the appliance emits a long beep, you can use the washing function again. Please use 150 ml of commercially available, non-foaming descaling agent.Please note: Water flows out of the nozzle when the cover is opened.
The appliance emits two beeps to indicate that you can now pour in the descaling agent.

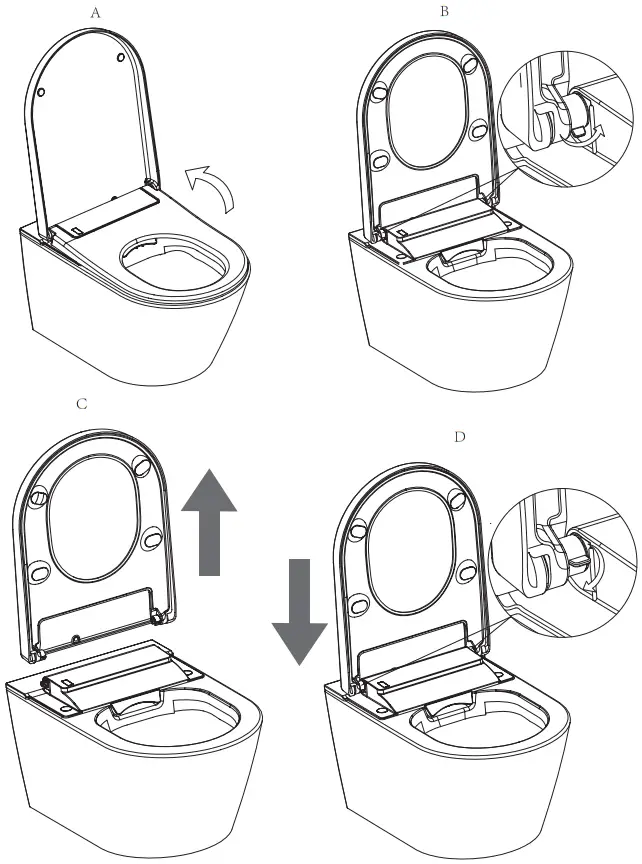

Removing the bidet seat

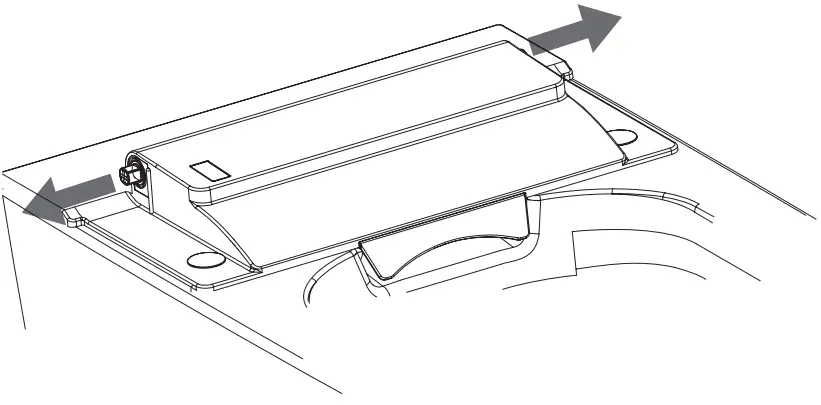

Replacing the bidet seat hinge

Troubleshooting

Problem	Potential cause	Suggested action
The washing cyclus can not wok	1.The power supply may not be opened	Please turn on the power
	2.The water supply may not be opened	Please open the inlet water valve, or check it there is a water outage
	3.The filter may be blocked	Please replace a new filter It has a service life of approx. half a year
	4.Maybe not in the seating state	Please sit on the seat and adjust sitting position
	5. Maybe the COver is Closed	Please Open the COver and sit on the toilet seat
	6. Maybe it is not used for more than 72 hours	Not used for more than 72 hours .when the user operates the washing it will open the selfcleaning for about 3 minutes. All the buttonsare Invalid during the self-Cleaning and it will return to normal after the self-cleaning
The nozzle goes back suddenly	1.The washing cycle is 3 mins. The nozzle will stop spraying after 3 mins. and then go back.	This is normal and please re-press the -wash” button to start washing again
	2.There may be some problems of water Supply	Please check if there is a water outage
	3.Maybe the seated sensor detects the user left the seat	Please adjust sitting position
	4.Maybe the COver is closing	DO not put down the cover when it is washing
Low water How rate	1. The water flow rate may be set at low grades	Please increase the flow rate as per ‘adjusting water flow rate of operating instructions
	2.The water supply pressure may be too low	PleaSe check and ensure the water supply pressure is 0.07 M pa
	3.The filter may be blocked	Please replace a new filter .11 has a service life of approx. half a year
	4. The nozzle may be blocked	Please replace a new nozzle
Low water temperalure	1.The water temperature may be set at low grades	Please set the water temperature at high grade as per ‘adjusting temperature’ of operating instruclions
Low water temperalure	2. Maybe the temperature of water supply is too low	Please set the water temperature at high grade as per “adjustingamperaturCof operating instructons. or decrease the Now rate as per adjusting water Flow rate of operating instructions.
The nozzle comes out sbwly	When start washing function, the nozzle will be self-cleaning before coming out. and this will take some time	This is normal
The water flowsout but the nozzle do not come out	1. When start washing function, the nozzle will be self- cleaning before coming out. This function also takes place after the washing cycle.	This is normal
The water flowsout but the nozzle do not come out	2. Maybe it is not used for more than 72 hours	This is normal. Not used for more than 72 hours when the user operates the washing . it will open the self-cleaning for about 3 minutes
The dryer can not work	1. The power supply may not be opened	PleaSe turn on the power
	2. Maybe not in the Seating state	Please sit on the seat and adjust sitting position
	3. Maybe the COver is closed	Please open the Cover and sit on the seat
	4. Maybe it isnot used for more than 72 hours	Not used for more than 72 hours .when the user operates the washing it will open the self-cleaning for about 3 minutes. All the buttonsare invalid during the self-cleaning and it will return to normal after the self <leaning
Low air temperalure	1. The air temperature may be set at low grades	Please set the air temperature at high grade as per ‘adjusting temperature” of operating instructions
Low air temperalure	2. The air heater can not work normally	Please contact local distributor
The remote control isnot functioning	1. Maybe there are not batteries in the remote control	Please install the correct batteries in the remote control
	2. Maybe the battery power is too low	When the battery power is too low the LED of grade will bash. Please replace the battery
	3. Maybe the code of the bidet and remote control is not the same	Please set the code of the remote control to the correct one -See ‘One-On-One Setting’
The bidet can not work normally	Maybe there is something abnormal	Please shut off the power and turn on after one minute. If the bidet still cannot work. please contact local distributor
There is constantly BEEP	The water Supply temperature may be too high	Please shut off the power and water supply, stop using the product, and then contact local distributor

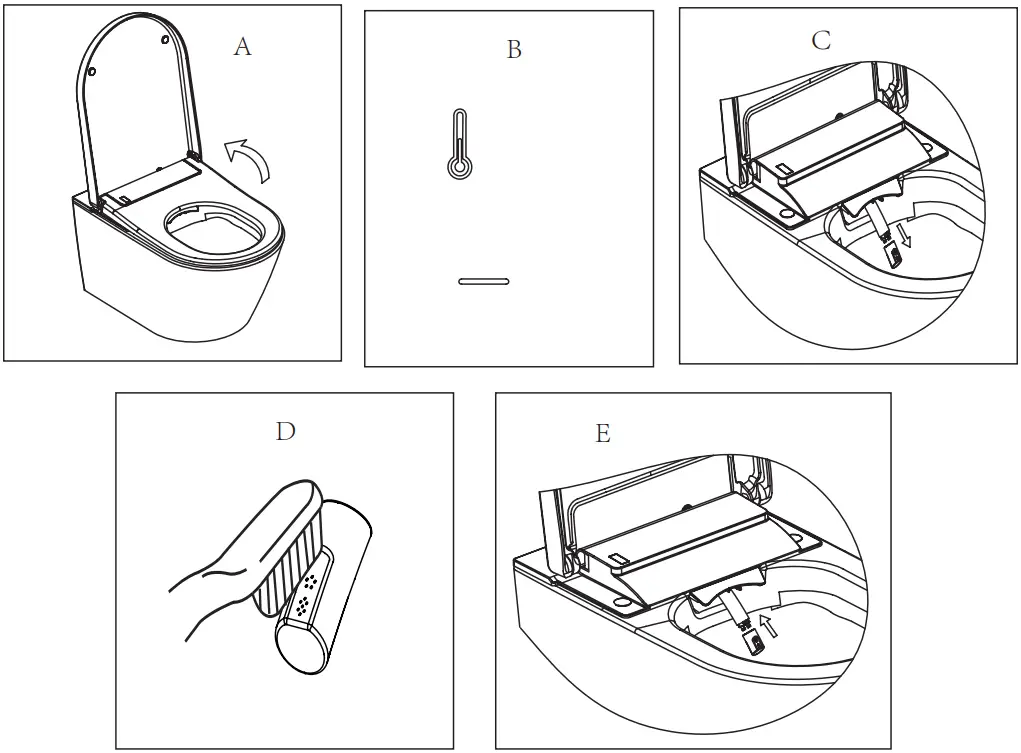

Nozzle cleaning

The nozzle is cleaned before and after washing. Open the lid and the seat, but do not sit on the bidet. Press and hold the “Set temperature” button on the remote control and then press the “–” button. The nozzle then extends with cleaning water. It returns automatically after 5 minutes, or you can press the “Stop” button.
