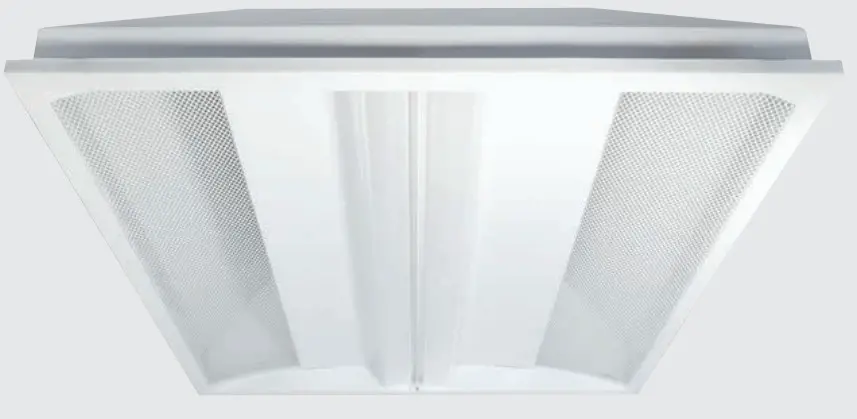

LED Panel RTI SanificaAriahttp://geltinternational.it/tecnal/beghelli

IP20

IK05

960°

+40°C -20°C

CRI>90

UGR<19

FLICKER-FREE

Hybrid device with uvOxy ® air sanitization Adjusting parameters from the SanificaAria APP or from NuBe. HCL version with Colour Temperature (K) adjustment in fixed (CCT) or automatic mode.
Applications
Service sector, public sector, offices, schools

Characteristics

Power supply unit 230VAC ±10%, 50÷60Hz ower supply – MTBF at 25°C 65,000h Luminous flux retention at 25°C
>80,000÷120,000h (L80B20)
Colour stability 3 SDCM
Mounting
Recessed on Module 600, suspended with the steel cables supplied
Body Pre-galvanised sheet metal RAL 9003 matt
Optics PMMA microstructured lens
Compliance EN60598-1, EN60598-2-22,
EN62471(photobiological risk-free),
CAM Minimum Environmental Criteria
according to DM 11.01.2017, EN60598-2-2,
EN60335-2-65, ISO 15714, 2014/53/EU1

Specifications of the Air Sanitizer

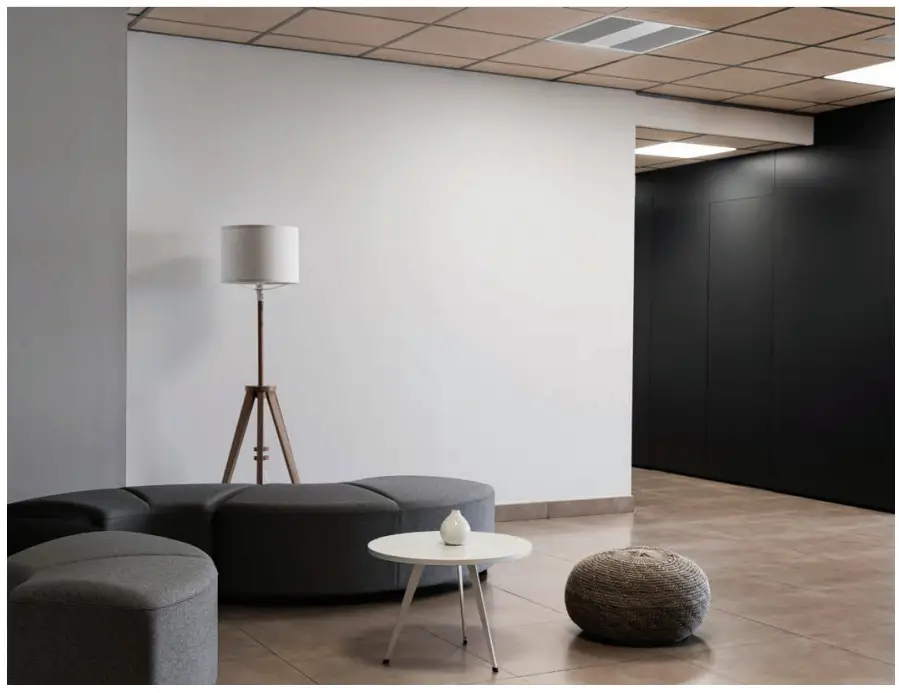

EXAMPLE OF SANITIZATION OF AIR
IN AN ENVIRONMENT

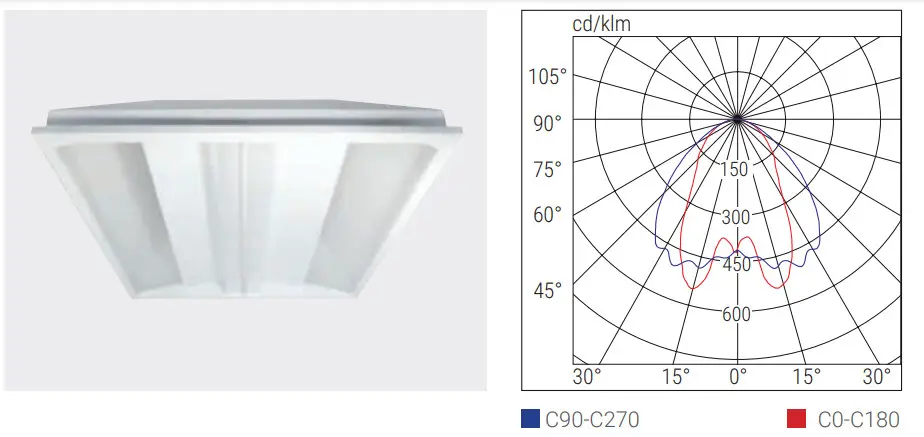

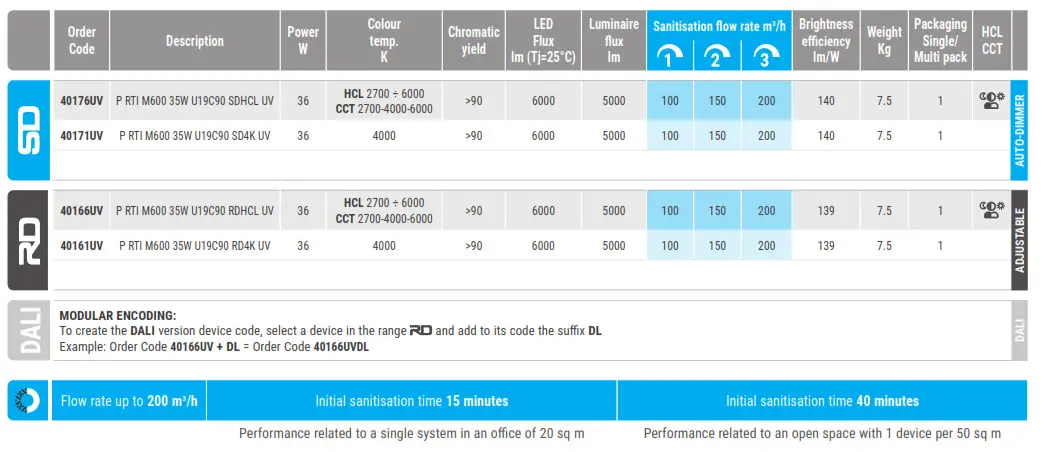

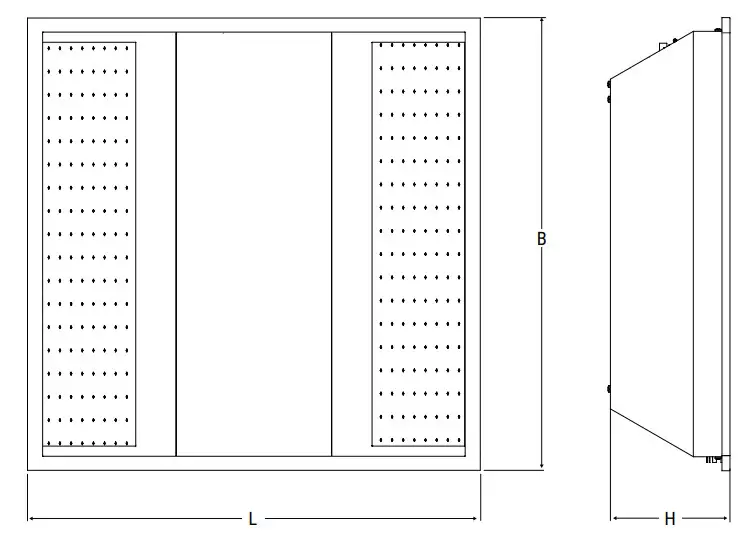

LED PANEL RTI SANIFICAARIA – 600×600

REMOTE SANITISATION MANAGEMENT, VIA SD LOGICA FM CONTROL UNIT, OR LOCALLY, WITH THE DEDICATED APP

With the integration of the SD Logica Control Unit, the sanitisation system can be connected to a network. The main parameters to regulate the system are the 3 levels of fan  peed and the operating time. The system can be accessed from the NuBe portal to adjust all parameters, even remotely.

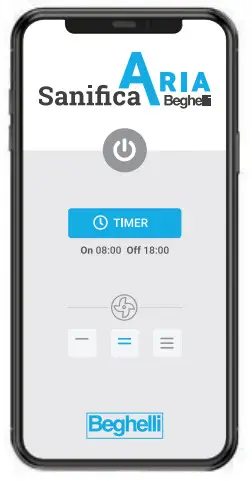

The Sanifica Aria Beghelli BLE APP (Bluetooth local remote control) has been designed to locally control the sanitisation system built into the luminaire, with the utmost implicity. Using Bluetooth technology, the smartphone becomes a real remote control for the system, adjusting fan speed and setting the operating times of the air sanitizer.

RD VERSIONS, WITH MANUALLY ADJUSTABLE FLUX/POWER IN 3 STEPS

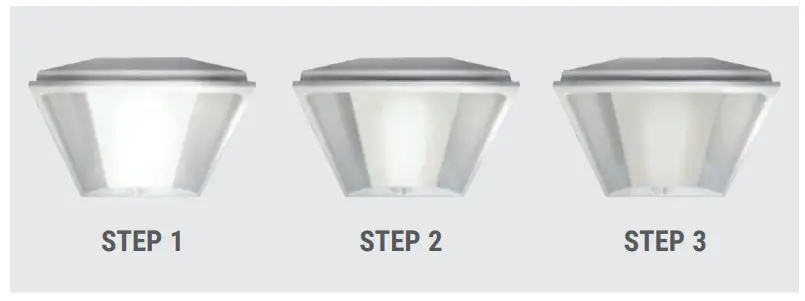

The lighting system must consider both the required level of lighting obtained from the lighting calculation and the power saving needs. LED Panel RTI SanificaAria allows you  to achieve this result thanks to its driver with a 3-step current modulation switch that provides maximum luminous efficiency and, therefore, maximum power savings, while  observing the luminous flux set out in the design phase.

LED Panel RTI SanificaAriaAria

HCL-CCT module, both in SD and RD version, for automatic colour temperature variation according to the solar time or to set 2700, 4000, 6000K constants

The HCL-CCT module equips both RD and SD series luminaires and allows a colour temperature adjustment in 3 steps 2700K – 4000K – 6000K (CCT). It also enables the  utomatic HCL (Human Centric Lighting – Biodynamic Lighting) mode, which adapts to the human biological cycle. To simply perform this function, a new preconfigured  ystem has been developed, which takes care of the dynamic synchronisation of colour variation corresponding to the time of day with the human biological clock (circadian  ycle). Each luminaire has a pre-set clock to synchronise the automatic cycle with the time of day as soon as the luminaire is connected: simply set the selector switch to HCL mode, the luminaire will recognise the time of day and provide the most suitable colour temperature. With the same selector, you can set the luminaire on the HCL or CCT  mode (2700K – 4000K – 6000K) and, in the SD Auto-dimmer version, the light output also takes into account the natural light input in the room.

SPECIAL VARIANTS

– on request
COLOUR TEMPERATURE 3000K and 6000K, 0-10V

ACCESSORIES – included

SD RADIO / 1 -10V INTERFACE	SMART DIMMER LIGHT SENSOR Order Code 15039

ACCESSORIES AND SPARE PARTS – to be ordered separately

SPARE PART PURIFICATION CARTRIDGE uvOxy ® Duration 12 months, at 24h/day use Order Code 26721	SanificaAria RADIO TRANSMITTER Radio control via  an external button, of one or more SanificaAria luminaires Order Code 20104SA

BUILDING AUTOMATION – to be ordered separately

LOGICA SD LGFM CONTROL UNIT Order Code 21102	BUILDING AUTOMATION RADIO TRANSMITTER Order Code 20104

EMERGENCY LED INVERTERS – to be ordered separately

INVERTER PLUG&LIGHT SE/SA 1-3h 20-60V Order Code 19358 (1h) Order  Code 19359 (3h) TR	INVERTER AT/LG AR 9W 55V Order Code 19355L (LiFe battery)	INVERTER GL AT/LG AR 15W 55V Order Code 19391 (LiFe battery) Order Code 19390 (LTO battery)	LGFM EMERGENCY MODULE For AT/LG series inverters only Order Code 19375

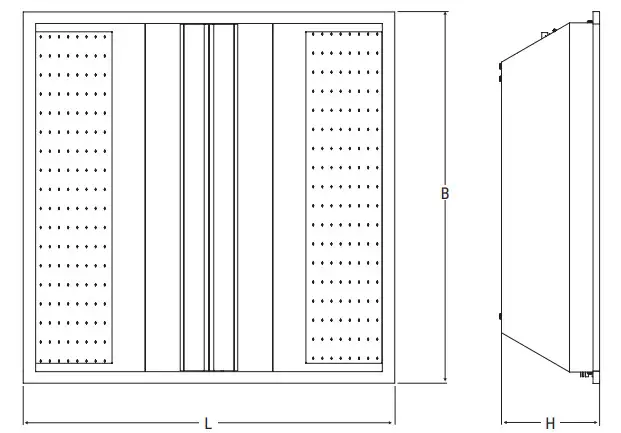

Modulo 600 SanificaAriaAriahttp://geltinternational.it/tecnal/beghelli

Applications
Service sector, public sector, offices, schools

Specifications of the Air Sanitizer

Power supply unit 230VAC ±10%, 50÷60Hz
Mounting Recessed on Module 600,
suspended with the steel cables supplied
Body Pre-galvanised sheet metal RAL
9003 matt

EXAMPLE OF SANITIZATION OF AIRIN AN ENVIRONMENT

REMOTE SANITISATION MANAGEMENT, VIA SD LOGICA FM CONTROL UNIT, OR LOCALLY, WITH THE DEDICATED APP

With the integration of the SD Logica Control Unit, the sanitisation system can be connected to a network. The main parameters to regulate the system are the 3 levels of fan speed and the operating time. The system can be accessed from the NuBe portal to adjust all parameters, even remotely.

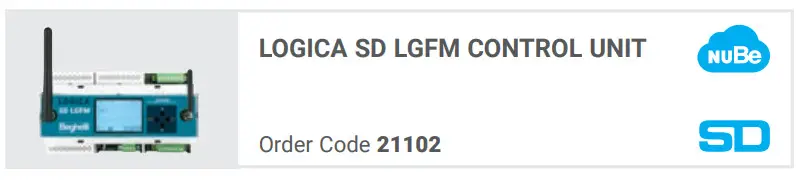

LOGICA SD LGFM CONTROL UNIT
Order Code 21102

The Sanifica Aria Beghelli BLE APP (Bluetooth local remote control) has been designed to locally control the sanitisation system built into the luminaire, with the utmost  simplicity. Using Bluetooth technology, the smartphone becomes a real remote control for the system, adjusting fan speed and setting the operating times of the air sanitizer.

ACCESSORIES AND SPARE PARTS – to be ordered separately

SPARE PART PURIFICATION CARTRIDGE uvOxy ® Duration 12 months, at 24h/day use Order Code 26721	SanificaAria RADIO TRANSMITTER Radio control via  an external button, of one or more SanificaAria luminaires Order Code 20104SA
