Product End of Life Instructions
FM/DAB/DIGITAL RADIO SET SYS M
End of Life Instructions
End of Life Instructions

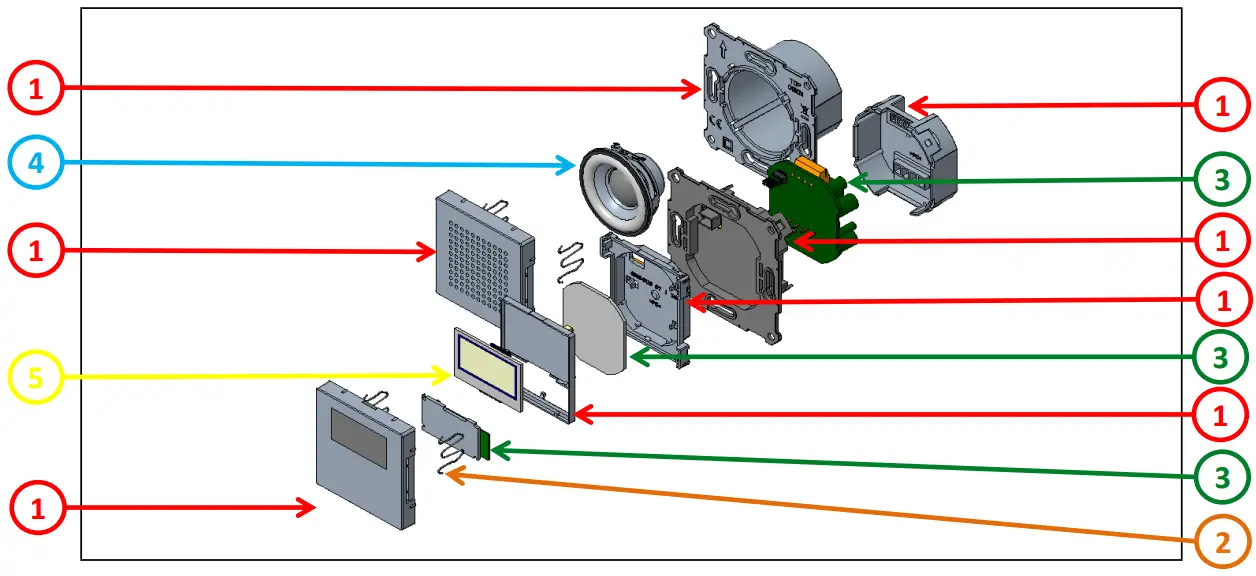

R+M9:Q21ecommendation | Number on drawing | Component /Material | Weight (ing) | Comment |
| To be dismantled | 1 | Front Base/PC | 6.5 | |
| To be dismantled | 1 | Front Cover/PC | 12 | |
| To be dismantled | 1 | Display-Holder/PC | 3.3 | |
| To be dismantled | 1 | Rear-Base/PC | 11 | |
| To be dismantled | 1 | LS-Base/PC | 27 | |
| To be dismantled | 1 | Rear-Cover/PC | 11 | |
| To be dismantled | 1 | LS-Cover/PC | 11 | |
| To be dismantled | 2 | W-Spring/Stainless steel | 0.72 | |
| To be depolluted | 3 | Electronic Board (Communication) > 10cm² | 7 | Main PCB |
| To be depolluted | 3 | Electronic Board (Communication) > 10cm² | 30 | Power PCB |
| To be depolluted | 3 | Electronic Board (Communication) > 10cm² | 4 | Touch PCB |
| To be depolluted | 4 | Loudspeaker | 33.5 | |
| To be depolluted | 5 | Display | 3 |
Product description
Product description| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |
| Product function | The main function of the Radio set is to receive DAB+FM radio programs. Furthermore, it can receive and play music streams via Bluetooth if another device is connected. |
| Product reference | MEG4375-0303 |
| Additional similar product references | MEG4375-0303 |
| The total representative product mass | 142 x 44 x 71 |
| Representative product dimensions | 155 g |
| Date of information release | 02/2021 |
Additional information
Additional information| Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed of according to the legislation of the country. This document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic information to assure an appropriate end-of-life treatment for the components and materials of the product. | |
| Recyclability potential | 7% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
