Where Creativity Meets Color!
DIXIE

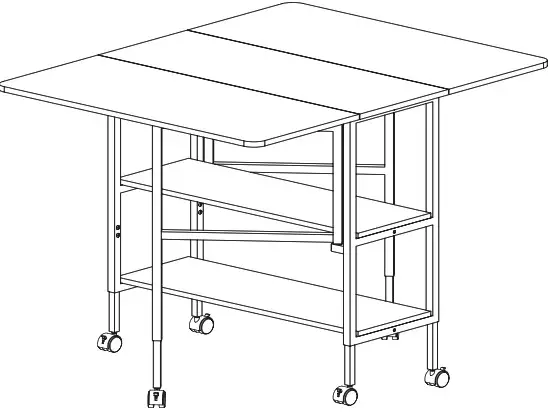

CUTTING TABLE
OWNER’S MANUAL
Assembly Instructions
Model Numbers:
3401 White
IMPORTANT: Please read these instructions before assembling!

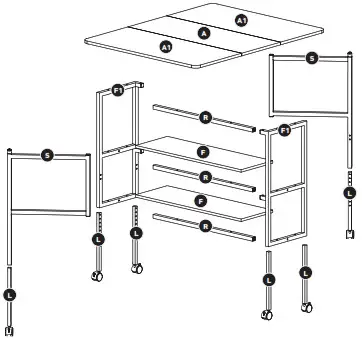

Parts List
| ITEM | DESCRIPTION | QTY. | PACK. |
| A | Top panel | 1 | 2 of 2 |
| A1 | Top leaf | 2 | 2 of 2 |
| F | Fixed shelf | 2 | 2 of 2 |
| F1 | Frame leg support | 2 | 1 of 2 |
| S | Side leg supports | 2 | 1 of 2 |
| L | Adjustable leg with casters | 6 | 1 of 2 |
| R | Rail | 3 | 1 of 2 |

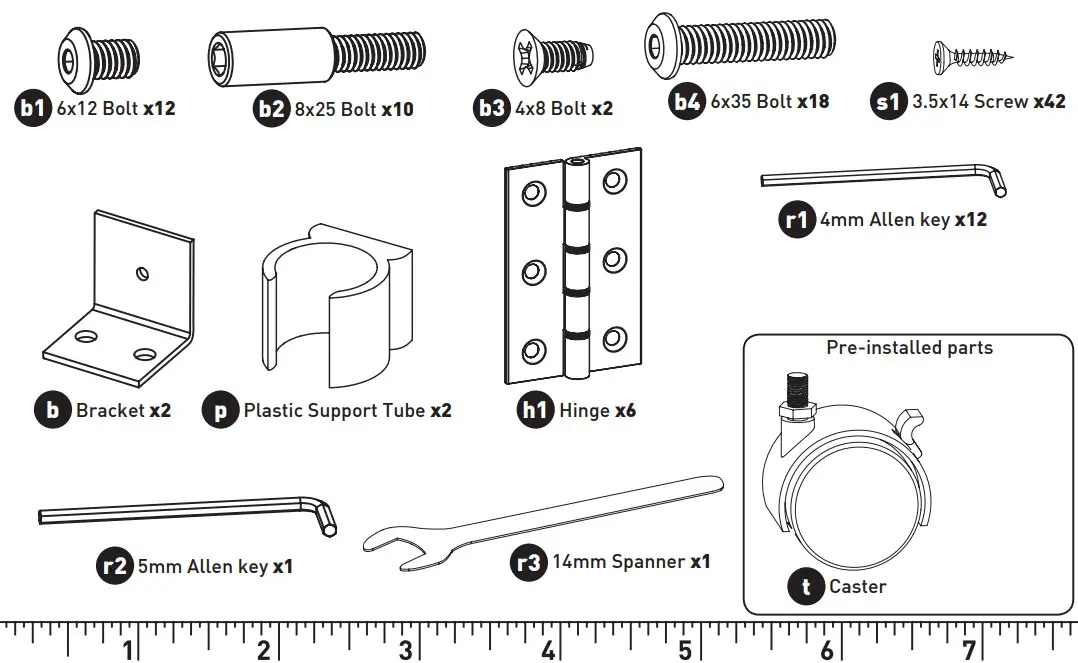

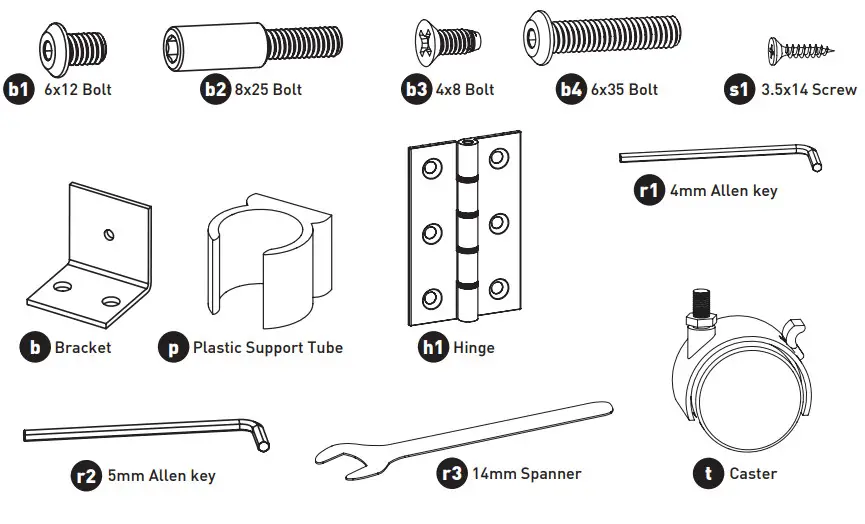

Hardware Included
| ITEM | DESCRIPTION | QTY. |
| b1 | 6×12 Bolt | 12 |
| b2 | 8×25 Bolt | 10 |
| b3 | 4×8 Bolt | 2 |
| b4 | 6×35 Bolt | 18 |
| B | Bracket | 2 |
| p | Plastic Support Tube | 2 |
| h1 | Hinge | 6 |
| r1 | 4mm Allen key | 1 |
| r2 | 5mm Allen key | 1 |
| r3 | 14mm Spanner | 1 |
| s1 | 3.5×14 Screw | 42 |
| t | Caster | 6 |
Tools required
Table Assembly

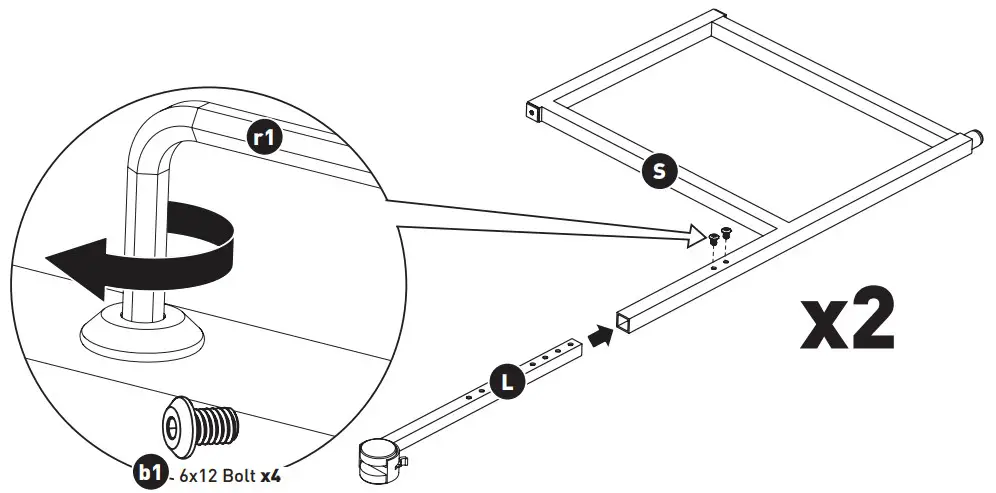

Step 2. Slide-in adjustable legs (L) into side legs support (S) to the desired height and lock using bolts (b1) with (r1) Allen key spanner as shown on the illustration below.

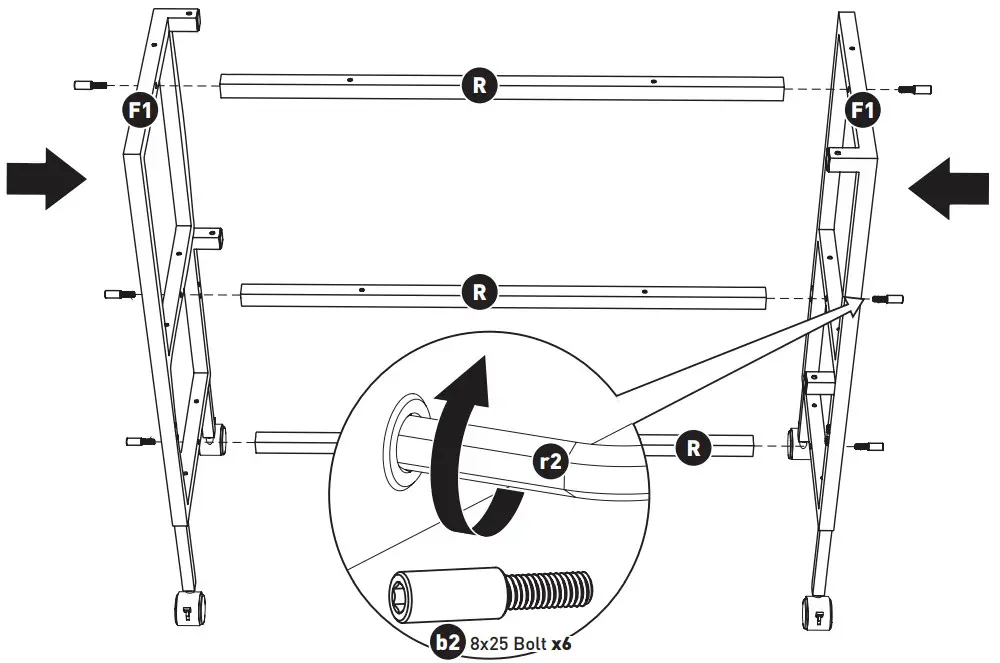

Step 3. Connect the two frame leg supports (F1) with three rails (R) using bolts (b2) using Allen key spanner (r2) as shown on the illustration below.
Step 4. Connect the two side leg supports (S) with leg frame assembly (F1) using bolts (b2) with Allen key spanner (r2) as shown on the
illustration below. Place the Fixed shelf (F) on the place and attach using bolts (b4) using Allen key spanner (r1)firmly as shown on the illustration below.

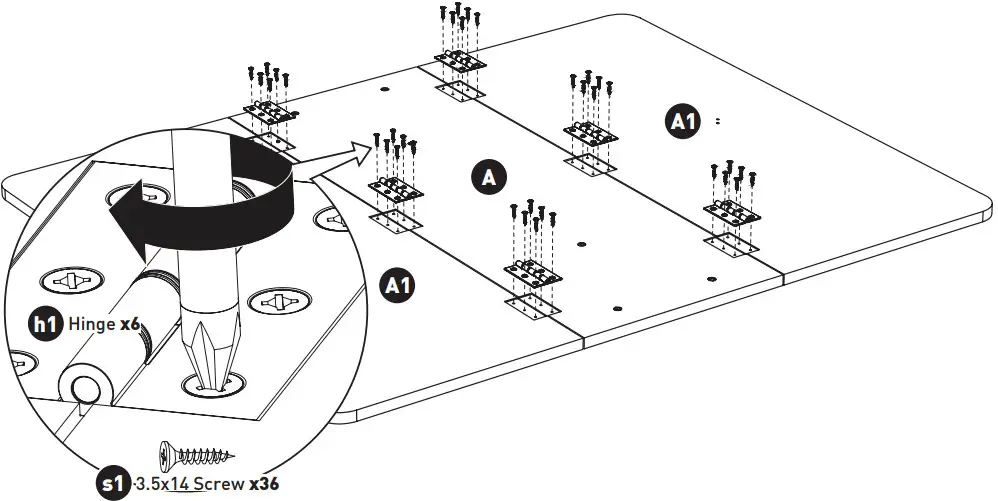

Step 5. Lay panels (A1), (A) on a clean soft surface.
Attach hinges (h1) with screws (s1) following the predrilled holes as shown on the illustration below.

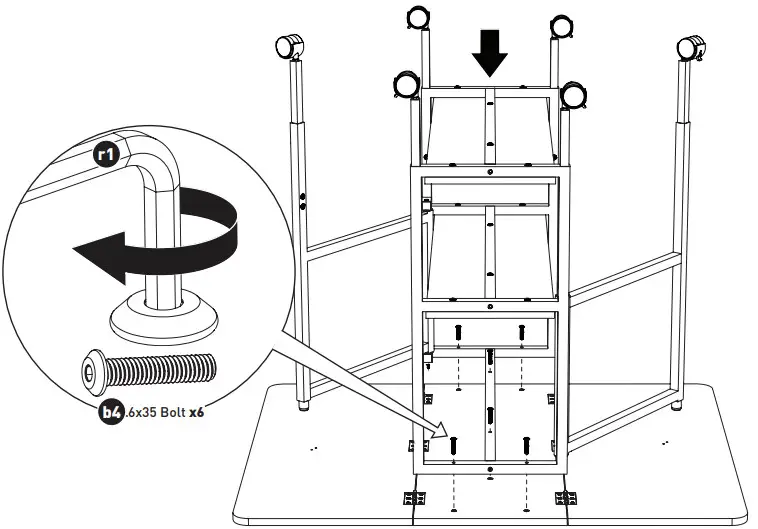

Step 6. Two people should flip and align entire leg assembly with holes on panels and attach using bolts (b4) using Allen key spanner (r1) firmly as shown on the illustration below.

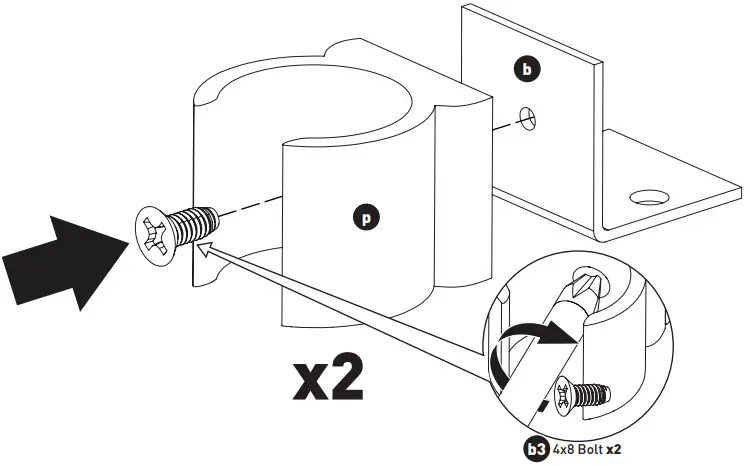

Step 7. Attach plastic support tube (p) with connector (b) using bolt (b3) firmly as shown on the illustration below.

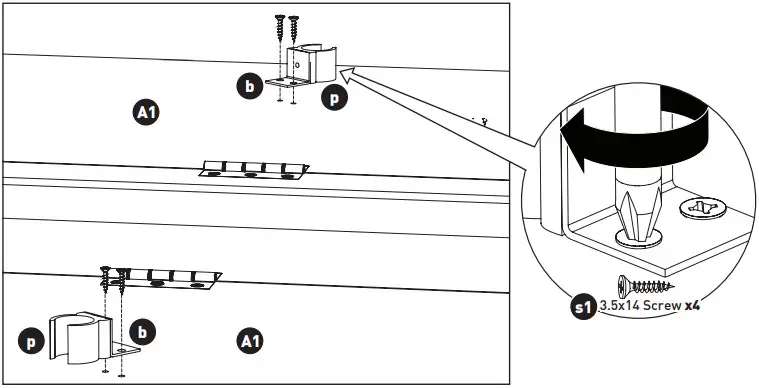

Step 8. Attach plastic support tube (p) and connector (b) assembly with screws (s1) firmly on both sides (A1) following the predrilled holes as shown on the illustration below.

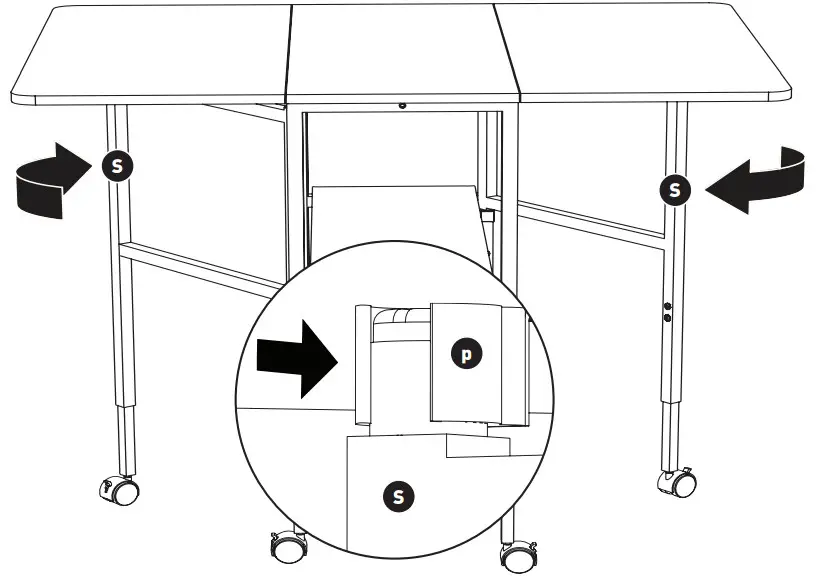

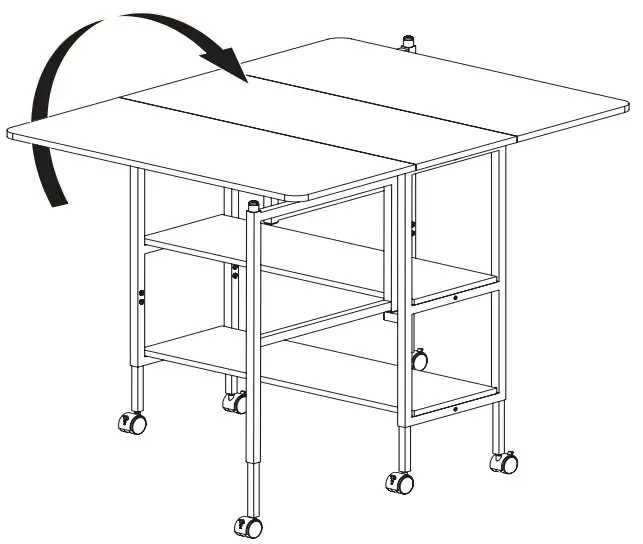

Two people should flip the entire assembly and make sure all legs contact the ground and side leg supports are properly snapped to its connectors on both side before use.

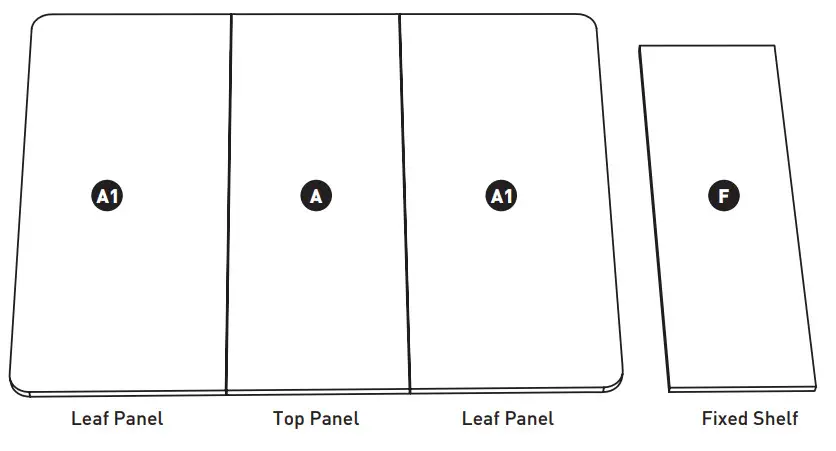

Wood Parts and Part Numbers
| Ref. | Description | Part# |
| Cabinet Model# | 3401 (White) | |
| A | Top Panel | 3401 PART |
| Al | Leaf Panel | 3401A1 |
| F | Fixed Shelf | 3,401 F |
| Fl | Frame Leg Support | 3401F1 |
| S | Side Leg Support | 3401S |
| L | Adjustable Leg with Caster | 3401L |
| R | Rail | 3401R |
Hardware Included with Part Numbers
| Item | Description | Part No. |
| B1 | 6×12 Bolt | 3401B1 |
| B2 | 8×25 Bolt | 3401B2 |
| B3 | 4×8 Bolt | 3401B3 |
| B4 | 6×35 Bolt | 3401B4 |
| B | Bracket | 3401B |
| p | Plastic Support Tube | 3401P |
| H1 | Hinge | 3401H1 |
| R1 | 4mm Allen Key | 3401R1 |
| R2 R3 | 5mm Allen Key | 3401 R2 |
| 14mm Spanner | 3401R3 | |
| S1 | 3.5×14 Screw | 340151 |
| T | Caster | 3401T |
Accessories to Complete Your Sewing Experience

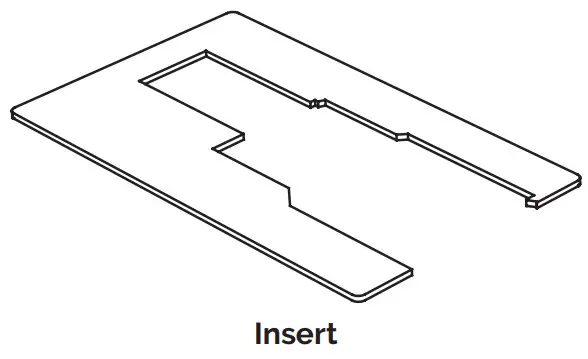

Custom Insert
