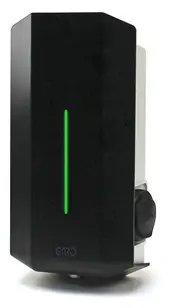

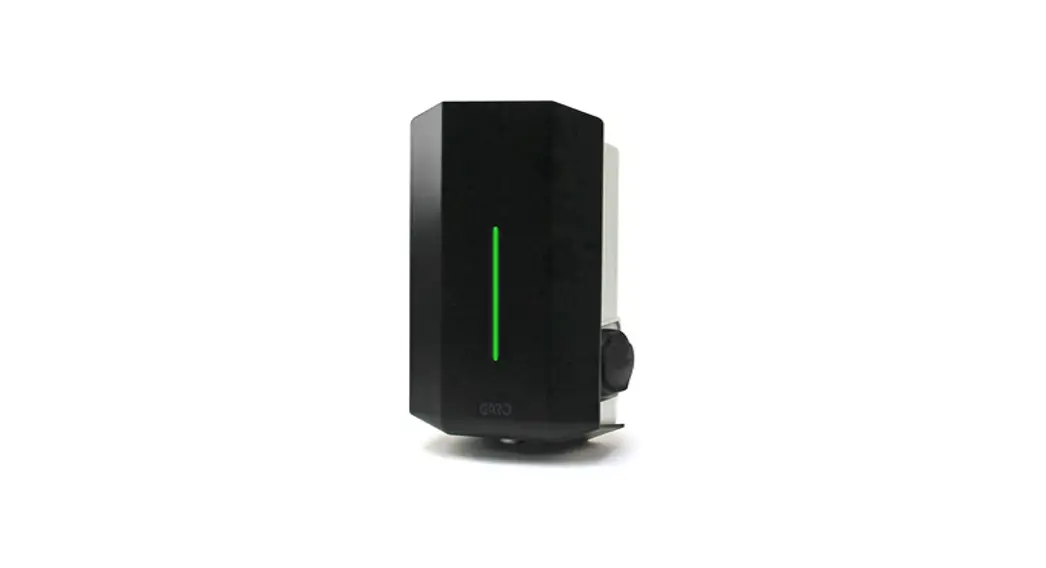

Domestic Wall mounted Charger GLB (OLEV approved)
Type: GLBBDCMT274WOLPE
GLBBDCMT274 Domestic Wall-mounted Charger GLB (OLEV approved)
GLB-DCM-T274 WOL
| Charging Mode | Mode 3 |
| Socket or Tethered Lead | Socket (type 11) |
| AC Output Current (A) | 6,10,16,20,25,32 |
| Power outlet [kW] | 3.7KW,7.4KW |
| Rated voltage [V AC] | 230 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -25…+40 |
| Degree of protection (IP) | 44 |
| Weight (KG) | 3.2 |
| Location | Wall or GLB Stand |
| DC Monitoring | Standard |
| PEN Fault Isolation | Standard |
| Load management | Yes, with GNM1D-100-rs485 |
| Local Meter | Standard |
| Communication | Local Area Network |
| RFID | Option |
| Protocol | Full OCPP 1.5/1.6 |
| Certification | EN 61851-1, IEC 61439-7 |
| document Declaration of conformity | edition date5/4/2015 | |
| department Quality prepared | ||
| Kent Andersson | Version4 | page of 1 |
Manufacturer
GARO AB
Box 203
S-335 25 GNOSJO
Sweden
Telephone: +46 (0)370 33 28 00
Telefax: +46 (0)370 33 28 50
Agent established within EC
Telephone:
Telefax:
Agent of equipment: Electric Charging Station for EV
Trade Mark: GARO
Type Designation
| GARO Home Charger GARO Home Charger GARO Home Charger | _product code: GLB-T222 _product code: GLBDC-T222 _product code: GLB-B-DCM T2-7.4 – 22 | WO, B, FC WO, FC WO A – R – LAN – MC |
We hereby declare that our product fulfils the requirements of following EC directives
⊠ The Low Voltage Directive (LVD) 2014/35/EU
⊠ Electromagnetic compatibility (EMC) 2014/30/EU
⊠ RoHS Directive (RoHS) 2011/65/EU / RoHS direktivet (RoHS) 2011/65/EU.
□ No electromagnetic compatibility (EMC 2014/30/EU) immunity or emission tests are required on the assembly
The following harmonized standards (latest edition) or technical specifications which comply with good engineering practice in safety matters in force within the EC have been used in the design:
⊠ The equipment conforms completely with the above-stated harmonized standards or technical specifications.
Or
The equipment confirms only partially with the above-stated harmonized standards or technical specifications but complies with good practice in safety matters in force within the EC.
We have product surveillance according to CENELEC’s harmonized requirements, and documents CCA-201.
2016-05-12
Date/Datum
Responsible for Technology and standardization/Teknik och standard diseringsansvarig Position
Kent Andersson
Sign in printed letters
