D-219
Operating Manual
FM1-2/AM/SW1-9
11 BANDS WORLD RECEIVER

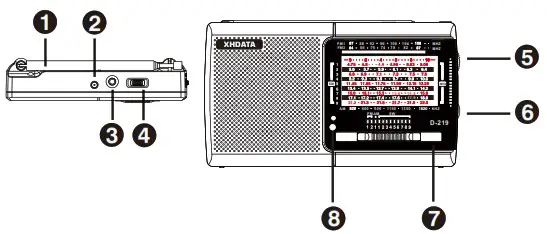

FUNCTION OF KEYS
| 1. Antenna 2. Dc jack (5V) 3. Earphone jack 4. Power on/off | 5. Tuning knob 6. Volume button 7. Band selector(FM/AM/SW1-9) 8. Power light |
USING THE RADIO
- POWER ON/OFF .VOLUME
• Turn the radio on by switch the power on/off switch (4).
• Use the volume knob(6)to adjust the volume. - LISTEN TO FM
• Select the FM band by using the band selector switch(7).
• Use the tuning knob(5),tune the radio to the desired frequency. - LISTEN TO AM/SW1-9
• Select the desired band(AM/SW1-9) by using the band selector switch(7).
• Turn the tuning knob(5) to the desired frequency. - ANTENNA
• For AW, the receiver uses the internal antenna for the AM band.
• Rotate the reviver for best reception.
• For FM/SW, fully extend the antenna (1) and rotate it for the best reception.
PRECAUTIONS
- Do not use any abrasive powder to clean the cabinet. Wipe it with a soft cloth moistened with a mild soap and water solution.
- Must escape from burning and impact.
- Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight ,excessive dust or mechanical shock.
- If the sound becomes low or distorted, replace all the batteries with new. Do not use old and new batteries together.
- If the set is not used for a long time, remove all the batteries to prevent to possible battery leakage
SPECIFICATIONS
FM 1: 87-108MHZ
FM 2: 64-87MHZ
AM: 522-1620KHZ
SW1-9: 4.75-22.0MHZ
DC IN:
5V/300mA
DC : 3V (UM3 AA 1.5V X2)
