B6505 and B6510 FC SAN Switches
User Guide

B6505 and B6510 FC SAN Switches

The Lenovo B6505 and B6510 FC SAN Switches (Machine Type 3873) provide exceptional price/performance value by delivering market-leading 16 Gb Gen 5 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality that supports highly virtualized environments to meet the demands of hyper-scale, private cloud storage. Designed to enable maximum flexibility and reliability, the Lenovo B6505 and B6510 are compact 1U rackmount switches that offer low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment.
The Lenovo B6505 offers up to 24 ports (12 ports licensed by default; the remaining 12 ports can be licensed by purchasing a 12-port license pack), and the Lenovo B6510 offers up to 48 ports (24 ports licensed by default; the remaining ports can be licensed in 12-port increments). Lenovo FC SAN switch ports support 2/4/8/16 Gbps speeds to deliver easy integration into the existing SAN environments while realizing the benefits of Gen 5 Fibre Channel connectivity.
The switches offer a rich set of standard features with the options to expand their capabilities as needed. The Lenovo B6505 and B6510 feature the EZSwitchSetup wizard and can be configured in Access Gateway Mode to simplify deployment. The switches provide full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection. The following figure shows the Lenovo B6510.

Did you know?
The Lenovo B6505 and B6510 leverage storage connectivity technologies from Brocade, the market share leader in Fibre Channel networking that is deployed in 90% of the Fortune 1000 data centers. The Lenovo B6505 and B6510 offer dual functionality as either a full-fabric SAN switch or as a N_Port ID Virtualization (NPIV)-enabled Access Gateway that simplifies server connectivity. Fabric Vision technology, an extension of Gen 5 Fibre Channel, provides unprecedented insight and visibility across the SAN with powerful built-in monitoring, management, and diagnostic tools. With Lenovo FC SAN Switch offerings, Lenovo can be your trusted partner that offers “one-stop shop” and single point of contact for the delivery of leading-edge technologies and innovations from Lenovo and other leading IT vendors. These offerings can satisfy the wide range of your end-to-end IT infrastructure needs, including end-user devices, servers, storage, networking, services, management software, and financing.

Key features

The Lenovo B6505 and B6510 FC SAN switches offer the following features and benefits:

• Provide exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in a 24-port (B6505) or 48-port (B6510) switch
• Deliver up to 24 ports (B6505) or 48 ports (B6510) of 16 Gbit/sec performance in an energy-efficient, optimized 1U form factor to support the most demanding server and cloud deployments.
• Consume less than 3.3 watts (B6505) or 2.3 watts (B6510) of power per 16 Gbps port for exceptional power and cooling efficiency.
• Simplify configuration and management with easy-to-use EZSwitch Setup.
• Enable “pay-as-you-grow” scalability from single-switch fabric to full-fabric enterprise capabilities with
• Ports On Demand scalability from 12 or 24 to 24 or 48 ports in 12-port increments.
• Optimize fabric behavior and ensure sufficient bandwidth for mission-critical applications with advanced traffic management capabilities and adaptive networking.
• Offer dual functionality as either a full-fabric SAN switch or as an NPIV-enabled Access Gateway (requires 24 ports [B6505] or 48 ports [B6510] be licensed) that enhances fabric scalability and simplifies management.
• Protect existing device investments with auto-sensing 2 (8 Gb SFP+ modules only), 4, 8, and 16 Gbit/sec capabilities and native operation with Brocade and Brocade M-Series fabrics.
• Run Fabric OS, which delivers distributed intelligence throughout the network and enables a wide range of value-added features.
• Leverage Fabric Vision technology’s powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs.
• Supply a rich set of standard features at no extra cost, including fabric services, advanced zoning, adaptive networking, full fabric and access gateway operations, and diagnostic tools.
• Expand fabric capabilities with optional licensed functions, including trunking, advanced monitoring and alerting, long-distance fabrics, FC-FC routing (B6510 only), and integrated 10 Gb FC (B6510 only).
• Compress and encrypt in-flight data on up to two ports for more efficient link utilization and higher security (B6510 only).
• Virtualize physical FC SAN switches and fabrics into logical entities for better flexibility, utilization, management, and efficiency (B6510 only).
• Allow organizations to seamlessly integrate Gen 5 Fibre Channel networks with the next generation of flash storage – NVMe over Fibre Channel – by being NVMe-ready, without a disruptive rip and replace, to achieve faster application response times and harness the performance of solid state drives for better
  scalability across virtual data centers with flash storage.
• Maximize resiliency with non-disruptive firmware upgrades and redundant hot-swap power supplies.
• Accelerate troubleshooting with built-in advanced diagnostics tools featuring ClearLink Diagnostics with
• D_Ports on 16 Gb FC optics and select adapters from QLogic and Emulex.

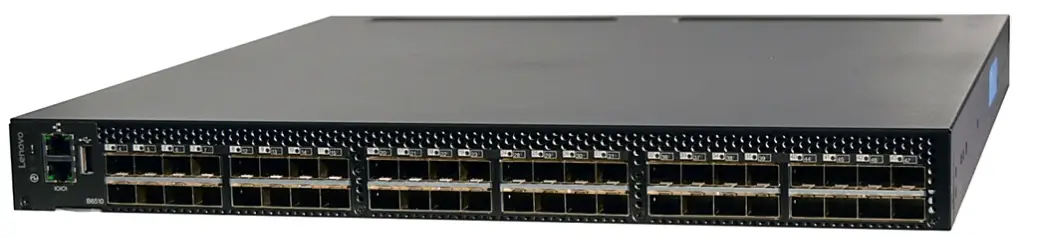

The following figure shows the Lenovo B6505.

Figure 2. Lenovo B6505

Components and connectors

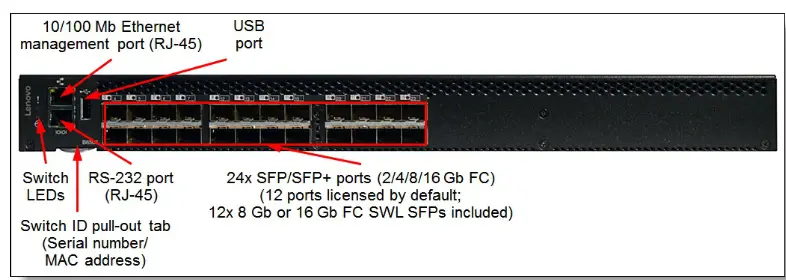

The following figure shows the port-side view of the Lenovo B6505.

Figure 3. Lenovo B6505 port-side view
The following figure shows the port-side view of the Lenovo B6510.

Figure 4. Lenovo B6510 port-side view
The following figure shows the non-port side view of the Lenovo B6505 and B6510.

figure 5. Lenovo B6505 and B6510 non-port-side view

System specifications

The following table lists the Lenovo B6505 and B6510 system specifications.
Table 1. System specifications

Models
The following table lists the Lenovo B6505 and B6510 models.
Table 2. Lenovo B6505 and B6510 models

The Lenovo B6505 and B6510 part numbers include the following items:

• One FC SAN Switch
• B6505: With 12 ports licensed and 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers included
• B6510: With 24 ports licensed and 24x 8 Gb or 16 Gb FC SWL SFP+ transceivers included
• With 1-year (Models HC8 and HC9) or 3-year (Model s HC5 and HC6) firmware entitlement
• Serial cable (DB-9/RJ-45 to RJ-45)
• Rubber feet for setting up the switch as a standalone unit
• Fixed rack mount kit
• EZSwitch Setup CD
• Lenovo B6505 or B6510 QuickStart Guide
• Access Gateway Quick Start Guide
• Documentation CD
• Warranty information

Note: The switches come standard without power cords; one or two power cables must be purchased together with the switch (see “Power supplies and cables” for details).
The Lenovo B6505 comes standard with 12 licensed ports and with 12x 8 Gb or 16 Gb FC SWL SFP+ Transceivers. The remaining 12 unlicensed ports can be activated by purchasing and installing the Ports on Demand (POD) bundle that includes licenses for 12 ports and 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers. By default, ports 0 through 11 are enabled on the Lenovo B6505. To enable ports 12 through 23, install a POD license key. The Lenovo B6510 comes standard with 24 licensed ports and with 24x 8 Gb or 16 Gb FC SWL SFP+ transceivers. The remaining 24 unlicensed ports can be activated in 12-port increments by purchasing and installing the Ports on Demand (POD) bundles that include licenses for 12 ports and 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers. By default, ports 0 through 23 are enabled on the Lenovo B6510. To enable ports 24 through 35, install a POD license key. To enable ports 36 through 47, install another POD license. The following table lists additional POD bundles for the Lenovo B6505 and B6510. Table 3. POD bundle options.

If needed, the Lenovo B6505 and B6510 can be mounted in a 2-post rack cabinet by using the optional mid-mount rack kit that is listed in the following table. Table 4. Rack- ount options.

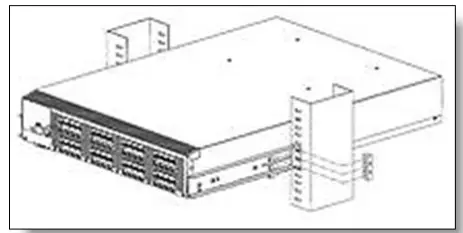

The optional mid-mount rack kit for the Lenovo B6505 and B6510 is shown in the following figure.

Figure 6. Lenovo B65xx Mid-mount Rack Kit

Transceivers and cables

The Lenovo B6505 comes with 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers, and the Lenovo B6510 comes with 24x 8 Gb or 16 Gb FC SWL SFP+ transceivers. The optional 12-port POD bundles for the Lenovo B6505 come with 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers, and the optional 24-port POD bundles for the Lenovo B6510 come with 24x 8 Gb or 16 Gb FC SWL SFP+ transceivers. Additional SWL, LWL, and  EWL SFP+ transceivers can be ordered for the switches if needed. The following table lists the supported SFP+ options and optical cables. Table 5. Supported SFP+ transceivers and optical cables.

* When using ELW SFP+ transceivers over distances over 10 km, the Extended Fabric feature is required on a SAN switch to drive the maximum bandwidth over the extended links (see Table 7 for ordering information).
The following table lists the cabling requirements for the switch.
Table 6. Lenovo B6505 and B6510 cabling requirements

Firmware
The Lenovo B6505 and B6510 come standard with the following features:

• Advanced Fabric Services
  -Full Fabric mode: Enables high-performance 8 Gb or 16 Gb switching in multi-switch fabric.
  – Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning)
  – Dynamic fabric provisioning (DFP): Fabric-assigned port World Wide Names (FA-PWWNs).
  – Dynamic path selection (DPS): Distributes input traffic across multiple paths proportionally to the
  – bandwidth of each path.
  – Dynamic load sharing (DLS): Distributes traffic across multiple equivalent paths between switches.
  – Fabric Shortest Path First (FSPF)
  – Buffer-to-Buffer (BB) credit flow control
  – Enhanced BB credit loss recovery
  – Fabric Device Management Interface (FDMI)
  – Frame order delivery
  – Frame redirection
  – FC login services
  – Registered State Change Notification (RSCN)
  – Reliable Commit Service (RCS)
  – Simple Name Server (SNS)
  – Fibre Channel Authentication Protocol (FCAP) switch authentication
  – Management Server (MS): Assists in the auto-discovery of switch-based fabrics.
  – In-flight compression on up to two ports (Lenovo B6510 only)
  – In-flight encryption on up to two ports (Lenovo B6510 only)
• Adaptive Networking:
  – Bottleneck detection: Identifies devices attached to the fabric that are slowing down traffic.
  – Ingress rate limiting: Restricts the speed of traffic from a particular device to the switch port.
  – Traffic isolation zoning (TIZ): Creates a dedicated path for traffic flowing from a specific set of source ports (F_Ports).
  – Quality of Service (QoS): SID/DID traffic prioritization
• Virtualization
  – N_Port ID virtualization (NPIV): Enables a single FC port to appear as multiple, distinct ports with separate port identification within the fabric.
  – Access Gateway: Leverages NPIV to connect to any fabric without adding switch domains to reduce management complexity.
  – Virtual Fabrics (Logical Switch, Logical Fabric): Allows SAN design and management at the granularity of a port (Lenovo B6510 only).

• management
  – IPv4 and IPv6 addressing
  – Firmware upload and download
  – Hot code load and activation
  – Network Time Protocol (NTP) v3
  – EZ Switch Setup Wizard
  – Command line interface (CLI)
  – Web Tools
  – Brocade SANnav Management Portal and SANnav Global View (purchased separately)
  – Brocade Network Advisor (purchased separately)
  – SNMPv1, SNMPv3, and MIBs
  – SMI-S compliant
  – Syslog
• Security
  – Local switch user accounts
  – LDAP, RADIUS, TACACS+ user authentication
  — Role-based access control (RBAC)
  –  Administrative Domains: Partition the fabric into logical groups and allocate administration of these groups to different user accounts
  –  IP Security (IPsec)
  –  IP filtering
  –  HTTPS
  –  Secure Copy (SCP)
  –  Secure RPC
  –  Secure FTP (SFTP)
  –  Secure Shell (SSH) v2
  –  Secure Sockets Layer (SSL)
  –  Federal Information Processing Standards (FIPS) 140-2 L2-compliant
• Advanced Diagnostic Tools
  – Power-on self-test (POST)
  –  MAPS basic monitoring: Monitors system resources and overall switch health status.
  –  Event logging
  — Environmental monitoring
  – FCping
  – Pathinfo (FC traceroute)
  – Non-disruptive daemon restart
  – Port mirroring
  – Port fencing: Disables a port if specified error conditions are met.
  – RAS trace logging
  – ClearLink Diagnostics with Diagnostic Port (D_Port) (16 Gb optics only): Helps ensure optical and signal integrity for Gen 5 Fibre Channel optics and cables.
  – Optics health monitoring
  – Power monitoring
  – Rolling Reboot Detection (RRD)

The following optional features are available for the Lenovo B6505 and B6510:

• ISL Trunking: Allows frame-based consolidation of up to 8 inter-switch links (ISLs) into fault-tolerant and load-balanced trunks with a bandwidth of up to 128 Gbps.
• Fabric Vision
• Extended Fabric: Extends Fibre Channel SANs beyond 10 km distance limitations for replication and backup at full bandwidth. Integrated Routing (Lenovo B6510 only):
• The FC-FC routing service provides Fibre Channel routing between two or more fabrics without merging those fabrics. Integrated 10G FC License (Lenovo B6510 only):
• Allows 10 Gb FC operations on up to eight 16 Gb FC ports for metro connectivity by directly utilizing a fiber-optic cable between sites or by creating multiple channels on an optical cable between sites, utilizing Wave Division Multiplexing (WDM) technology (the Extended Fabric license is NOT required for long distance 10 Gb FC connectivity).

The following table lists ordering information for the optional features for the Lenovo B6505 and B6510 (one license per switch).
Table 7. Optional features

* Enterprise Bundle includes ISL Trunking, Fabric Vision, and Extended Fabric licenses.
Firmware entitlement is included with the Lenovo B6505/B6510 and provides 3-year (Model s HC5 and HC6) o 1-year (Models HC8 and HC9) firmware support. The options to extend the entitlement up to 7 years in 1-year or 2-year increments are available for Models HC5 and HC6. The firmware entitlement is included in the warranty service upgrades for Models HC8 and HC9.
The Integrated 10G FC License (7S0C000AWW) comes with its own 1-year firmware support entitlement. The options to extend entitlement for additional years of firmware support for the Integrated 10G FC feature are listed in the following table.
Table 8. Firmware support extension options for Integrated 10G FC License

Ordering information for the firmware entitlement and support extension options for Model s HC5 and HC6 is listed in the following table.
Table 9. Firmware entitlement and support extension options for Model s HC5 and HC6

Management Software

Lenovo offers optional Brocade SANnav™ Management Portal and SANnav Global View software license subscriptions that provide comprehensive visibility into the SAN environment, allow administrators to quickly identify, isolate, and correct problems, and accelerate administrative tasks by simplifying and automating workflows. SANnav Management Portal is a next-generation SAN management application with a simple browser-based user interface (UI) and with a focus on streamlining common workflows, such as configuration, zoning, deployment, monitoring, troubleshooting, reporting, and analytics. Lenovo offers the following SANnav Management Portal subscriptions:

• SANnav Management Portal Base: Designed for mid-sized SANs to manage up to 600 SAN switch ports only (SAN director ports can only be managed with the Enterprise edition).
• SANnav Management Portal Enterprise: Designed for enterprise-class SANs to manage up to 15 000 SAN switch and director ports.

SANnav Management Portal supports all Brocade SAN switches and platforms that run the Fabric OS® version 7.4 or above, including Lenovo B300, B6505, B6510, DB610S, DB620S, DB400D, DB720S, DB800D, Brocade Directors, and FC5022. With SANnav Global View, administrators can quickly visualize the health, performance, and inventory of multiple SANnav Management Portal instances using a simple, intelligent dashboard and can easily navigate from a global view down to local environments to investigate points of interest. SANnav Global View is designed to manage up to 20 SANnav Management Portal instances.
For more information, refer to the SANnav Management Portal documentation: http://www.broadcom.com/products/fibre-channel-networking/software/sannav-managementportal#documentation
The following table lists ordering information for the optional SANnav Management Portal and SANnav Global View management tools. Table 10. SANnav Management Portal and SANnav Global View subscription licenses

The SANnav licenses are subscription-based with 1-year, 3-year, or 5-year software entitlement and support.

Fibre Channel standards
The Lenovo B6505 and B6510 support the following standards:

Power supplies and cables

The Lenovo B6505 and B6510 support up to two redundant hot-swap 150 W AC power supplies. Each power supply has an IEC 309-C14 connector. The Lenovo B6505 comes standard with one power supply, and the Lenovo B6510 comes standard with two power supplies. The following table lists ordering information for the optional power upply for the Lenovo B6505.Table 11. Power supply for the Lenovo B6505.

The switches come standard without a power cord; one or two rack power cables or line cords must be ordered together with the switch depending on the number of power supplies in the switch (see the following table).
Table 12. Part numbers and feature codes for ordering power cords

Physical specifications
The Lenovo B6505 and B6510 have the following dimensions and weight (approximate):

• Height: 43 mm (1.7 in.)
• Width: 438 mm (17.2 in.)
• Depth: 443 mm (17.4 in.)
• Weight (without SFPs):
• Lenovo B6505 (with one power supply): 7.8 kg (17.3 lb)
• Lenovo B6510 (with two power supplies): 9.2 kg (20.2 lb)

Operating environment
The Lenovo B6505 and B6510 are supported in the following environment:

• Air temperature:
• Operating: 0°C to 40°C (32°F to 104°F)
• Non-operating: -25°C to +70°C (-13°F to 158°F)
• Maximum altitude: Operating: 3,000 m (9,842 ft) Non-operating: 12,000 m (39,370 ft)
• Humidity: Operating: 10% to 85% at 40°C (104°F) Non-operating: 10% to 90% at 70°C (158°F)
• Electrical power:
  Voltage range: 100 V AC – 240 V AC (nominal) Frequency: 50 Hz – 60 Hz (nominal)
• Power consumption:
• Lenovo B6505: Idle: 60 watts/ Maximum: 80 watts
• Lenovo B6510: Idle: 72 watts/Typical: 110 watts/Maximum: 123 watts
• Heat dissipation: Lenovo B6505 (maximum): 338 BTU per hour /Lenovo B6510 (typical): 375 BTU per hour Lenovo B6510 (maximum): 420 BTU per hour Acoustical noise emission: 70 dB.

Warranty and support

The Lenovo B6505’s and B6510’s hardware has a one-year Customer Replaceable Unit (CRU), parts-only warranty with standard call center support during normal business ours, and 9×5 Next Business Day Parts Delivered. Lenovo’s additional support services provide a sophisticated, unified support structure for a customer’s data center, with an eexperience consistently ranked number one in customer satisfaction worldwide. The following Lenovo support services are available:

• Premier Support provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities:
  – Direct technician-to-technician access through a dedicated phone line.
  – 24x7x365 remote support.
  – Single point of contact service.
  – End to end case management.
  – 3rd Party collaborative software support.
  – Online case tools and live chat support.
  – On-demand remote system analysis.
• Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of your systems:
  – 1, 3, or 5 years of warranty service coverage.
  – 1-year or 2-year post-warranty extensions.
  – Foundation Service: 9×5 service coverage with next business day onsite response.
  – Essential Service: 24×7 service coverage with a 4-hour onsite response or 24-hour committed repair (available only in select regions).
  – Advanced Service: 24×7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions).
• Managed Services Lenovo Managed Services provide continuous 24×7 remote monitoring (plus 24×7 call center availability) and proactive management of a customer’s data center using state-of-the-art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals. Quarterly reviews check error logs, and verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of latest patches, critical updates, and firmware levels, to ensure customers’ systems are providing business value through optimized performance.
• Technical Account Management (TAM) A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customers’ business. Customers gain direct access to a Lenovo TAM, which serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationship with Lenovo to make certain that customers’ needs are met.
• Health Check Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and businesses are always running at their best. Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovosupported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.

Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining region-specific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty.
If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for the replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty. If warranty terms include a parts-only base warranty, Lenovo is responsible for delivering only replacement parts that are under base warranty (including FRUs) that will be sent to a requested location for self-service.
Parts only service does not include a service technician being dispatched onsite. Parts must be changed at customer’s own cost and labor and defective parts must be returned following the instructions supplied with the spare parts. Lenovo support services are region-specific. Not all support services are available in every region. For information about Lenovo support services that are available in a specific region, refer to the following resources:

• Service part numbers in Data Center Solution Configurator (DCSC): http://dcsc.lenovo.com/#/services
• Lenovo Services Availability Locator
  https://lenovolocator.com/
• For service definitions, region-specific details, and service limitations, refer to the following documents: Lenovo Statement of Limited Warranty for Infrastructure Solutions
• Group (ISG) Servers and System Storage
  http://pcsupport.lenovo.com/us/en/solutions/ht503310
• Lenovo Data Center Services Agreement http://support.lenovo.com/us/en/solutions/ht116628

Services

Lenovo Services is a dedicated partner to customer success. Lenovo’s goal for customers is to reduce capital outlays, mitigate IT risks, and accelerate time to productivity.
Here is a more in-depth look at what Lenovo can do for its customers:

• Asset Recovery Services
  Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering the total cost of ownership for customers.
• Assessment Services
  An assessment helps solve customer IT challenges through an onsite, multi-day session with a Lenovo technology expert. Lenovo performs a tools-based assessment which provides a comprehensive and thorough review of a company’s environment and technology systems. In addition to the technology-based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations, no matter how large or small, get a better return on their IT investment and overcome challenges in the ever-changing technology landscape.
• Design Services
  Professional Services consultants perform infrastructure design and implementation planning to support customers’ strategies. The high-level architectures provided by the assessment service are turned into low-level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.
• Basic Hardware
  Installation Lenovo experts can seamlessly manage the physical installation of customer’s server, storage, or networking hardware. Working at a time convenient for the customer (business hours or off shift), the technician will unpack and inspect the systems on customer site, install options, mount in a rack cabinet, connect to power and network, check and update the firmware to the latest levels, verify operation, and dispose of the packaging, allowing customers to focus on other priorities.
• Deployment Services
  When investing in new IT infrastructures, customers need to ensure that their business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know Lenovo products and solutions better than anyone else, and Lenovo technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure and integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage Lenovo skills to enable IT staff to transform with higher-level roles and tasks.
• Integration, Migration, and Expansion Services
  Integration, Migration, and Expansion Services allow to move existing physical and virtual workloads easily or to determine technical requirements to support increased workloads while maximizing performance. These services include tuning, validation, and documenting ongoing run processes, and they leverage migration assessment planning documents to perform necessary migrations.

Some service options may not be available in every country. For more information about Lenovo service offerings that are available in a specific country or area, contact a local Lenovo sales representative or business partner.

Regulatory compliance

The Lenovo B6505 and B6510 conform to the following regulations:

• Electromagnetic compatibility
  – FCC Part 15, Subpart B (Class A)
  – EN 55022 (Class A)
  – EN 55024
  – ICES-003 (Class A)
  – VCCI (Class A)
  –  KN22 and KN24
  – GB 9254-2008
  – CNS 13438
  – CISPR22
• Safety
  – UL/CSA 60950-1
  – EN 60950-1
  – IEC 60950-1
  – GB 4943.1-2011
  – CNS 14336-1:99
  – EU RoHS

Fibre Channel SAN switches
The following table lists the FC SAN switches that are offered by Lenovo that can be used with the Lenovo B6505 and B6510 in FC SAN solutions. Note: Information provided in this section is for ordering reference purposes only. End-to-end storage configuration support must be verified through the interoperability matrix for a particular storage system that can be found on the Lenovo Data Center Support website: http://datacentersupport.lenovo.com
Table 13. FC SAN switches

For more information, see the list of Product Guides in the following categories:

• Rack-mount SAN switches http://lenovopress.com/storage/switches/rack
• Embedded SAN switches http://lenovopress.com/storage/switches/embedded

External storage systems
The following table lists the external storage systems that are currently offered by Lenovo that can be used in Lenovo FC SAN storage solutions.
Note: Information provided in this section is for ordering reference purposes only. End-to-end storage configuration support must be verified through the interoperability matrix for a particular storage system that can be found on the Lenovo Data Center Support web site: http://datacentersupport.lenovo.com
Table 14. External storage systems: DE Series

Table 15. External storage systems: DM Series

* Available only in EMEA.
Table 16. External storage systems: DS Series

Table 17. External storage systems: V Series and Storwize for Lenovo

^ Available only in PRC.
† Available worldwide except Latin America.
‡ Available only in Latin America.
For more information, see the list of Product Guides in the following categories:

• Lenovo DE Series, DM Series, DS Series, and V Series storage: http://lenovopress.com/storage/san/lenovo#rt=product-guide
• IBM Storwize for Lenovo storage: http://lenovopress.com/storage/san/ibm#rt=product-guide

External backup units
The following table lists the external backup options that are offered by Lenovo that can be used in Lenovo FC SAN solutions.
Note: Information provided in this section is for ordering reference purposes only. End-to-end LTO Ultrium configuration support for a particular tape backup unit must be  erified through the System Storage Interoperation Center (SSIC): http://www.ibm.com/systems/support/storage/ssic
Table 18. External backup options

For more information, see the list of Product Guides in the Backup units category: https://lenovopress.com/servers/options/backup#rt=product-guide
Rack cabinets
The following table lists the rack cabinets that are offered by Lenovo that can be used in Lenovo FC solutions.
Table 19. Rack cabinets

For more information, see the list of Product Guides in the Rack cabinets category: http://lenovopress.com/servers/options/racks

Power distribution units
The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in Lenovo FC SAN solutions.
Table 20. Power distribution units

For more information, see the list of Product Guides in the Power Distribution Units category: http://lenovopress.com/servers/options/pdu
Uninterruptible power supply units
The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in Lenovo FC SAN solutions.
Table 21. Uninterruptible power supply units

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category: http://lenovopress.com/servers/options/ups#rt=product-guide

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world. We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses. We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us.
Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience. We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice. Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an indepth understanding of your invoice and payment requirements. For you, this dedication provides a highquality, easy, and positive financing experience.
For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com
Related publications and links

• For more information, see the following resources: Lenovo B6505 FC SAN Switch product page https://www3.lenovo.com/us/en/data-center/storage/storage-area-network/fibre-channelswitches/
• Lenovo-B6505-Fibre-Channel-Switch/p/WMD00000005 Lenovo B6510 FC SAN Switch product page https://www3.lenovo.com/us/en/data-center/storage/storage-area-network/fibre-channelswitches/Lenovo-B6510-Fibre-Channel-Switch/p/WMD00000006
• Lenovo B6505 and B6510 FC SAN Switch product publications: http://www.broadcom.com/products/fibre-channel-networking/switches/6505-switch#documentation http://www.broadcom.com/products/fibre-channel-networking/switches/6510-switch#documentation
• Hardware Installation Guide
• Access Gateway Administrator’s Guide
• EZSwitchSetup Administrator’s Guide
• Fabric OS Administrator’s Guide
• Flow Vision Administrator’s Guide
• Monitoring and Alerting Policy Suite Administrator’s GuidWeb Tools Administrator’s Guide
• Fabric OS Troubleshooting and Diagnostics Guide
• Fabric OS Command Reference
• Fabric OS Message Reference
• Fabric OS MIB Reference

Related product families
Product families related to this document are the following: Rack SAN Switches
Notices Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service. Lenovo may have patents or pending patent applications covering the subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
8001 Development Drive
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION ”AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice. The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties.
All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary. Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly.
Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.
© Copyright Lenovo 2022. All rights reserved.
This document, LP0081, was created or updated on May 28, 2019. Send us your comments in one of the following ways:
Use the online Contact us review form found at:  https://lenovopress.lenovo.com/LP0081
Send your comments in an e-mail to:  [email protected]
This document is available online at https://lenovopress.lenovo.com/LP0081.

Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available n the Web at https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo®
Flex System
Lenovo Services
ThinkSystem®
Other company, product, or service names may be trademarks or service marks of others.

References

• Home - Data Center Support - Lenovo Support US
• DCSC - Data Center Solution Configurator
• Power Distribution Units > Lenovo Press
• Rack Cabinets > Lenovo Press
• Uninterruptible Power Supplies > Lenovo Press
• IBM Storage > Lenovo Press
• Lenovo Storage > Lenovo Press
• Embedded SAN Switches > Lenovo Press
• Rack SAN Switches > Lenovo Press
• Lenovo Statement of Limited Warranty for Data Center Group (DCG) Servers, System Storage and Networking - Lenovo Support US
• Lenovo Data Center Services Agreement - Lenovo Support US
• SANnav Management Portal
• Brocade Product End-of-Life
• Brocade Product End-of-Life
• IBM System Storage Interoperation Center (SSIC)
• Lenovo Financial Services | Lenovo US
• Services Availability Locator
• Backup Units > Lenovo Press
• Lenovo B6505 and B6510 FC SAN Switches Product Guide (withdrawn product) > Lenovo Press
• Rack SAN Switches > Lenovo Press
• Copyright and Trademark Information | Lenovo US | Lenovo US
