Lenovo Brocade 300 FC SAN Switch

Product Guide (withdrawn product)

The Brocade 300 FC SAN Switch for Lenovo (Machine Type 3873) provides small to medium-sized enterprises with Storage Area Network (SAN) connectivity that simplifies their IT management infrastructures, improves system performance, maximizes the value of virtual server deployments, and reduces overall storage costs.
The Brocade 300 is a 1U rack-mount 8 Gb Fibre Channel switch with up to 24 ports (8 ports licensed by default; the remaining ports can be licensed in 8-port increments) that support 2/4/8 Gbps speeds. The switch offers a rich set of standard software features with the options to expand its capabilities as needed.
The Brocade 300 features the EZSwitchSetup wizard and can be configured in the Brocade Access Gateway mode of operation to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection.

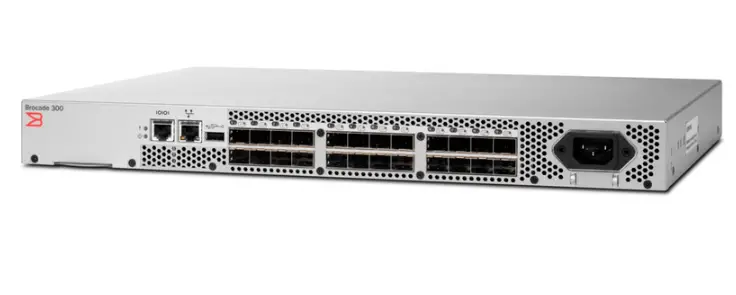

The following figure shows the Brocade 300.

Figure 1. Brocade 300

Did you know?
Brocade is the market share leader in Fibre Channel networking and is deployed in 90% of the Fortune 1000 data centers.
The Brocade 300 offers dual functionality as either a full-fabric SAN switch or as an N_Port ID Virtualization (NPIV)-enabled Brocade Access Gateway that simplifies server connectivity in heterogeneous enterprise fabrics.
With flexible feature expansion capabilities — such as Ports-on-Demand scalability from 8 to 16 or 24 ports (in 8-port increments) — the Brocade 300 enables organizations to start small and grow their storage networks in a non-disruptive manner.
With Brocade FC SAN Switch offerings that are available from Lenovo, Lenovo can be your trusted partner that offers “one stop shop” and single point of contact for delivery of leading edge technologies and innovations from Lenovo and other leading IT vendors. These offerings can satisfy the wide range of your end-to-end IT infrastructure needs, including handheld devices, notebooks, personal computers, servers, storage, networking, services, management software, and financing.

Key features
The Brocade 300 FC SAN switch offers the following features and benefits:

• Provides an affordable, flexible foundation for entry-level SANs, and an edge switch for core-to-edge SAN environments.
• Delivers up to 24 ports of 8 Gbit/sec performance in an energy-efficient, optimized 1U form factor to support the most demanding server and virtual server deployments.
• Consumes less than 2.5 watts of power per port for exceptional power and cooling efficiency.
• Simplifies configuration and management with easy-to-use Brocade EZSwitch Setup.
• Enables “pay-as-you-grow” scalability from single-switch fabric to full-fabric enterprise capabilities with Ports On Demand scalability from 8 to 16 or 24 ports in 8-port increments.
• Optimizes fabric behavior and ensures sufficient bandwidth for mission-critical applications with advanced traffic management capabilities and adaptive networking.
• Offers dual functionality as either a full-fabric SAN switch or as an NPIV-enabled Brocade Access Gateway (requires 24 ports be licensed) that enhances fabric scalability and simplifies management.
• Protects existing device investments with auto-sensing 2, 4, and 8 Gbit/sec capabilities and native operation with Brocade and Brocade M-Series fabrics.
• Runs Brocade Fabric OS, which delivers distributed intelligence throughout the network and enables a wide range of value-added features.
• Supplies a rich set of standard features at no extra cost, including fabric services, advanced zoning, adaptive networking, single-switch full fabric and access gateway operations, and diagnostic tools.
• Expands fabric capabilities with optional licensed functions, including multi-switch full fabric, trucking, advanced monitoring and alerting, and long-distance fabrics.
• Helps achieve higher availability with redundant cooling and nondestructive software upgrades.
• Accelerates troubleshooting with built-in advanced diagnostics tools.

Components and connectors

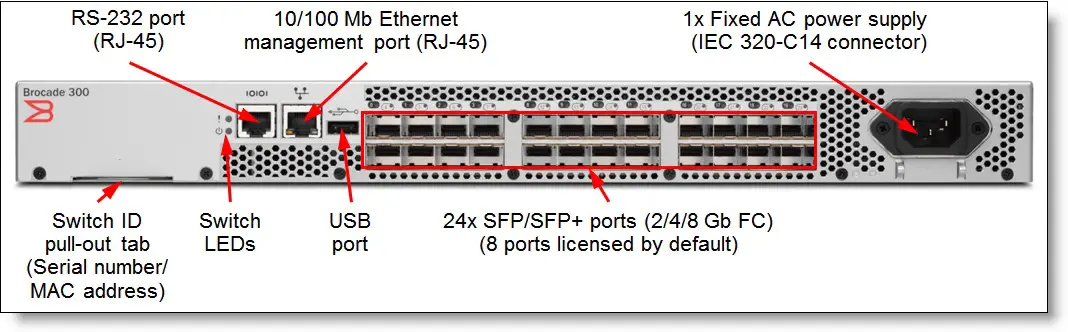

The following figure shows the port side of the Brocade 300.

Figure 2. Brocade 300 port-side view

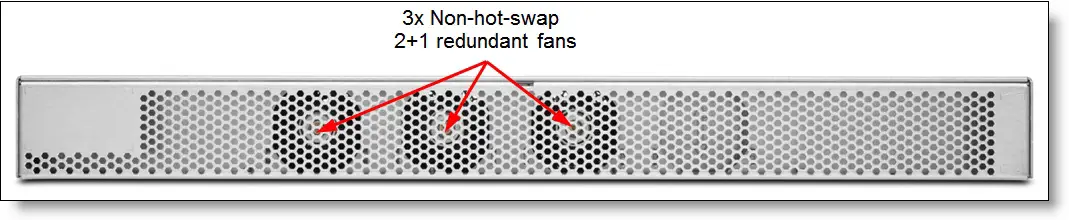

The following figure shows the non-port side of the Brocade 300.

Figure 3. Brocade 300 non-port-side view

System specifications

The following table lists the Brocade 300 system specifications. Table 1. System specifications

Models

The following table lists the Brocade 300 models.
Product availability: Models of the Brocade 300 FC SAN Switch described in this Product Guide are withdrawn and no longer available for ordering. The replacement product is Lenovo B300 FC SAN Switch.

Table 2. Brocade 300 models

The Brocade 300 part numbers come standard with the following items:

• One Brocade 300 FC SAN Switch
• Serial cable (DB-9/RJ-45 to RJ-45)
• Rubber feet for setting up the switch as a standalone unit Fixed rack mount kit
• EZSwitch Setup CD
• Brocade 300 QuickStart Guide
• Access Gateway Quick Start Guide
• Documentation CD
• Warranty information

Note: The switch comes standard without a power cord; it must be purchased together with the switch (see “Power supplies and cables” for details).
The Brocade 300 comes standard with 8 licensed ports. The remaining unlicensed ports can be activated in 8-port increments by purchasing and installing the Brocade Ports on Demand (POD) software license packs. By default, ports 0 through 7 are enabled on the Brocade 300. To enable ports 8 through 15, install a POD license key. To enable ports 16 through 23, install another POD license.
The following table lists additional POD licenses for the Brocade 300.
Table 3. POD license options

If needed, the Brocade 300 can be mounted in a rack cabinet by using the optional slide rack mount kit that is listed in the following table.
Table 4. Rack-mount options

Transceivers and cables
The Brocade 300 comes without SFP+ media; SFP+ transceivers must be ordered together with the switch. The following table lists the supported SFP+ options and optical cables.
Table 5. Supported SFP+ transceivers and optical cables

* When using ELW SFP+ transceivers over distances over 10 km, the Extended Fabric feature is required on a SAN switch to drive the maximum bandwidth over the extended links (see Table 7 for ordering information).
The following table lists the cabling requirements for the switch.
Table 6. Brocade 300 cabling requirements

Software

The Brocade 300 comes standard with the following software features:

• Advanced Fabric Services
  • Full Fabric mode (standalone): Enables high performance 8 Gb switching in single- switch fabric.
  • Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning)
  • Dynamic fabric provisioning (DFP): Fabric-assigned port World Wide Names (FA-PWWNs). Dynamic path selection (DPS): Distributes input traffic across multiple paths proportionally to the bandwidth of each path.
  • Dynamic load sharing (DLS): Distributes traffic across multiple equivalent paths between switches.
  • Fabric Shortest Path First (FSPF)
  • Enhanced BB credit loss recovery
  • Fabric Device Management Interface (FDMI)
  • Frame order delivery
  • Frame redirection
  • FC login services
  • Registered State Change Notification (RSCN)
  • Reliable Commit Service (RCS)
  • Simple Name Server (SNS)
  • Fibre Channel Authentication Protocol (FCAP) switch authentication
  • Management Server (MS): Assists in the autodiscovery of switch-based fabrics.
• Adaptive Networking
  • Bottleneck detection: Identifies devices attached to the fabric that are slowing down traffic. Ingress rate limiting: Restricts the speed of traffic from a particular device to the switch port. Traffic isolation zoning (TIZ): Creates a dedicated path for traffic flowing from a specific set of source ports (F_Ports).
  • Quality of Service (QoS): SID/DID traffic prioritization
• Virtualization
  • N_Port ID virtualization (NPIV): Enables a single FC port to appear as multiple, distinct ports with separate port identification within the fabric.
  • Access Gateway (requires all 24 ports be licensed): Leverages NPIV to connect to any fabric without adding switch domains to reduce management complexity.
• Management
  • IPv4 and IPv6 addressing
  • Firmware upload and download
  • Hot code load and activation
  • Network Time Protocol (NTP) v3
  • EZ Switch Setup Wizard
  • Command line interface (CLI)
  • Brocade Web Tools
  • Brocade Network Advisor (purchased separately) SNMPv1, SNMPv3, and MIBs
  • SMI-S compliant
  • Syslog
• SecuritLyocal switch user accounts
  • LDAP, RADIUS, TACACS+ user authentication
  • Role-based access control (RBAC)
  • Administrative Domains: Partition the fabric into logical groups and allocate administration of these groups to different user accounts
  • IP Security (IPsec)
  • IP filtering with access control lists (ACLs)
  • HTTPS
  • Secure Copy (SCP)
  • Secure RPC
  • Secure FTP (SFTP)
  • Secure Shell (SSH) v2
  • Secure Sockets Layer (SSL)
  • Federal Information Processing Standards (FIPS) 140-2 L2-compliant
• Advanced Diagnostic Tools
  • Power-on self-test (POST)
  • MAPS basic monitoring: Monitors system resources and overall switch health status. Event logging
  • Environmental monitoring
  • FCping
  • Pathinfo (FC traceroute)
  • Non-disruptive daemon restart
  • Port mirroring
  • Port fencing: Disables a port if specified error conditions are met.
  • RAS trace logging

The following optional software features are available for the Brocade 300:

• Full Fabric E_Port: Enables connectivity to multi-switch fabrics.
• ISL Trunking: Allows frame-based consolidation of up to 8 inter-switch links (ISLs) into fault-tolerant and load-balanced trunks with bandwidth of up to 64 Gbps.
  Fabric Vision
  • Monitoring and Alerting Policy Suite (MAPS): Provides a policy-based, fabric-wide threshold monitoring and alerting tool.
  • Flow Vision: Allows to identify, monitor, and analyze specific application flows.
• Extended Fabric: Extends Fibre Channel SANs beyond 10 km distance limitations for replication and backup at full bandwidth.

The following table lists ordering information for the optional software features for the Brocade 300 (one software license per switch).
Table 7. Optional software features

* Enterprise Bundle includes ISL Trunking, Fabric Vision, and Extended Fabric licenses.
Software subscription and maintenance is included in the Brocade 300 base warranty (see the Warranty section for details), which provides 1-year software support with the option to extend it up to 7 years in 1-year or 2-year increments.

Ordering information for the software maintenance extension options is listed in the following table. Table 8. Software maintenance extension options

Notes:

• In order to receive code updates for Brocade switches, a support case needs to be opened with Lenovo with the switch machine type and serial number. Lenovo support will provide the code once entitlement has been validated.
• The delivery of firmware is standard business hours from Lenovo L3 USA – please be advised that the firmware delivery may be next business day depending on time of the service call and location.

Fibre Channel standards
The Brocade 300 supports the following standards:

• FC-AL-2 INCITS 332: 1999 FC-BB-2 INCITS 372: 2003 FC-BB-3 INCITS 414: 2006
• FC-DA INCITS TR-36: 2004
• FC-FLA INCITS TR-20: 1998
• FC-FS INCITS 373: 2003
• FC-FS-2 ANSI/INCITS 424:2006
• FC-GS-4 ANSI INCITS 387: 2004
• FC-GS-5 ANSI INCITS 427:2007
• FC-IFR INCITS 1745-D, revision 1.03 (under development)
• FC-LS INCITS 433: 2007
• FC-MI-2 ANSI/INCITS TR-39-2005
• FCP-2 INCITS 350: 2003 (replaces FCP ANSI X3.269: 1996)
• FC-PI INCITS 352: 2002
• FC-PI-2 INCITS 404: 2005
• FC-PI-4 INCITS 1647-D, revision 7.1 (under development)
• FC-PLDA INCIT S TR-19: 1998
• FC-SB-3 INCITS 374: 2003 (replaces FC-SB ANSI X3.271: 1996; FC-SB-2 INCITS 374: 2001)
• FC-SP INCITS 426-2007
• FC-SP-2 INCITS 496-2012
• FC-SW-3 INCITS 384: 2004
• FC-SW-4 INCITS 418:2006
• FC-TAPE INCITS TR-24: 1999
• FC-VI INCITS 357: 2002
• MIB-FA INCITS TR-32: 2003
• RFC 2625 IP and ARP Over FC
• RFC 2837 Fabric Element MIB
• SNIA Storage Management Initiative Specification (SMI-S) Version 1.03 ISO standard IS24775-2006. Replaces (ANSI INCITS 388: 2004)
• SNIA Storage Management Initiative Specification (SMI-S) Version 1.1
• SNIA Storage Management Initiative Specification (SMI-S) Version 1.2

Power supplies and cables
The Brocade 300 has one fixed 75 W AC power supply with an IEC 320-C14 connector. The switch comes standard without a power cord; one rack power cable or line cord must be ordered together with the switch (see the following table).
Table 9. Part numbers and feature codes for ordering power cords

* Available for factory-built custom configurations and solutions only.
Physical specifications
The Brocade 300 has the following dimensions and weight (approximate):

• Height: 43 mm (1.7 in.)
• Width: 429 mm (16.9 in.)
• Depth: 307 mm (12.1 in.)
• Weight (without SFPs): 4.2 kg (9.3 lb)

Operating environment
The Brocade 300 is supported in the following environment:

• Air temperature:
  • Operating: 0°C to +40°C (32°F to 104°F)
  • Non-operating: -25°C to +70°C (-13°F to 158°F)
• Maximum altitude:
  • Operating: 3,000 m (9,842 ft)
  • Non-operating: 12,000 m (39,370 ft)
• Humidity:
  • Operating: 10% to 85% at 40°C (104°F), with maximum gradient of 10% per hour
  • Non-operating: 10% to 90% at 70°C (158°F)
• Electrical power:
  • Voltage range: 100 V AC – 240 V AC (nominal)
  • Frequency: 50 Hz – 60 Hz (nominal)
    Power consumption:
    • Nominal: 48 watts
    • Maximum (with 24 ports at 8 Gbps): 57 watts
• Heat dissipation: 195 BTU per hour
• Acoustical noise emission: 46.7 dB

Warranty

The Brocade 300’s hardware has a one-year Customer Replaceable Unit (CRU), parts-only warranty with 9×5/next business day (NBD) terms. Lenovo offers the service upgrades through warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.
Lenovo warranty service upgrade offerings are region-specific; that is, each region might have its own service types, service levels, response times, and terms and conditions. Not all covered types of warranty service upgrades might be available in a particular region. For more information about Lenovo warranty service upgrade offerings that are available in your region, see the Lenovo Services Product Selector that is available at this website:
https://www-304.ibm.com/sales/gss/download/spst/servicepac
The warranty service definitions for the Brocade 300 are listed in the following table.
Table 10. Warranty service definitions

In general, the following types of Lenovo warranty service upgrades for the Brocade 300 are available:

• Warranty and maintenance service upgrades:
  • Onsite support for 9×5 NBD coverage
  • One, three, four, or five years of 9×5 or 24×7 service coverage
  • Onsite response from next business day to four or two hours
  • Up to five years of warranty extension for all service levels in one or two year increments
• Remote Technical Support Services (RTS) – 1 or 3 years
  RTS provides comprehensive technical call center support. RTS can reduce problem resolution time, which decreases the cost to address technical problems and increases uptime.

Regulatory compliance
The Brocade 300 FC SAN Switch conforms to the following regulations:

• Electromagnetic compatibility
  • FCC Part 15, Subpart B (Class A) EN 55022 (Class A)
  • EN 55024
  • ICES-003 (Class A)
  • VCCI (Class A)
  • KN22 and KN24
  • GB 9254-2008
  • CNS 13438
  • CISPR22
• Safety
  • UL/CSA 60950-1
  • EN 60950-1
  • IEC 60950-1
  • GB 4943.1-2011
  • EU RoHS

Interoperability
Lenovo provides end-to-end FC SAN compatibility testing to deliver interoperability throughout the network. The Brocade SAN switches support connectivity to Lenovo servers, storage systems, and tape backup units by using FC or FC over Ethernet (FCoE) storage connectivity protocols.

FC SAN storage systems
The following table lists the external storage systems that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 11. FC SAN storage systems

For more information, see the list of Product Guides in the following categories:

• Lenovo Storage
  https://lenovopress.com/storage/san/lenovo
• IBM Storage
  https://lenovopress.com/storage/san/ibm

FC SAN tape backup units
The following table lists the external backup options that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 12. External backup options

For more information, see the list of Product Guides in the Backup Units category:
http://lenovopress.com/servers/options/backup
FC SAN switches
The following table lists the FC SAN switches that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 13. FC SAN switches

For more information, see the list of Product Guides in the following categories:

• Rack-mount SAN switches
  http://lenovopress.com/storage/switches/rack
• Embedded SAN switches
  http://lenovopress.com/storage/switches/embedded

FCoE/FC SAN gateways
The following table lists the converged switches that are offered by Lenovo that can be used as FCoE/FC gateways in Brocade FC SAN solutions.
Table 14. Converged switches

For more information, see the list of Product Guides in the following categories:

• 10 Gb Top-of-Rack Switches
  http://lenovopress.com/networking/tor/10gb
• 10 Gb Embedded Switches
  http://lenovopress.com/networking/embedded/10gb

Rack cabinets
The following table lists the rack cabinets that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 15. Rack cabinets

Power distribution units
The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 16. Power distribution units

For more information, see the list of Product Guides in the Power Distribution Units category:
http://lenovopress.com/servers/options/pdu
Uninterruptible power supply units
The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in Brocade FC SAN solutions.
Table 17. Uninterruptible power supply units

For more information, see the list of Product Guides in the Uninterruptible Power Supply Units category: http://lenovopress.com/servers/options/ups

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.
We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.
We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.
We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.
Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.
For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com

Related publications and links
For more information, see the following resources:

• Brocade 300 FC SAN Switch product page
  http://shop.lenovo.com/us/en/systems/storage/san/fibre-channel-switches/brocade-300
• US Announcement Letter
  http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS115-057
  For more information, see the Brocade 300 FC SAN Switch product publications, available from the Brocade 300 Resource Library:
  http://www.brocade.com/en/products-services/storage-networking/fibre-channel/300-switch.html
• Hardware Installation Guide
• Access Gateway Administrator’s Guide
• EZSwitchSetup Administrator’s Guide
• Fabric OS Administrator’s Guide
• Flow Vision Administrator’s Guide
• Monitoring and Alerting Policy Suite Administrator’s Guide Web Tools Administrator’s Guide
• Fabric OS Message Reference
• Fabric OS MIB Reference

Related product families
Product families related to this document are the following:

• Rack SAN Switches

Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service. Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:
Lenovo (United States), Inc.
8001 Development Drive
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION ”AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary. Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.
© Copyright Lenovo 2022. All rights reserved.
This document, LP0044, was created or updated on April 4, 2016.
Send us your comments in one of the following ways:

• Use the online Contact us review form found at: https://lenovopress.com/LP0044
• Send your comments in an e-mail to: [email protected]

This document is available online at https://lenovopress.com/LP0044.

Trademarks
Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at
https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo®
BladeCenter®
Flex System
Lenovo Services
RackSwitch
Other company, product, or service names may be trademarks or service marks of others.

References

• Lenovo B300 FC SAN Switch Product Guide (withdrawn product) > Lenovo Press
• 10 Gb Embedded Connectivity > Lenovo Press
• 10 Gb Ethernet Connectivity > Lenovo Press
• Backup Units > Lenovo Press
• Power Distribution Units > Lenovo Press
• Rack Cabinets > Lenovo Press
• Uninterruptible Power Supplies > Lenovo Press
• Embedded SAN Switches > Lenovo Press
• Rack SAN Switches > Lenovo Press
• Lenovo Official US Site | Laptops, PCs, Tablets & Data Center | Lenovo US
• Fibre Channel Networking Switches
• Lenovo Financial Services | Lenovo US
• Brocade 300 FC SAN Switch for Lenovo Product Guide (withdrawn product) > Lenovo Press
• IBM Storage > Lenovo Press
• Lenovo Storage > Lenovo Press
• Rack SAN Switches > Lenovo Press
• Copyright and Trademark Information | Lenovo US | Lenovo US
