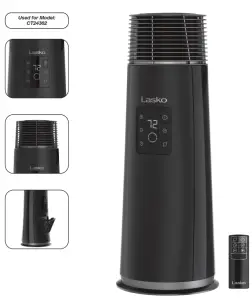

Lasko Ct24362 Full-circle Warmth Ceramic Heater With Remote Control Instruction Manual

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock, and injury to persons:

Read all instructions before using this Heater.

WARNING

•  PLUG HEATERS DIRECTLY INTO A 120V WALL OUTLET/RECEPTACLE ONLY. NEVER USE WITH AN EXTENSION CORD. DO NOT PLUG THE HEATER INTO ANY OTHER CORD-CONNECTED DEVICES, SUCH AS A POWER STRIP, SURGE PROTECTOR, MUL TIPLE OUTLET ADAPTER, CORD  REEL, OR OUTLET-TYPE AIR FRESHENER. THE USE OF SUCH DEVICES MAY CREATE A FIRE HAZARD. DO NOT PLUG MULTIPLE DEVICES IN THE SAME OUTLET OR ON THE SAME CIRCUIT AS THE HEATER.
•   FAUL TY WALL OUTLET CONNECTIONS MAY CAUSE THE WALL OUTLET TO OVERHEAT. BE SURE THAT THE HEATER PLUG FITS TIGHTLY INTO THE OUTLET BEFORE EACH USE. DURING USE, CHECK TO MAKE CERTAIN THE HEATER PLUG IS NOT OVERHEATING. IF NECESSARY HAVE A QUALIFIED ELECTRICIAN CHECK AND/OR REPLACE THE WALL OUTLET. DO NOT USE THIS HEATER WITH ANY SOLID
  STATE SPEED CONTROL DEVICES.
• Make certain that the power source conforms to the electrical requirements of the Heater.
• Extreme caution is necessary when any heater is used by or near children or invalids. The Heater should not be left operating unattended. Never leave children unattended when the Heater is on or plugged in.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• DO NOT use the Heater in areas where gasoline, paint, or flammable liquids are used or stored. DO NOT use Heater in locations where flammable or explosive chemicals are stored, or in wet atmospheres.
• Do not operate any heater with a damaged cord or plug or after the Heater malfunctions, or has been dropped or damaged in any manner To disconnect the Heater, turn the Heater OFF then remove the plug from the outlet.
•  Always unplug the heater when not in use. Unplug the power cord before servicing or moving the Heater.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock, fire, or damage the Heater. Do not block or tamper with the Heater in any manner while it is in operation.
• Do not block air intake or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked. Do not depend on the on/off switch as the sole means of disconnecting power when servicing or moving the Heater. Always unplug the power cord.

CAUTION

• Always place the Heater on a stable, flat, level surface when operating, to avoid the chance of the Heater overturning. Locate the Power Cord so the Heater or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners, or similar coverings as this may cause the cord to overheat.  Arrange Power Cord away from room traffic and where it will not be tripped over.
• This Heater is HOT when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use a handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the Heater and keep them at least 1 foot (0.3 m) from the sides and rear.
• This Heater is not intended for use in wet or damp locations. This Heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. NEVER locate a  Heater where it may fall into a bathtub or other water container.
• DO NOT use a Heater outdoors.
• This Heater is not suitable for use in agricultural facilities including areas where livestock, poultry, or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
• This Heater is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
• Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Heater. If this occurs, move the Heater to another location.
• Keep Heater remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Heater. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  “NOTE: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not  installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.”

SAVE THESE INSTRUCTIONS

Oscillation

Pressing the Oscillation Button () will allow the top air director of the Heater to oscillate back and forth. Press once for 90°  oscillation, twice for 180° oscillation, and a third time for full 360° oscillation. Press a fourth time to shut off oscillation. The display will blink and return back to its home position. When the Heater is in Auto Eco ™ Mode, the oscillation function will stop when the set temperature is reached, and resume when the Heater turns back on.

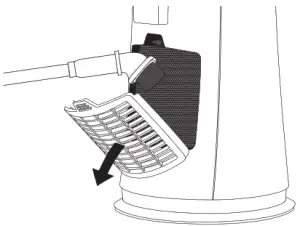

Cleaning Filter

1. Push Tab in, then remove the Filter Cover from the front of the Heater. 2. Clean the filter with a vacuum equipped with a brush attachment every two weeks; this will help to maintain the optimum filter performance.

Controls
Power Button		Turn Heater ON/OFF by pressing the Power Button.
Heat Mode Button		Heat can be adjusted to H3 (High), H2 (Med), or H1 (Low).
* Auto Eco ™ Button (+)		Press to Increase the desired room temperature.
Timer Button		The timer can be set for up to 8 hours. Continue pressing the Timer Button to reach the desired time setting. The light turns green when activated.
Oscillation Button		Oscillation can be set to 90˚, 180˚, or 360˚. Continue pressing the Oscillation Button to reach the desired setting.
* Auto Eco ™ Button (-)		Press to Decrease the desired room temperature.

AUTO ECO ™ THERMOSTAT

Pressing the () or () buttons while in any Heater function or speed will turn on the Auto Eco ™ function.

1.  To set the room at a specific temperature press the () or () buttons to the desired temperature. The display will now reflect the Auto Eco ™ symbol and the temperature will be flashing. The Heater is now in Auto Eco ™ Mode.
2. When you reach the temperature at which you want to set the unit, the set temperature will flash several times and then the display will return to indicate the current room temperature and will gradually change as the room temperature changes.
   NOTE: the temperature display does not indicate the temperature of the heated air being emitted by the Heater.
3. Once the room temperature reaches 2 degrees above the set temperature, the Heater will shut off. The Heater will continue to run for 15 seconds after the element has turned
   off.
4. If the ambient temperature is equal to the SET temperature, the Heater will run in LOW heat.
5. If the ambient temperature is less than the SET temperature by more than 3 degrees, the Heater will run in HIGH heat. All of this happens automatically with Lasko Auto Eco ™ Technology. To deactivate the Auto Eco ™ function, turn the Heater off or press the () button.
   NOTE: In Auto Eco ™, the Heater will display the current room temperature in ° Fahrenheit. Press the () and () buttons at the same time to change the display to ° Celsius.  Press the same two buttons together again to change the display back to ° Fahrenheit.

SAFETY FEATURE

1.  A Tip-Over Switch is built in to prevent operation if the Heater is tipped over.
2. A thermal overload protector is built in to prevent overheating.
3. If an overheat temperature is reached, the Heater will automatically shut off. It can only resume operation when the user resets the unit. To Reset Heater:
4. Unplug the Heater and wait 10 minutes for the Heater to cool down.
5. After the Heater has cooled down, plug the unit into a 120V~ electrical outlet and follow the operation instructions described in this manual.

TROUBLESHOOTING TIPS

If your Heater shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating.

1. Be sure the power cord is plugged into a working electrical outlet.
2. Make certain the batteries in the remote control are new and properly installed.
3. Check your Temperature setting. The Heater may be off because it has reached the desired temperature setting.
4. If your Heater runs for several minutes and shuts off repeatedly, your Heater may require cleaning. See the Maintenance section below.
   SERVICING: For servicing, other than general user maintenance, please contact Customer Service at (800) 233-0268, Monday through Friday, from 8 am-5 pm Eastern.
   STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.
   DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com ®

MAINTENANCE.

To reduce the risk of electrical shock and fire please observe the following instructions. Cleaning the Heater regularly will help to maintain its efficiency.

• Always unplug the cord before moving, servicing, or cleaning.
• NEVER place the Heater in or near water. DO NOT IMMERSE THE HEATER IN WATER.
•  Clean the Heater only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from the surface of the Heater.
• Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.
• Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum.
•  NEVER attempt to take apart the Heater.
• Clean the body of the Heater with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY Y)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.
HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization (“RA”). DO NOT return products without an RA or the warranty claim will not be processed.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation,
shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement. ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY),  LAST THREE YEARS FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS  THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO’S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY  INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE  FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO’S LIABILITY  UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.
Some states and provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province. Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: [email protected]
Our Customer Service team is available to assist you with product and service questions, and replacement parts.
They can be reached Monday through Friday,
8 am-5 pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product).
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send the product to this location) www.lasko.com
PARTS FOR DISCONTINUED, OBSOLETE, AND CERTAIN OTHER PRODUCTS
MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC
COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO
CONSUMERS FOR INSTALLATION OR REPLACEMENT.
