DELTA BS4-CDI Energy Storage Solution Li-ion Battery
Features
- DC voltage up to 1250Vdc
- Max. installed capacity up to 114kWh per cabinet
- Scalable and flexible configuration
- IP55 stainless enclosure with corrosion resistant painting
- Built-in battery management system, HVAC, and automatic fire suppression system
- Certification: cell level – UN38.3, IEC 62619, UL1973
Enhancing Reliability and Stability in Energy Management

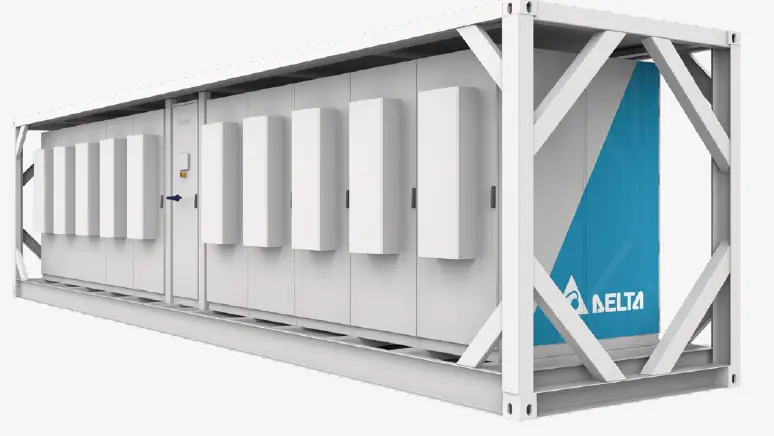

Delta’s Li-battery storage system features high-voltage output for enhancing the efficiency of energy management. With its scalable, fireproof and anti-corrosion capabilities, Delta’s battery system can meet project requirements of small to large scale and is suitable for various environmental conditions, making it an ideal solution for grid ancillary services and C&I applications while ensuring reliability and safety.
Flexible Capacity Configuration
- DC switch and Aux. power cabinet will be built-in in open container

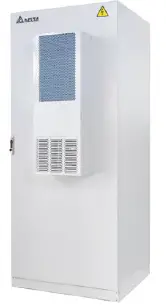

Component in a Battery Cabinet
| Item | Content |
| Battery Solution | • Power type: Delta P140, NCM 57Ah • Continue power output: 2C |
|
Structure | • IP55/ NEMA 3R • Connection interface: DC power, auxiliary power, communication • Anti-corrosion level: C5 |
|
Safety | • Flood detection • Thermal and smoke sensors • Automatic fire suppression system • Aseismatic structure for GR63 Zone-4 |
Picture shown for reference only
Specifications
| Battery Cabinet | Power Type | ||||
| Battery Chemistry | NCM | ||||
| C-Rate | 2C | ||||
| Discharging Time | ~ 30 Minutes | ||||
| Model Name | EBS4-TDP117S20PPR1 | EBS4-TDP117S24PPV1 | EBS4-TDP117S28PPX1 | EBS4-TDP117S32PPZ1 | EBS4-TDP117S40PPZ1 |
| Cabinet Quantity | 12 | 16 | 18 | 20 | 20 |
| Cabinets with Battery | 10 | 12 | 14 | 16 | 20 |
| Reserved Cabinet | 2 | 4 | 4 | 4 | 0 |
| Installed Capacity (max.) | 1.14MWh | 1.37MWh | 1.60MWh | 1.80MWh | 2.20MWh |
| DC Voltage Range | 870 – 1128Vdc | ||||
| Operating Temperature | -20°C to 45°C | ||||
| Altitude | < 2000m | ||||
| Humidity | 0-95% non-condensing | ||||
| Corrosion Resistance | Cabinet: SUS304 Enclosure with corrosion resistant painting / Container Frame: C5 Corrosion resistance level | ||||
|
Accessories | • HVAC • Smoke / temperature detector • Rack controller • Stainless enclosure with IP55/ NEMA 3R • Flood detector • Aseismatic stricture for GR63 Zone4 • Automatic fire suspension system | ||||
| Gross Weight | 33062kg/ 14994lbs | 37933kg/ 17203lbs | 41824kg/ 189671lbs | 45715kg/ 20732lbs | 51538kg/ 23373lbs |

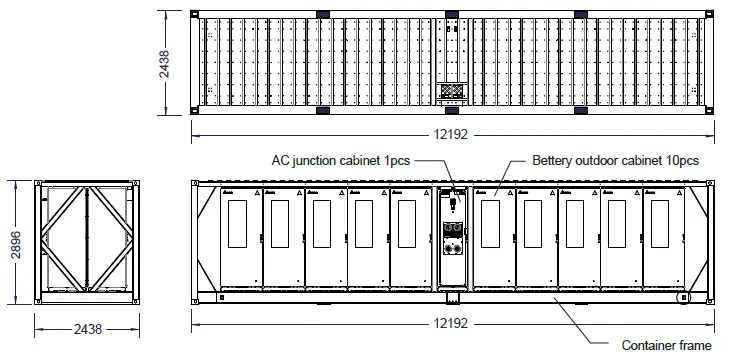

| Dimension (L x D x H) | L:40’×W:8’×H:9’6” (12192 x 2438 x 2896 mm) | ||||
Safety Design
Thermal Management
- Thermal management from the individual cabinet level
- Equipped with an HVAC in each cabinet to optimize the efficiency of cooling and consistency of temperature with air flow guides.
Anti-Fire Propagation
- Alarm mechanism: smoke and thermal detector

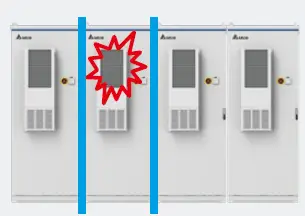

- Fire insulation mechanism to prevent fire propagation.
- Automatic fire suppression system
Protection

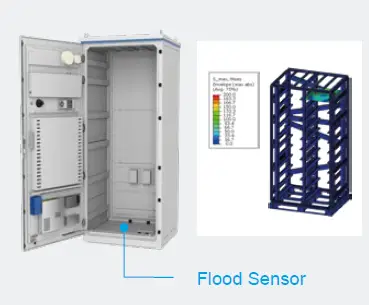

- Sensor: flood, smoke, temperature
- Shockproof design GR63 Zone-4
