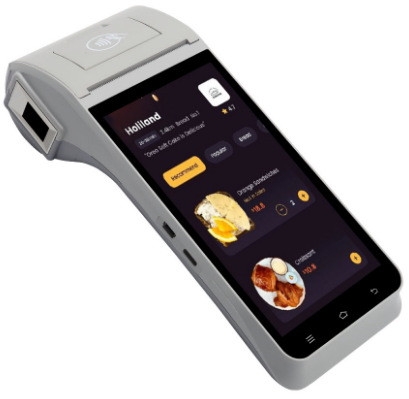

ZCS Z91 Handheld Smart POS Device
Introduction
Z91 Android airtime POS with printer & fingerprint collection module(optional) , android 9.0 operating system, 5.5-inch screen touch, super long standby battery capacity is 2800 mAh/7.4V, thermal paper printer, 5 Mega-pixel camera, 2G / 3G / 4G /wifi, Bluetooth communication, this fine workmanship, and top quality machine is the best choice in the market.
Feature
- Android 9.0 operating system: Adopting the open android system, can let the user a simple and efficient development of the upper application.
- Serviceable range: apply chain supermarkets, restaurants, Parking systems, Prepaid airtime top up, convenience stores, clothing stores, premises, bakeries, cashier, pay, enters sells saves the business management function.
Technical Specification
| Z91 | |
| Operating System | Android 9.0 |
| CPU model | MTK Quad-Core Processor |
| CPU Clock Range | 1.3GHz |
| RAM | 2G DDR3 |
| FLASH | 16GB |
| LCD Screen | 5.5 inch |
| Display Resolution | 720*1280 |
| Backlit | LED |
| Touch Screen | Capacitive Five-Point Touch |
| Fingerprint collection module(optional) | Spatial resolution :508 DPI Active sensor area :12.8mm*18.0mm |
|
Communications | 4G: FDD-LTE,TD-LTE 3G: WCDMA 2G: GSM, GPRS WIFI, 802.11a/b/g/n, 2.4G+5G Bluetooth |
| Voice call | Support |
| Data | Support |
| SMS&MMS | Support |
| WIFI Module | 802.11a/b/g/n, 2.4G+5G |
| Bluetooth | Support |
| GPS | Support |
| USB | USB 2.0(OTG) |
| Rear Camera | 5 Mega-pixel |
| Speaker | Support |
| Microphone | Support |
| Card Slot | SIM ×2; SD×1(support SD3.0, up to 128GB) |
| Physical button | power button x 1 |
| Dimension | 199.75mm x 83mm x 57.5mm |
| Weight | 414g (one package box including product is 750g) |
| Battery | Lithium Battery |
| Battery Capacity | 7.4V 2800mAh |
| Power adapter | 5V DC/2A |
| Standard NFC reader | Support ISO / IEC 14443 A＆B，Mifare，felica card， conform to EMV / PBOC PAYPASS standard ,(Option) |
| Printer | Paper width:58mm |
| Max. paper roll diameter:40mm | |
| Charging indicator light | Single color LED |
| Standard Accessories | 1pc power adaptor, 1pc User Manual, 1pc USB-type C cable, 1 roll 58mm thermal paper |
| Optional Accessories | Silicon case ,Hand Belt,Fingerprint scanner |
| Temperature | Storage temperature: -10℃-60℃ Working Temperature: 0℃-50℃ |
| Certificate | FCC, CE,RoHS |
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The device has been evaluated to meet the general RF exposure requirements. The device can be used in portable exposure conditions without restriction. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) website at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaging over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.
Shenzhen ZCS Technology CO., LTD
Add: 202C, G2 Building, TCL World E City, Zhongshan Yuan Road, Nanshan District, Shenzhen, China
