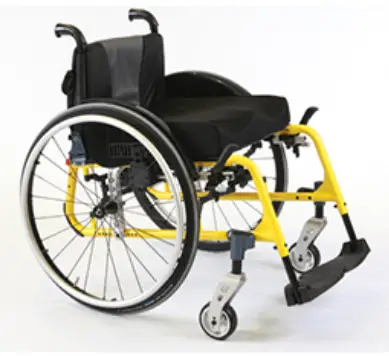

Invacare Action 5 Folding

Standard Features

• Max user weight 100kg – 130kg (Pending seat width)
• Crash tested ISO 7176 – Part 19
• Self Propulsion with 22″ or 24″ quick release rear wheels
• Choice of 7 seat widths 15″ – 21″ (380mm to 530mm)
• Choice of 7 seat depths 14″ – 20″ (350mm to 500mm)
• Choice of 8 front seat to floor heights 14″ – 21″ (360mm to 535mm)
• Choice of 7 reat seat to floor heights 14″ – 20″ (360mm to 510mm)
• Nylon seat upholstery
• Fixed backrest (90° to the seat rail)
• Fixed backrest, nylon and mesh padded cover
• Fixed front end or 80° swing in/swing out legrest hangers
• Flip up footplates
• Sideguards / skirtguards
•  Choice of 10 exciting colours and 2 component accents
• 2° Camber
• Push to lock brakes
• Transportation kit with buckle belt
• Adjustable heel straps
• User tool kit

Standard Base price: £1,227

Code            :              Description

Non Conforming Options:

• SJC1100 14″ SD
• SJC1110 15″ SD
• SJC1170 14″ – 16″ ADJ SD
• SJC1270 21″ FSH
• SJC1300 14″ RSH
• SJC1310 15″ RSH
• SJC1320 16″ RSH
• SJC1330 17″ RSH
• SJC1340 18″ RSH
• SJC1350 19″ RSH
• SJC1360 20″ RSH
• SJC1510 NYLON FIXED
• SJC2300 HT ADJ 14.5″ – 16″
• SJC2310 HT ADJ 16″ – 19.5″
• SJC2400 W/O PUSH HANDLES
• SJC2410 REAR SET
• SJC2420 INTEGRATED
• SJC2505 FIXED NYLON AND MESH
• SJC3000 W/O HANGER RH
• SJC3010 70° RH
• SJC3020 80° RH
• SJC3030 90° RH
• SJC3040 ELEVATING LEGREST RH, WITH CALF PAD INCLUDED – WITH SEAT HEIGHT 360 AND 385 MM, LEGREST MAY BE IN CONTACT WITH THE GOUND IF UL IS MORE THAN 400MM
• SJC3050 AMPUTEE LEGREST RH
• SJC3100 W/O HANGER LH
• SJC3110 70° LH
• SJC3120 80° LH
• SJC3130 90° LH
• SJC3140 ELEVATING LEGREST LH, WITH CALF PAD INCLUDED – WITH SEAT HEIGHT 360 AND 385 MM, LEGREST MAY BE IN CONTACT WITH THE GOUND IF UL IS MORE THAN 400MM
• SJC3150 AMPUTEE LEGREST LH
• SJC3200 FLIP UP RH
• SJC3210 FLIP UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: IF SELECTED WITH A FIXED FOOTREST –
  FOOTPLATE WILL BE ANGLE AND DEPTH ADJUSTABLE AND COMPATIBLE WITH ANKLE HUGGERS. IF SELECTED
  WITH AN ELEVATING LEGREST – FOOTPLATE WILL BE ANGLE, DEPTH AND WIDTH ADJUSTABLE – NOT COMPATIBLE
  WITH ANKLE HUGGERS. SWO1111 FLIP UP DEPTH AND ANGLE ADJUSTABLE RH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEGRESTS ONLY)
• SJC3230 ONE PIECE
• SJC22222 NO FOOTPLATE REQUIRED
• SJC3300 FLIP UP LH
• SJC3310 FLIP UP DEPTH AND ANGLE ADJUSTABLE LH FOOTPLATE – NB: IF SELECTED WITH A FIXED FOOTREST –
  FOOTPLATE WILL BE ANGLE AND DEPTH ADJUSTABLE AND COMPATIBLE WITH ANKLE HUGGERS. IF SELECTED
  WITH AN ELEVATING LEGREST – FOOTPLATE WILL BE ANGLE, DEPTH AND WIDTH ADJUSTABLE – NOT COMPATIBLE
  WITH ANKLE HUGGERS. SWO3333 FLIP UP DEPTH AND ANGLE ADJUSTABLE LH FOOTPLATE – NB: COMPATIBLE WITH ANKLE HUGGERS (FOR ELEVATING LEGRESTS ONLY)
• SJC44444 NO FOOTPLATE REQUI
• SJC3400 SWING AWAY FRAME HIGH MOUNTED TUBE
• SJC3410 SWING AWAY FRAME SHORT TUBE
• SJC3420 SWING AWAY FRAME STANDARD TUBE
• SJC3430 SWING AWAY FRAME LONG TUBE
• SJC3440 FIXED FRAME STANDARD TUBE
• SJC3450 FIXED FRAME LONG TUBE
• SJC4010 T-ARM DESK ARMPAD RH
• SJC4020 T-ARM FULL ARMPAD RH
• SJC4030 SWING AWAY DESK ARMPAD RH
• SJC4040 SWING AWAY FULL ARMPAD RH
• SJC4110 T-ARM DESK ARMPAD LH
• SJC4120 T-ARM FULL ARMPAD LH
• SJC4130 SWING AWAY DESK ARMPAD LH
• SJC4140 SWING AWAY FULL ARMPAD LH
• SJC5400 CALF STRAP
• SJC5500 FOLDING BACKBRACE
• SJC5700 W/O AUTOLOCK SAFETY DEVICE
• SJC7000 4″ X 1.1/4 SOFTROLL
• SJC7020 4″ X 3/4″ (100 X 20 MM) SOLID
• SJC7030 4″ X 1″ INTEGREATED “LIGHTS”
• SJC7040 4″ X 1.3/8″ ALU SOFTROLL
• SJC7055 5″ X 1″ SOLID
• SJC7060 5″ X 1″ SOLID INTEGRATED “LIGHTS”
• SJC7070 5″ X 1.3/8″ ALU SOFTROLL
• SJC7080 6″ X 1″ SOLID
• SJC7100 6″ X 1.3/8″ ALU SOFTROLL
• SJC7110 7″ X 1.1/4″ SOLID
• SJC7200 22″ STANDARD, CROSS SPOKED WHEEL
• SJC7210 22″ LIGHTWEIGHT WHEEL
• SJC7230 24″ STANDARD, CROSS SPOKED WHEEL
• SJC7240 24″ LIGHTWEIGHT WHEEL
• SJC7244 24″ SPINERGY WHEELS
• SJC7250 25″ LIGHTWEIGHT WHEEL
• SJC7260 25″ SPINERGY WHEELS
• SJC7302 SOLID BLACK 1.3/8″
• SJC7304 PNEUMATIC TYRE BLACK 1.3/8″
• SJC7315 PNEUMATIC LOW PROFILE BLACK 1″
• SJC7320 SCHWALBE PNEUMATIC MARATHON PLUS EVO 1″
• SJC7410 STAINLESS STEEL
• SJC7420 HANDRIM COATED IN BLACK ANTI-SLIP
• SJC7600 VERY ACTIVE
• SJC7610 ACTIVE
• SJC8000 SPOKE PROTECTORS
• SJC8100 PUSH TO LOCK BRAKES
• SJC8120 PUSH TO LOCK BRAKES WITH EXTENTION
• SJC8160 ATTENDANT HUB BRAKES
• SJC8200 TRANSPORTATION BRACKETS
• SJC9100 TIPPING AID LH
• SJC9200 TIPPING AID RH

Subject to Invacares standard terms and conditions.
Invacare reserve the right to alter product specification without prior notice
For a more complex customer requirement
please refer to our Invacare Unique special order form. email [email protected] or Fax: 01656 776220
Special Instructions
Please supply the following information:
Name: Email:
Phone: Fax:
Description of special request (please include relavent option code or part number):
