Marset Ground Fixation Plate Lab 35/60 B Instruction Manual

marset Ground Fixation Plate Lab 35/60 B

Ground fixation plate Lab 35/60 B

WARNING

1. It is recommended that a professional electrician be responsible for installing the light.
2. Disconnect power supply before installation.

Fixing plate mesaures

Prepare the hole.

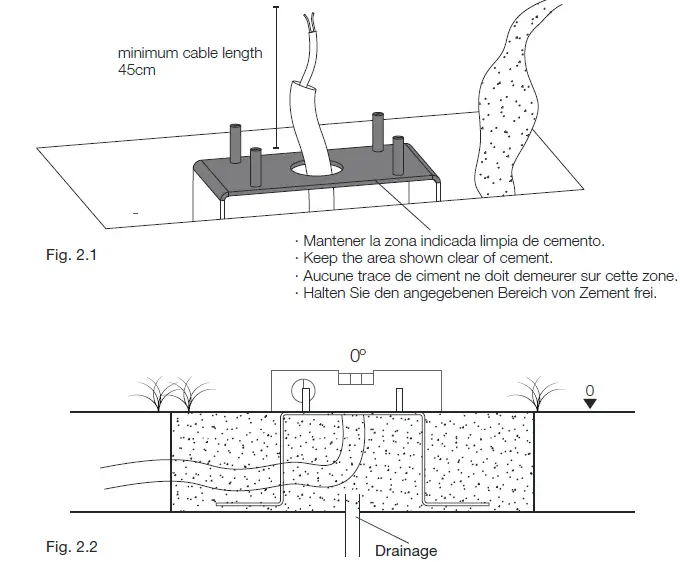

1. Position the fixing plate.
   Note: adapt the size of the hole depending on the surface.
2. Fill the hole with cement.
   1. Ensure the plate is level with the ground, since the positioning of the lamp depends on it.

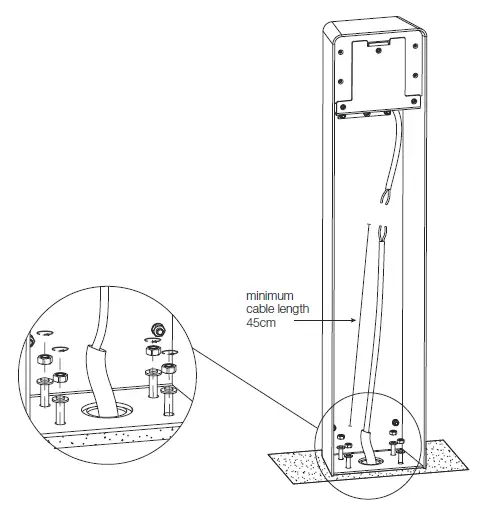

   2. Attach the lamp with the supplied nuts and washers.
      To assemble the lamp, use the instructions for the Lab B.

MARSET ILUMINACIÓN SA
CTRA. DE RUBÍ 284
08228 TERRASSA (BARCELONA)
SPAIN
WWW.MARSET.COM
REV. 01
