10l0l Y206-b 3 Version Golf Cart Led Headlight And Tail Light Instruction Manual

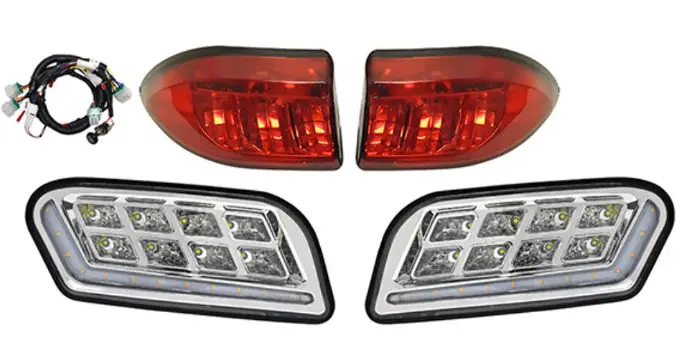

10L0L Y206-B 3 Version Golf Cart LED Headlight and Tail Light

We are striving to build a reliable brand of golf cart parts and accessories. Hope this manual can assist you in easier installation.
For more technical support, please reach us via
Website: www.10l0l.com
Email: [email protected]
Facebook : zhong zaiyang
Youtube: 10L0L

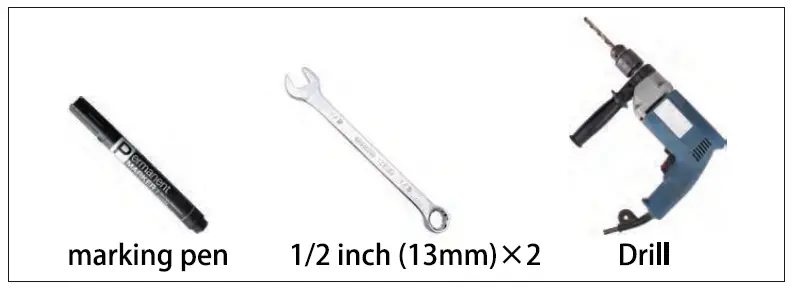

Installation Tools

Installation Steps

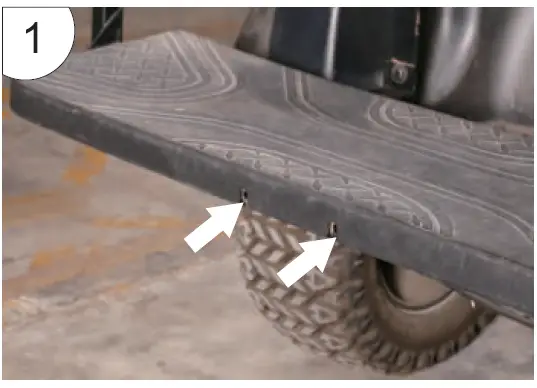

1. As the picture shows, Make sure the footboard is iron and there are 2 reserved holes (plastic board is not suitable for drilling) See figure 1

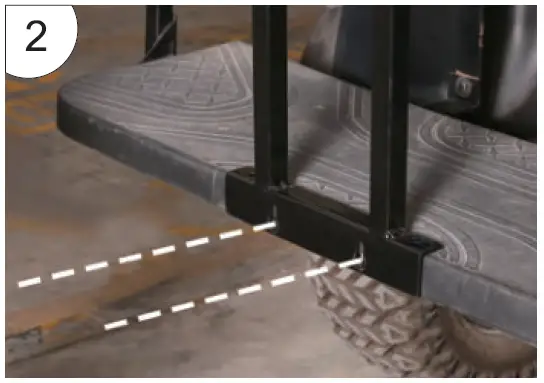

2. Align the grab bar to two reserved holes below. See figure 2

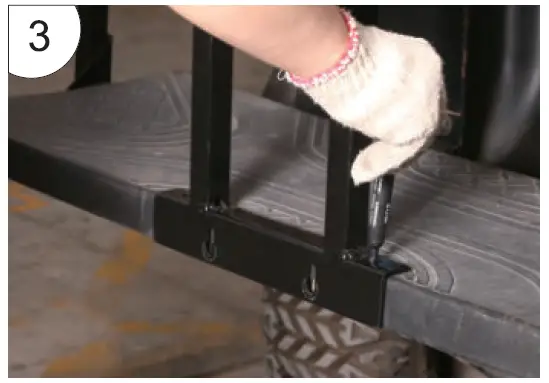

3. Mark the drilling position with a marker after alignment. See figure 3
4. As shown,2 positions for drilling. See figure 4

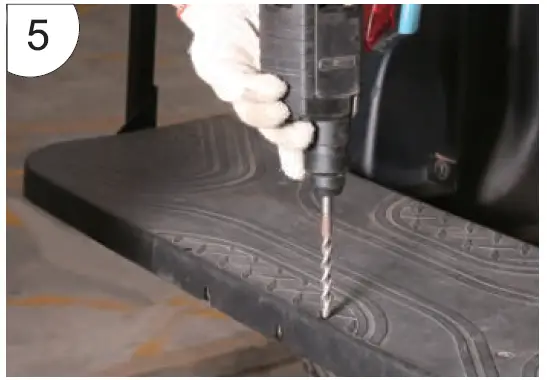

5. Drilling must be be 90° vertically. See figure 5

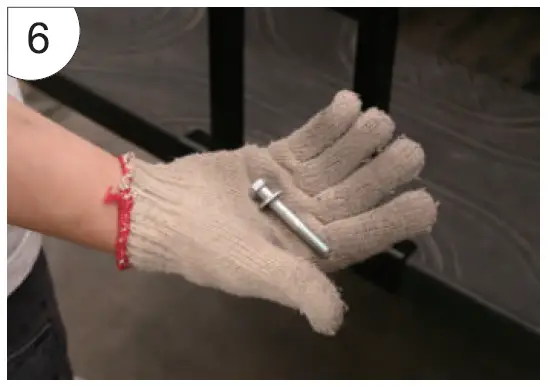

6. Take out the prepared screws and washers. See figure 6

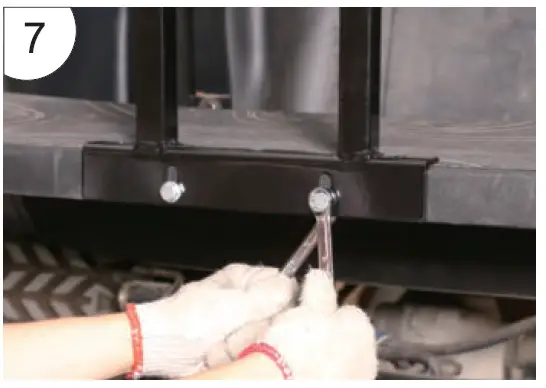

7. Tighten the screws with two NO. 13 wrenches. See figure 7

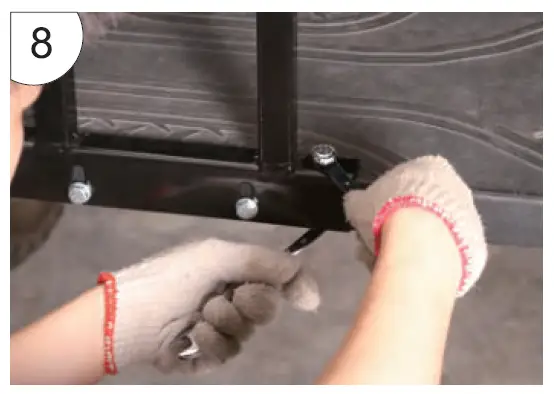

8. Do the same to top board. See figure 8

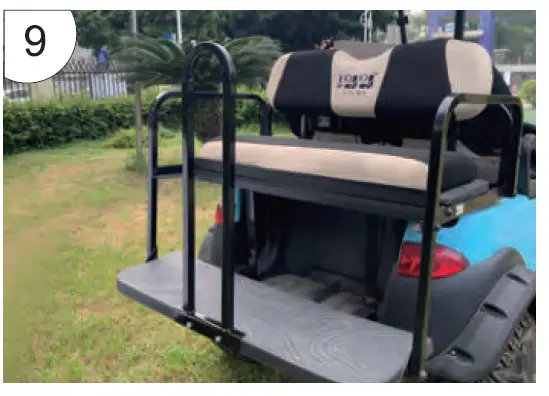

9. Installation finish. See figure 9
