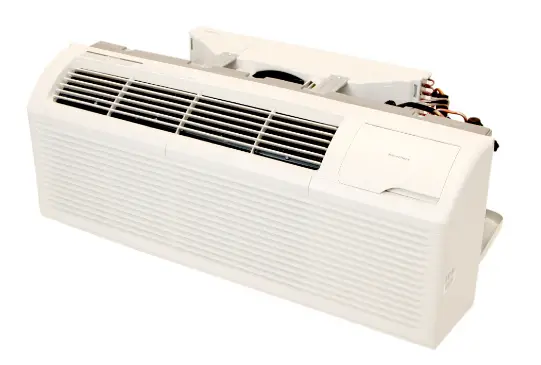

Amana DCP153A50AA Distinctions 4769-Watt 208/240-Volt Fan Heater
Important Installation Reminder:
- If existing PTAC outdoor grill/louvers already have baffles installed, then please remove baffles from Distinctions PTAC unit by removing 2 screws on each side before sliding the new PTAC into the wall sleeve.
- Please refer to page number # 2 on how to inspect the baffles from inside the room.

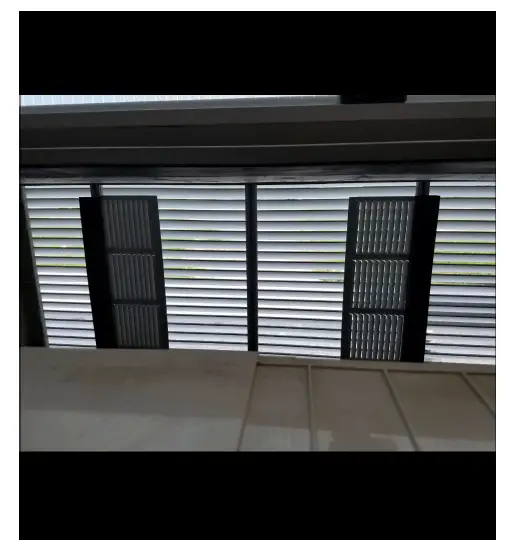

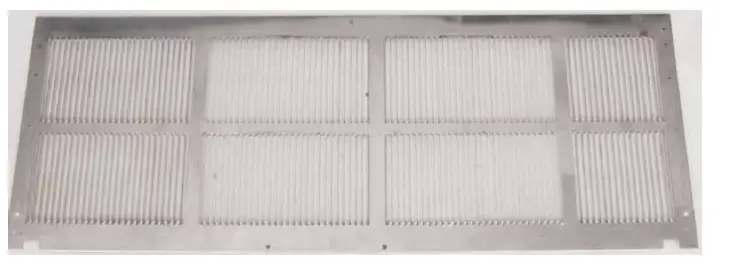

Outdoor Grill/Louvers with Baffles
Please remove baffles from PTAC unit when installing with these type of grill/louvers.

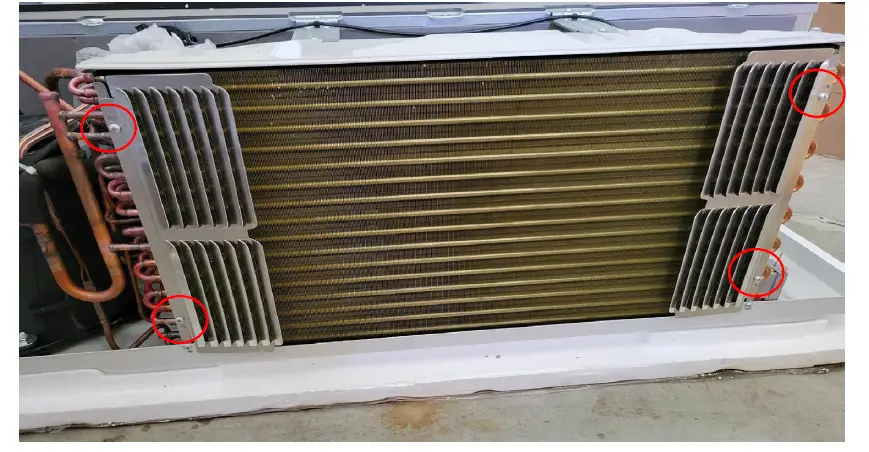

Remove Baffles from PTAC
Remove Baffles from PTAC
Remove Baffles from PTAC
