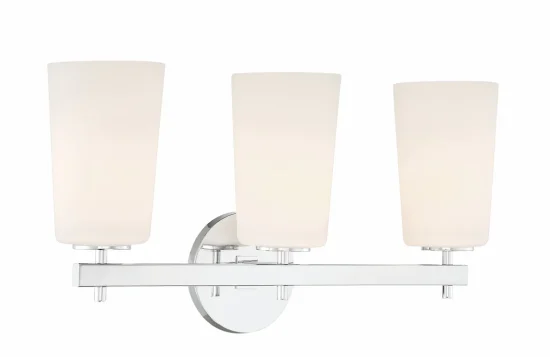

Crystorama Col-103-ch Colton 3-light Polished Chrome Wall Sconce Instruction Manual

CRYSTORAMA COL-103-CH Colton 3-Light Polished Chrome Wall Sconce Instruction Manual

The fixture is Damp rated.

How to Install

1. Install the mounting plate onto the outlet box using two outlet box screws.
2. Attach the backplate over the mounting plate and secure with the screws.
3. Place the glass shade over the socket and secure with socket ring. Repeat for other 2 glass shades.

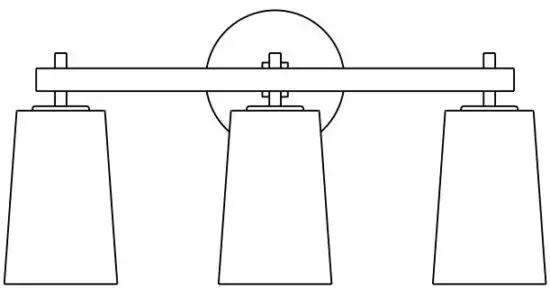

The fixture can be mounted either upwards or downwards.

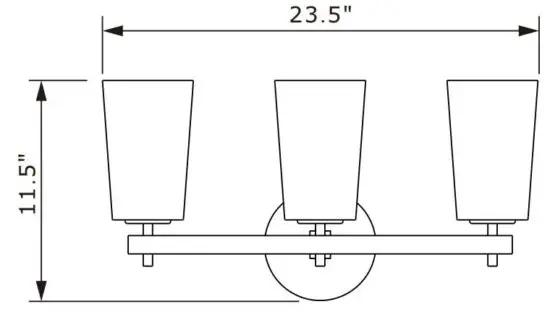

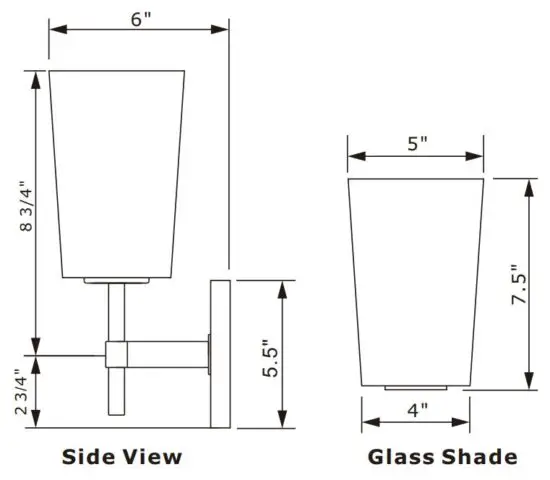

DETAILED ILLUSTRATION

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov

PART NUMBER

MODEL #COL-103-CH

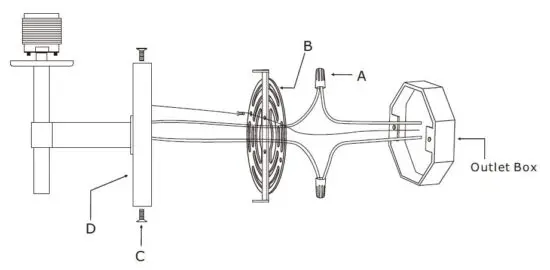

Part Number

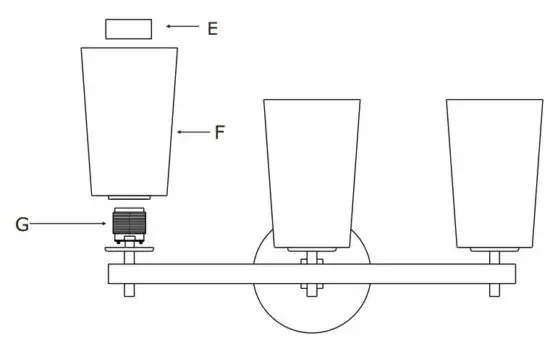

Part Numbers

A. (2)-Wire Connector
B. (1)-Mounting plate
C. (2)-Screw
D. (1)-Backplate (Ø5.5″) – XSN101CHBKP5.5IN
E. (3)-Socket Ring
F. (3)-Glass Shade;W5″,H7.5″ – XSN101SHA
G. (3)-Socket
