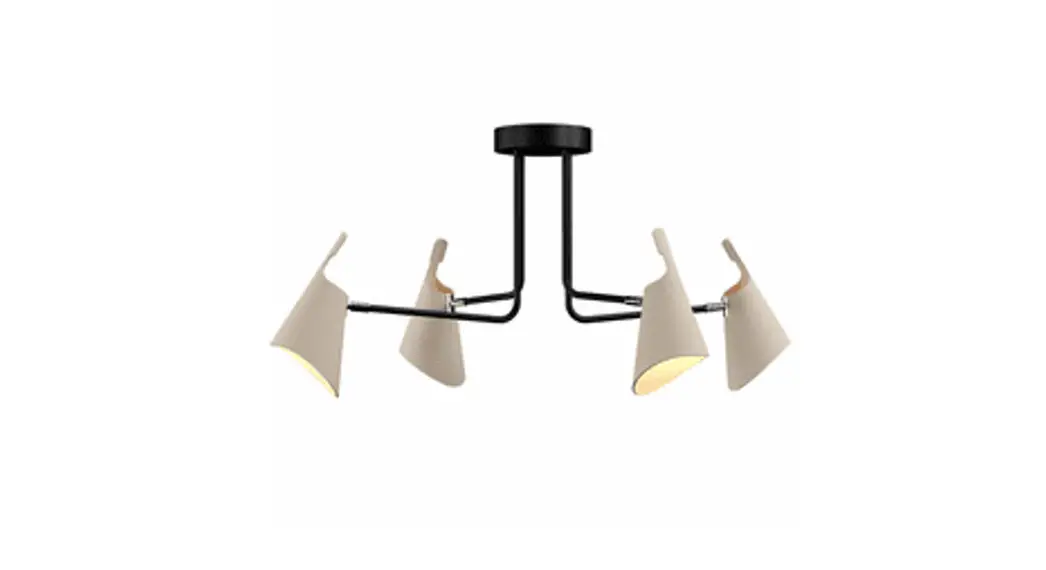

5105 Balance Ceiling Lamp
Product Information: Balance Ceiling Lamp Accord Balance
Ceiling Lamp 5105
The Balance Ceiling Lamp Accord Balance Ceiling Lamp 5105 is
made of natural wood veneer, MDF, and carbon steel. The wooden dome
which houses the light source is articulated, and it is recommended
to use a mini LED bulb (E26 – A15) in this fixture due to the dome
size. The package comes pre-assembled, and you should read all
assembly instructions before starting the installation process.
Provided screws include S01(8), S03(2), S07(6), and S11(2).
Product Usage Instructions:
- Remove the protecting package from the pieces taking care to
not harm any parts with cutting surfaces or objects. Lay the parts
of the fixture on some horizontal surface in order to assemble
them. - Rotate the metallic arms of the fixture until it is aligned
according to the image (2) or according to the desired
position. - Hold the stem in place and screw the nut located on top of the
canopy until it is locked. Take care to not harm the energy cables
and connectors in this process. - Join the dome to the metallic support through its upper
opening, aligning the holes and fastening the provided screws (S01)
to lock the dome in place. - Finish the fastening of the crosstip screws located on the 5
swivel joints base, in order to keep it tight. - Before starting the mounting of the fixture on the ceiling,
hold the canopy in place, rotate the metallic arms one last time to
make sure it’s completely tight and locked on its position. - The wooden dome is articulated. Hold the dome and rotate it in
order to direct the light to the desired spot. Be careful not to
exceed the swivel joint’s articulation limit so it doesn’t
break. - It is recommended to use a mini LED bulb (E26 – A15) in this
fixture due to the dome size. Using a regular bulb size would cause
excessive light glare.
5105 E26
1
2
5 3
4
Balance Ceiling Lamp Accord Balance Ceiling Lamp 5105 Natural Wood Veneer, MDF and Carbon Steel.
Read carefully all the Assembly Instructions Below, before starting the installation process.
1 Notice that the fixture is packed pre-assembled. Remove the protecting package from the pieces taking care to not harm any parts with cutting surfaces or objects. Lay the parts of the fixture on some horizontal surface in order to assemble them, if needed use the protecting package to soften the surface and protect the parts from getting scratched or harmed.
2 Once the protecting packages are removed, rotate the metallic arms of the fixture until it is alligned according with the image (2) or according to the desired position.
3 After all the metallic arms are positioned in the desired allignment, one of a time, hold the stem in place and screw the nut located on top of the canopy until it is locked. Take care to not harm the energy cables and connectors in this process.
4 On each metallic arm, join the dome to the metallic support through it’s upper opening, alligning the holes and fastening the provided screws (S01) to lock the dome in place.
Finish the fastening of the crosstip screws located on the 5 swivel joints base, in order to keep it tight.
Before starting the mounting of the fixture on the ceiling, 6 holding the canopy in place, rotate the metallic arms one last
time to make sure its completely tight and locked on it’s position.
5105 E26
9
10
11
12
7 8
Balance Ceiling Lamp Accord Balance Ceiling Lamp 5105 Natural Wood Veneer, MDF and Carbon Steel.
13 13
PROVIDED SCREWS S01(8)
Once the overall structure of the fixture is assembled, the ceiling must me prepared to mount the fixture. 7 Start removing the locking screws (S03) from the canopy. 8 Low the outter canopy from the structural base in order to have some space to work. 9 Place the fixture in the desired position and make the marks on the ceiling, then drill the holes and insert the plastic bushings. 10 Pass the energy cable through the junction box cover, rise the fixture close to the junction box and make the electrical connections following all the applicable local codes. Insert the escess energy cable inside the junction box. 11 Fasten the provided screws (S11) on the junction box cover in order to assemble it to the junction box. 12 Fasten the provided screws (S07) on the structural base, attaching the fixture to the ceiling. Take care to not press or harm the energy cable. Rise the outter canopy and lock it at the structural base with 13 the locking screws (S03). Turn on energy power, the luminaire is ready for use.
S03(2)
S07(6)
USER GUIDE The wooden dome which houses the light source is articulated. Hold the dome and rotate it in order to direct the light to the desired spot. Be careful to not exceed the swivel joint’s articulation limit so it doesn’t break. It is recommended to use a mini LED bulb (E26 – A15) in this fixture. Due to the dome size a regular bulb size would come out of the dome causing excessive light glare.
S11(2)
