Peaktech 5065 Digital Lux Meter User Manual

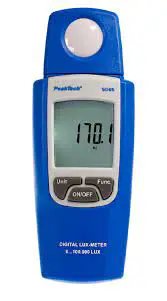

PeakTech 5065 Digital Lux Meter

Safety precautions
This product complies with the requirements of the following directives of the European Union for CE conformity: 2014/30/EU (electromagnetic compatibility), 2011/65/EU (RoHS).
The following safety precautions must be observed before operation. Damages resulting from failure to observe these safety precautions are exempt from any legal claims whatever:

• * Comply with the warning labels and other info on the equipment.
• * Do not subject the equipment to direct sunlight or extreme temperatures, humidity or dampness.
• * Do not subject the equipment to shocks or strong vibrations.
• * Do not operate the equipment near strong magnetic fields (motors, transformers etc.).
• * Keep hot soldering irons or guns away from the equipment.
• * Allow the equipment to stabilize at room temperature before taking up measurement (important for exact measurements).
• * Replace the battery as soon as the battery indicator “BAT” appears. With a low battery, the meter might produce false reading.
• * Fetch out the battery when the meter will not be used for long period.
• * Periodically wipe the cabinet with a damp cloth and mid detergent. Do not use abrasives or solvents.
• * Do not operate the meter before the cabinet has been closed and screwed safely.
• * Do not store the meter in a place of explosive, inflammable substances.
• * Do not modify the meter in any way
• * Opening the equipment and service- and repair work must only be performed by qualified service personnel.
• * Measuring instruments don’t belong to children hands.

Cleaning the cabinet
Clean only with a damp, soft cloth and a commercially available mild householder cleanser. Ensure that no water gets inside the equipment to Prevent possible shorts and damage to the equipment.

Features

• 5 ½ digits LC-Display with low-battery indication
• pocket size and light weight
• Backlight
• Data-Hold function
• minimum measurement function
• maximum measurement function
• Lux measurement 0… 100000 Lux
• Ftc measurement 0 … 9290 ftc

Specifications

• Display: 5 ½ Counts; max. Displayed Value: 100000
• Overage: „OL“ is displayed
• Low battery indication: is displayed when the battery voltage drops below the operating level
• Measurement rate: 2 times per second, nominal
• Measuring Range: 0 … 100000 Lux (lm/m²) 0 … 9290 ftc (lm/ft²)
• Accuracy: +/- 4% to reference, + 50 digits
• Auto Power Off: about 20 min.
• Storage temperature: -20°C ~ 60 °C(Humidity < 80% RH)
• Operation temperature: 0°C ~ 50°C (Humidity < 80% RH)
• Power Supplies: 3 x 1,5V (AAA) Batteries
• Dimensions: 30 x 121 x 60 mm (WxHxD)
• Weight: about 180g

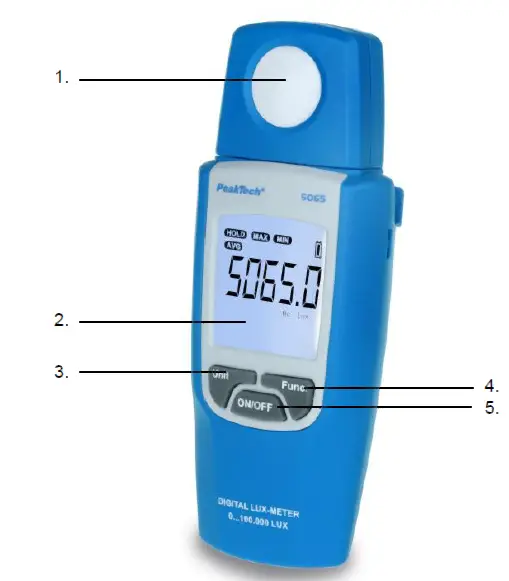

Panel Description

1. Photo detector: Long- life Illicium photo diode
2. 5 1/2 digit Liquid Crystal Display
3. Unit-key: To switch the Measurement units and on/off the
   backlight
4. Tuckey: To switch between the several measurement
   Modes
5. ON/Off-key: To power on/off the unit

Operating Instruction

1. Activate the unit by pressing ON/Off-key
2. Remove the protection cover from the photo-diode (pull off upwards)
3. Press the Unit-key to switch between the two measurement units (LUX or ftc)
   1. To switch on the LCD-backlight press and hold the Unit-button for 2 sec., to turn off the backlight press and hold the Unit-button for 2 sec. again.
4. If applicable, press the Funs.-key to activate the Data-Hold function
5. If applicable, press the Funs.-key again to activate the „MAX“ or „MIN“ measurement modes
6. Move the photo-detector to the light source in a horizontal position
7. Read the illuminance value from the LC-Display. If value is over range „OL“ is displayed
8. After the measurement power off the unit an apply protection cap

Spectral sensitivity characteristic

To the detector the applied photo diode with filters makes the spectral sensitivity characteristic almost meet C.I.E. (International Commission on Illumination) photopia curve V as the following chart described.

Recommended LUX-values for various environments

Maintenance

 Battery replacement should only be done if power is off.

Battery Replacement

If the sign “BAT” appears on the LCD display, it indicates that the battery should be replaced. Remove screws on the back cover and open the case. Replace the exhausted battery with new battery. Batteries, which are used up dispose duly. Used up batteries are hazardous and must be given in the for this being supposed collective container.

Statutory Notification about the Battery Regulations
The delivery of many devices includes batteries, which for example serve to operate the remote control. There also could be batteries or accumulators built into the device itself. In connection with the sale of these batteries or accumulators, we are obliged under the Battery Regulations to notify our customers of the following: Please dispose of old batteries at a council collection point or return them to a local shop at no cost. The disposal in domestic refuse is strictly forbidden according to the Battery Regulations. You can return used batteries obtained from us at no charge at the address on the last side in this manual or by posting with sufficient stamps.

Batteries, which contain harmful substances, are marked with the symbol of a crossed-out waste bin, similar to the illustration shown left. Under the waste bin symbol is the chemical symbol for the harmful substance, e.g. „Cd“ for cadmium, „PBS“ stands for lead and „Hg“ for mercury.

You can obtain further information about the Battery Regulations from the Bundesministerium für Umwelt, Naturschutz und Reaktorsicherheit (Federal Ministry of Environment, Nature Conservation and Reactor Safety).

• All rights, also for translation, reprinting and copy of this manual or parts are reserved.
• Reproductions of all kinds (photocopy, microfilm or other) only by written permission of the publisher.
• This manual is according the latest technical knowing. Technical alterations reserved.
• We herewith confirm that the unit is calibrated by the factory according to the specifications as per the technical specifications
• We recommend to calibrate the unit again, after one year.
• © PeakTech® 01/2021/pt/Sch/pt/HR/Ehr
