PRO Series BTE Battery Handling Equipment
Instruction Manual

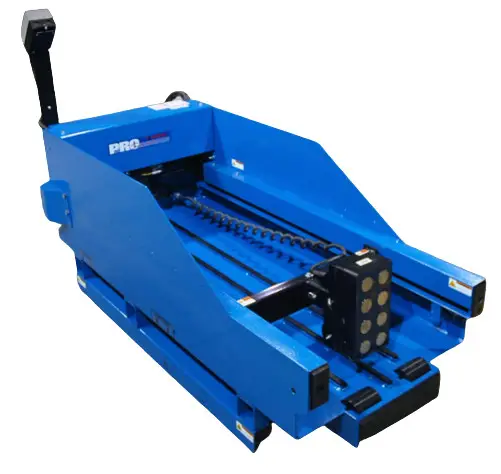

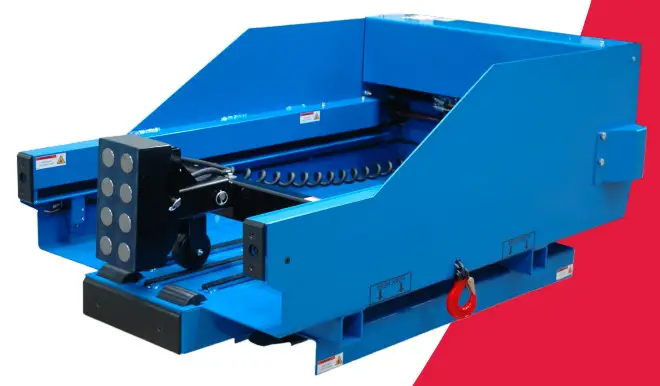

BATTERY TUGGER ELECTRIC BATTERY HANDLING EQUIPMENT
The Battery Tugger Electric (BTE) battery handling equipment is the global standard in low-volume high-efficiency battery changing. The reliability, safety standards, and changing efficiency are second-to-none and unrivaled in today’s battery-changing industry. All BTE battery handling equipment models are engineered with a fully welded, unibody construction and finished in premium acid-proof powder coat paint to ensure they’ll be delivering reliable and effective battery changes for many years to come.
The BTE battery handling equipment series is fitted with our reliable 818kg electromagnetic extraction system that is used extensively on our man-aboard systems. The unit also uses a lead roller to ensure smooth and damage-free exchanges each time and offers optional battery guides to prevent smaller pallet truck batteries from tipping over. The BTE battery handling equipment uses a UHMW slide bed with lead entry rollers that secure the load for transfer without the need for additional safety locks, simply pull it into the compartment and travel to your destination.
BENEFITS
- Powerful 818kg electromagnet extraction for safe, quick, and reliable changes, with up to 2265kg battery capacity
- Batteries on a slide-strip bed
- Electric Drive Push Pull System with damage-free circuit breaker system
- Allows for maintenance-free operation and reduces damage from misuse
- Operates on the truck’s battery pack or industrial battery via a provided parallel jumper cable.
Available in 12-24-36-48 volts (Standard voltage is 24 volts) - No additional power source required
- Durable Acid Resistant Powder-Coat Paint
- Resists battery acid and other contaminants
AVAILABLE OPTIONS
Mounting Options
| Part # | Description |
| BT-Pedestal | Tugger Pedestal Mounting Spacer (Other than standard height of 50.8mm) |
| BT-QC-PT | Quick Clamp (Pallet Truck) |
| BT-QC-FT | Quick Clamp (Fork Lift Truck) |
| BT-QC-PT-D | Quick Clamp (Pallet Truck) |
| BT-4WAY | 4-Way Fork Pockets (for pallet truck side mount) |
Carriage Frame Options
| Part # | Description |
| BT-CL | Custom Length Battery Tugger |
| BT-HS | High sides, and extra height added to the shell |
| BT-FP-3.5 | 88.9mm deep Fork Pockets |
| BT-FP-2 | 50.8mm Deep Fork Pocket |
| BT-SM-FT | Side Mount w/ remote pendant & chain (pallet truck mnt) |
| BT-SCC 2′ | 152.4mm Safety Chain with Clevis (for the truck mount) |
| BT-FDBR | Battery Tugger Fold Down Bed Raisers |
| BT-DIA | Aluminum Drop-in Beds |
| BT-SG | Safety Gate Bolt-On (Bar option) |
| BT-SC-ARM | Safety Chain – Tugger Arm |
| BT-SC | Safety Chains (for the truck mount) |
| BT-BG | Battery Guide |
| BT-BGF | Fold-down Battery Guide |
| BT-OHG | Over Head Guard Entry System |
Arm Options
| Part # | Description |
| BT-AEX | Tugger Arm Extension (with tugger order) |
| BTS-AEX | Tugger Arm Ext. Stepped (BTS – With tugger order) |
Electrical Options
| Part # | Description |
| BT-VSJ | Variable Speed Joystick |
| BT-VS | Variable Speed Pot |
| BT-MAG-003 | Upgrade to 10-pole magnet |
| BT-12V | Tugger Voltage 12 V (other than 24) |
| BT-36V | Tugger Voltage 36 V (other than 24) |
| BT-48V | Tugger Voltage 48 V (other than 24) |
| BT-MV2 | Multi-Voltage BT/BTS (24V & 36V) |
| BT-MV3 | Multi-Voltage BT/BTS (24V, 36V & 48V) |
| BT-MOL | Lamp Indicator (Magnet Light-On) |
| BT-ESTOP | Emergency Stop Button (Mounted to Controls) |
| BT-BEEP | Magnet On – Beep |
| BT-SM-PT | Side Mount w/ remote pendant & chain (pallet truck mnt) |
| BT-OBPS | Board Power Supply (BATTERIES NOT INCLUDED) |
| BT-ASL | Amber Strobe Light |
| BT-LAS | Laser Alignment System |
| BT-ECON | Battery Tugger Euro Connectors (2 male 2 female per unit) |

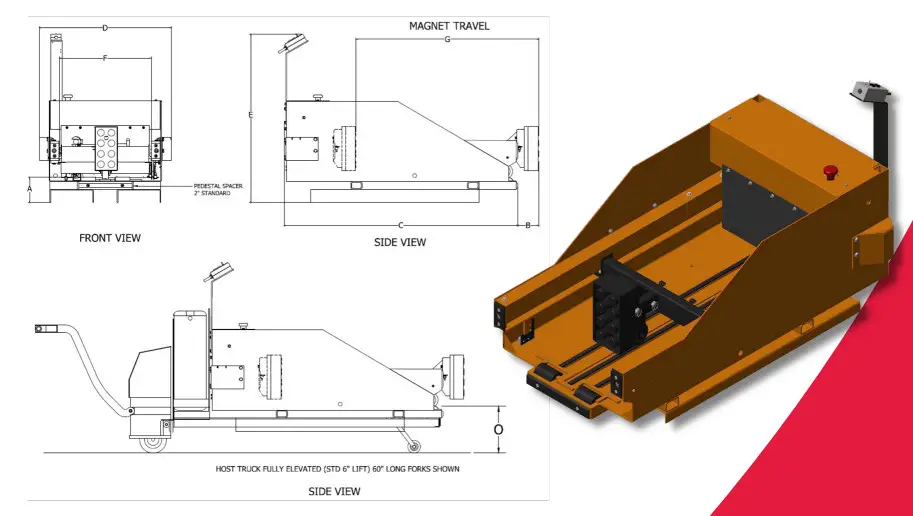

BASIC DIMENSIONS
| BTE-24 | BTE-30 | BTE-36 | BTE-42 | BTE-48 | ||
| A | Minimum roll-out height (with no pedestal)* | 4.625 in/118 mm | ||||
| Minimum roll-out height with standard pedestal* | 6.625 in/169 mm | |||||
| B | Magnet Reach w/ 152mm Arm (drawbar fully extended) | 3.5 in / 89 mm | ||||
| Magnet Reach w/ 203mm Arm (draw bar fully extended) (Option) | 5.5 in / 140 mm | |||||
| C | Overall Length | STD – 63 in / 1600 mm CL – 71 in / 1804 mm | ||||
| D | Overall Width (in/mm) | 34.5/876 | 40.5/1029 | 46.5/1181 | 52.5/1334 | 58.5/1486 |
| E | Overall Height | 44.125 in / 1121 mm | ||||
| F | Battery Compartment Width (in/mm) | 24/610 | 30/762 | 36/914 | 42/1067 | 48/1219 |
| G | Magnet Travel (drawbar fully retracted) | STD – 42 in / 1067 mm CL – 50 in / 1270 mm | ||||
| H | Maximum Battery Length w/ 152mm Arm | STD – 43 in / 1093 mm CL – 51 in / 1296 mm | ||||
| Maximum Battery Length w/ 203mm Arm (Option) | STD – 41 in / 1042 mm CL – 49 in / 1245 mm | |||||
| If a Safety Gate option is fitted, all maximum battery lengths will be reduced by 1.25 in / 32 mm | ||||||
| I | Maximum Battery Width (in/mm) | 23/584 | 29/737 | 35/889 | 41/1041 | 47/1194 |
| J | Minimum Battery Width | 6 in / 152 mm | ||||
| K | Minimum Battery Height | 13 in / 331 mm | ||||
| L | Maximum Battery Height | 32 in / 813 mm | ||||
| M | Minimum Required Pallet Truck Fork Length | 48 in / 1220 mm | ||||
| N | Extraction Height, Mounted on Standard Pallet Truck + Standard 120mm Lift | 11.378 in / 289 mm | ||||
* When fitted to a standard pallet truck with 86mm thick forks
SPECIFICATIONS
| BTE-24 | BTE-30 | BTE-36 | BTE-42 | BTE-48 | ||
| 1 | Maximum Load Capacity with 48” forks | 3,000 lb / 1,361 kg | ||||
| 2 | Maximum Load Capacity with 60” forks | 5,000 lb / 2,265 kg | ||||
| 3 | Electric Motor H.P. | 1HP | ||||
| 4 | Battery Attachment Mechanism | Magnet | ||||
| 5 | System Voltage | 12V / 24V / 36V / 48V | ||||
| 6 | Battery Connector | SB 175 Gray | ||||
| 7 | Standard Model Color (optional colors available) | Orange, Blue, Yellow, Red | ||||
| 8 | Push/Pull Drive Chain Size | #50 | ||||
WEIGHTS
| BTE-24 | BTE-30 | BTE-36 | BTE-42 | BTE-48 | ||
| O | Service Weight Excluding Pallet Truck and Battery | 658 lb/298 kg | 700 lb/317 kg | 730 lb/331 kg | 760 lb/344 kg | 790 lb/358 kg |
PERFORMANCE
| BTE-24 | BTE-30 | BTE-36 | BTE-42 | BTE-48 | ||
| P | Rated Draw Bar Pull (1/4″ Plate) | 1,800 lb / 818 kg | ||||
| Q | Arm Travel Speed | 38 FPM / 11.5 m/min | ||||

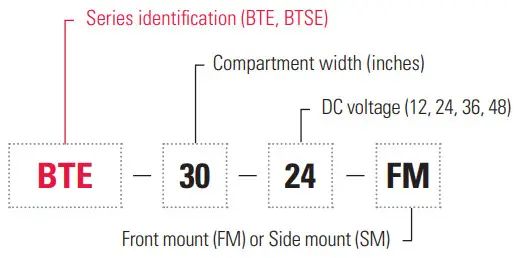

MODEL/PART NUMBER BREAKDOWN
Example: BTE-24-24-FM
