QUICK REFERENCE GUIDE > AB50S2PC1FA
Cassette, 5kW
White

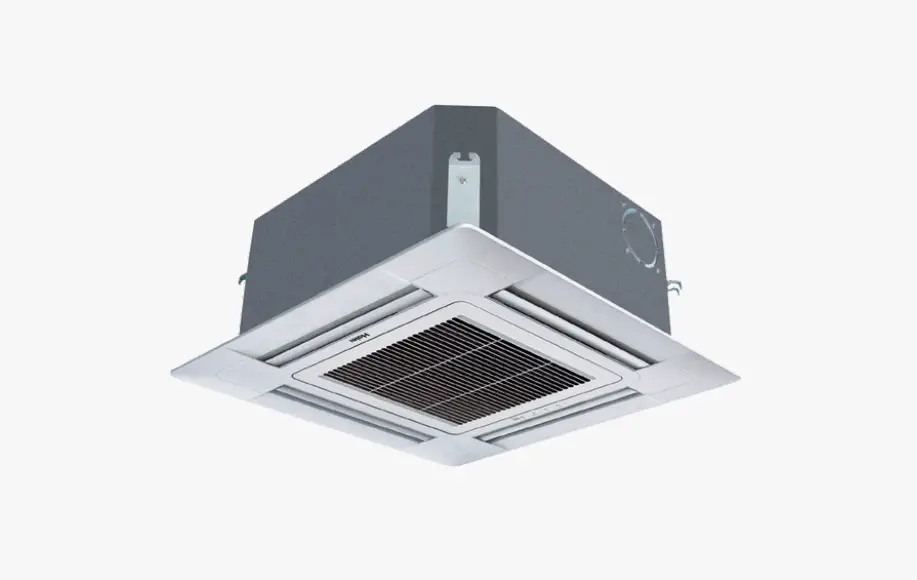

This compact, ceiling-mounted cassette unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit.
- Four-way air outlet for even heating and cooling
- Fresh air inlet connection available
- Optional Wi-Fi accessory for remote control using the Smart HQ™ app
- Fan blade designed for quiet operation
DIMENSIONS
| Height | 570 mm |
| Width | 570 mm |
| Depth | 260 mm |
FEATURES & BENEFITS
Fresh air inlet
Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity.
Control from anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
Quiet operation
A helix fan blade and diffuser are designed for quiet operation.
Four-way airflow
The louvres are designed to direct airflow far and wide for even temperature distribution.
Flexible installation
This model includes a built-in condensate drain pump with 750mm lift height to suit your installation, and an optional second branch outlet for further air distribution.
Central controller
With an optional central controller, you can easily control individual or connected units, and schedule air conditioning to turn on and off automatically.
SPECIFICATIONS
| Capacity | |
| Cooling capacity (kW) | 5.0kW |
| Heating capacity (kW) | 5.5kW |
| Features | |
| 24 Hour timer | • |
| Blue fin coils | • |
| Fresh air connection | • |
| Sleep mode | • |
| Standard controller | YR-HQS01 (remote) |
| Wi-Fi controller compatible | • |
| Installation | |
| Liquid line | 6.35mm |
| Suction line | 12.7mm |
| Performance | |
| Airflow | 700m3/h |
| R32 Refrigerant | • |
| Sound power | 55dBA |
| Sound pressure SPL (indoor) | 42 / 37 / 35 / 32dBA |
| Power Requirements | |
| Power phase | Single |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
| Product dimensions | |
| Depth | 260 mm |
| Height | 570 mm |
| Net weight | 19kg mm |
| Width | 570 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51634 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
