FR075 Indicator Light Unit S Pair

Welcome to Rizoma
Before you start
We are pleased to welcome you into the world of RIZOMA, and we congratulate you for your excellent choice. Please carefully follow the instructions in this guide, which will allow you to mount and use the product correctly and enjoy all the features it has.
For your protection and safety, RIZOMA expressly recommends that you have the installation of the product performed by skilled personnel. Improper installation, repair or maintenance, can cause accidents. Keep this user guide as a reference for the future.

General conditions

Attention:  This component comes assembled for shipping purposes only.  Tighten all fasteners to appropriate torque specifications before riding.
Descriptions preceded by this symbol contain information, instructions, or procedures, which, if not followed, may result in death or serious injury.

1. Carefully read, understand and follow these instructions, they are an essential part of the product.  If you have any doubt whatsoever regarding the installation or use of
   your RIZOMA product, please see your authorized RIZOMA dealer for assistance (on www.rizoma.com).
2. For correct installation, all tightening has to be done after  the correct positioning of  the accessories without restricting the moving parts, to not compromise the correct functioning of the product.
3. After installing any Rizoma product, please check that all related components of the motorbike function e.g. brakes, throttle, clutch, lights and steering. We strongly suggest to repeat these checks periodically, especially after long trips or prolonged periods of not using the bike.
   Your RIZOMA products require regular inspection and maintenance. The more you ride the more often you must inspect your RIZOMA products. If your products are
   leaking, bent, deformed, cracked, chipped or worn, no matter how slight, immediately have a RIZOMA dealer inspect the products before you ride again. In any case never try to repair or modify the Rizoma products or their components, always replace with Rizoma original components.
   Rizoma products may not be compatible with your motorcycle or with other aftermarket equipment installed before. For your safety Rizoma suggests to always contact
   your RIZOMA dealer.
   O.E.M.: original equipment manufacturer.

PART NUMBER
FR075

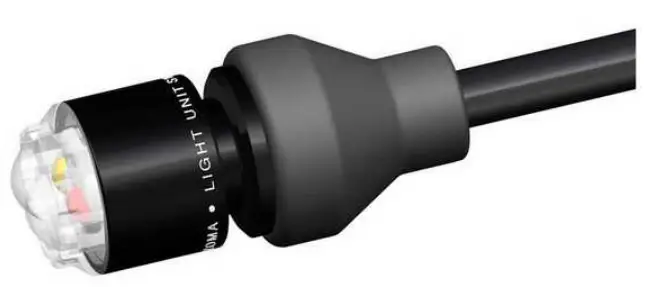

Indicator with tail/brake light

Installed in pairs, the indicator FR075 replaces both the original rear indicators and the brake/tail lights. The indicator FR07is approved for road use in the EU according to the EGE regulation for motorcycles as documented on the certification number embossed on each lens. This means that if installed properly, you don’t need to have your new indicators entered in place of the original indicators and of the tail/brake lights on your vehicle registration certificate, or have them inspected by your national vehicle safety inspection organisation. You need not keep any special documents with you.

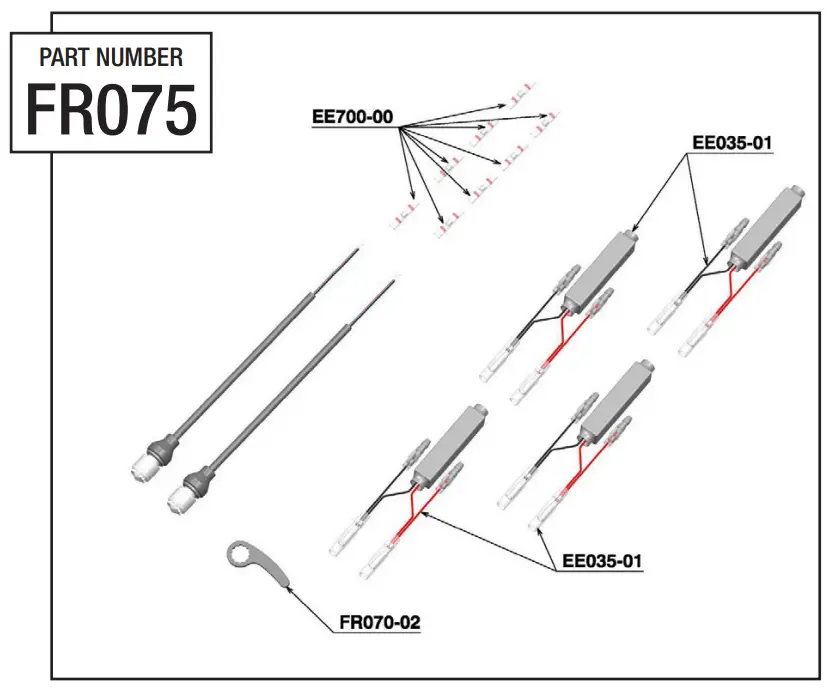

Before you start mounting the product please check the completeness of the kit on the part list. The difficulty level and the time of assemblage shown do not include the removal of OEM components. The warrantee is not valid for any electric wires cutting or any product modify or tampering. In the kit are included n°02 resistor of 15Ω 10W. Consult the website www.rizoma.com, in the turn signals “LIGHT UNIT S” section click “DOWNLOAD” to download the PDF document homologation. Warning: Make sure that your motorbike is standing firmly before you start work, as a fall may lead to damage to the motorbike or injury to you or others. WARNING: TO CLEAN YOUR PRODUCT DON’T USE DETERGENT, AGGRESSIVE PRODUCTS OR ABRASIVE SPONGE THAT CAN DAMAGE OR SCRATCH YOUR PRODUCT, BUT USE ONLY NEUTRAL DETERGENT WITH COLD WATER.
Turn signals do not comply with applicable DOT or other Federal Regulations. For off-road use only. Use on-road could cause another motorist or pedestrian not to see you, resulting in an accident, personal injury or death. Improper installation could damage the electrical system of the motorcycle and cause a fire, resulting in personal injury or death. Electrical shock hazard. Disconnect the battery before starting to install turn signals.

DIFFICULTY LEVEL	Medium
TIME OF ASSEMBLAGE	15-20 min

INSTALLATION

PART NUMBER
FR075
Your garantee will not apply if the indicator has not been correctly installed and connected to the electrical supply on your motorbike. Do not carry out the installation unless you are specifically trained to do so; otherwise, please contact an authorized dealer Rizoma. Your garantee does not apply to damage due to wrong connection or excess

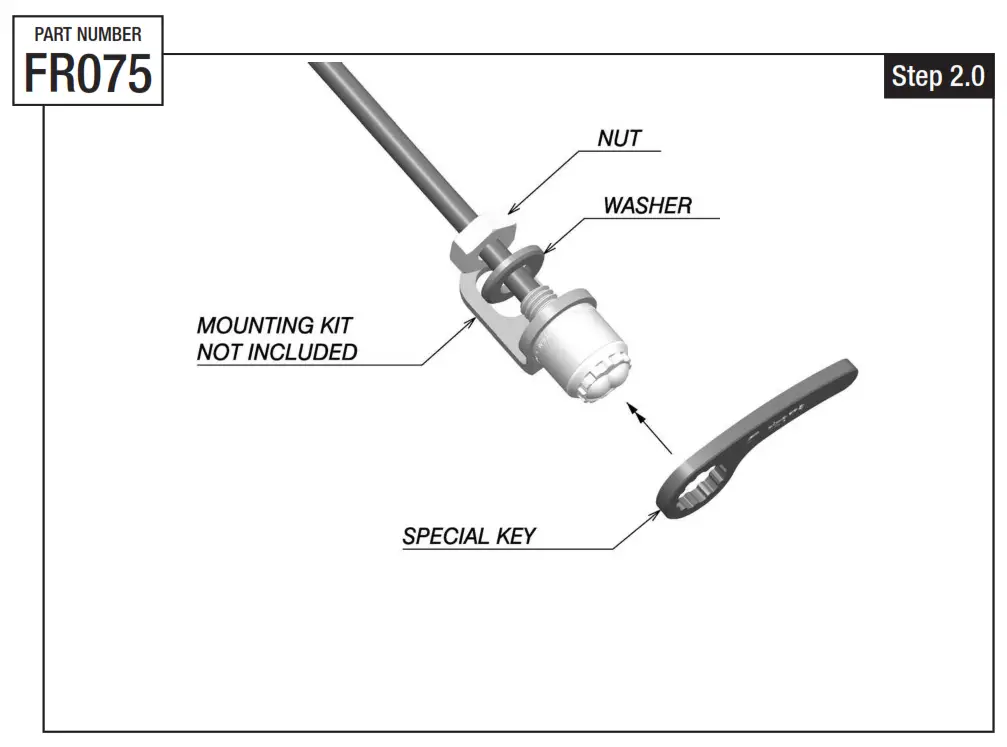

voltage. Improper mechanical installation or orientation of the indicator may invalidate your motorbike’s roadworthiness and insurance protection, or even lead to accidents. Check that your indicator are securely fitted before you ride your motorbike. Your indicator may heat up during use. Contact with bare skin or heat-sensitive objects may lead to damage or injury. Make sure that your motorbike is standing firmly before you start work, as a fall may lead to damage to the motorbike or injury to you or others. Use the washer and the M6 nut to install your indicator. Install the cover rubber on nut insert the wires and the sheath, use household detergent or grease to help. Make sure that your indicator are fitted in such a way as to cast a beam horizontal to direction of travel. Orientation is important to safety traffic and essential to your bike’s roadworthiness. Refer to the directive in force for more details on fitting.

MOUNTING SOLUTION INDICATOR

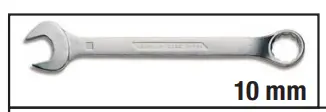

ATENTION: USE THE INCLUDED SPECIAL KEY TO TIGHTEN THE INDICATOR.
TAKE CARE NOT TO TWIST THE WIRES.

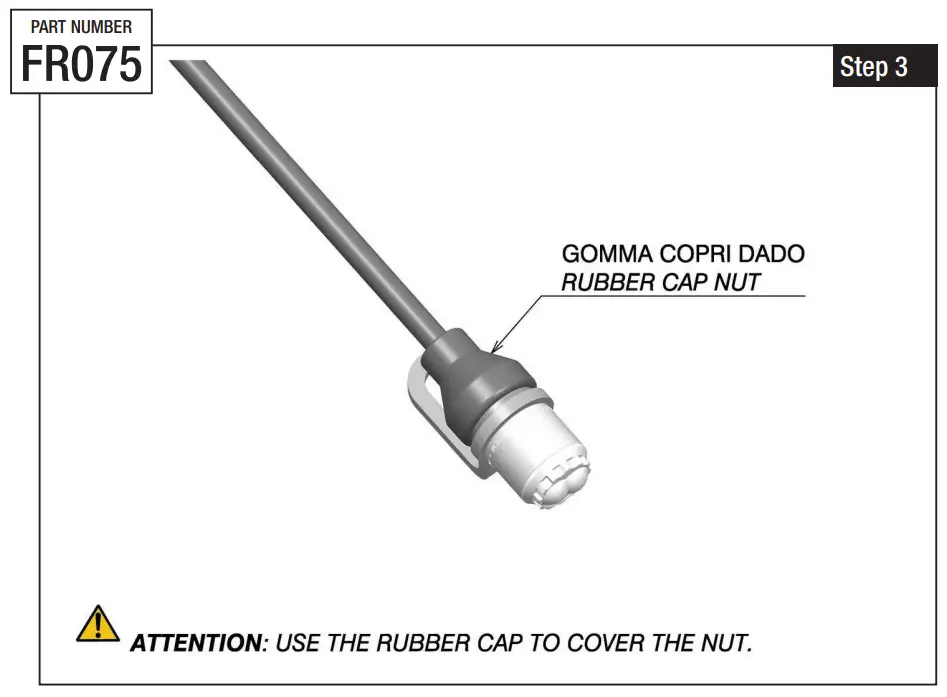

INSTALL RUBBER

ELECTRIC CONNECTIONS

Disconnect the battery before starting to install turn signals. To avoid damage to the electrical system of the bike, for electrical connection of turn signal we recommend to use the Rizoma electric wiring. Consult the Rizoma catalog or the web site www.Rizoma.com to choose the correct electric wiring. Arrange the wires to protect them from splash water and fasten them as appropriate, such as with wire connectors. Reconnect the motorbike battery and test the turn signal. Align the turn signal as described above. If your turn signal should flash at a rate faster (some riginal relays only work properly at the original turn signal) we recommend using a power-independent relays from
Rizoma (consult the Rizora catalog or the web site www.Rizoma.com). It should, in fact, this solution preferred for its simplicity, safety, reliability and speed of install. Otherwise, we recommend using the Rizoma resistor, consult the authorized dealer or the web site www.rizoma.com for the purchase of the correct resistor. Install the resistors in such a way that the power value (W) equal at the power value of original turn signal (see SCHEMA). Install the resistors in such a way that heat can escape effectively. These measures may disable the rapid flashing function to alert the rider that one of the turn signal is no longer working. Check your turn signal before each motorcycle trip. These resistors will heat up if the turn signal is used for an extended period. Make sure that other components or person are safe.

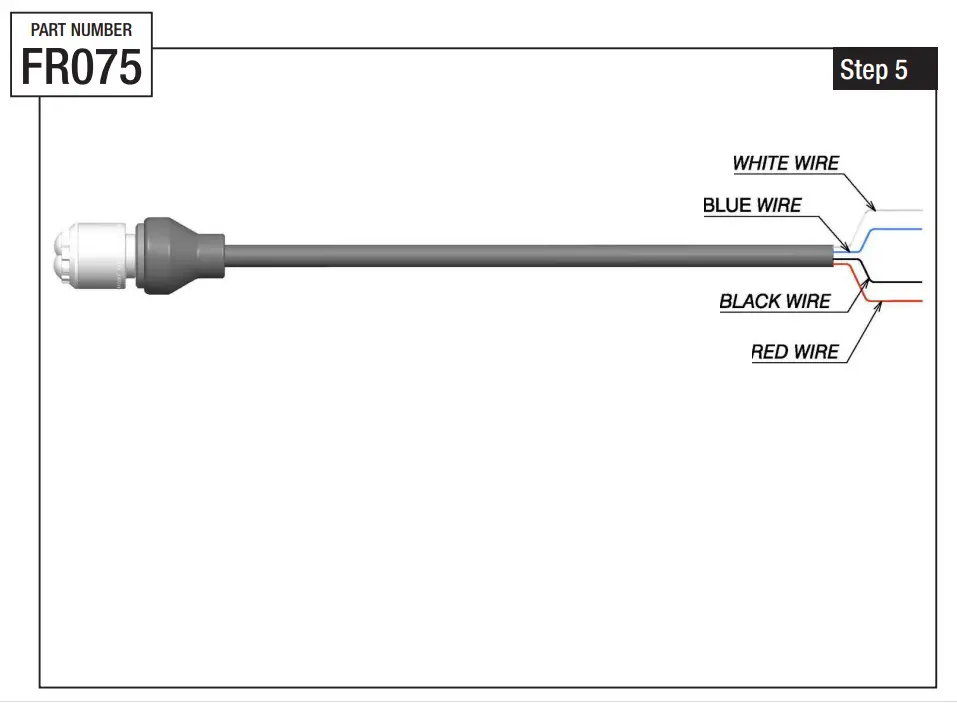

ELECTRICAL CONNECTIONS:

• WHITE ELECTRIC WIRE= TAIL LIGHT;
• BLACK ELECTRIC WIRE= GROUND;
• RED ELECTRIC WIRE= BRAKE LIGHT-BLUE ELECTRIC WIRE= INDICATOR.

Warning: on BMW 2021 models, with 3- function standard indicators, DO NOT
CONNECT THE WHITE ELECTRIC WIRE.

CONNECTIONS

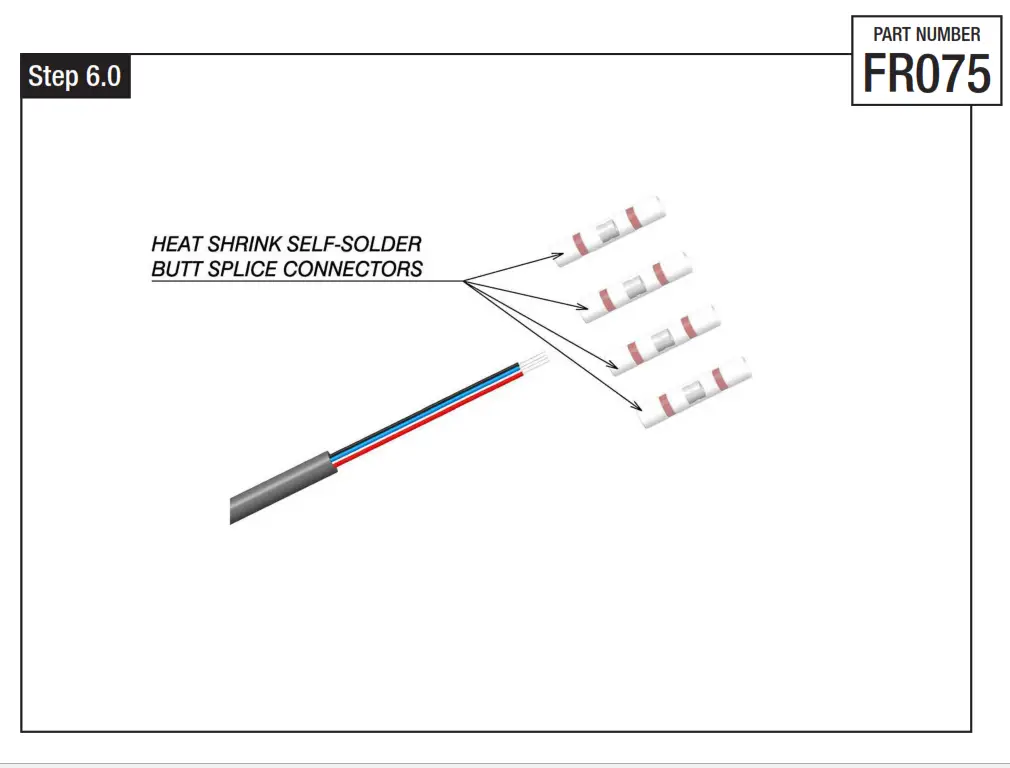

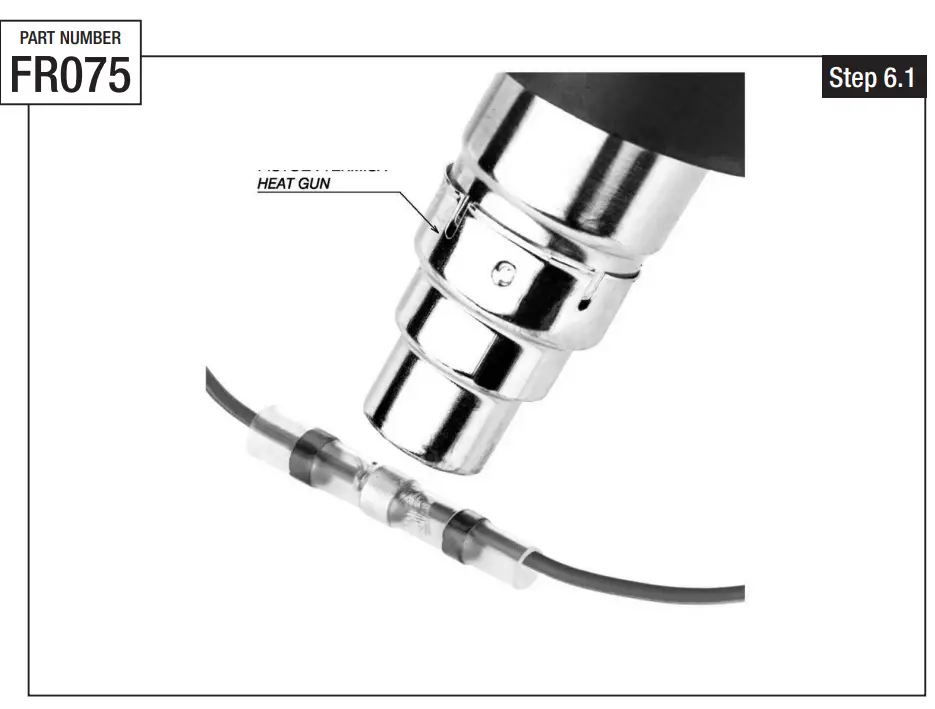

WARNING: FOR THE CONNECTIONS USE THE HEAT SHRINK SELF SOLDER INCLUDED.
DISCONNECT THE BATTERY. RESPECT THE POLARITY. ISOLATE THE TERMINALS.

Attention: the shrinkage temperature is 80C and the tin solder melts at 160C, you can use heat gun. Shrinkage ratio: 2:1.

INDICATORS CONNECTIONS

Step 7
PART NUMBER
FR075

Before installing the RIZOMA indicator, please refer to the motorcycle operation and maintenance manual to check the power of the (original) OEM indicators, expressed in Watts.If they are LED or 6/10/21W bulb versions, follow the instructions for connection very carefully.Any connection must take place using the relevant connectors. Caution: never cut the wires, as this could lead to malfunctions.

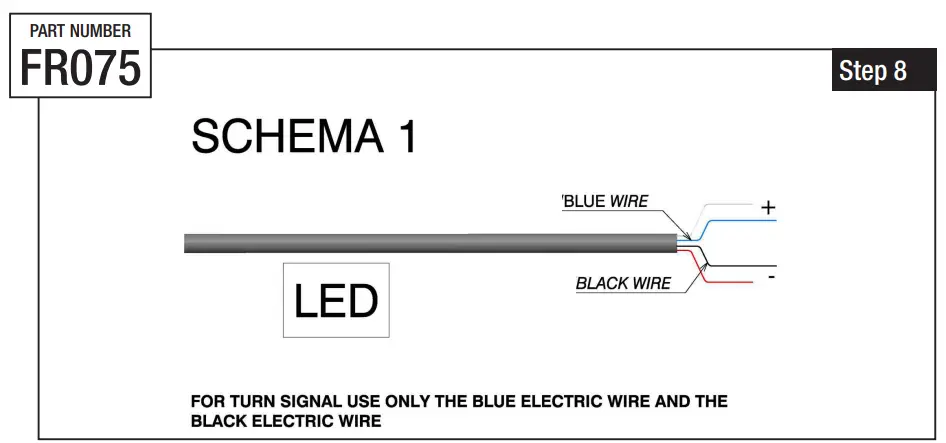

Assembly diagram for motorcycles with electrical system featuring LED indicators.

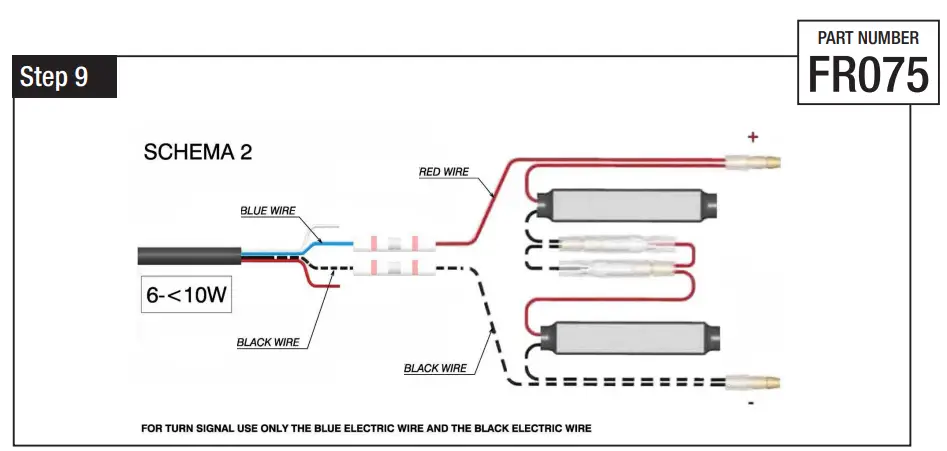

Assembly diagram for motorcycles with electrical system featuring (from 6W to < 10W) bulb indicators.

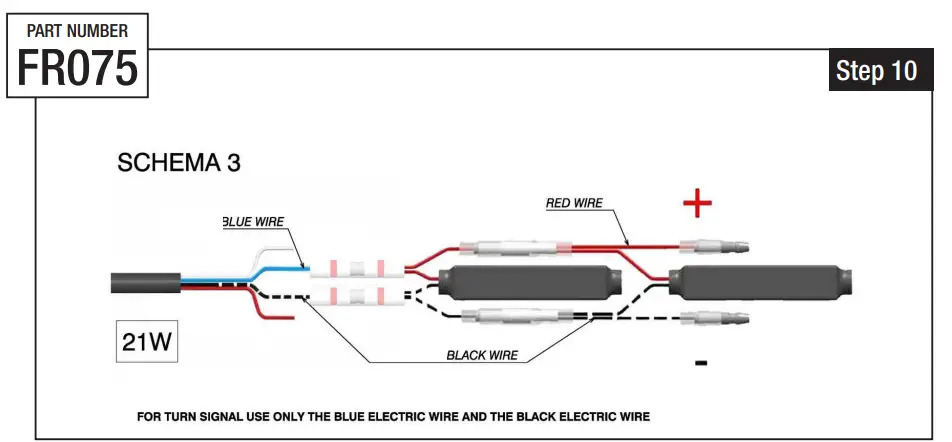

Assembly diagram for motorcycles with electrical system featuring (21W) bulb indicators.

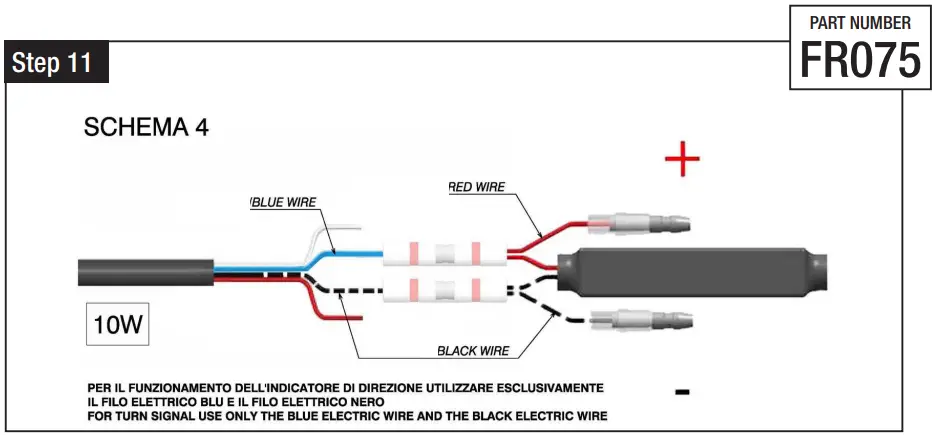

Assembly diagram for motorcycles with electrical system featuring (10W) bulb indicators.

Step 12
PART NUMBER
FR075

In motorcycles equipped with a control indicator (some BMW models), it may be necessary to install other resistors activated parallel to the current circuit of the indicators in order to avoid unnecessary ignition of the control indicator. For some BMW models, purchase the EE149H kit.
Step 13

Step 14

Step 15

Step 16

Step 17

Step 18

Step 19

Step 20

EXCEPTIONS

Step 21
WARNING: only for these models do not have to be usthe resistors included in the indicators but the kits in the table must be purchased.

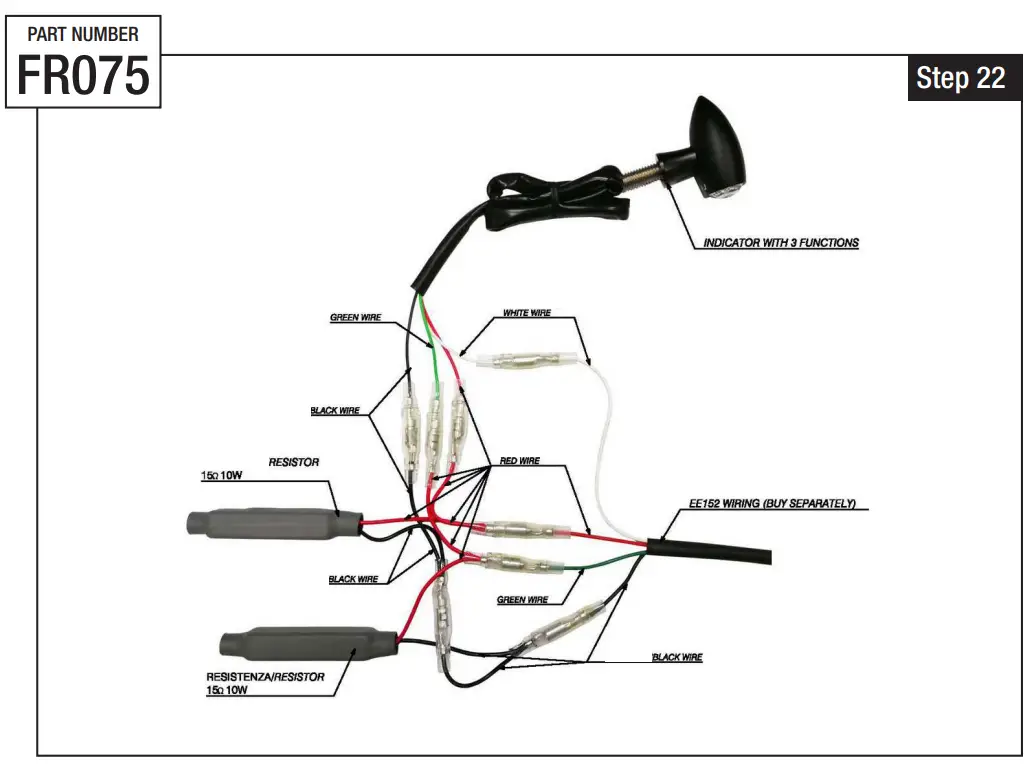

ATTENTION: CONNECTIONS ONLY FOR A 3-FUNCTION INDICATOR. BOTH THE BACK INDICATORS MUST BE CONNECTED AS IN THE IMAGE

Warnings

RIZOMA reserves the right, in its sole discretion, to make changes to the product and this information at any time and without prior notice. Although many catalogs and advertisements depict riders engaged in extreme or stunt riding, this activity is extremely dangerous, increases the risk of an accident, and increases the severity of any injury.
The action depicted is performed by professionals under strictly controlled riding conditions.
Only you know the limits of your riding ability and only you can control the conditions under which you ride. By and in consideration for his/her purchase and use of the RIZOMA product, the user expressly recognizes and agrees that in the event of any claim arising out of the use of this RIZOMA product, whether such claim is based in contract, warranty, tort (personal injury or wrongful death) or otherwise, the laws of the Republic of Italy shall apply and jurisdiction and venue for any such action shall be in the Courts of Busto Arsizio, Italy.
All riders are strongly urged to take a motorcycle rider safety clinic. Always wear a properly fitted and fastened motorcycle helmet (RIZOMA recommends a full face helmet), that has been approved by ANSI , SNELL, CE, or any other relevant authority, and any other safety equipment necessary for your riding style, such as full finger gloves, boots, and body armor.
Be sure to read and follow all the instructions and warnings that originally accompanied your motorcycle, as well as the literature that accompanied any other component parts installed on your motorcycle. Be sure that your tires are inflated to the correct pressure and that there is no damage whatsoever in the tread or sidewall of the tire.
Legal note
Some of our products may not be approved for road circulation in the countries where homologation is required.
Thus RIZOMA® srl declines any responsibility for a different use of its products.
