5V Zero Li-ion EQ 0.5

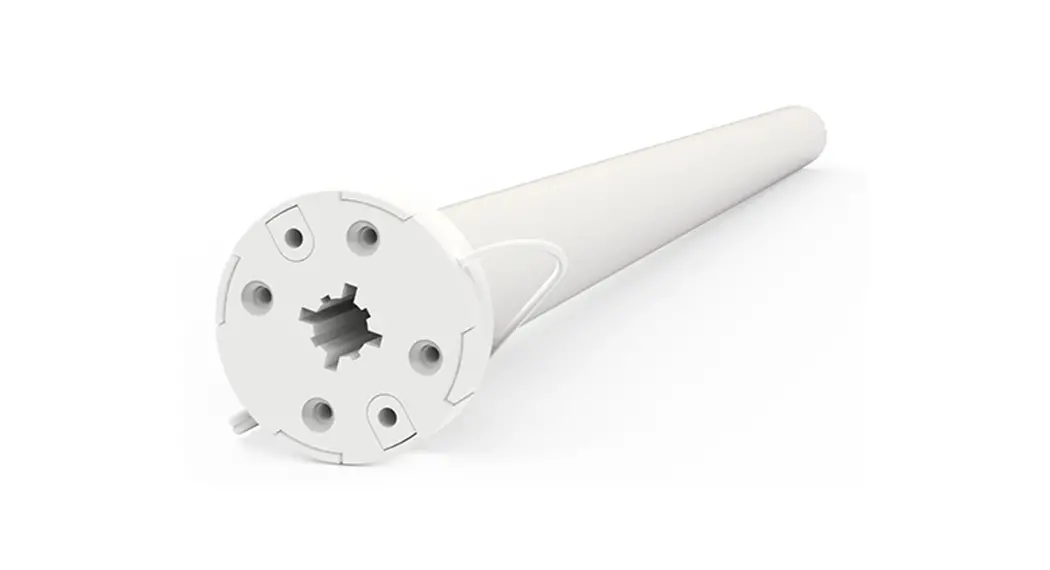

5V Zero Li-ion EQ 0.5 Battery Powered Motor
The rechargeable, battery-powered motor for small shades in residential and commercial projects.

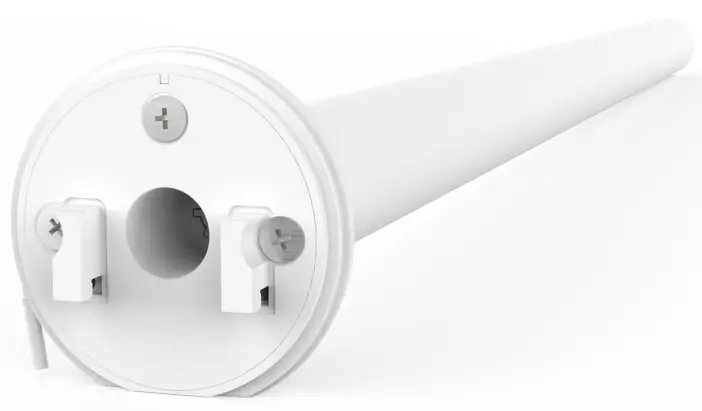

 | PATENTED MOTOR HEAD DESIGN Offers the smallest light-gap and features a cavity to discreetly conceal its wrap-around antenna. |
 | EXTRA QUIET Variable speed and soft-stop function makes this the quietest Automate motor yet. |
 | BATTERY CHECK ACTION When paired with the Push series remotes, the motor will position the shade to indicate battery percentage. |
 | SECURE HOLD Motor head design accommodates bracket with a 12mm tongue for a more secure fit. |
 | INNOVATIVE MOTOR CAP Optional, custom-designed accessory for no visible wires. |
 | ELEGANT SOFT STOP Slows the motor down for a smooth stop to prevent damage to the shade, and preserves the life of the battery. |
 | MICRO USB CHARGING Conveniently recharge the motor using any micro USB cable. |
 | SIMPLIFIED RETROFIT Upgrade manual or motorized shade systems seamlessly to maintain existing deductions, achieve minimal light gap, and eliminate bracket adjustments. |
PRODUCT SPECIFICATIONS
Part #: MT01-1320-069001 5V LI-ION [0.5NØ20/5V/20rpm](SKY)
| Voltage | 5V-DC | Limit Switch Type | Electronic |
| Torque | 0.5Nm | Current | 0.73 A |
| Max Run Time | 12 min. | Battery Size/Type | 2600mAH |
| Speed | 20 RPM (Adjustable to 24 or 281 | Temp Working Range | 32°F to 140°F (0°C to 60°C) |
| Radio Frequency | 433.92 MHz | Insulation Class | III |
| RF Modulation | FSK | Sound Level | -38 dB |
| IP Rating | IP20 | Power | 6 W |

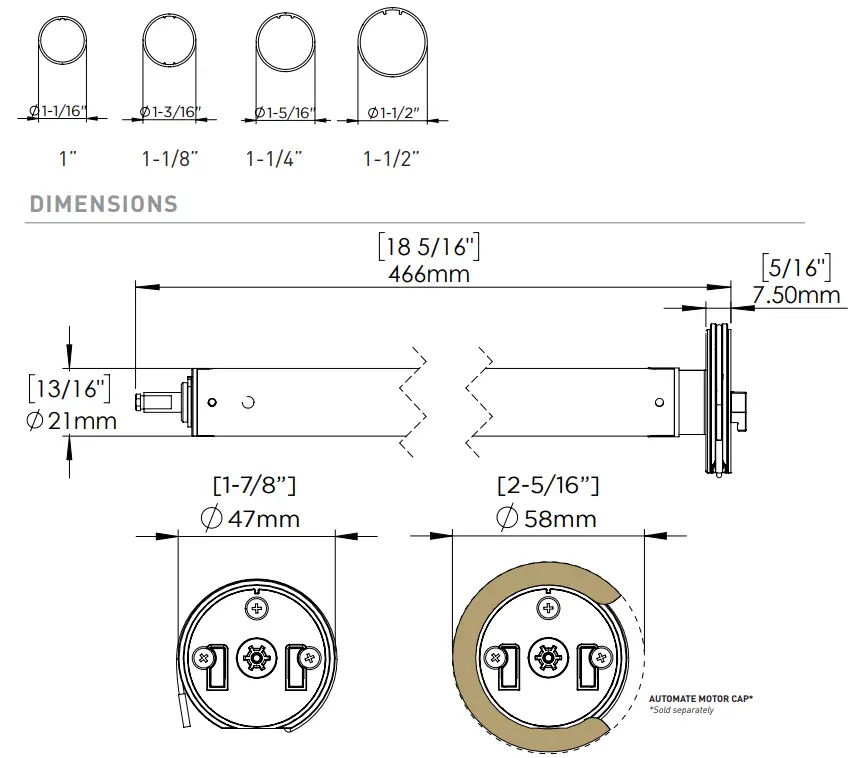

COMPATIBLE TUBES
APPLICATIONS
- Roller Shade
- Roman Shade
MOTOR HEAD ADAPTORS
- MT03-0205-069001 AUTOMATE |
BRACKET ADAPTOR R8 SERIES - MT03-0206-069002 AUTOMATE |
BRACKET ADAPTOR SKYLINE SERIES - MT03-0207-069015 – AUTOMATE |
BRACKET ADAPTOR LOUVOLITE SERIES
COMPATIBLE PRODUCTS (refer to catalog for full item listings)

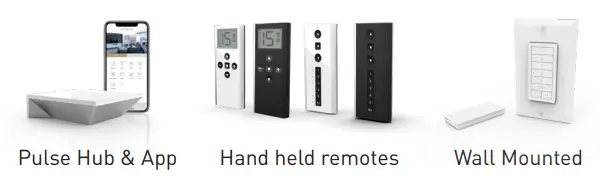

Controllers

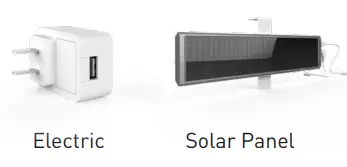

Charging Options
Motor Cap
Sensors
ARC™ (Automate Radio Communication) is Rollease Acmeda’s proprietary technology utilizing 433MHz radio communication with bi-directional feedback that brings Automate motorized shading systems together.
Rollease Acmeda - Precision in Motion
