FISHER PAYKEL RDV2-486GL-L_N 48 Inch Dual Fuel Range User Guide
A striking addition to your kitchen, with six gas burners, griddle, and two convection ovens for a combined capacity of 6.9 cu ft.
- Top burner heat of 19,000 BTU, for seriously fast boiling 6.9 cu ft total oven capacity across two oven cavities
- Non-tip full-extension shelves in main cavity for safe removal of hot dishes

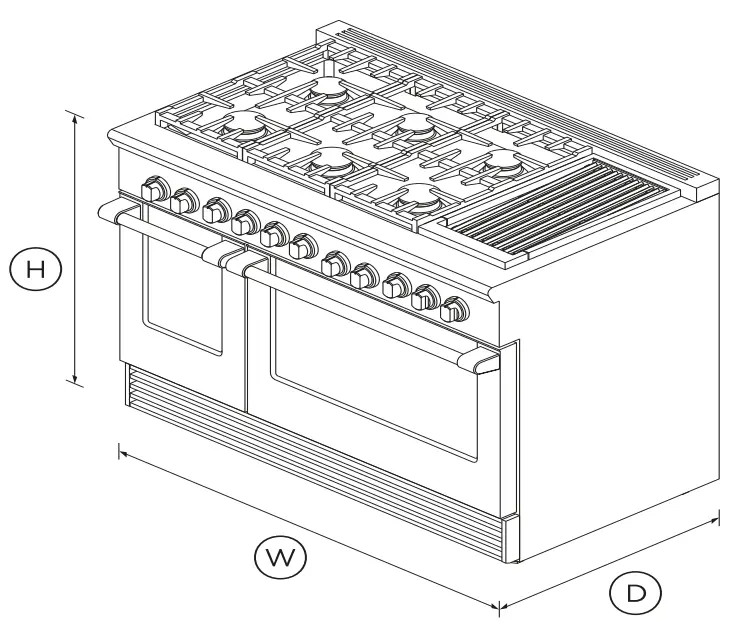

DIMENSIONS
- Height 35 3/4 – 36 3/4″
- Width 47 7/8″
- Depth 29 1/8″
FEATURES & BENEFITS
Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
Consistent broiling
The Dual Fuel Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.
Easy to clean
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
Instant visibility
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Cooking flexibility
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
SPECIFICATIONS
Accessories
- Square handle option AH-R48
Burner ratings
- Maximum burner power 19000 BTU
- Power back centre 13000BTU
- Power back left 13000BTU
- Power back right 13000BTU
- Power front centre 15000BTU
- Power front left 19000BTU
- Power front right 15000BTU
- Power grill 10000BTU
- Total cooktop power 98000 BTU
Capacity
- Shelf positions 5
- Shelf positions 5
Cleaning
- Pyrolytic self-clean
Controls
- Electric circuit 4 wire
- Metal illuminated dials
Gas Requirements
- Fitting and pipe ½ NPT, min. ⅝” flex line
- Supply Pressure (LPG) 11″ to 14″ W.C
Oven features
- Full extension telescopic
- True convection
Oven functions
- True convection
Oven performance
- Bake power 4600
- Broil 3600W
- Main oven – True convection 2500W
Power requirement
- Rated current 50A
- Supply frequency 60Hz
Product dimensions
- Depth 29 1/8″
- Height 35 3/4 – 36 3/4″
- Width 47 7/8″
Rangetop features
- Sealed Dual Flow Burners™ 6
- Sealed range top
- Vent trim included
Safety
- Full extension telescopic
Secondary oven features
- Broil
- Concealed element
- Electronic oven control
- Internal light
Secondary oven functions
- Bake
- Number of secondary oven 3
- Proof
- SKU 7136
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 202
