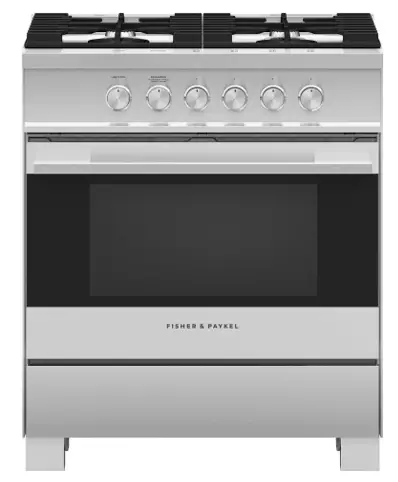

QUICK REFERENCE GUIDE > OR30SDG4X1
Gas Range, 30″
Series 7 | Contemporary
Stainless Steel
Add contemporary style to your kitchen, and enjoy the instant response and precision of a gas-fueled oven and cooktop.
- Four burner gas cooktop, with two dual ring wok burners
- Gas oven with 3.5 cu ft total capacity
- Three oven functions: Bake, Convection Bake and Maxi Broil
DIMENSIONS
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Depth | 25 1/4″ |
FEATURES & BENEFITS
Design quality
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop grates, and machined stainless dials all add up to an exceptional, premium range.
Large capacity oven
The large 3.5cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.
Performance power
Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.
Easy cleaning
With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.
SPECIFICATIONS
Accessories
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Broil rack | • |
| Chromed shelf runners | 1 set |
| Full Extension Telescopic | 2 sets (part 578776) |
| Kick strip, stainless steel | Part 81660 / 81813 |
| Small pot support | 1 (part 533981 cast) |
Burner ratings
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Dual wok burner inner/outer | 1000 – 18000BTU |
| Maximum burner power | 18000 BTU |
| Semi-rapid burner (LPG) | 1500 – 7600BTU |
| Semi-rapid burner (natural | 1500 – 8000BTU |
| Total cooktop power | 52000 BTU |
Capacity
| Shelf positions | 7 |
Cleaning
| Acid resistant graphite enamel | • |
| Dishwasher proof grates | • |
| Removable oven door | • |
| Removable shelf runners | • |
Controls
| Laser etched graphics | • |
Gas Requirements
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
Oven features
| Auto re-ignition system | • |
| Concealed element | • |
| Convection | • |
| Electronic ignition | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| Storage drawer | • |
Oven functions
| Bake | • |
| Convection bake | • |
| Maxi Broil | • |
| Number of functions | 3 |
Oven performance
| Bake power | 14000BTU |
| Broil | 11000 BTU |
| CoolTouch door | Triple glazed |
Power requirements
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
Rangetop features
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
Rangetop Performance
| Number of burners | 4 |
Safety
| ADA compliant | • |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 1/2 gallon |
Warranty
| Parts and labor | 2 years |
| SKU | 82763 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
