Sony Hcd-gzr5d Dvd Deck Receiver Owner's Manual

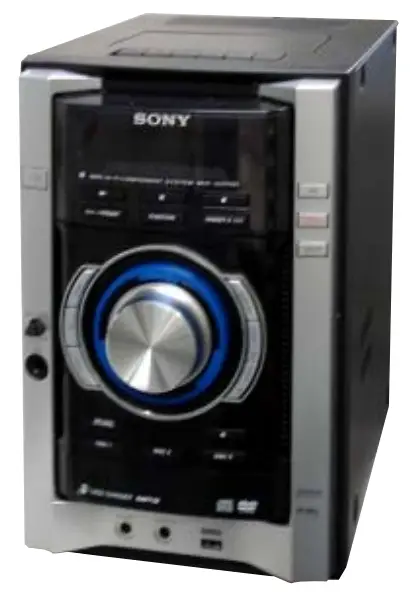

HCD-GZR5D DVD Deck Receiver
Owner’s Manual

SERVICE MANUAL

Ver. 1.1 2008.07
UK Model E Model
Russian Model

• HCD-GZR5D is the Amplifier, DVD player, tape deck, and tuner section in MHC-GZR5D.

SPECIFICATIONS

Amplifier Section The following are measured at AC 230 V, 50/60 Hz (European and Russian models)
The following are measured at AC 127, 240 V, 50/60 Hz (Saudi Arabian model)
The following are measured at AC 120, 220, 240 V, 50/60 Hz (Other models)
Power output (rated): 72 W + 72 W (6, 1 kHz, 1% THD)
RMS output power (reference) 120 W + 120 W (per channel at 6 , 1 kHz, 10% THD)
Inputs
AUDIO IN (stereo mini jack):
Voltage 700 mV, impedance 47 kilohms MIC (phone jack):
Sensitivity 2 mV, impedance 10 kilohms
Outputs
VIDEO OUT (phone jack):
Max. output level 1 Vp-p, unbalanced, Sync. negative, load impedance 75 ohms DVD DIGITAL OUT (Square optical connector jack, rear panel):
Wavelength 650 nm PHONES (stereo mini jack): accepts headphones of 8 ohms or more
USB section
Supported bit rate MP3 (MPEG 1 Audio Layer-3): 32 ­ 320 kbps
WMA: 48 ­ 192 kbps
AAC: 48 ­ 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3): 32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
(USB) port: Maximum current: 500 mA
Disc player section
System: Compact disc and digital audio and video system
Laser Diode Properties Emission duration: Continuous Laser Output*:
Less than 44.6 W *This output is the value measurement at a distance of 200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.
Frequency response DVD (PCM 48 kHz): 2 Hz ­ 22 kHz (±1 dB) CD: 2 Hz ­ 20 kHz (±0.5 dB)
Video color system format European and Russian models: PAL
Other models: NTSC and PAL
Tape deck section
Recording system: 4-track 2-channel stereo
Continued on next page ­

DVD DECK RECEIVER

Sony Corporation
Audio&Video Business Group Published by Sony Techno Create Corporation
HCD-GZR5D
Ver. 1.1

SECTION 8 EXPLODED VIEWS

Note:

• -XX and -X mean standardized parts, so they may have some differences from the original one.
• Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Hardware (# mark) list and accessories are given in the last of this parts list.
• Abbreviation
  E3: 240V AC area in E model
  E12: 220 ­ 240V AC area in E model
  E15: Iran model
  EA: Saudi Arabia model
  PH: Philippines model
  RU: Russian model
  SP: Singapore model
  TH: Thai model

The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

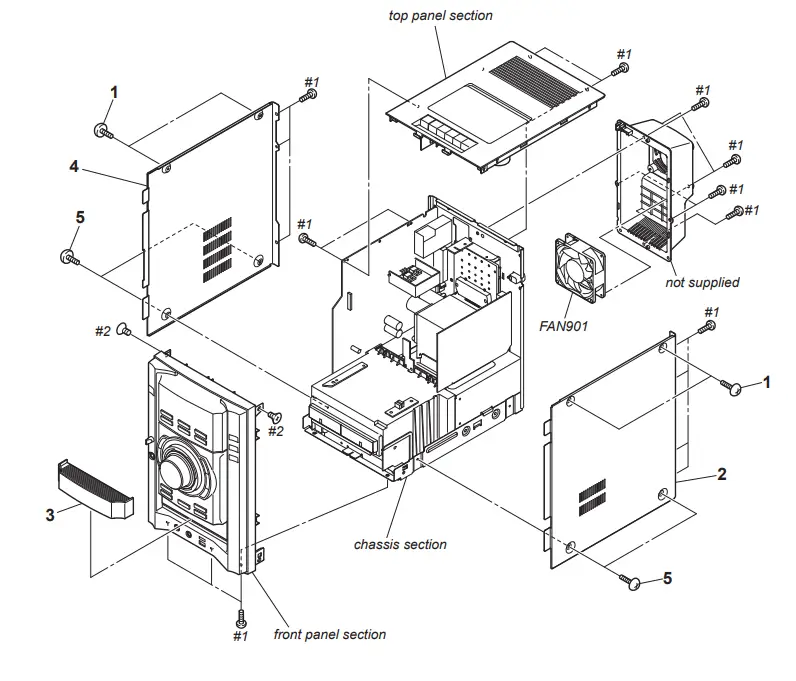

OVERALL SECTION

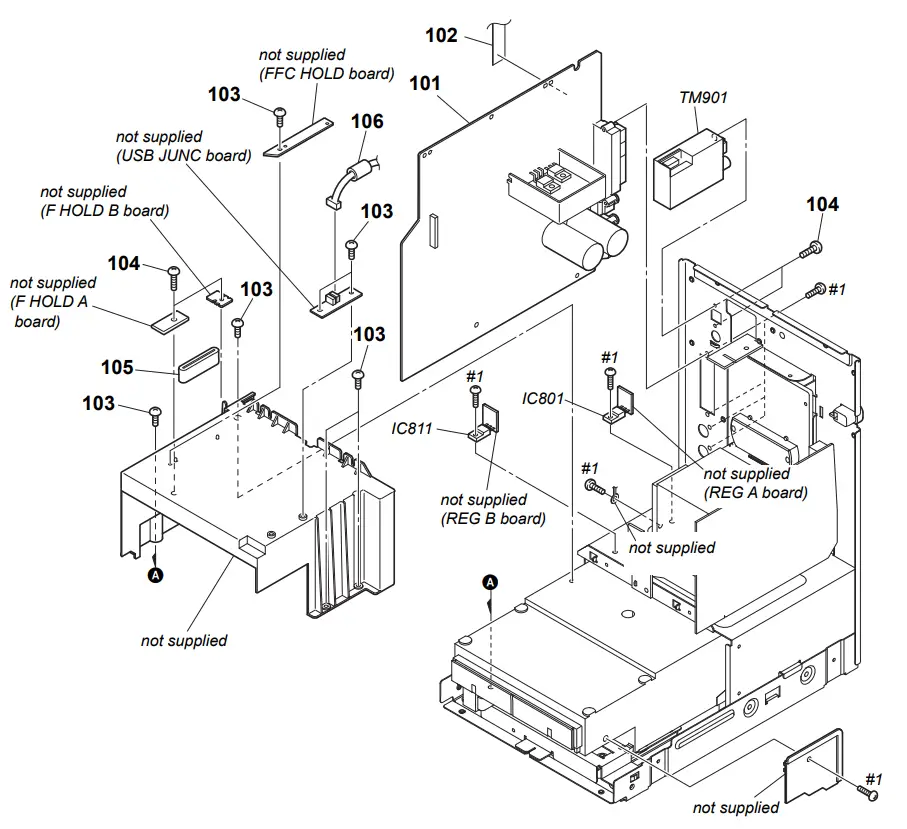

FRONT PANEL SECTIONMAIN BOARD SECTION

REAR PANEL SECTION

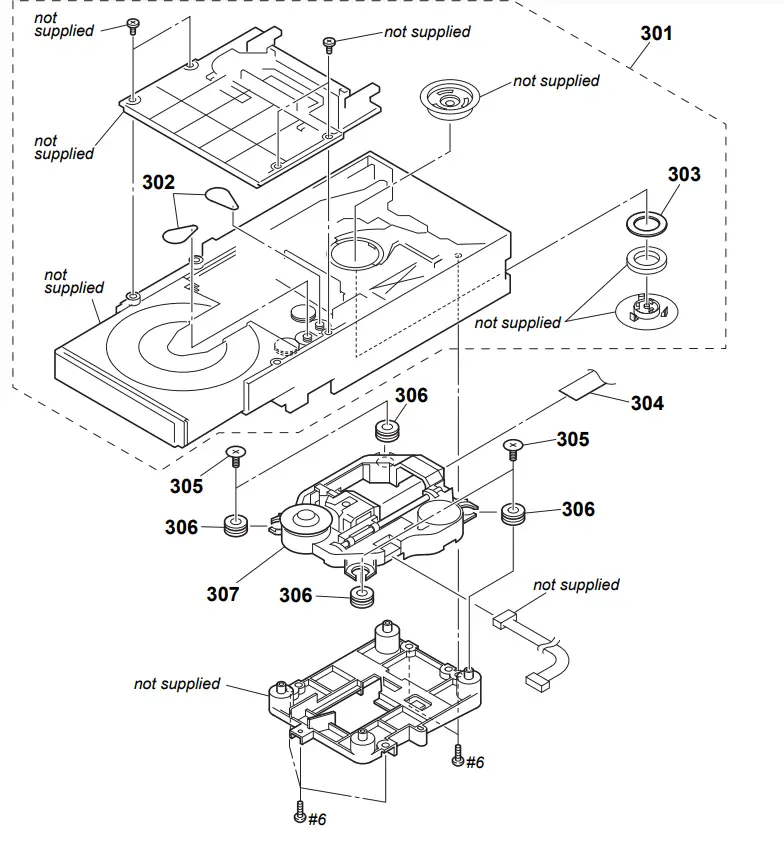

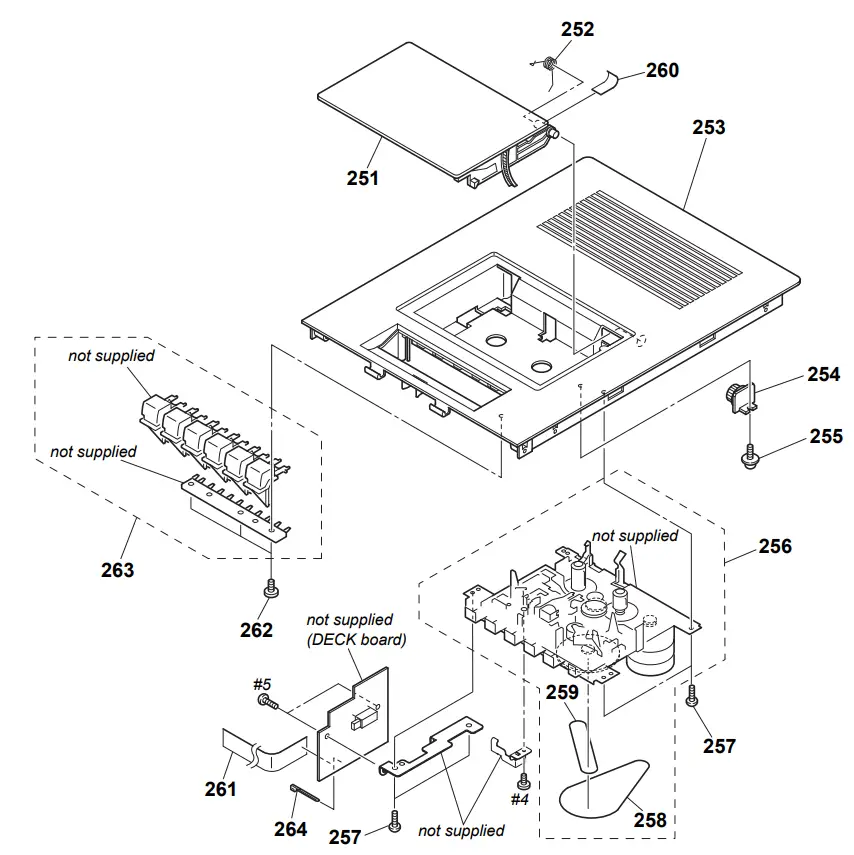

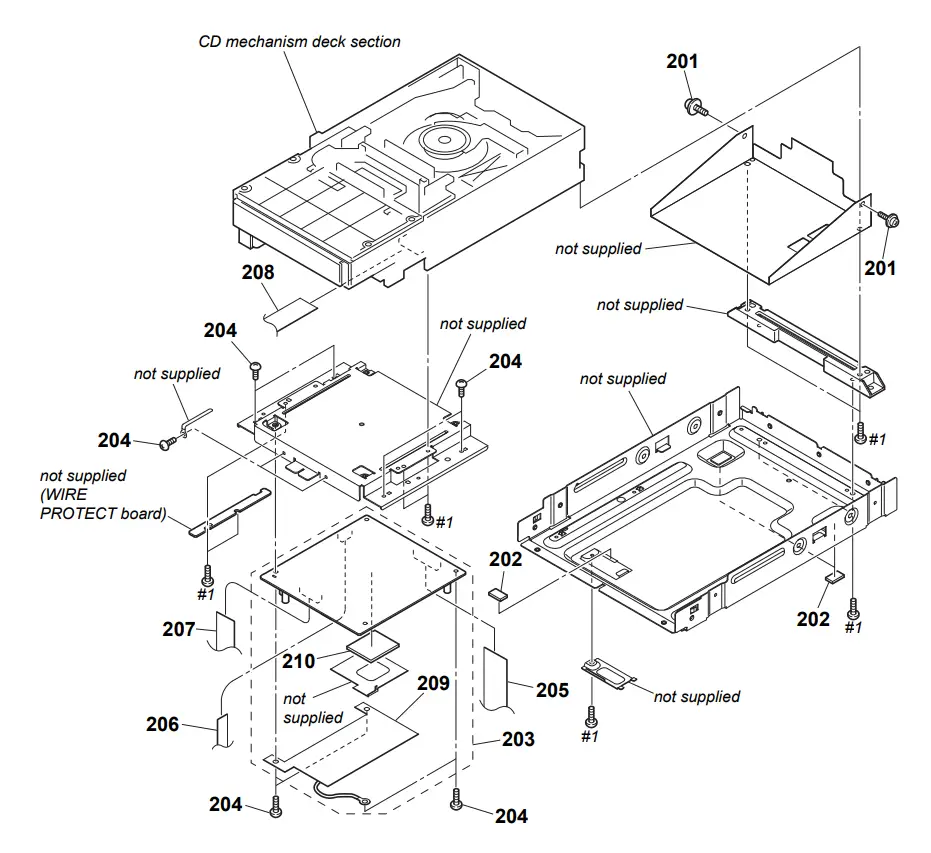

CHASSIS SECTION TOP PANEL SECTION 251 DVD MECHANISM DECK SECTION
