Qwiizlab Ac08 Usb C To Dual Hdmi Adapter User Guide

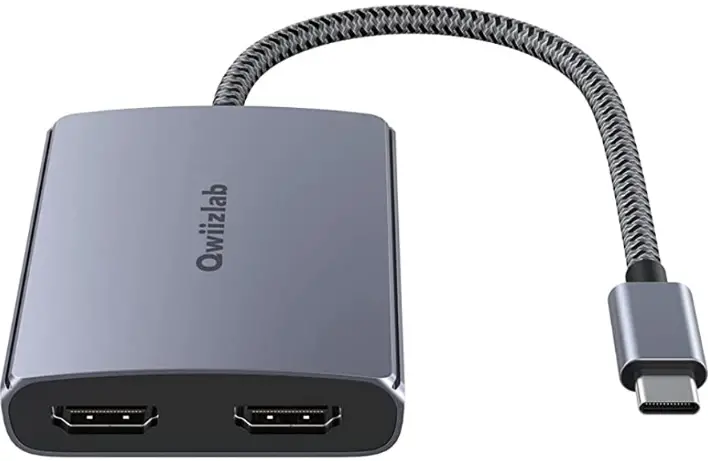

Qwiizlab AC08 USB C to Dual HDMI Adapter

Product Description

• Qwiizlab ACco8 is the latest USB-C to Dual HDMI Adapter which transforms a single USB-C port into a video hub to expand more monitors for your computer. It supports either a single external display in 8K@30Hz resolution or dual external displays in 4K@6OHz resolution with specifications of HDMI 2.1 and HMD1 2.0 respectively.
• It is plug-and-play on PC, Mac, Chromebook, and Pixelbook without driver installation. It is a cool tech gadget for both working and gaming.

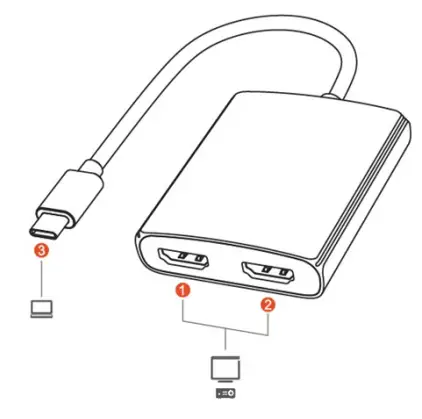

Connectivity

1. HDMI (8K@30Hz)
2. HDMI (4K@60Hz)
3. USB Type-C (Compatible with Thunderbolt 3 or 4)

How To Connect

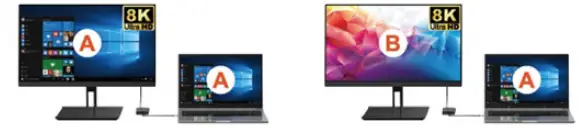

Single External Display

Windows

It supports both mirror and extend mode up to 8K@30Hz resolution.

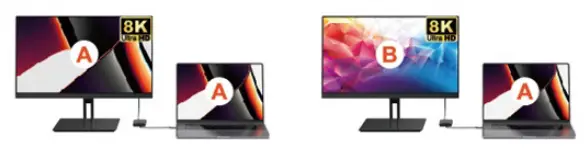

macoS

It supports both mirror and extend mode up to 8K@30Hz resolution.

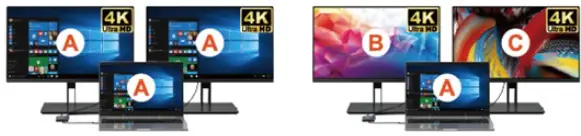

Dual External Displays

Windows
It supports mirror mode and dual extend mode (A-B-C) up to 4K@60Hz resolution.

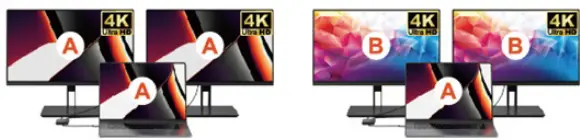

macOS
It supports mirror mode and single extend mode (A-B-B) up to 4K@60Hz resolution.

FAQ

1. Can I use it on both PC and Mac?
   • It supports both Windows and macOS.
   • Do I need to install driver before using it?
   • It is plug-and-play without any driver installation.
2. Can I get two external displays in SK resolution?
   • It supports 4K@60Hz resolution when you connect to two external displays.
   • It supports 8K@30Hz resolution when you connect to one external display.
3. Can I get two external displays on both Windows and macOS?
   • It supports two external displays in dual extend mode (A-B-C) on Windows. It supports two external displays in single extend mode (A-B-B) on macOS.

• Liftmaster Consulting GmbH Settinastr.30 60325 Fntinkfurt am M1in,C..mu1ny [email protected]
• Email: [email protected]
• Wesite: www.qwiizlab.net
• Qwiizlab is a registered trademark all over the world.
• All rights reserved by the owner and grantee.
• Made in China
• 720-C2H0001-02 V1 .0
