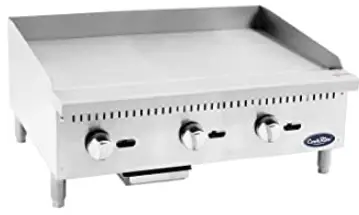

Cook Rite ATMG- 36 Commercial Griddle
Standard Features
- Stainless steel exterior & interior
- Stainless steel grease drawer
- Heavy duty 3/4” thick polished steel griddle plate
- 30,000 BTU Burners per 12” section with standby pilots
- Independent manual controls for each 12” section
- Stainless steel legs standard
- 3/4” NPT rear gas connection and regulator standard
SPECIFICATIONS
| Models | Burners and control method | Gas type | Intake-tube pressusre (in.W.C.) | Per BTU B.T.U./h | Total BTU B.T.U./h | Regulator | Work area (inch) | Net weight (lbs) | Gross weight (lbs) |

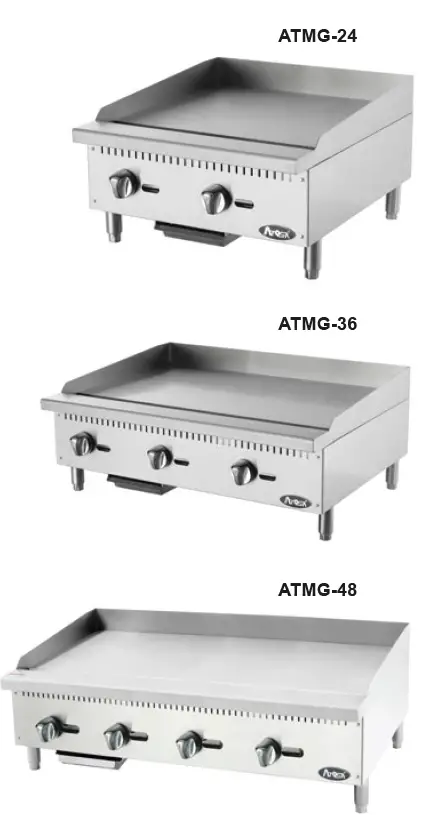

| ATMG-24 | 2 Burners Independent Manual Control | NG | 4 | 30,000 | 60,000 | 4’’w.c. | 239/10 ×199/10 | 160.9 | 194.5 |
| LP | 10 | 30,000 | 60,000 | 10’’w.c. | |||||
| ATMG-36 | 3 Burners Independent Manual Control | NG | 4 | 30,000 | 90,000 | 4’’w.c. | 357/10 ×199/10 | 229 | 280.9 |
| LP | 10 | 30,000 | 90,000 | 10’’w.c. | |||||
| ATMG-48 | 4 Burners Independent Manual Control | NG | 4 | 30,000 | 120,000 | 4’’w.c. | 479/10 ×199/10 | 294 | 414 |
| LP | 10 | 30,000 | 120,000 | 10’’w.c. |

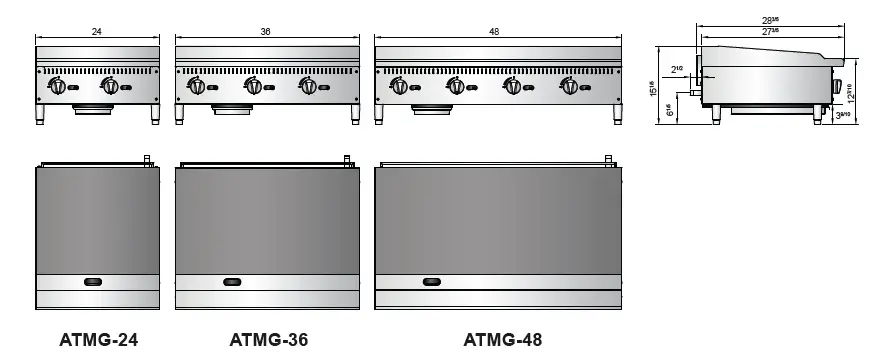

PLAN VIEW
