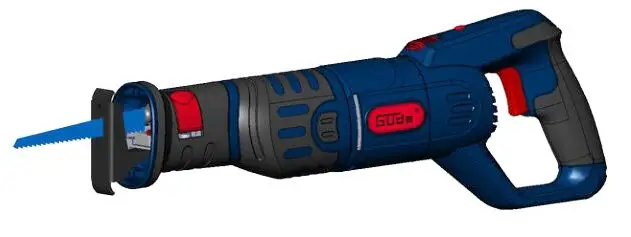

USS 1050 R Electric Sabre Saw
Instruction Manual
USS 1050 R
58127
Please read the instructions carefully before starting the machine.

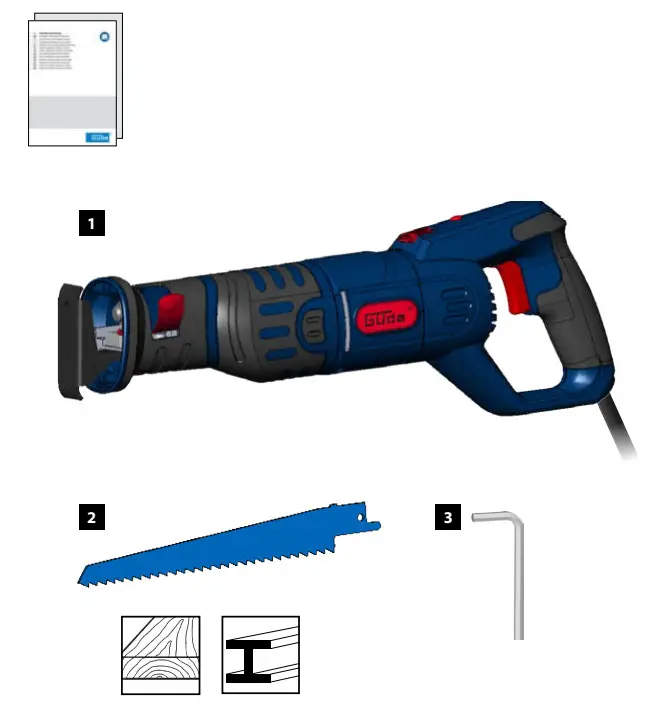

DELIVERY RANGE

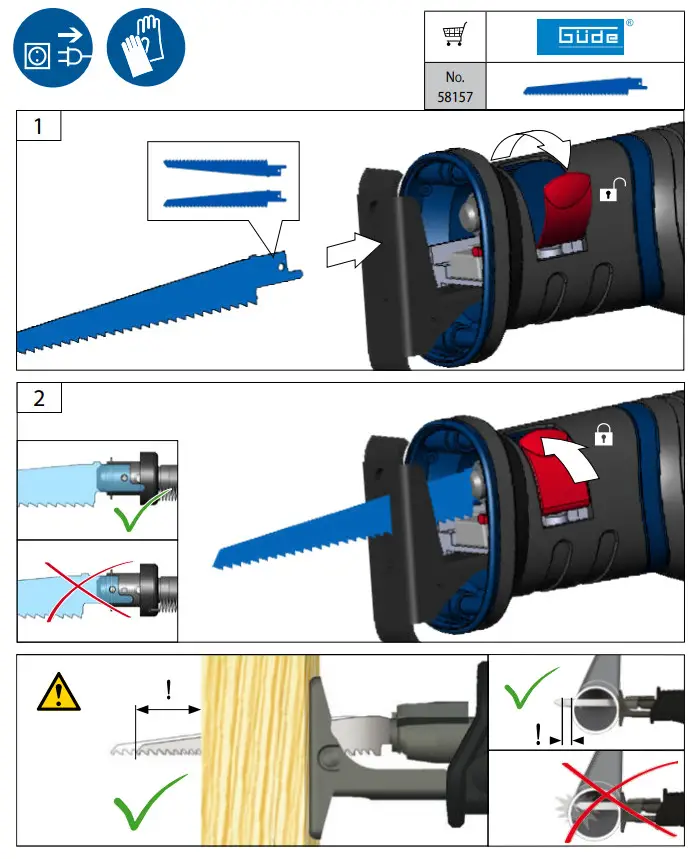

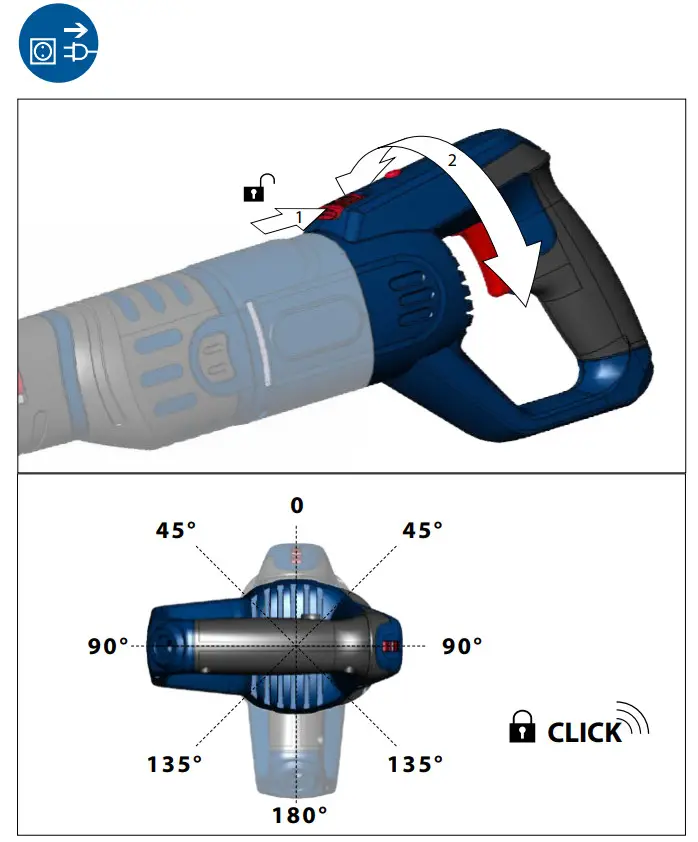

Starting-up the machine

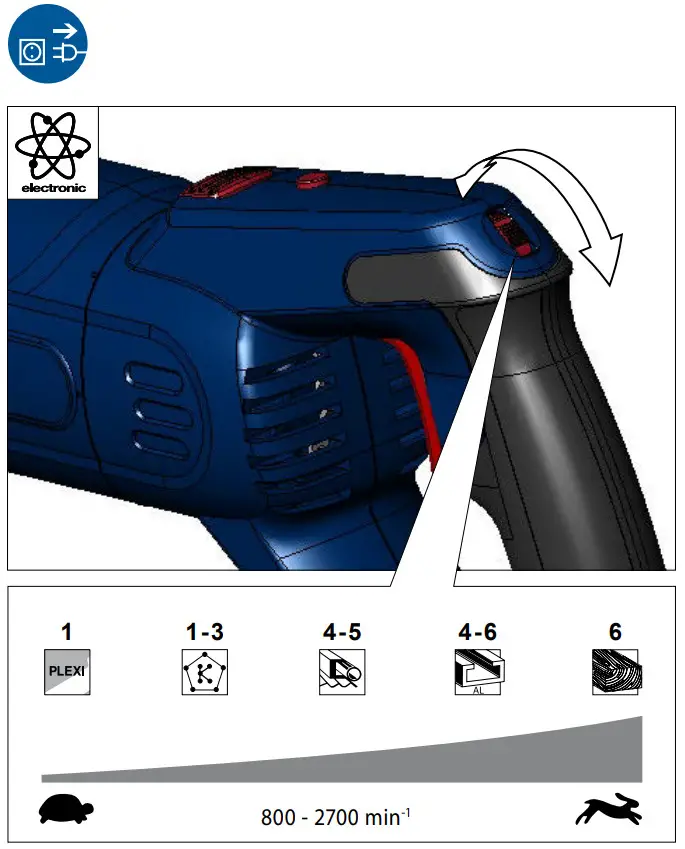

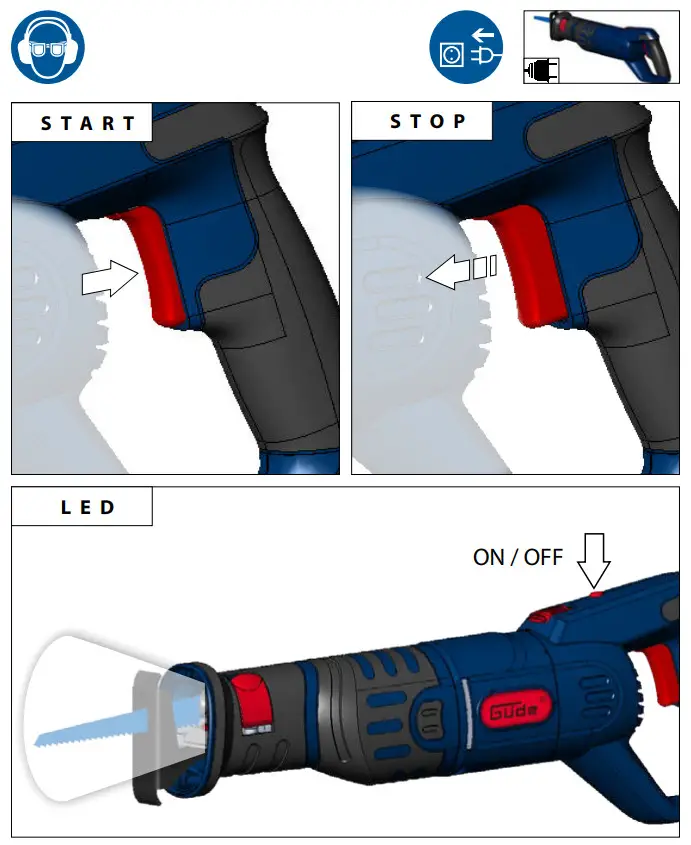

Operation
Technical Data
| Reciprocating saw | USS 1050 R |
| Art. No | 58127 |
| Service connection | 230 V ~ 50 Hz |
| Rated input | 1050 W |
| Stroke rate under no-load | 800 – 2700 min |
| Lengths of stroke | 29 mm |
| Weight | 3 kg |
| Noise details | |
| Sound pressure level LpA¹) | 91 dB(A) |
| Sound power level LWA | 102 dB(A) |
| Measured according to EN 60745; Uncertainty K = 3 dB (A) | |
| Wear ear protectors! | |
| Vibration details Vibration total values (triaxial vector sum) determined according to EN 60745: | |
| cutting boards: Vibration emission value ah | 15,2 m/s² |
| Cutting wooden beams: Vibration emission value ah | 19,1 m/s² |
| Uncertainty K = 1,5 m/s² | |
WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintaining the tool and the accessories, keeping the hands warm, and organization of work patterns.
Read and understand the operating instructions before using the appliance. Familiarise yourself with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
In case of any doubts about connection and operation refer, please to our customer center
Specified Conditions Of Use
This saber cut is intended to cut wood, plastic, and metal. It can cut straight lines, curves, and internal cut-outs. It cuts pipes and can cut flush to a surface.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. A number of injured persons, 4. Injury type(s)
Symbols
 | WARNING/Caution! |
| Read the operating instructions to reduce the risk of injury. |
 | Wear eye protective goggles! |
| Wear ear protectors! | |
 | Wear a suitable dust protection mask. |
 | Wear gloves! |
 | Unplug the machine before any work on it. |
 | Class II tool. |
 | CE marking |
 | Any damaged or disposed of electric or electronic devices must be delivered to appropriate collection centers. |
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference.
Sabre saw safety warnings
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock.
Additional Safety and Working Instructions
Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as a dust masks, protective gloves, sturdy non-slip footwear, and ear defenders.
The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask.
Remove deposited dust thoroughly, e.g. with a vacuum cleaner.
Chips and splinters must not be removed while the machine is running.
Always use the protective shields on the machine.
Do not use cracked or distorted saw blades.
When working on walls ceilings, or floors, take care to avoid electric cables and gas or water pipes.
Do not let any metal parts reach the airing slots -danger of short circuit!
Mains Connection
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).
Connect only to single-phase AC system voltage as indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.
Only plug in when the machine is switched off.
Maintenance
Unplug the machine before any work on it.
Repairs and works specified in these Instructions may only be performed by qualified authorized staff.
Use only original accessories and original spare parts.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device’s body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below-mentioned appliances correspond – at the type of construction being launched – to the appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us, the Declaration expires.
Reciprocating saw
#58127/ USS 1050 R

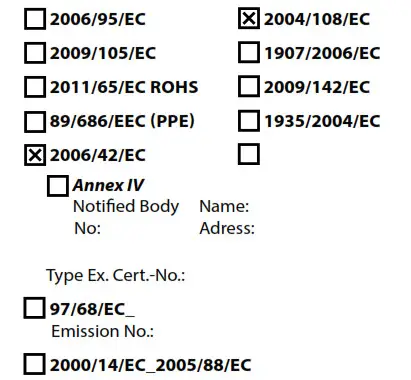

Appropriate EU Directives
Method of compliance assessment
Harmonized standards used
EN 60745-1/A11:2010
EN 60745-2-11:2010
ZEK 01.4-08
EN 55014-1/A2:2011
EN 55014-2/A2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2008
Guaranteed sound power level
Lwa dB (A) 102
Measured sound power level
Lw dB (A)
Managing Director
Joachim Bürkle
Authorized to compile the technical file
GÜDE GmbH & Co. KG
Birkichstrasse 6
74549 Wolpertshausen
Deutschland
