Leab 1105002001 Modell Melfbox Nominal Voltage User Manual

MAILBOX
ELECTRICAL SUPPLY SYSTEM
FOR VEHICLES
USER MANUAL
VERSION 4
14/04/2021

LEAB Automotive/ GmbH Thorshammer 6/ 24866 Busdorf

www.leab.eu

About this Manual

Read this manual carefully and keep it in a safe place. This manual is aimed at Qualified electricians.
Any modifications to the product or its components are prohibited and do not conform to its intended use. Only use original LEAB or LEAB-approved accessories.
Throughout the manual, you will be alerted to warnings and safety notices about potential hazards associated with handling the device. The colors and signal words indicate the severity of the hazard:

Notice
Possibility of material damage
The signal word Attention indicates that there is a possibility of material damage. To avoid material damage, follow the instruction.

CAUTION
The danger that can lead to minor injuries
A safety instruction with the signal word CAUTION denotes a hazard with a low degree of risk which, if not avoided, can result in minor or moderate injury. Read the safety information carefully and follow the instructions to avoid it.

The danger that can lead to minor injuries
A safety instruction with the signal word CAUTION denotes a hazard with a low degree of risk which, if not avoided, can result
in minor or moderate injury. Read the safety information carefully and follow the instructions to avoid it.

Warning

Hazards that can lead to severe injuries or death
A safety instruction with the signal word WARNING indicates a hazard with a high degree of risk which, if not avoided, will result in death or severe injury. Read the safety information carefully and follow the instructions to avoid it.

DANGER
The danger that will lead to severe injury or death A safety instruction with the signal word Danger indicates a hazard with a high degree of risk which, if not avoided, will result in death or severe injury. Read the safety information carefully and follow the instructions to avoid it.

You will find notes at some points in the manual. These appear as follows:

NOTE
A note provides useful tips and information about the product.
Read the note carefully and follow the instructions where applicable.

General Safety

This manual will help you to handle the system safely. Use the system solely in accordance with its intended use. Observe the safety instructions.

WARNING
Danger from short circuits
Open and damaged cables can cause short circuits that can lead to serious injuries.

1. Before operating, make sure there are no open or damaged cables.
2. Replace defective parts or damaged cables immediately.

Notice
Reverse polarity can damage the equipment
Errors when connecting the cables can cause equipment damage.
1. Before operating, make sure that all cables are connected correctly.
Notice
Equipment damage and risk of cable fire
Using the unit at too high a voltage can lead to cable fire and equipment damage.
1. Only use the device within the specified voltage limits.

Intended Use

The MelfBox is a vehicle electrical supply system.
The system is designed to operate with a nominal voltage of 230 V (+/- 10%).
The IP55 rating protects it against the ingress of dust in damaging quantities and against water jets.

Foreseeable Misuse

Only use the system within the specified voltage limits of 230 V (+/- 10%).
Do not point a high-pressure cleaner or other devices directly at the system when cleaning the vehicle.

About this Product

The MelfBox is a vehicle electrical supply system. It has a potential-free switching contact (normally open contact) to create an immobilizer. An electronic system prevents contact erosion. The operating display provides information about the current system status.

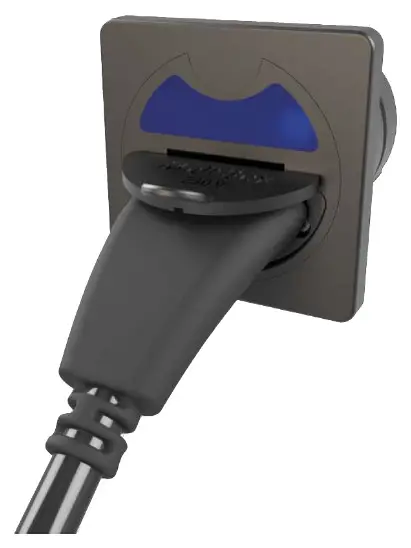

Fig. 1: MelfBox supply unit

1. Operating display
2. Flap
3. Coupling

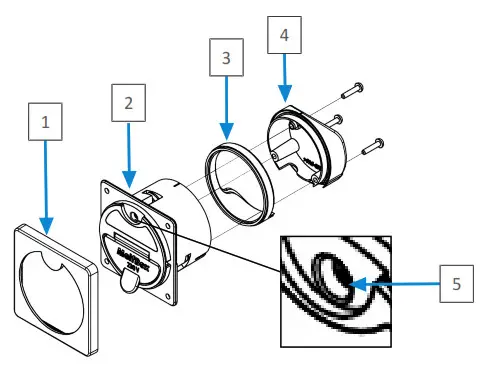

1. Cover
2. Housing with body seal
3. Housing seal
4. Cap
5. Retaining screw

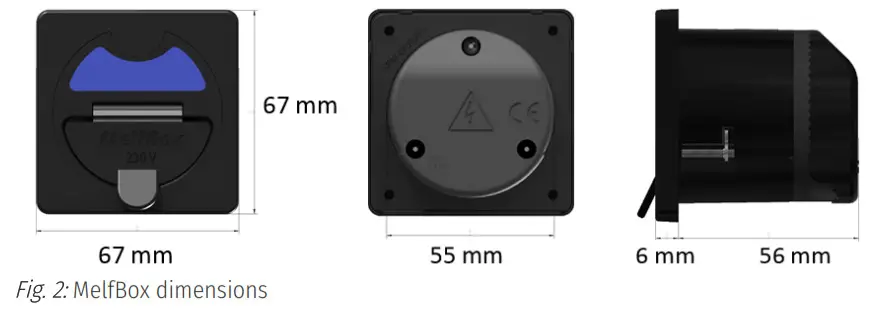

Technical Specifications

Package Contents

Creating a Body Cutout

NOTE
To ensure perfect operation, observe the following notes on the assembly site:

1. Choose a vertical surface.
2. Choose a site with minimum dust and which is protected from jet water.
3. Make sure that there is sufficient space at the assembly site.

To create the body cutout, proceed as follows:

1. Saw a hole (Ø 55 mm) in the vehicle body.
2. To prevent corrosion, seal the cut surfaces.
   ⇒ The body cutout is now created.

Installation

Preparation
Before connecting the unit, perform the following steps:
CAUTION! Install a suitable fuse in the vehicle (up to 16 A).

1. Route a connection cable (H07RN-F, 3 x 2.5) in the vehicle.
2. Attach the connection cable to the vehicle installation.
3. Optional: Route a cable (H05RN-F, 2 x 0.5) for the immobilizer in the vehicle and connect it to the specific vehicle installation (control module or similar).
   ⇒The unit is now ready to be connected.
   Connecting the Supply Unito connect the device, proceed as follows:
4. Pierce the housing seal at the intended location with a pointed tool.
5. Feed the connection cable (H07RN-F, 3 x 2.5) through the hole.
6. Connect the wires of the connection cable to the corresponding screw terminals.
   ⇒The device is connected.
   Optional: Connecting the ImmobiliserNOTE
   The MelfBox has a potential-free switching contact (normally open contact) to create an immobilizer.
   The design of the immobilizer depends on the vehicle. Inquire from your vehicle manufacturer.To connect the immobilizer, proceed as follows:
   CAUTION! Install a suitable fuse in the vehicle (up to 1 A).
7. Insert the immobilizer cable (H05RN-F, 2 x 0.5) through the second hole of the housing seal.
8. Insert the wires of the immobilizer cable into the pushin terminals (max. current: 1 A).
   ⇒The immobilizer is connected.

Assembly

To install the device, proceed as follows:
√The cables in the MelfBox housing are correctly connected.
√The body seal is firmly seated on the housing.

1. Place the housing seal in the cap.
2. Attach the cap to the supply unit with the 3 screws (3.5 x 14).
3. Check the tightness of the housing seal.
4. Push the supply unit into the body cutout.

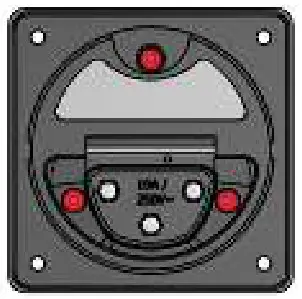

5. Tighten the 3 screws on the front until the supply unit is firmly seated in the body cutout (maximum torque: 1 Nm).
6. Attach the cover.
   ⇒The device is mounted and ready.

Operation

Notice
Inactive immobilizers can cause damage
Note that the immobilizer only works when the MelfBox is active (operating display illuminated).
NOTE
Electronics to prevent contact burnout require voltage Contact N is electronically switched and is only open when a 230 V voltage is applied.

To install the device, proceed as follows:

1. Plug the two-pin earthed plug of the connection cable into a 230-V mains
   supply.
2. Open the flap of the supply unit.
3. Plug the coupling into the supply unit.
   ⇒The voltage input is provided at the load output of the supply unit. Connected consumers are supplied. The operating display shows the operating status of the device.

Operating Status

Yellow, steady light The MelfBox is active.
No power is removed.
– Check the connection of the consumers.
– Check the fuse at the outlet of the MelfBox.
NOTE! This operating status only occurs immediately after inserting the MelfBox coupling. The MelfBox does not switch back from “blue” to “yellow”.

Cleaning and Maintenance

WARNING
Danger from electric shock
Cleaning and maintenance work on a live unit can lead to serious injury from electric shock.

1. Make sure that the device is de-energized before carrying out any work.

Notice
Strong jet water can damage the device
Cleaning with strong jets of water can cause the device to become damaged.

1. Do not aim pressure washers or other devices directly at the device.

Regular Activities
– Check the equipment for external damage each time before you use it.
– Clean the supply unit once a month with compressed air.
– Protect the coupling and combination cable from being run over, getting wet and other liquids.
– Check the tightness of the supply unit in the vehicle body at regular intervals.

 Accessories

You can order accessories either through your dealer or directly from LEAB.
Just visit our webshop at www.leab.eu or call us on: +49(0) 4621 9 78 60-110.

Disposal

Dispose of the device in accordance with the Waste Electrical and Electronic Equipment Regulations (WEEE).
The system must not be disposed of with household waste. Take it to a recycling point or return it to your point of sale.

EU Declaration of Conformity

The MelfBox complies with the requirements of the following directives:
– 2014/30/EU: EMV
– 2014/35/EU: NRL
– 2011/65/EU: RoHS
