Cunberland Chicken Coop User Guide
FASTENERS

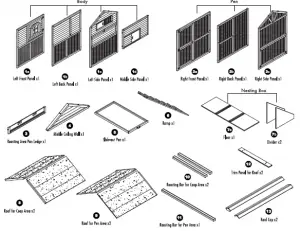

WOOD PIECES
Assembly Instructions
*Use Screwdriver for Assembly

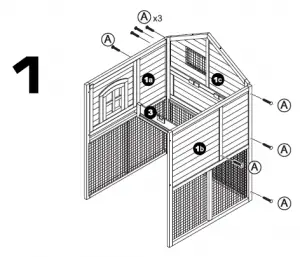

Connect coop roosting area front and side panels {la, 1 c, 1 b) with screws (Al, making sure the bottom of each panel are aligned properly.

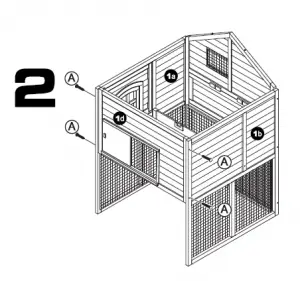

Attach slide-out pan ledge (3) with screws (A).
Attach middle side panel (1 d) with screws (A).

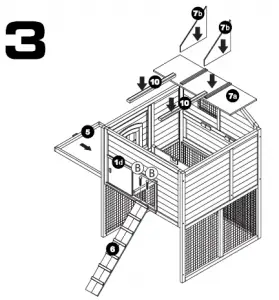

Attach ramp (6) on middle side panel with screws (B). Insert pan (5) and place in roosting bars {l 0), nesting box floor panel
(7a) and nesting box dividers (76).
Nexl, bui ld ~1e pen area. Attach righl bock pc:mel (2b) end right front pone! (2ol right ~ide ponel Ocl with 1,i;rew~ (Al

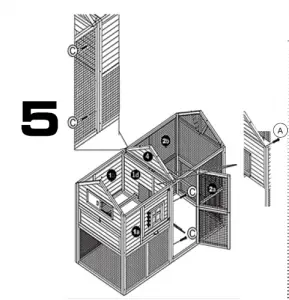

Open the pen and attach the pen to the right front panel {2a) and right back panel {2b) with screws (c). Attach middle cei ling wall (4)
on top of midd le panel {ld) with screws (A)

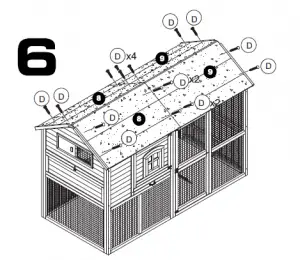

Attach the pen roof panels (8) followed by the coop roof panels (9) with screws ( ).

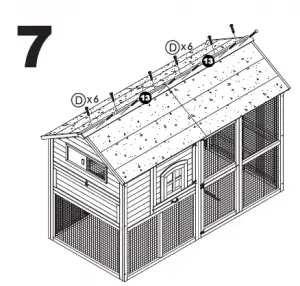

Attach front and back roof caps (13) with screws (D).

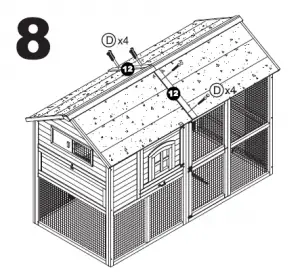

Attach roof trim panels (12) with screws (D).
