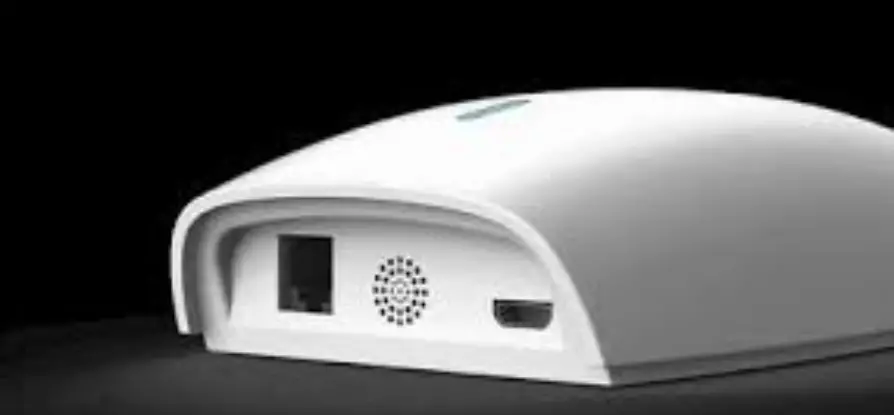

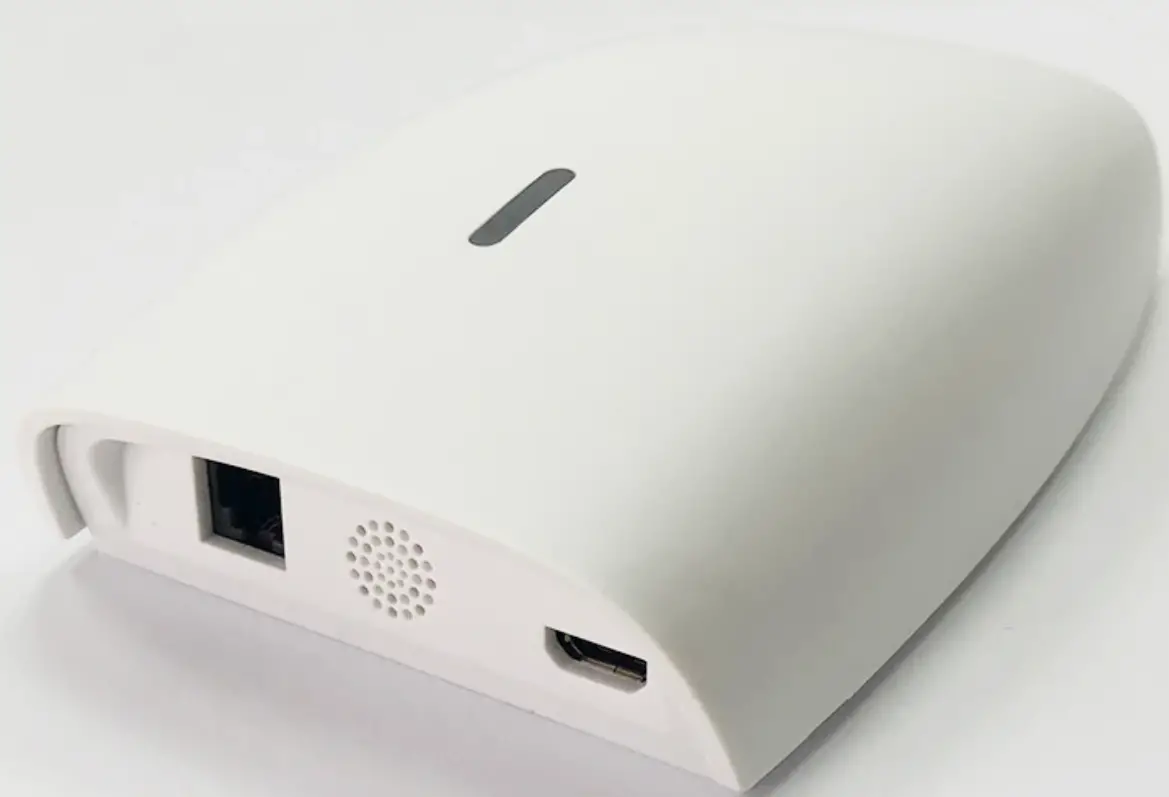

American Windows Shutters DD7002B Connector Bridge
Connector Bridge allows user to link their motorized shutters, blinds, and curtains into Wi-Fi network, enabling control via smart APP and interaction with other loT products.
Step 1
Download APP Please scan below QR code.
Step 2
Please scan below QR code to learn more about link up Connector Bridge with home Wi-Fi router, setup Connector APP, and establish connection with other loT applications.

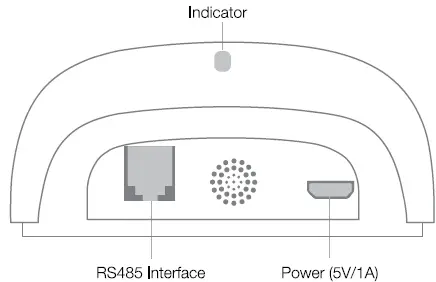

Status Indicator
Color Meaning Duration
Constant Blue Working fine Constant
Slow Flashing Red Wi-Fi Is disconnected Continuously till status change
Slow Flashing Yellow Wi-Fi is connected Continuously till status change
Quick Flashing Red Bridge reset 5tirnes
Slow Flashing Purple Pairing underway Continuously till status change
Slow Flashing Green Upgrade in progress Continuously till status change
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.
NOTE 1: his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving
- Increase the separation between the equipment and
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
