CPF6420S Town Fan
Instruction Manual

CPF6420S Town Fan

Before using this product, please read the user manual carefully. Save the user manual for future reference.
Thank you
for your trust and the purchase of our product. This quick start quide is supplied to help you get started using this product.
Make sure you have received an undamaged product. If you do find transport damage, please contact the seller from which you purchased the product, or the regional warehouse from which it was supplied.

Publication date: 2022-01-21
This document and its content, including written material and images, are the property of Elon Group AB. You may not copy, reproduce, modify, republish or distribute this document or any of its content without express written permission from Elon Group AB. © 2021, Elon Group AB. All rights reserved.

CAUTION
Carefully read the safety instructions and other instructions.
WARNING

1. If the power cord is damaged, it must be replaced by the manufacturer or the manufacturer’s service agent, or a similarly qualified person in order to avoid a hazard.
2. For indoor use only.
3. To protect against the risk of electrical shock, do not immerse the appliance, power cord or plug in water or any other liquid.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised or instructed in how to use the appliance safely and they understand the hazards involved. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Young children should be supervised to ensure that they do not play with the appliance.
5. When the appliance is not in use and before cleaning, unplug the appliance from the power outlet.
6. Correct disposal of this product.
   This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SAFETY INSTRUCTIONS

1. Never insert fingers, pencils, or any other object through the guard when the fan is running.
2. Unplug the fan before moving it from one location to another.
3. Make sure the fan is on a stable surface when it is running, to avoid overturning.
4. DO NOT place the fan by an open window, as rain may create an electrical hazard.
5. For household use only.

PARTS OF THE FAN

Note: All the images in this manual are for explanatory purpose only.
There may be some differences between your appliance and the appliance shown here.

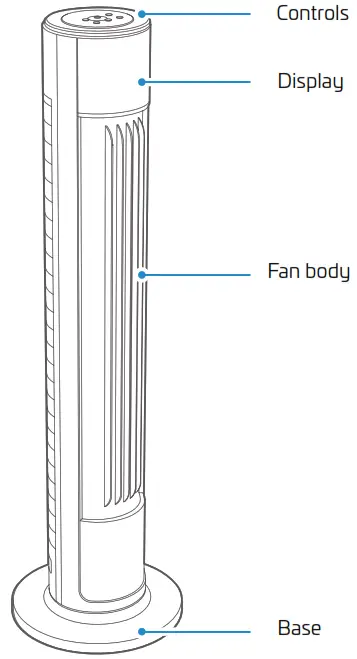

Names of parts

ASSEMBLY INSTRUCTIONS

Names of parts

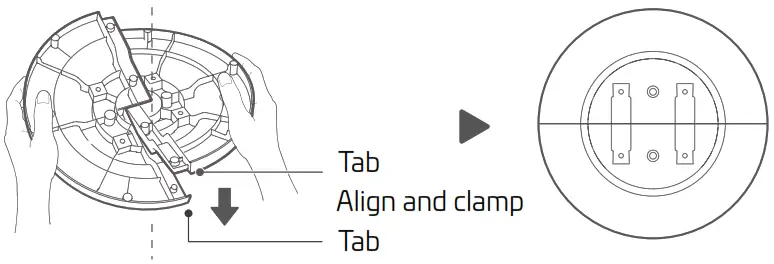

1. Assemble the base
   Tip: Line up the two halves of the base centrally so that the tabs overlap each other.
2. Remove the screws

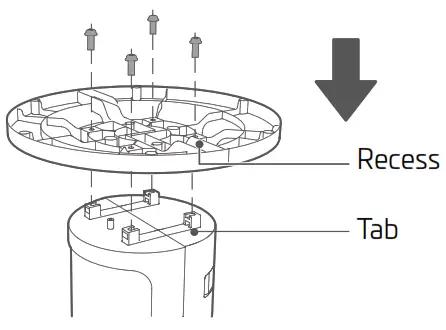

3. Install and secure the base

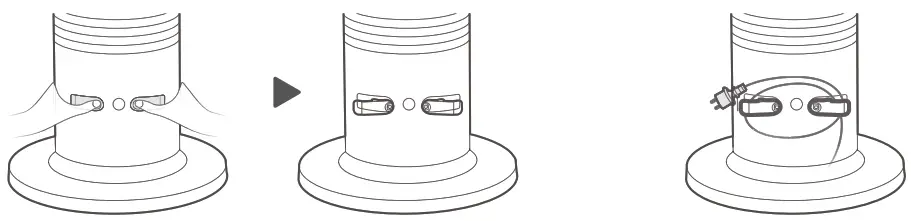

Power cord storage

1. Press the inner ends of the power cord hooks to open them.
2. Wrap the power cord around the hooks.

OPERATING INSTRUCTIONS

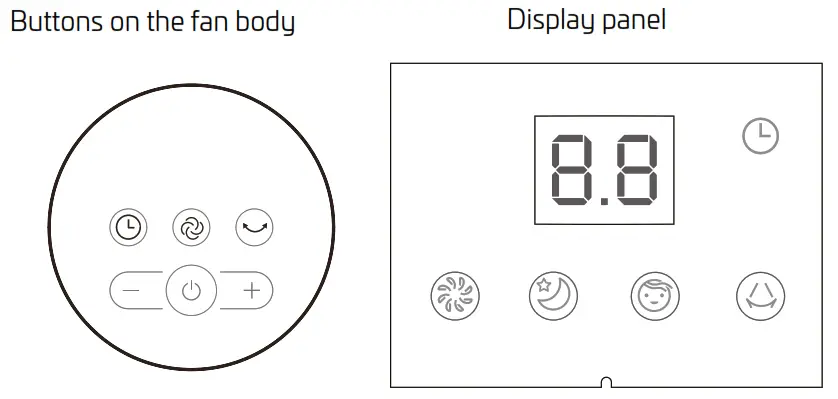

Fan operating instructions

Button	Function
	On/off button.
	Press this button to start or stop oscillating mode.
	There are three fan modes: Normal, Sleep and Comfort.
	Press the “+” or “-” button to adjust the fan speed: Normal (settings 1–6), Sleep (settings 1–2), Comfort (settings1–3).
	Press this button to set the shutdown time in the start state or set the start time in the standby state. Touch “+” or “-” button to set the timer.

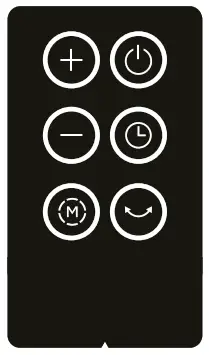

Instructions for remote control

	ON/OFF button
	Function button
+	“+” button
–	“-” button
	Timer button
	Oscillation button

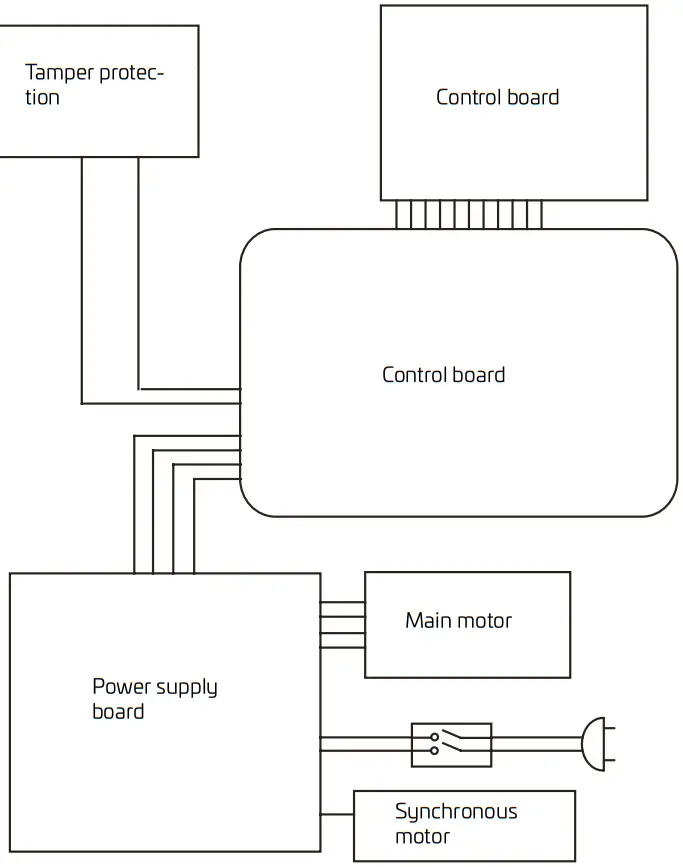

Circuit diagram

MAINTENANCE

The fan requires little maintenance. Do not try to fix it yourself. Contact a qualified service technician if service is needed.

1. Unplug the fan before cleaning and assembly.
2. To ensure adequate air circulation to the motor, keep the vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Wipe the exterior parts with a soft cloth moistened with mild detergent.
4. Do not use any abrasive detergent or solvents, to avoid scratching the surface. Do not use any of the following as a cleaner: petrol, thinner or other solvents.
5. Do not allow water or any other liquid into the motor housing or interior parts.

CLEANING

1. Make sure you unplug the fan from the electrical supply before cleaning.
2. Plastic parts should be cleaned with a soft cloth moistened with mild soap

Thoroughly remove soap film with a dry cloth.
Rated voltage: 220–240 V~ 50 Hz
Rated power: 45 W
Protection class: I

PRODUCT DISPOSAL
This product must not be disposed of together with domestic waste. This product must be disposed of at an authorised site for recycling electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed of in an environmentally friendly and healthy way.
Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

The information may be subject to changes. Inadvertent errors in information may occur.
Canvac’s guarantee of quality for the consumer (does not include wear parts). Read more at www.canvac.se/garantier.

Elon Group
Canvac products are distributed and marketed by Elon Group AB.
Elon Group AB Bäcklundavägen 1
702 03 Örebro Sweden
Elon Group
+46(0)10-220 40 00
elongroup.se
Support and service: canvac.se
© 2022, Elon Group AB. All rights reserved.
