PROGRESS LIGHTING P250076-152-WB Trevina V Painted Nickel 52 Home Ceiling

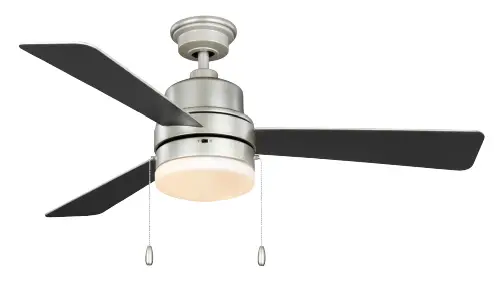

PROGRESS-LIGHTING-P250076-152-WB-Trevina-V-Painted-Nickel-52-Home-Ceiling-product

Trevina V
Ceiling downrod Mounted
Dry Location ListedPROGRESS-LIGHTING-P250076-152-WB-Trevina-V-Painted-Nickel-52-Home-Ceiling-fig-3

Description

Trevina V 52” 3-Blade Indoor Painted Nickel ENERGY STAR Modern Ceiling Fan with Light Kit and White Opal Shade

Specifications

  • White Opal Glass Bowl
  • Canopy covers a standard 4” recessed outlet box: 5.875 in W., 2.5 in ht., 5.875 in depth
  • Hdwr. Included
  • 80 in of wire supplied

Performance

  • Number of Modules 2
  • Input Power 9 W per lamp (18 W total)
  • Input Voltage 120 V
  • Input Frequency 60 Hz
  • Lumens/LPW (Source) 800/96 (LM-79) per lamp (1600 lm total)
  • CCT 3000 K
  • CRI 90 CRI
  • Life (hours) 25000 (L70/TM-21)
  • EMI/RFI FCC Title 47, Part 15, Class B
  • Warranty Limited Lifetime Warranty
  • Labels UL Dry Location Listed
    ENERGY STAR® qualified Meets California Title 24 JA8-2016 AC motor

Dimensions

  • Diameter: 52 in
  • Height: 16-1/2 in

White Opal Glass Bowl

  • Width: 9-1/4 in
  • Height: 2-7/8 inPROGRESS-LIGHTING-P250076-152-WB-Trevina-V-Painted-Nickel-52-Home-Ceiling-fig-1

Project:
Fixture Type:
Location:
Contact:

701 Millennium Blvd. Greenville, South Carolina 29607
www.progresslighting.com
Rev. 05/22
