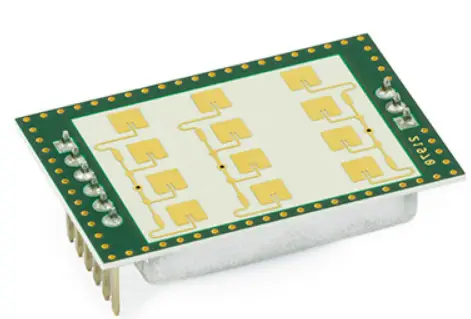

Rfbeam Microwave K-LC5 24GHz Analog Radar
Integration instructions for host product manufacturers
- List of applicable FCC rules The applicable FCC rules are listed in the section integrators information of the product datasheet: “This module meets the title 47 of the Code of Federal Regulations, part 15 section 15.249 for intentional radiators operating in the 24.00 to 24.25 GHz band.“
- Summarize the specific operational use conditions The product has integrated patch antennas. There are no specific operational use conditions.
- Limited module procedures The product is granted as a single modular transmitter.
- Trace antenna designs The product has integrated patch antennas.
- RF exposure considerations The following is included in the section integrators information of the product datasheet: “The radiated output power of the device is far below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized.”
- Antennas The module has integrated patch antennas.
- Label and compliance information The following is included in the section integrators information of the product datasheet: “If the label of the module is not visible from the outside of the end product, it must include the following texts on the label of the host product: FCC: Contains FCC ID: 2ASYV-K-LC5
In addition to marking the product with the appropriate ID’s, the end product shall bear the following statement in a conspicuous location on the label or alternatively in the user manual: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”
- Information on test modes and additional testing requirements The following is included in the section integrators information of the product datasheet: “Testing for the modular approval has been performed in CW mode with an open VCO input. This setup can easily be used by the customer for certification purposes.”
- Additional testing, Part 15 Subpart B disclaimer The following warning is included in the section integrators information of the product datasheet: “The OEM integrator is responsible for the final compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.”
