OLYMPUS

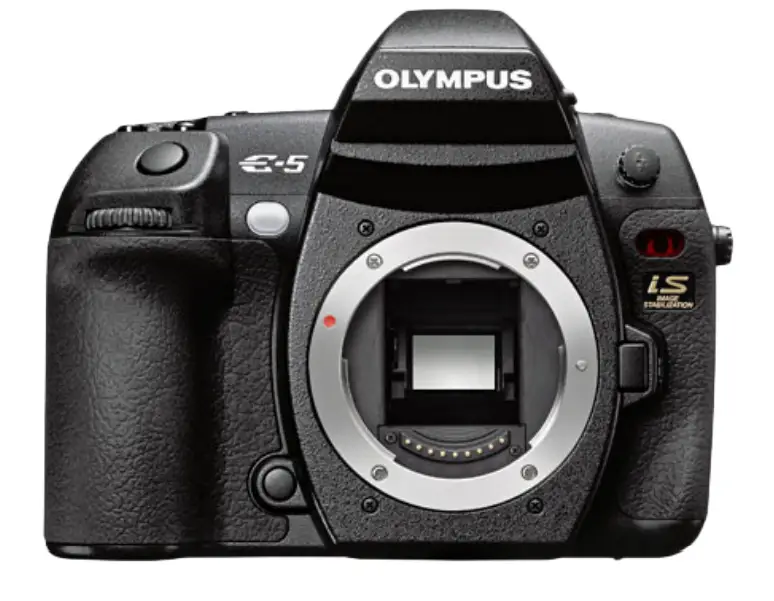

OLYMPUS E-5 12.3MP Digital SLR with 3-Inch LCD

OLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD

Features

  • Professional working tool
  • Fully biaxial high-speed 11 point AF system
  • High Speed 12.3 Megapixel Live MOS sensor
  • High-performance built-in image stabiliser
  • Splashproof magnesium alloy body
  • Unique dust reduction filter (SSWF)
  • Dual slot for CF and SD Cards
  • Excellent variety of digital lenses

Made for the extreme.

This is the coming together of the best technical components and engineering skills of the Four Thirds Standard Olympus E -System to form a unique high performance professional camera. Splash-proof and dust-proof, this tool will satisfy the most stringent demands of D-SLR photography. It is the ultimate in reliability and provides the highest grades of speed and image quality plus Live View function whether for stills or movies.

Specifications

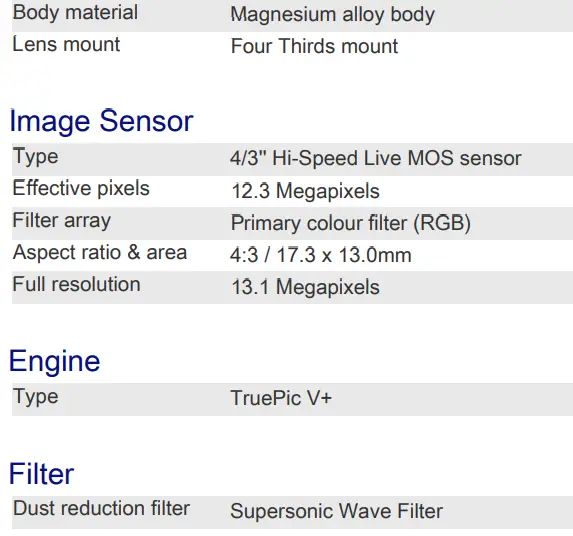

TypeOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-1

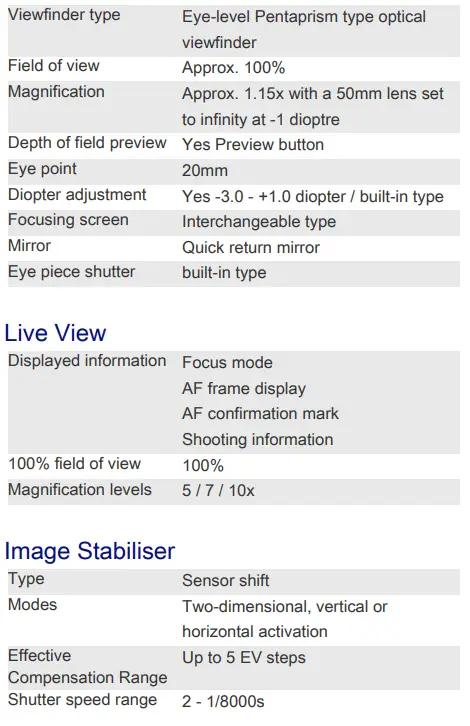

ViewfinderOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-2

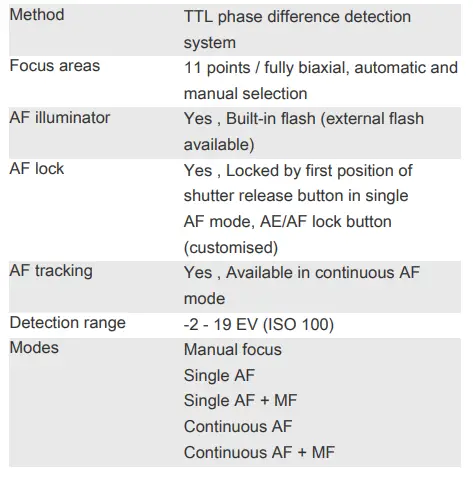

Focusing SystemOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-3

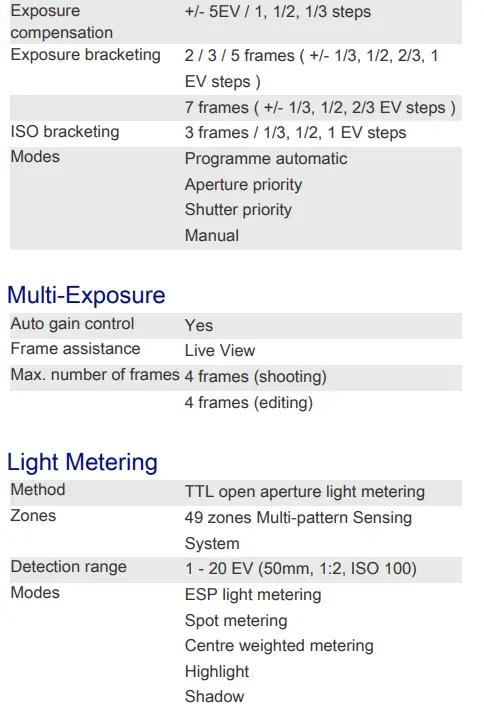

Exposure SystemOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-4

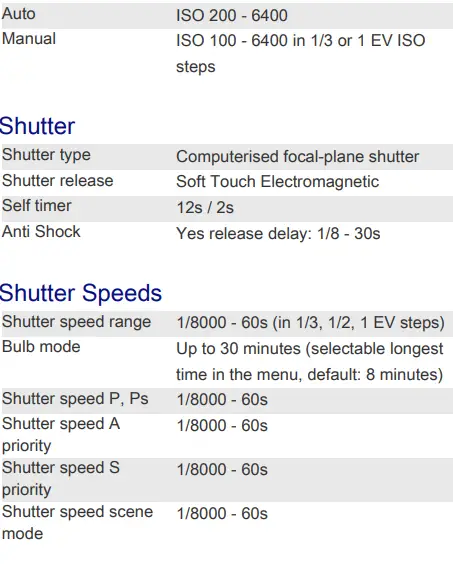

SensitivityOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-5

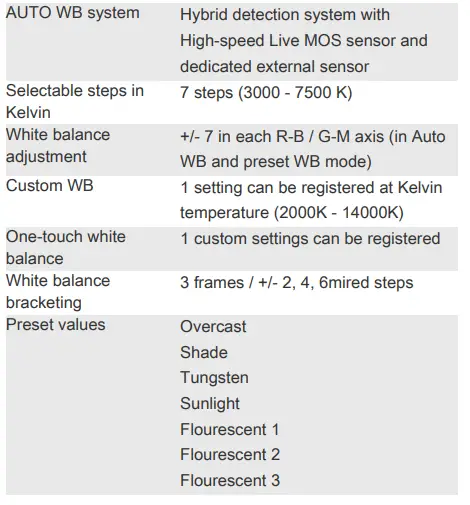

White BalanceOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-6

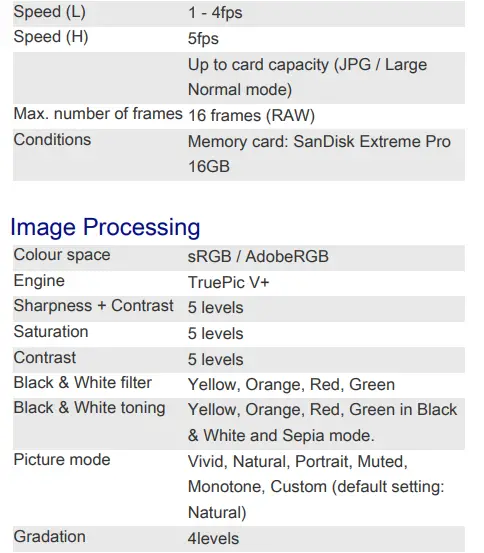

Sequence ShootingOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-7

Internal FlashOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-8

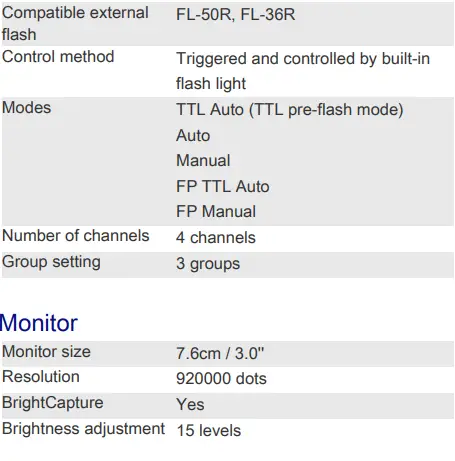

Wireless Flash ControlOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-9

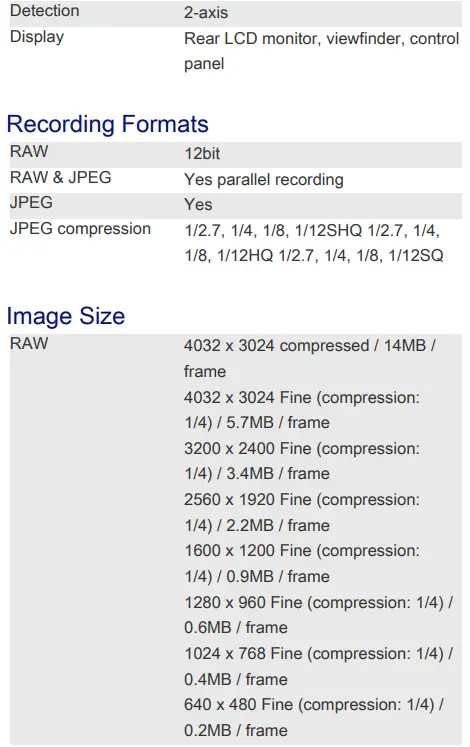

Level Gauge

OLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-10

Still Image Recording

OLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-11

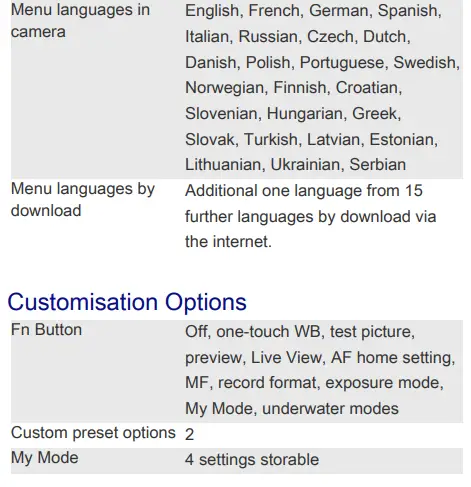

View ImagesOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-12

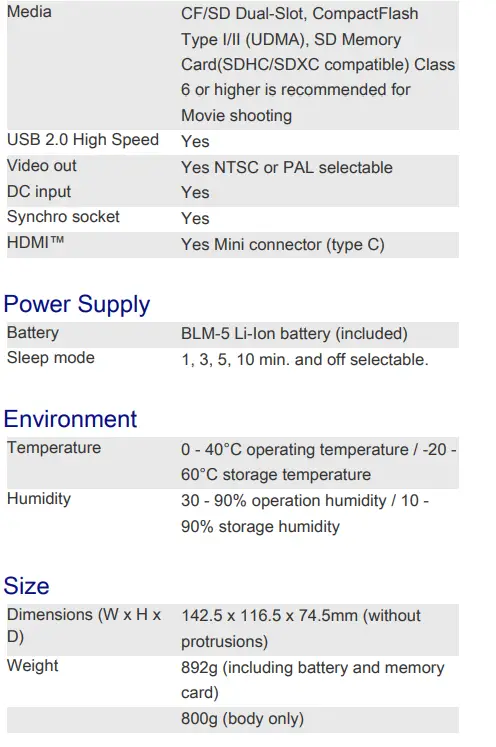

MenuOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-13

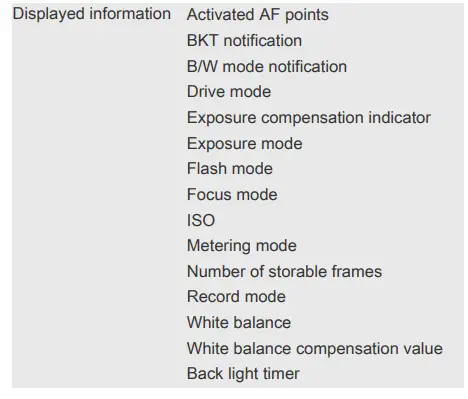

Top DisplayOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-14

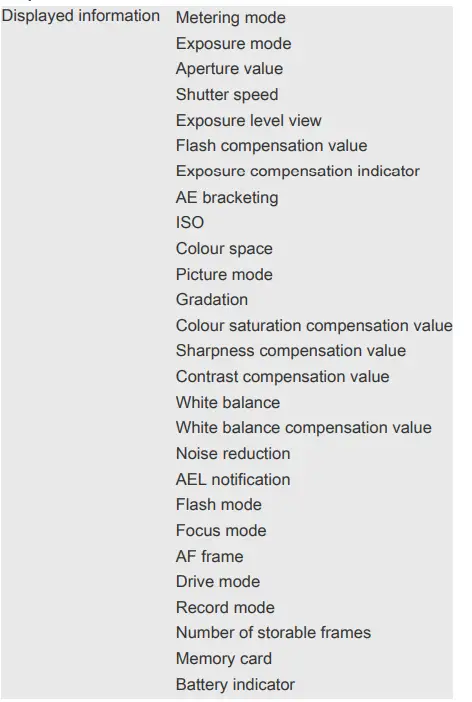

Super Control PanelOLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-15

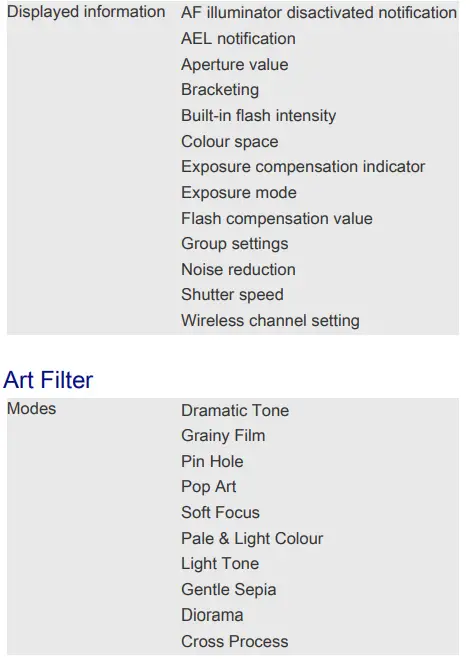

Super Control Panel (Flash)OLYMPUS-E-5-12.3MP-Digital-SLR-with 3-Inch-LCD-16Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
