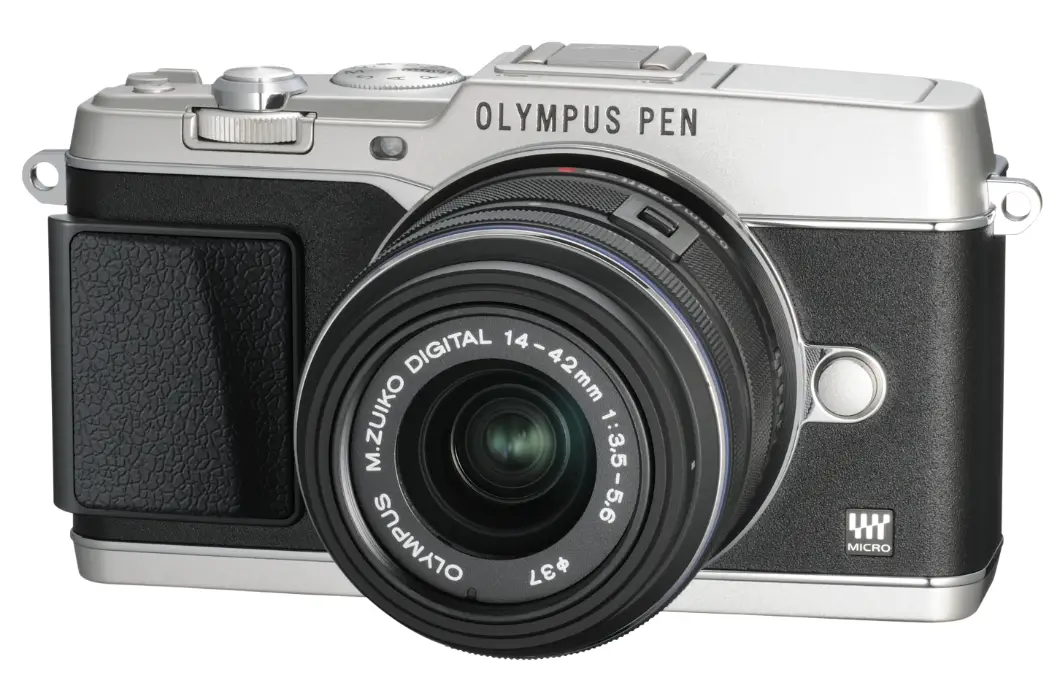

E‑P5 1442 Kit Silver
- Ultra‑fast autofocus system
- Intuitive touchscreen operation
- Live MOS Sensor with high dynamic range and low signal‑to‑noise ratio
- 3‑inch tilt LCD display ideal for shooting from tricky angles
- Built‑in WiFi
Fully PEN in style and performance
Inspired by the now‑legendary PEN‑F camera from 1963, the retro‑style PEN E‑P5 has been given a thoroughly modern revamp that pushes the frontiers of quality imaging in the 21st century. The unmistakable kink along the top edge and the metallic front are undeniably premium and totally PEN. Yet you can take shots with pro‑standard quality excellence that surpasses even that of D‑SLRs. Via Wi‑Fi, sharing your hotshot images via your phone with friends is easier and more high‑tech than ever.
Specifications
Type
| Body material | Metal |
| Lens mount | Micro Four Thirds |
Image Sensor
| Type | 4/3” Live MOS sensor |
| Effective pixels | 16.1 Megapixels |
| Filter array | Primary color filter (RGB) |
| Aspect ratio & area | 4:3 / 17.3 x 13.0mm |
| Full resolution | 17.2 Megapixels |
Engine
| Type | TruePic VI |
Filter
| Dust reduction filter | Supersonic Wave Filter |
Live View
| Displayed information | Aperture Shutter speed Auto bracket AE lock Focus mode Shooting mode Battery check My Mode IS activating mode Internal temperature warning Face / Eye detection mode Record mode ISO Sequential shooting mode White Balance Metering mode Exposure compensation value AF frame display AF confirmation mark Shooting information Spot metering area Super FP Flash status Touch Panel Condition Focal length Eye-Fi condition Flash mode Histogram Custom Face detection |
| AF type | Contrast detection system |
| 100% field of view | Approx. 100% |
| Magnification levels | 5 / 7 / 10 / 14x |
Image Stabiliser
| Type | Sensor shift |
| Modes | Five‑dimensional, vertical or horizontal activation, automatic |
| Effective Compensation Range | Up to 5 EV steps |
Focusing System
| Method | Contrast Detection AF system |
| Focus areas | 35 points / Automatic and manual selection / Auto selection with Face Detection ON 800 points / Manual selection in Magnified View Mode |
| AF lock | Yes, Locked by the first position of the shutter release button in single AF mode, AE/AF lock button (customized) |
| Modes | Manual focus Single AF Continuous AF Single AF + MF AF Tracking Super Spot AF |
| AF illuminator | Yes |
| Full-time AF | Yes |
| Manual focus | Yes , With an enlarged focusing area or focus peaking |
| Face Detection extension | Eye Detect AF: Off Left side priority Right side priority Near side priority |
| Predictive AF | Yes |
| AF tracking | Yes , Available in continuous AF mode |
Exposure System
| Modes | Programme automatic Aperture priority Shutter priority Manual Bulb Time i-Auto Scene Modes Art Filter Photo Story My Mode |
| Exposure compensation | +/‑ 3 EV ( 1, 1/2, 1/3 steps ) |
| Exposure bracketing | 2 / 3 / 5 frames ( +/‑ 1/3, 2/3, 1 EV steps ) 7 frames ( +/‑ 1/3, 1/2, 2/3 EV steps ) |
| HDR bracketing | 3 / 5 frames ( +/‑ 2 / 3 EV steps ) 7 frames ( +/‑ 2 EV steps ) Note: HDR picture can not be made by this function. |
| ISO bracketing | 3 frames ( 1/3, 1/2, 1 EV steps ) |
| AE lock | Yes (Fn1/Rec button) |
| My Mode | 4 settings storable |
| Enhancement function | Shadow Adjustment Technology |
Scene Modes
| Number of scene modes | 25 |
| Modes | Portrait e-Portrait Landscape Landscape with Portrait Macro Sports Night Scene Night Scene with portrait Children High key Low key Digital Image Stabilisation Nature Macro Candle Sunset Documents Panorama Fireworks Beach and Snow Fisheye converter Macro converter 3D Wide converter Underwater Macro Underwater Wide |
Multi-Exposure
| Max. number of frames | 2 frames (shooting) 3 frames (editing) |
| Auto gain control | Yes |
| Frame assistance | Live View |
Light Metering
| Method | TTL open aperture light metering |
| Zones | 324 zones Multi‑pattern Sensing System |
| Detection range | 0 ‑ 20 EV (17mm f2.8, ISO 100) |
| Modes | ESP light metering Spot metering Center-weighted metering Highlight Shadow |
Art Filter
| Modes | Pop Art Soft Focus Pale & Light Colour Light Tone Grainy Film Pin Hole Diorama Cross Process Dramatic Tone Gentle Sepia Key Line Water color |
| Variation / Effect | Available |
| Photo Story | |
| Modes | Standard Fun Frame |
| Sensitivity | |
| Auto | ISO 200 ‑ 25000 (customizable, default ISO 200 ‑ 1600) |
| Manual | ISO LOW ‑ 25600 in 1/3 or 1 EV ISO steps |
Sensitivity
| Auto | ISO 200 ‑ 25000 (customizable, default ISO 200 ‑ 1600) |
| Manual | ISO LOW ‑ 25600 in 1/3 or 1 EV ISO steps |
Shutter
| Shutter type | Computerized focal‑plane shutter |
| Self-timer | 2s / 12s Custom (delay 1‑30sec., shooting interval 0.5/1/2/3sec., number of shots 1‑10) |
| Anti Shock | Yes release delay: 1/8 ‑ 30s |
Shutter Speeds
| Shutter speed range | 1/8000 ‑ 60s (in 1/3, 1/2, 1 EV steps) |
| Bulb mode | Up to 30 minutes (selectable longest time in the menu, default: 8 minutes) |
| Time | Up to 30 minutes (selectable longest time in the menu, default: 8 minutes) |
White Balance
| AUTO WB system | Advanced detection system with Live MOS sensor |
| Manual White balance (One-Touch) | Yes |
| White balance bracketing | 3 frames / +/‑ 2, 4, 6mired steps |
| One-touch white balance | 2 custom settings can be registered |
| Custom WB | 1 setting can be registered at Kelvin temperature (2000K ‑ 14000K) |
| Preset values | Tungsten Fluorescent 1 Sunlight Flash Overcast Shade Underwater |
| Auto Flash adjustment | Off / Auto WB / Flash |
| Keep warm colour | On / Off |
Sequence Shooting
| Speed (H) | Approx. 9fps |
| Speed (L) | 5.0fps (IS off), 4.5fps (IS on) |
| Max. number of frames | 18 frames (RAW)Up to card capacity (JPG / Large Normal mode) |
| Conditions | Memory card: Toshiba SDXC UHS‑I card R95 W80 model Premiugate series “Class 10” 8GB Note: Depending on shooting conditions, the sequential shooting speed may reduce speed during shooting. |
| Interval shooting | Interval: 1s ‑ 24h Max. number of frames: 99 |
Image Processing
| Colour space | sRGB / AdobeRGB |
| Sharpness + Contrast | 5 levels |
| Contrast | 5 levels |
| Saturation | 5 levels |
| Black & White filter | Yellow, Orange, Red, Green |
| Black & White toning | Sepia, Blue, Purple or Green in Black & White mode |
| Picture mode | i‑Enhance, Vivid, Natural, Portrait, Muted, Monotone, Art Filter |
| Gradation | 4levels (auto, high key, normal, low key) |
| Engine | TruePic VI |
| Art Filter bracketing | Available |
| Tele converter effect | 2x |
Internal Flash
| Modes | AUTO Manual Manual (Full, 1/4, 1/16, 1/64) Red-eye reduction Slow synchronization with red-eye reduction Slow synchronization Slow synchronization 2nd curtain Fill-in Off |
| Type | Internal Flash |
| Flash compensation | +/‑ 3 EV ( 1/3, 1/2, 1 EV steps ) |
| Guide number | 10 (ISO 200) |
| X-sync speed | 1/320s / 1/4000s (Super FP Mode) |
External Flash Control
| X-sync speed | 1/250s / 1/4000s (Super FP Mode) |
| Type | TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL |
| Modes | Auto Red-eye reduction Slow synchronization 2nd curtain and slow synchronization Fill-in for exclusive flash Manual |
| Intensity | +/‑ 3 EV ( 1/3, 1/2, 1 EV steps ) Note: Some functions are only available if they are supported by external flash. |
Wireless Flash Control
| Number of channels | 4 channels |
| Compatible external flash | FL‑36R, FL‑50R, FL‑300R, FL‑600R |
| Control method | Triggered and controlled by a built‑in flashlight |
| Group setting | 4 groups |
Monitor
| Monitor type | Tiltable LCD ‑ Touch Panel |
| Monitor size | 7.6cm / 3.0” (3:2) |
| Resolution | 1037000 dots |
| Brightness adjustment | +/‑ 7 levels |
| Colour balance | +/‑ 7 levels Vivid (default) / Natural |
| Touch Control fucntions | AF area enlargement AF area selection Enlargement Enlargement playback Frame forward/backward Live Guide Scene Modes Shooting mode Shutter release Super Control Panel Wifi connection |
Level Gauge
| Detection | 2‑axis |
| Display | Rear display and viewfinder |
Super Control Panel
| Displayed information | Battery indicator Record mode Shutter speed Aperture value Exposure compensation indicator ISO AE bracketing AF frame Focus mode AEL notification Face detection Number of storable frames Metering mode Exposure mode Exposure level view Flash compensation value Colour space Gradation Colour saturation compensation value Sharpness compensation value Contrast compensation value White balance White balance compensation value Noise reduction Flash mode Drive mode Internal temperature warning Histogram DCF |
Recording Formats
| RAW | 12bit |
| RAW & JPEG | Yes parallel recording |
| JPEG | Yes |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 6:6 / 3:4 |
| MPO (3D) | Yes |
Image Size
| RAW | 4608 x 3456 compressed / 17MB / frame 4608 x 3456 Fine (compression: 1/4) / 7.5MB / frame 4608 x 3456 Normal (compression: 1/8) / 3.5MB / frame 2560 x 1920 Normal (compression: 1/8) 1.1MB / frame 1024 x 768 Normal (compression: 1/8) / 0.3MB / frame |
Still Image Recording
| EXIF | 2.2 |
| PIM | III |
| DPOF | Yes |
| DCF | Yes |
Movie Recording System
| Recording format | MOV(MPEG‑4AVC/H.264), AVI(Motion JPEG) |
| Image Stabilisation Mode | Yes Sensor shift (5‑axis) |
| HD Movie quality | Full HD 1920 x 1080 (16:9) 30p, 20Mbps (MOV) Full HD 1920 x 1080 (16:9) 30p, 17Mbps (MOV) HD 1280 x 720 (16:9) 30p, 13Mbps (MOV) HD 1280 x 720 (16:9) 30p, 10Mbps (MOV) HD 1280 x 720 (16:9) / 30fps (AVI Motion JPEG®) |
| Movie quality | 640 x 480 / 30fps (AVI Motion JPEG®) |
| Time laps | 1280 x 720 / 10fps (AVI Motion JPEG®) 29min (17Mbps) 14min (SD) / 7min (HD) (AVI Motion JPEG®)* |
| Max. file size | 4GB (AVCHD)2GB (Motion‑JPEG) |
| Exposure Modes | Aperture priority Art Filter Manual Programme automatic Shutter priority * Some Art Filters are excluded |
| Movie effects | Multi-shot echo One shot echo |
| Art Filter |
Sound Recording System
| Internal microphone | Stereo |
| Recording format | Stereo PCM/16bit, 48kHz, Wave Format Base |
| External microphone | Optional |
| Image footage | 30s |
| Speaker | Yes |
| Microphone functions | Wind Noise Reduction Recording Volume |
View Images
| Modes | Index Calendar Zoom Slide show Movie Single |
| Lightbox | Yes |
| The histogram in playback mode | Yes |
| Shooting information | Off / On |
Erase / Protect / Copy Function
| Erase modes | Single, All, Selected |
| Image protect mode | Single frame, Selected frames, AllFrames, Release protect (Single/All selected) |
Menu
| Menu languages in the camera | English, French, German, Spanish, Italian, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovak, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian |
Customization Options
| Fn Button | Yes |
| My Mode | 4 settings storable |
| Factory reset | Full / Standard |
| Programmable button | Yes |
Interface
| Media | SD Memory Card (SDHC, SDXC, UHS‑I compatible) Class 6 is recommended for Movie shooting |
| HDMI™ | Yes Micro connector (Type D) * |
| USB 2.0 High Speed | Yes |
| Combined V & USB output | Yes NTSC or PAL selectable |
| Wireless connectivity | WiFi |
| Connection | Accessory Port 2 * “HDMI”, the HDMI logo and “High‑Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC. |
Wi-Fi Functions
| GPS info | Available through Smartphone GPS data |
| Wireless Shooting | P/A/S/M exposure modes Live View Rec View Touch AF & Shutter Bulb mode Self-timer Power off |
| Image Share | File type: JPEG, MOVSimultaneuosly connectable devices: 4 Privacy function |
| Easy Connection | QR code setting Note: Shooting mode is fixed on i‑Auto |
Power Supply
| Battery | BLN‑1 Lithium‑Ion Battery |
| Sleep mode | 1, 3, 5, 10 min. and off selectable. |
| Live View shooting | Approx. 400images (50% with Live View) |
Environment
| Temperature | 0 ‑ 40°C operating temperature / ‑20 ‑ 60°C storage temperature |
| Humidity | 30 ‑ 90% operation humidity / 10 ‑ 90% storage humidity |
Size
| Dimensions (W x H x D) | 122.3 x 68.9 x 37.2mm (without protrusions) |
| Weight | 420g (including battery and memory card) 378g (body only) |
Exterior
| Available Colours | Black Silver White |
Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer
