Olympus Fe-5000 Digital Photography Camera Instruction Manual

Olympus Fe-5000 Digital Photography Camera Instruction Manual

OLYMPUS logo

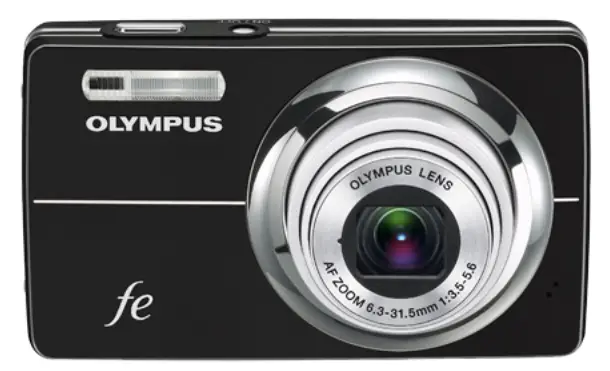

OLYMPUS FE 5000 Digital Photography Camera

FE-5000

  • Precision 5x optical zoom (36-180mm*) in a compact metal body to capture great scenes through to exciting close-ups
  •  The easy way to perfect images – Intelligent Auto Mode detects the five most  commonly used scenes and adjusts settings, focus and exposure automatically
  •  10 Megapixels to make poster-size prints
  •  14 shooting modes for best results in different situations
  •  Avoids blur thanks to Dual Image Stabilisation
  •  Advanced Face Detection of up to 16 persons for perfectly focused and exposed faces
  • See and share images on the 6.9cm/2.7″ LCD
  •  In-camera help guide for easy operation

With a precise, 5x optical zoom, Dual Image stabilization and compact metal body, the new Olympus FE-5000 is the ideal companion for your weekend or holiday trip. The camera comes with the latest features, such as Intelligent Auto Mode and Advanced Face Detection that make taking quality shots even easier. With 14 shooting modes and the  easy ”one button, one function“ design, best results are guaranteed, whatever the situation. And a 10 Megapixel resolution means that you can demonstrate your enthusiasm for traveling on poster-size prints. *Equivalent to a 35mm camera

Specifications

Image Sensor

Effective pixels10 Megapixels
Filter arrayA primary colour filter (RGB)
Full resolution10.7 Megapixels
Type1/2.33” CCD sensor

Lens

Optical zoom5x
Aspherical glass elements4
Focal length6.3 – 31.5mm
Focal length (equiv. 35mm)36 – 180mm
Structure8 lenses / 6 groups
Maximum aperture3.5 – 5.6
Digital Zoom
Enlargement factor4x / 20x combined with optical zoom
Monitor
Resolution230000 dots
Monitor size6.9cm / 2.7”
Monitor typeTFT
Frame assistanceYes
LCD backlight boostYes
Brightness adjustment2 levels

Focusing System

MethodTTL iESP auto focus with contrast detection
Spot focusingYes
Face Detection AF Standard modeYes
Standard mode0.6m – ∞ (wide) / 1.0m – ∞ (tele)
Macro mode0.1m – ∞ (wide) / 0.6m – ∞ (tele)
Super Macro ModeClosest focusing distance: 3cm

Light Metering

The histogram in shooting modeYes

Exposure System

Enhancement functionMechanical Image Stabiliser
Shutter speed1/4 – 1/2000s
Shadow Adjustment Technology
Advanced Face Detection
Technology
Exposure compensation
Scene Modes
Number of scene11
Sensitivity
AutoAUTO / High AUTO Automatically
selected
ManualISO 80, 100, 200, 400, 800, 1600
White Balance
AUTO WB systemYes

Internal Flash

Working range (wide)0.3 – 3.9m (ISO 800)
Working range (tele)0.5 – 2.5m (ISO 800)
ModesAUTO
Red-eye reduction
Fill-in
Off

Image Processing

Pixel mappingYes
Noise reductionNo
Shading compensationYes
EngineTruePic III
Function Processing
PanoramaYes
Image Editing
Black & WhiteNo
SepiaNo
ResizeYes
TrimmingYes
Red-eye reductionYes
Light fixYes

View Images

Index4, 9, 16, 25 frames
Zoom1.1 – 10x
Slide showYes
Auto rotationYes
Image protect modeYes

Still Image Recordings

DCFYes
EXIF2.21
PIMIII
DPSPictBridge
DPOFYes

Movie Recording System

Recording formatAVI Motion JPEG®
Note: maximum file size 2GB
Movie quality640 x 480 / 30fps Recording time: Up to card capacity*
* (10s with 30fps when xD standard type is used)
640 x 480 / 15fps Recording time: Up to card capacity
320 x 240 / 30fps Recording time: Up to card capacity

Sound Recording System

Voice playbackYes
Sound recordingYes , format: WAV
Recording formatWave format
Image footage4s
SpeakerYes
Memory
Internal memory48MB
Image Size
10M3648 x 2736
5M2560 x 1920
3M2048 x 1536
2M1600 x 1200
1M1280 x 960
VGA640 x 480
16:091920 x 1080

Menu

Menu languages in camera39 languages (Japanese, English, French, Spanish, Portuguese (BR + PT), German, Italian, Russian, Czech, Dutch, Danish, Polish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovak, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Korean, Simple Chinese, Traditional Chinese,Thai, Arabic, Bulgarian, Romanian, Persian, Indonesian, Hebrew, Malay, Vietnamese)

Other Features

Perfect Shot PreviewYes
Self-timer12s
Menu guideYes

Interface

DC inputNo
Combined A/V & USB outputYes
USB 2.0 High SpeedYes

Size

Dimensions (W x H x D)97.4 x 56.6 x 25.5mm
Weight137g (without battery and card)

Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
