FIAMMA F80L Awning Enclosure

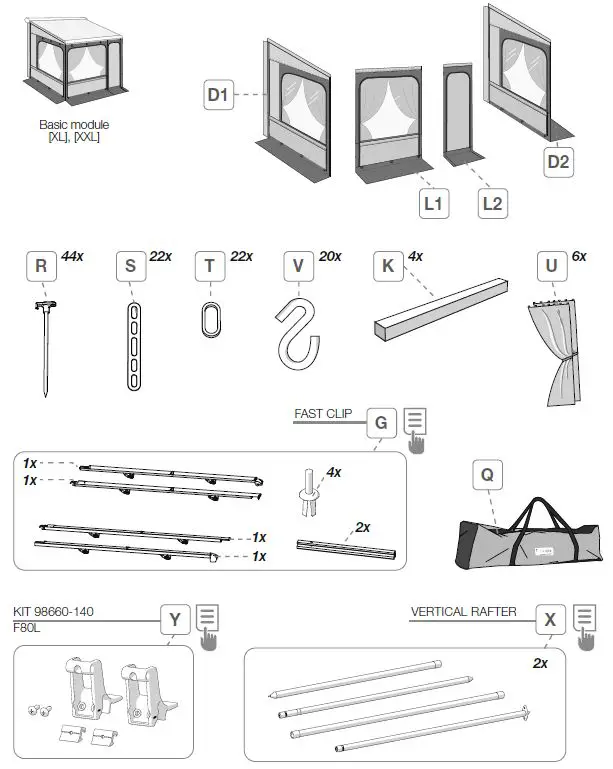

Package contents
Description
| Basic module | Item No. | A | B | C | |
| P. Room 300 – F80L / H: 245-280 – [XL] | 08370-01- | 300 cm | 245-280 cm |
275 cm | 24,2 kg |
| P. Room 300 – F80L / H: 281-310 -[XXL] | 08370A01- | 300 cm | 281-310 cm | 25,8 kg |

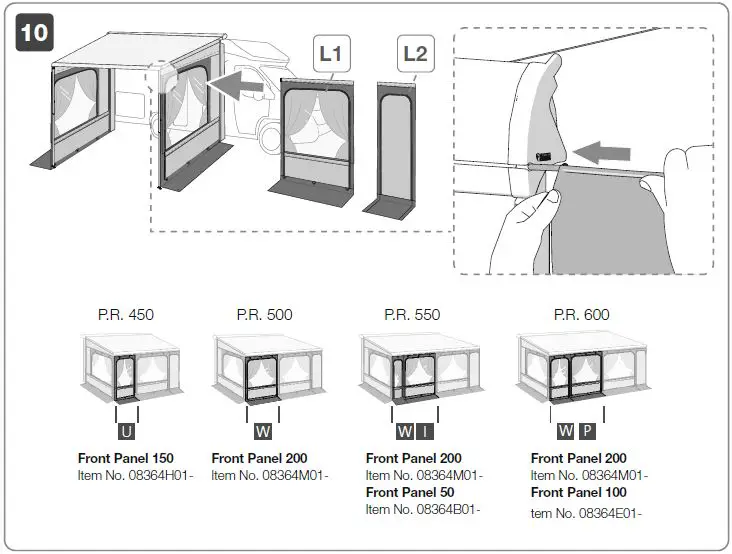

| Front panels | Item No. |
| 50 cm | I 08364B01- |
| 100 cm | P 08364E01- |
| 150 cm | U 08364H01- |
| 200 cm | W 08364M01- |

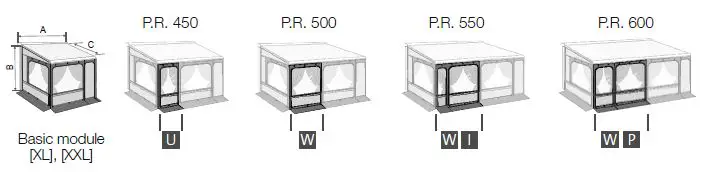

| Description | Awning length A | Basic module / Height from ground B | Extension C | Composition |
| P. Room 450 / H: 245-280 | 450 cm |
[XL] 245-280 cm |
275 cm | [XL] + U |
| P. Room 500 / H: 245-280 | 500 cm | [XL] + W | ||
| P. Room 550 / H: 245-280 | 550 cm | [XL] + W + I | ||
| P. Room 600 / H: 245-280 | 600 cm | [XL] + W + P | ||
| P. Room 450 / H: 281-310 | 450 cm |
[XXL] 281-310 cm |
275 cm | [XXL] + U |
| P. Room 500 / H: 281-310 | 500 cm | [XXL] + W | ||
| P. Room 550 / H: 281-310 | 550 cm | [XXL] + W + I | ||
| P. Room 600 / H: 281-310 | 600 cm | [XXL] + W + P |

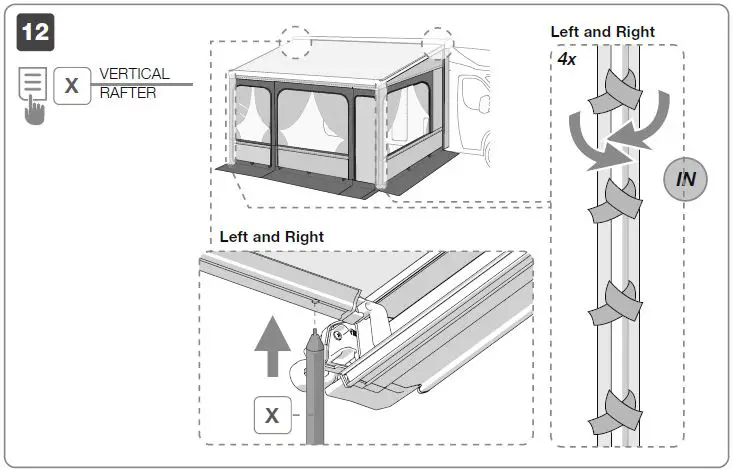

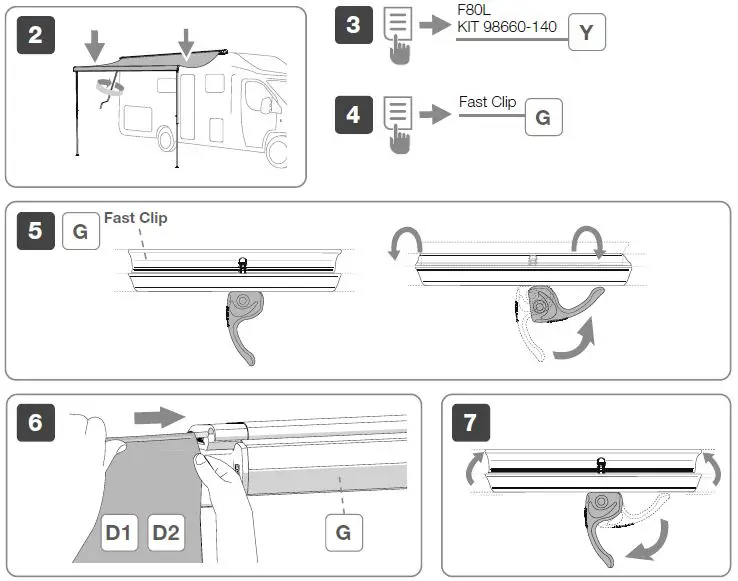

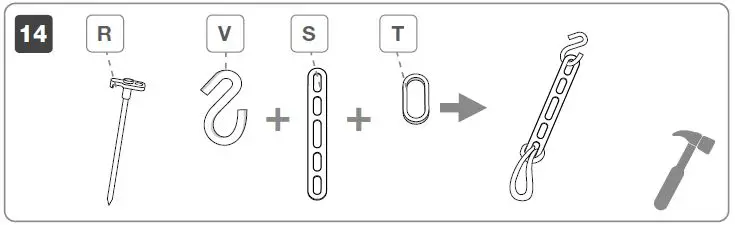

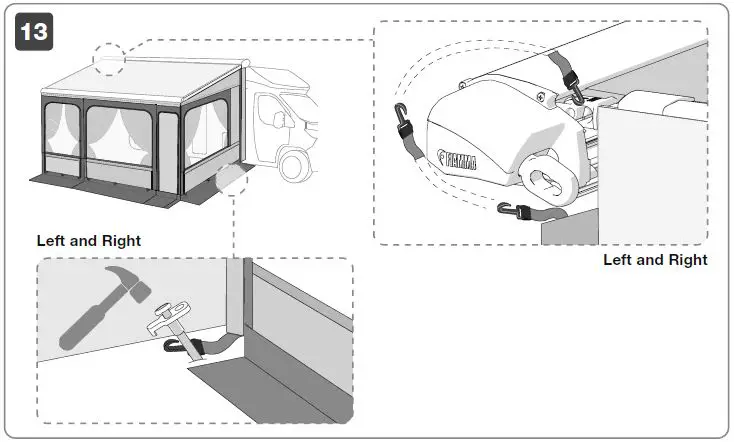

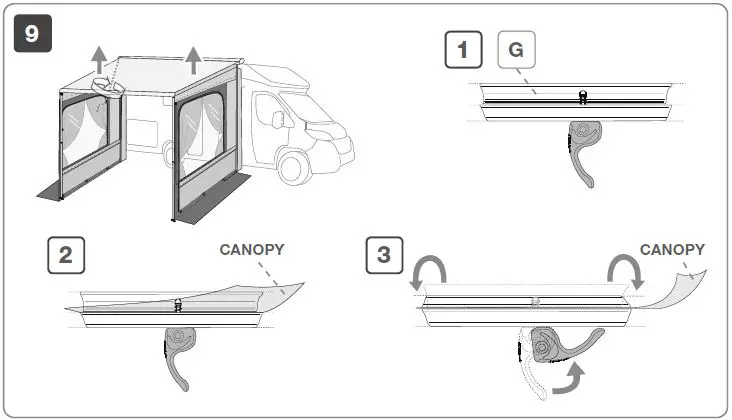

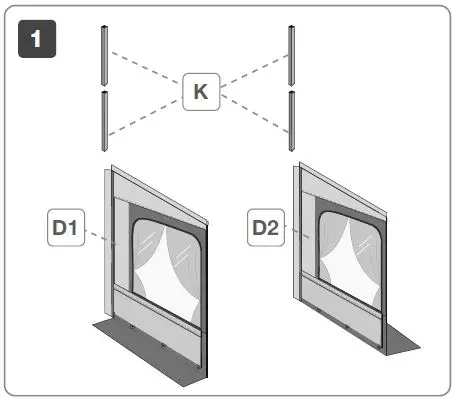

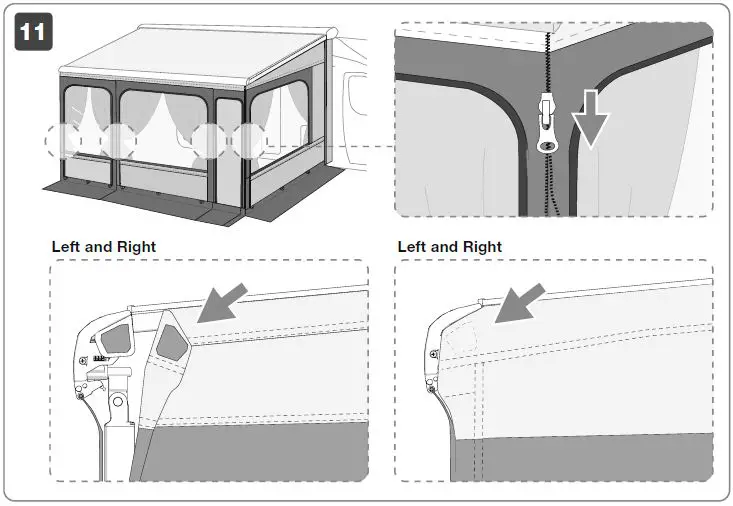

Installation instructions
Check that nothing has been damaged or deformed during transport. In the event of doubts or questions concerning the installation, use or limitations of the product, contact the dealer.
Before tapping, close the windows fastening them to the velcro at the bottom.

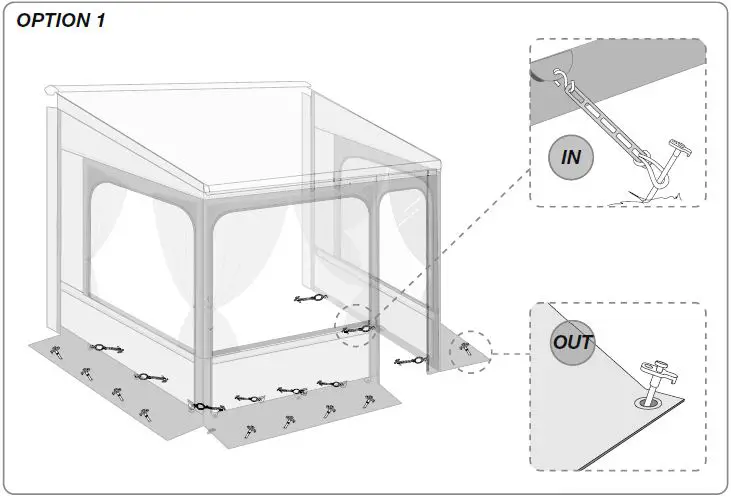

OPTION 1

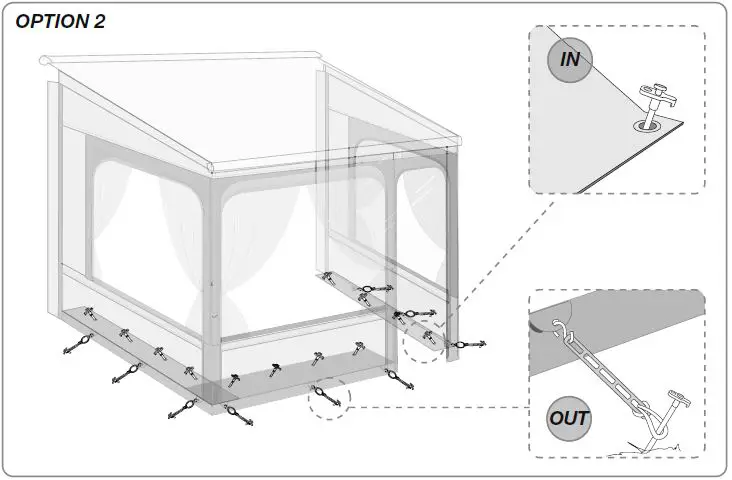

OPTION 2
Instructions for use
In case of rain, we recommend lowering a pole to allow the water to flow.
Safety instructions
Fiamma declines all responsibility for any personal injury and damage to property due to incorrect assembly or use of the product; it is suggested to keep the instructions inside the vehicle.
Keep the original packaging to be used in case of return. The assembly of the product must be carried out according to the assembly instructions: the product must not be modified in any way. All our privacy closures are made with a high-quality standard. Apart from our strict quality controls, we also have our fabrics continuously controlled by independent institutes to ensure that the fabric is tear-resistant, can hold the weight of water, the colours don’t fade, and is resistant to atmospheric agents. To guarantee the perfect quality, the fabrics are waxed or laminated several times.
During this operation, single-colored pigments could move and thus create small bright spots in the material, which are only irregularities that are technically inevitable to avoid but do not compromise the impermeability of the fabric. Irregularities in weaving (such as knots and thickening) are due to unavoidable manufacturing tolerances and are not grounds for complaint; do not prejudice in any way the qualities of the Privacy. Especially with light fabrics, folds may form that backlight seems dark. They are irregularities of technically unavoidable materials due to the specific workings.
MAINTENANCE INSTRUCTIONS
The formation of condensation water inside of the veranda is due to oscillations between external and internal temperature, it can be reduced by using an airtight floor and with good ventilation. Store the Privacy closure only if it is dry and possibly clean. The remaining humidity could cause stains. If you are forced to close it when is still wet, after max. 12 hours reopen it to make it dry. Most of the dirt is superficial and can be removed with clean water and a cloth or a brush. If the fabric is very dirty, add some light cleaning detergent (Marseille soap). Any residual detergent on the fabric must be carefully rinsed. Be aware never to use any aggressive chemical substances and never to clean the fabric with a high-pressure machine.
- Windows in transparent PVC: don’t use detergents that contain alcohol or solvents. Wash it only with hot water and a soft cloth.
- Zippers: Subjected to continuous stress and wear. Open and close gently and slowly without tearing, avoiding excessive effort during fixing to the ground. Keep them sliding using a normal zipper spray.
- Curtains: Wash at 30 ° C with mild detergent. Accessories for curtains, hooks, eyelets, and windscreens are items subject to wear. The duration depends on the stresses to which they are exposed.

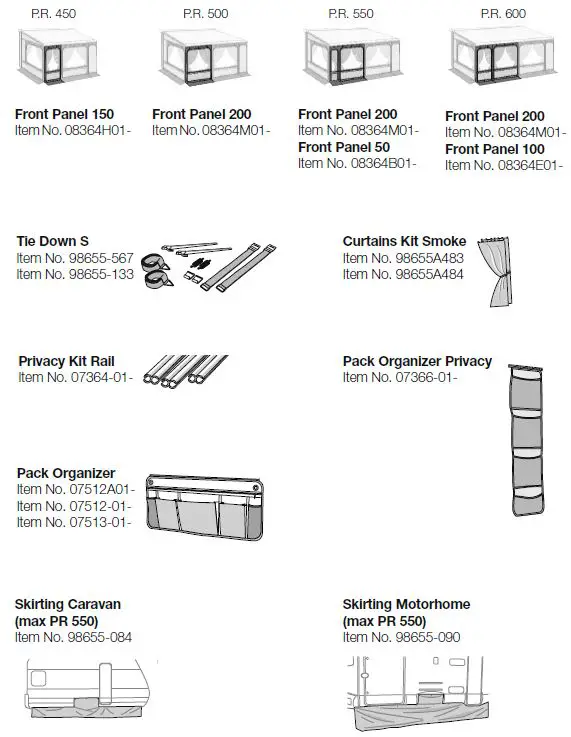

Accessories

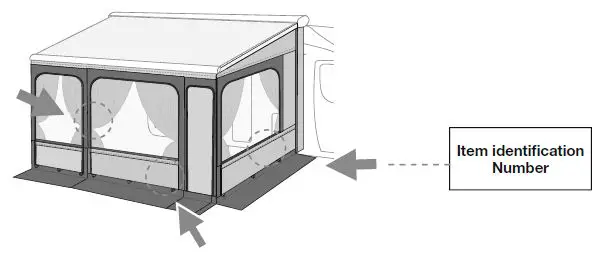

Warranty
Warranty Fiamma
In case of defects with regard to materials and manufacturing, the customer is entitled to the warranty in accordance with local laws and regulations of the country in which the product was purchased.
Fiamma S.p.A. – Italy
Via San Rocco, 56 21010 Cardano al Campo (VA).
fiamma.com.
All rights reserved.
Fiamma S.p.A. reserves the right to modify at any time, without notice, prices, materials, specifications, and models or to cease production of any model.
