Fiamma 98655-848 31 Led Awning Light Instruction Manual

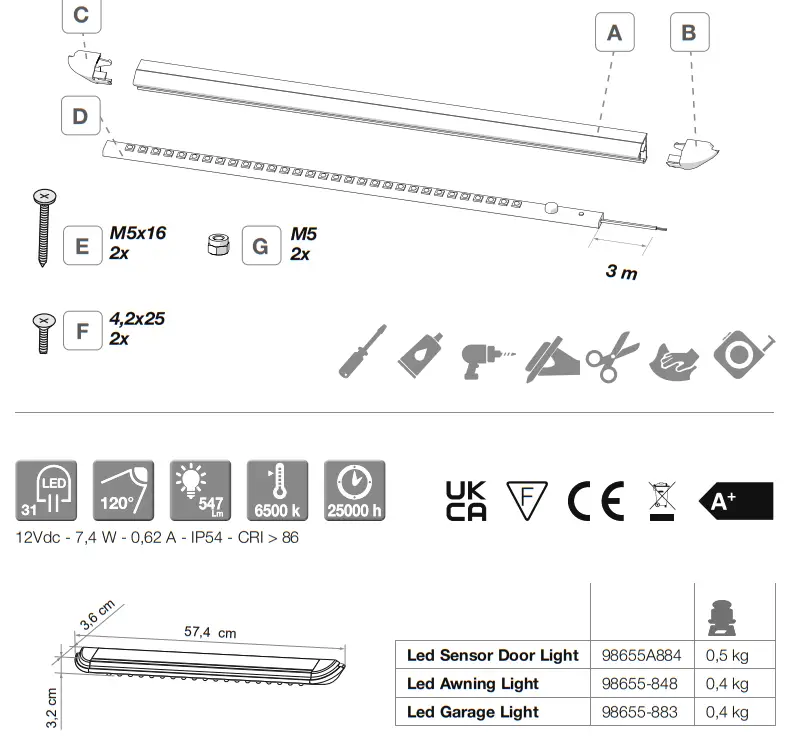

LED lighting kit
Installation and usage instructions

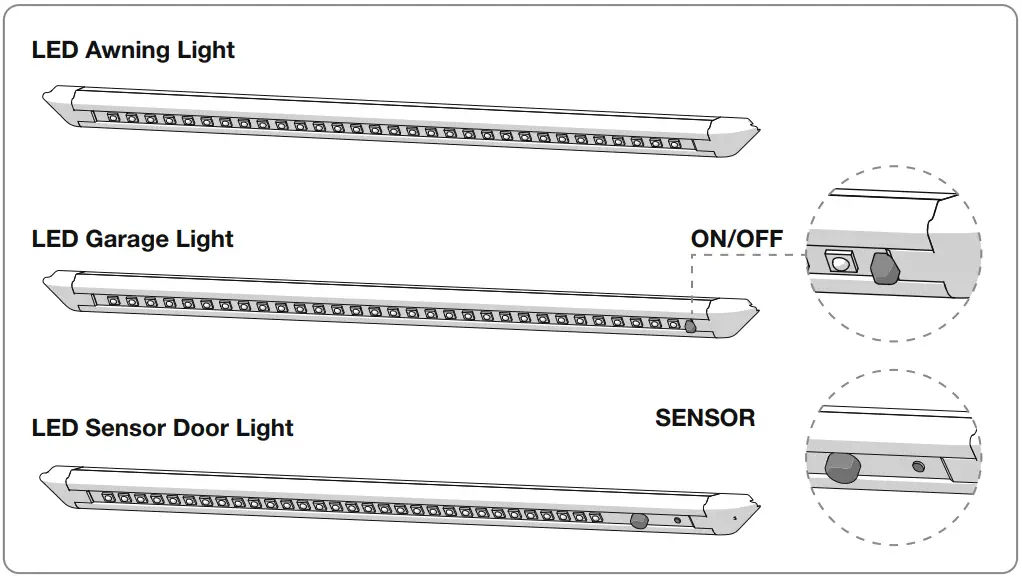

LED SENSOR DOOR LIGHT
98655A884
LED AWNING LIGHT
98655-848
LED GARAGE LIGHT
98655-883

Check that nothing has been damaged or deformed during transport. In the event of doubts or questions concerning the installation, use, or limitations of the product, contact
the dealer. We recommend that the installation is carried out by qualifi ed personnel and in compliance with current local regulations.

COMFORT – Tech

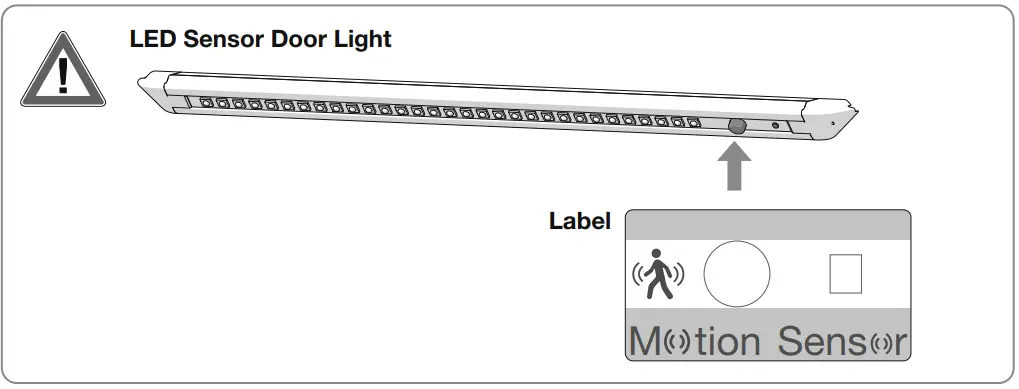

Only For LED Sensor Door Light

When the individual gets close to the product at a distance between 3 and 5 meters, the sensor gives the switching on pulse within one second. The light turns off within 60  seconds when the presence is no longer detected.
In case of problems please contact your local dealer. Consult our website for spare parts drawing.

https://www.fiamma.it/en/led-en

Read the following instructions and warnings carefully; failure to observe these installation and usage instructions as well as the laws for driving in the relevant country may cause severe harm or damage for which the manufacturer declines all responsibility. The product has been designed and manufactured exclusively for the illumination of recreational vehicles, is not suitable for the illumination of home environments. For safety reasons, it is advisable to always disconnect the negative terminal from the batteries on the vehicle and then work without power during installation. It is suggested to connect the power cable to the fuse box or to the terminal board and not directly to the battery. Use the correct fuse for connection to the vehicle power supply according to EN 1648-1 and EN 1648-2. Installing an oversized fuse can cause overheating which can result in a short circuit or malfunction of the entire electrical equipment. Choose the safest and shortest installation for the power cable. Reduce the length of the power cable as necessary. Use only cable clamps suitable for the diameter of the power cable for connection to the terminal board. If incorrect terminals are used, this could cause a voltage drop and increase the formation of heat on the terminal. It is strictly forbidden to go around with the LED lights on; connect the power supply in order to inhibit current fl ow while the vehicle is running. We do not recommend prolonged periods of viewing at close proximity of the LED strip. The manufacturer will not be held responsible for claims for damages resulting from the following:
– Defective installation or connection of the product.
– Damage to the product is caused by mechanical infl uences and overvoltage.
– Alterations on the device without the express authorization of the manufacturer.

EU Declaration of Conformity (DoC)

We,
Company name: Fiamma S.p.A.
Postal address: Via San Rocco, 56
Postcode and city: Cardano al Campo – (Varese)
Telephone number: 0311/709111
E-mail address: [email protected]

Declare that the DoC is issued under our sole responsibility and belongs to the following product:
Apparatus model / Product: Lighting systems
Trademark: Fiamma

Model /Type:

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

• 2014/30/EU Electro Magnetic Compatibility Directive (EMCD).
• 2014/35/EU Low Voltage Directive (LVD).
• 2011/65/EU Restriction of the use of certain hazardous substances Directive (RoHS Directive).
• 2012/1194EU Implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for directional lamps, light-emitting diode lamps, and related equipment.
• 2012/874/EU Supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labeling of electrical lamps and luminaires.
• EN 60529 (1991) + A1 (2000) The IP code or Ingress Protection ratings are defined in an international standard (IP grade 44)
• IEC 62471:2006 Photobiological safety of lamps and lamp systems.

The following harmonized standards and/or technical specifications have been applied

Warranty Fiamma
In case of defects with regards to materials and manufacturing, the customer is entitled to the warranty in accordance with local laws and regulations of the country in which the product was purchased.

https://www.fiamma.it/en/

Fiamma S.p.A. – Italy
Via San Rocco, 56
21010 Cardano al Campo (VA)
All rights reserved.
Fiamma S.p.A.
reserves the right to modify at any time,
without notice, prices, materials,
specifi cations and models or to cease
production of any model.
