All-Round Fixed Base Lights

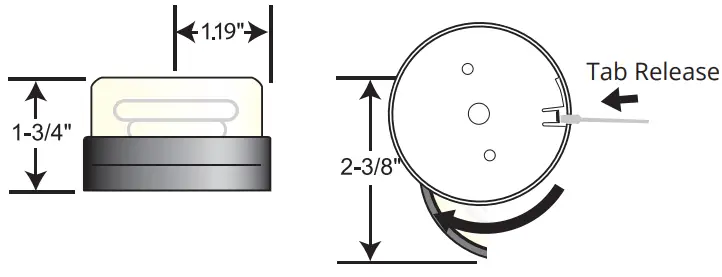

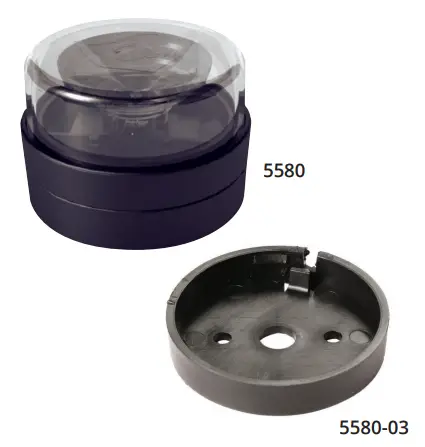

LED Waketower All-Round Light
Compact size designed for installation on a wakeboard tower, radar arch, hard top, poling platform, tuna tower, or other fixed structure. Direct LED replacement for Attwood’s incandescent 5940 series. For pleasure craft up to 39.4 ft (12 m).
- Two-mile, 360° visibility
- Fully sealed electronics
- Tab release
| Description | OEM Part # | Part # |
| 6″ Wire Leads | 5580-1 | 5580A7 |
| 12″ Wire Leads, No Sleeve | 5582-1 | — |
| 16′ Wire Leads | 5581-1 | — |
| Replacement Base | 5580-03 | — |

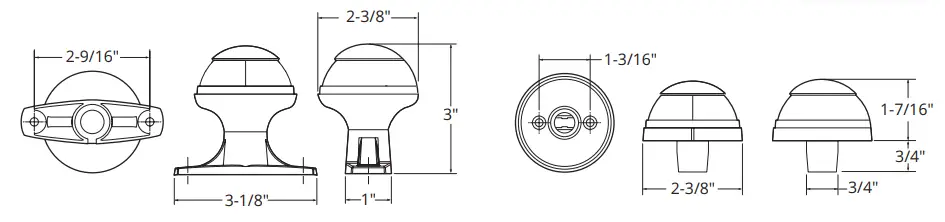

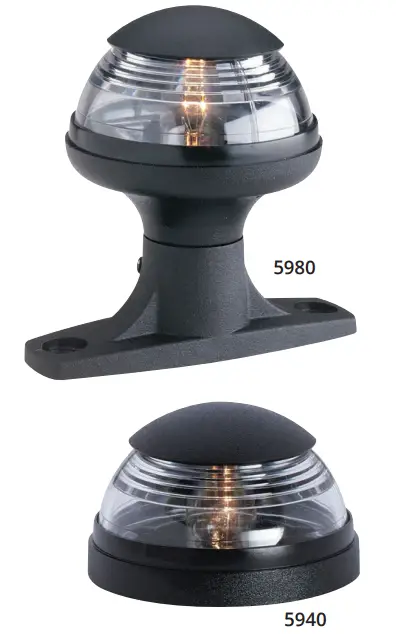

Incandescent All-Round Deck Mounted Lights
7-inch leads for connection to 12V DC power supply. Bayonet lock secures lens and cover to base and provides easy lamp replacement. Includes a 9W wedge base lamp. Installs directly to deck with two required #10 fasteners.
Raised Base
3-inch high raised base is ideal for mounting above obstructions, such as rails and hardware. Notch in rear of mounting base provides passage for wire leads.
Deck Mount
Light mounts flush, making it ideal for installation atop the tow piece on ski or wakeboard boat towers.
| Description | OEM Part # | Part # |
| 3″ Raised Base, Black | 5980-1 | — |
| Deck Mount, Black | 5940-1 | 5940-7 |
