Pedsafety 906-0028 Bbu User Guide

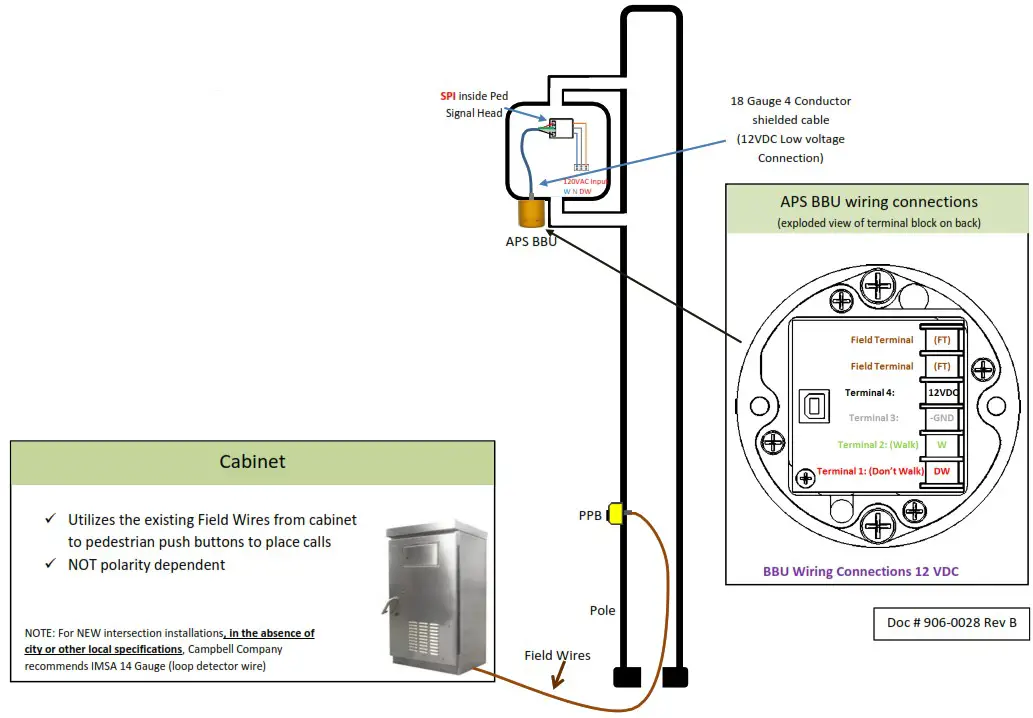

BBU Wiring Quick Guide

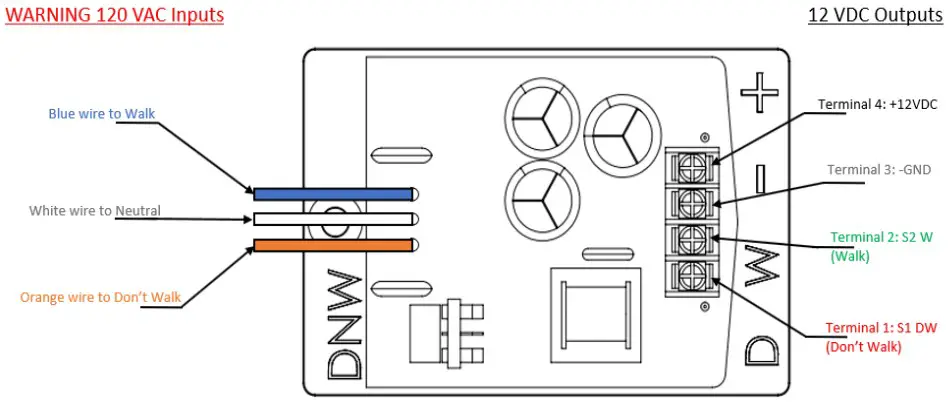

SPI in the Pedestrian Signal Head (Signal Power Interface)

Do NOT set the SPI on the bottom of the Pedestrian Signal Head Terminals of the SPI must be connected to the same terminals on the Base Station

For complete documentation visit http://www.pedsafety.com/product-installation-guides/ ©Campbell Company 2021
Tech Support: (208) 345-7459, option 2
