Installation instructions
Induction hobs
Induction Hobs
The fitting of the appliance should only be carried out by a registered and qualified installer. Please read the safety regulations.

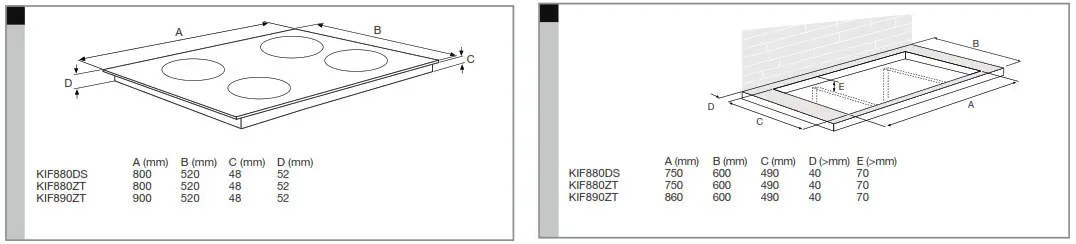

Preparations for installation
Pictograms used Important information
Electrical connection

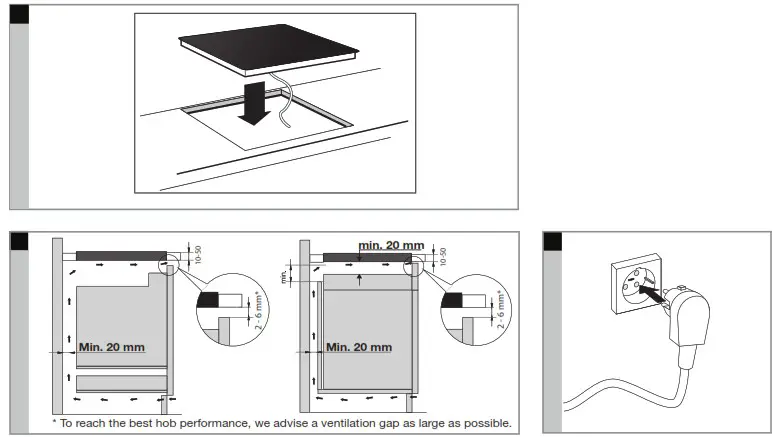

Free space around the appliance
This appliance must be earthed
The equipment should not be connected to the network via a multi-plug socket or extension Jlead, as the safe use of the equipment can then not be guaranteed.
Connected load
| KIF880DS KIF880ZT KIF890ZT | L1 (W) 3700 3700 3700 | L2 (W) 3700 3700 3700 | L3 (W) 3000 3000 3000 | Total load (W) 10400 10400 10400 |

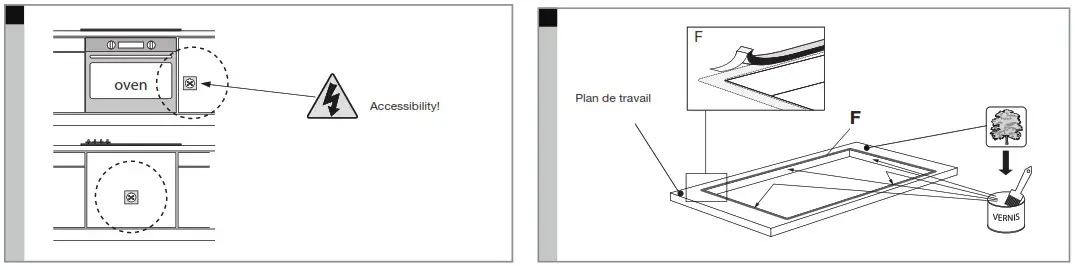

Placing sealing tape

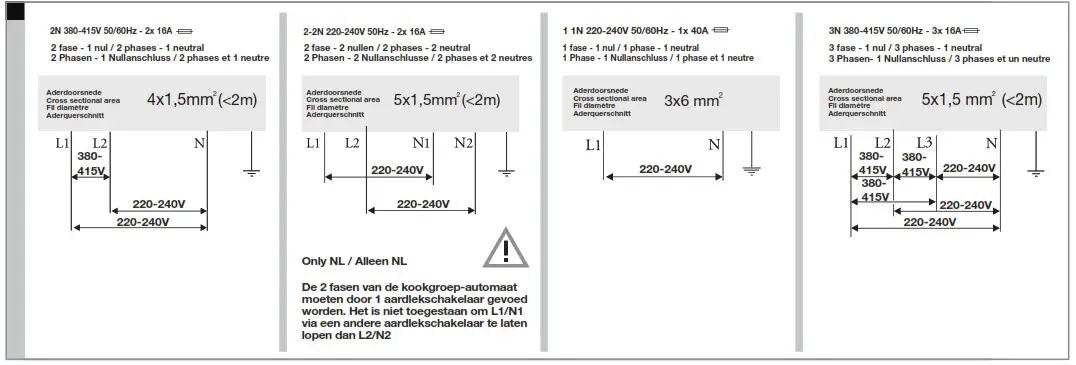

Electrical connectionSet power limiter at 7400 W; c8=1; default setting!

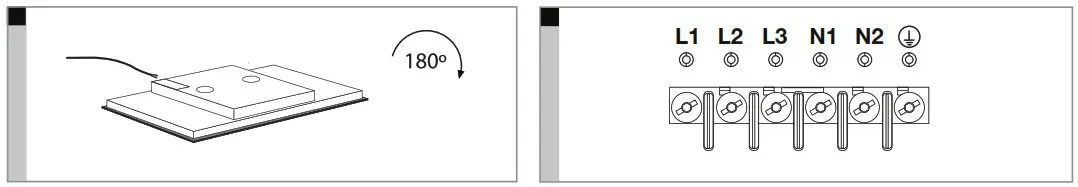

Consult the wiring diagrams on the back of the appliance/Make the required connections on the connecting block.
If necessary set the hob power limiter. Consult chapter ‘Installation/Power limiter’ in the user manual. The limiter is set at 7400 W by the factory.
You can find the most recent version of the installation instructions on our website.
838734 / VER 3 / 15-02-2022
