Installation instructions
Induction hobs
Induction Hobs
The fitting of the appliance should only be carried out by a registered and qualified installer. Please read the safety regulations.
Pictograms use
Important information
Electrical connection

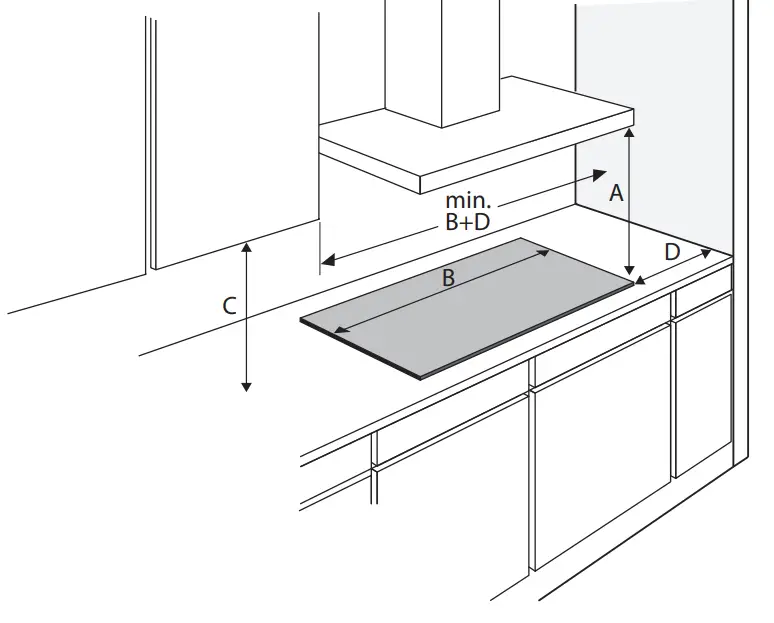

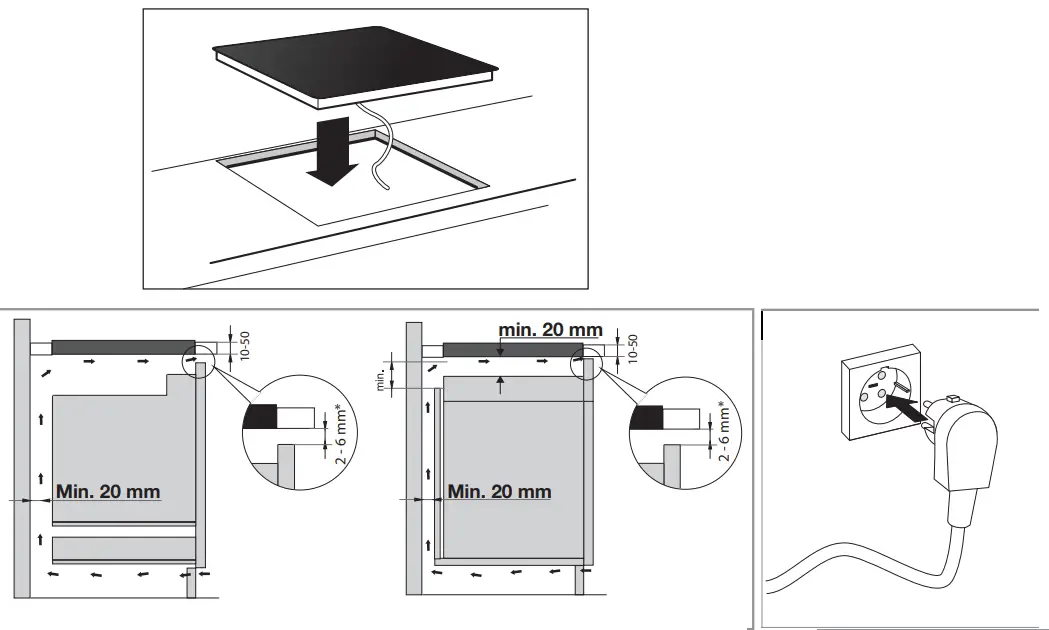

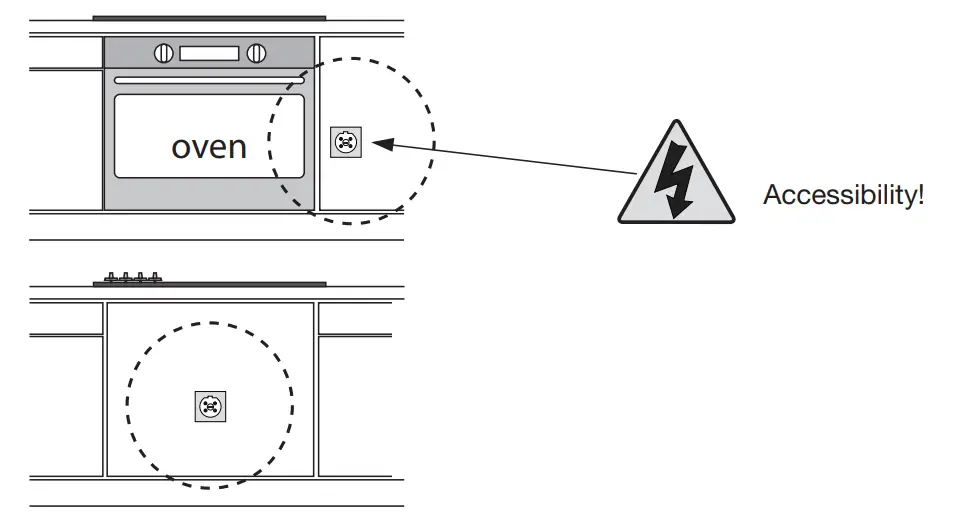

Free space around the appliance
This appliance must be earthed

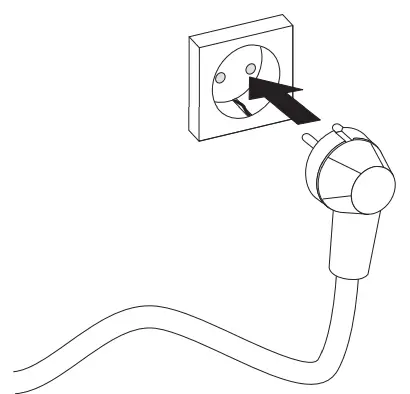

The equipment should not be connected to the network via a multi-plug socket or extension lead, as the safe use of the equipment can then not be guaranteed.
Connected load
| L1(W) | L2(W) | L3(W) | Total load (W) | |
| HI06471E | 3700 | 3700 | 7400 | |
| HI06471EP | 3700 | 7400 | ||
| HI06471EV | 3700 | 3700 | 7400 | |
| HI07471EV | 3700 | 3700 | 7400 | |
| HI08471EV | 3700 | 3700 | 7400 | |
| HI08571EV | 3700 | 3700 | 300 | 10400 |
| HI09571EV | 3700 | 3700 | 300 | 10400 |

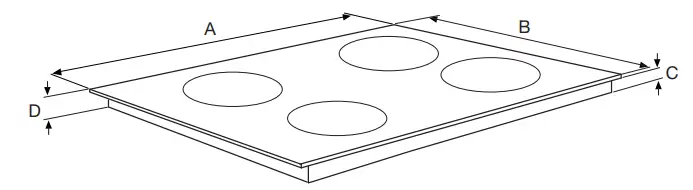

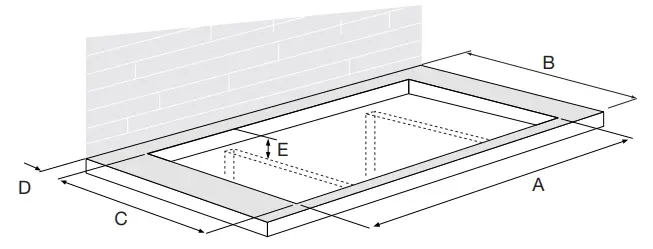

| A (mm) | B (mm) | C (mm) | D (mm) | |
| HI06471E/EP/EV | 600 | 520 | 51,5 | 55,5 |
| HI07471EV | 700 | 520 | 51,5 | 55,5 |
| H108471EV | 800 | 520 | 51,5 | 55,5 |
| H108571EV | 800 | 520 | 51,5 | 55,5 |
| H109571EV | 840 | 520 | 51,5 | 55,5 |
| A (mm) | B (mm) | C (mm) | D (>mm) | E (>mm) | |
| H106471E/EP/EV | 560 | 600 | 490 | 40 | 70 |
| H107471EV | 560 | 600 | 490 | 40 | 70 |
| H108471EV | 750 | 600 | 490 | 40 | 70 |
| H108571EV | 750 | 600 | 490 | 40 | 70 |
| H109571EV | 810 | 600 | 490 | 40 | 70 |

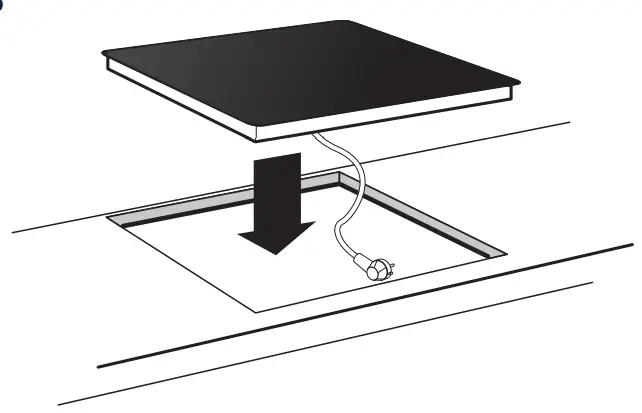

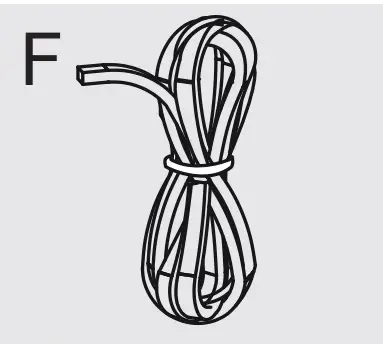

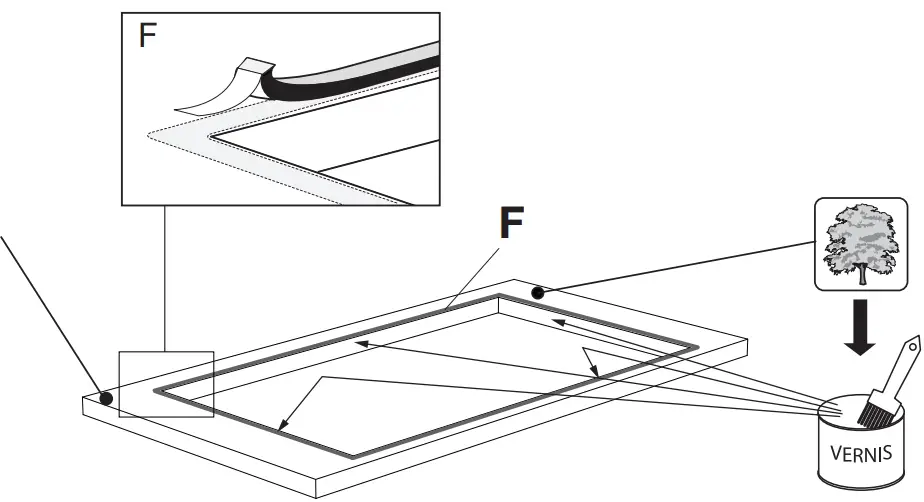

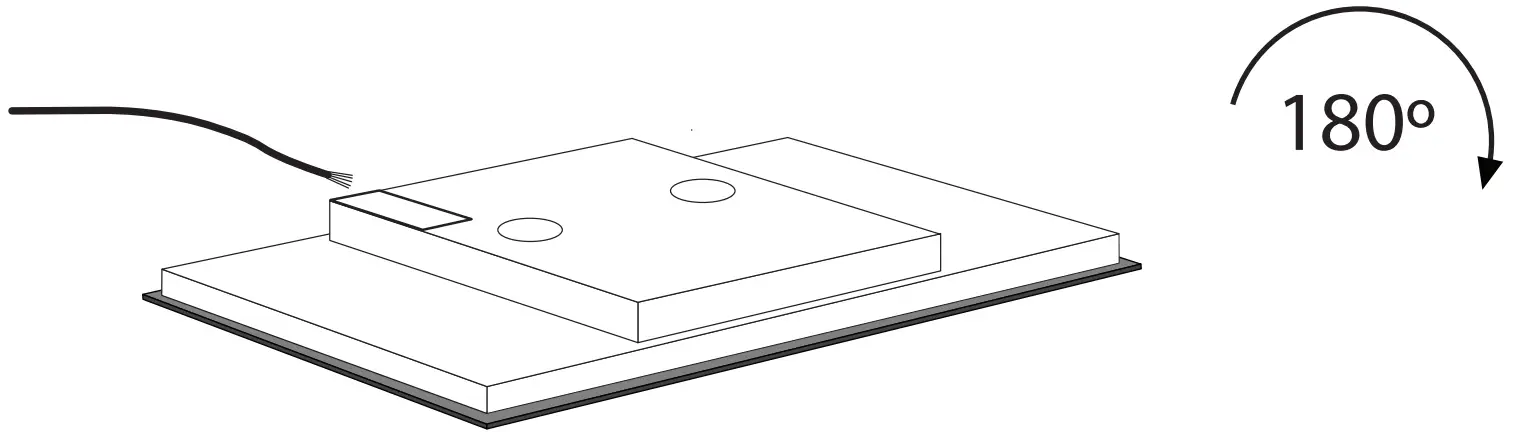

Placing sealing tape
Model HI06471EP
Electrical connection

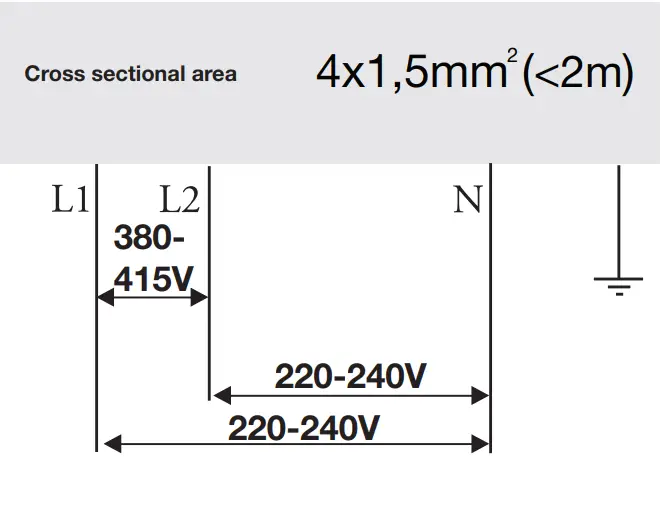

2N 380-415V 50/60Hz – 2x 16A
2 fase-1nul /2 phases – 1 neutral

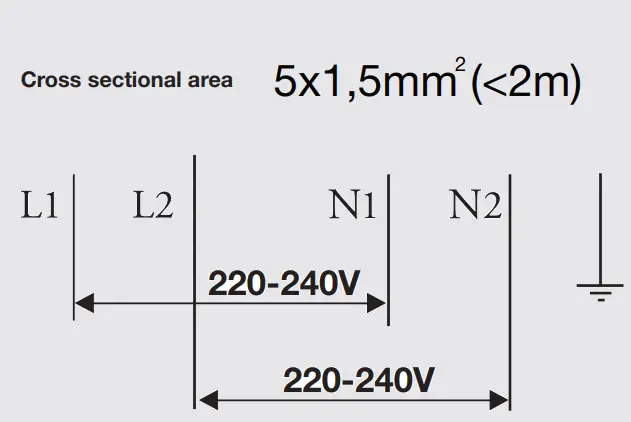

2-2N 220-240V 50Hz – 2x 16A
2 fase – 2 nullen / 2 phases – 2 neutral

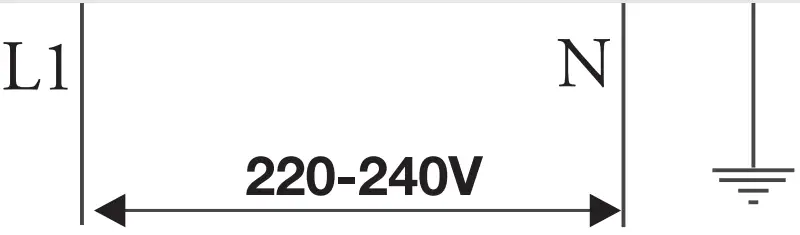

1N 220-240V 50/60Hz – 1x 32A
fase-1 null/1phase -1neutral
Cross-sectional area
3×4 mm (<2m)

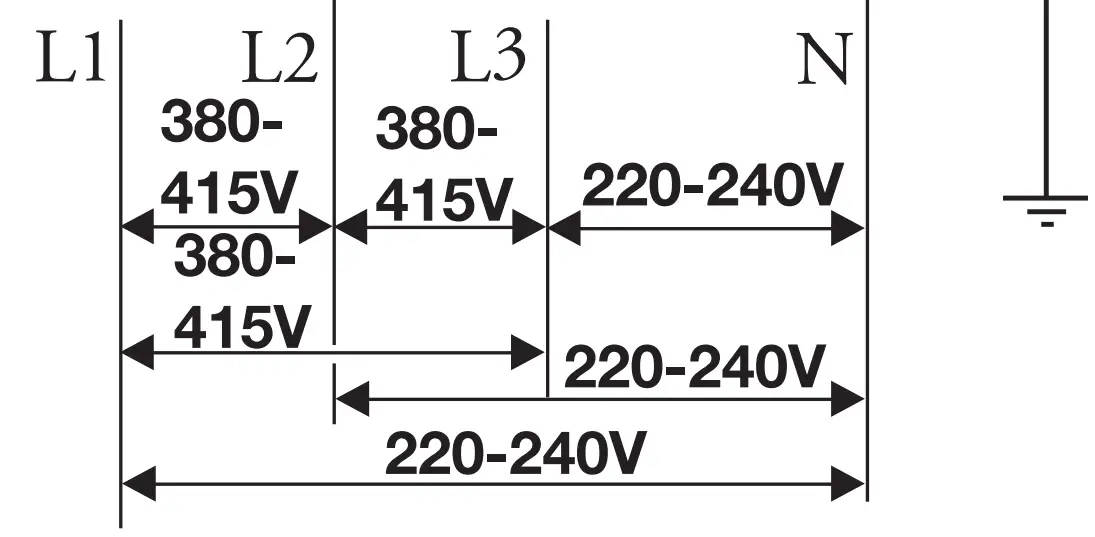

3N 380-415V 50/60Hz – 3x 16A
3 fase – 1 nul / 3 phases – 1 neutral
Cross-sectional area
5×1,5 mm (<2m)

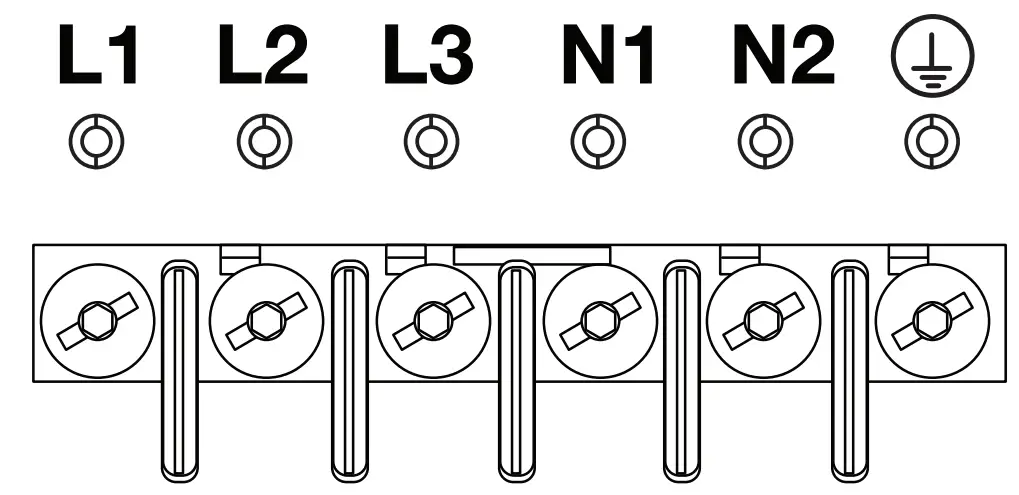

Consult the wiring diagrams on the back of the appliance/Make the required connections on the connecting block.
If necessary set the hob power limiter. Consult the chapter ‘Installation/Power limiter’ in the user manual.
You can find the most recent version of the installation instructions on our website.
