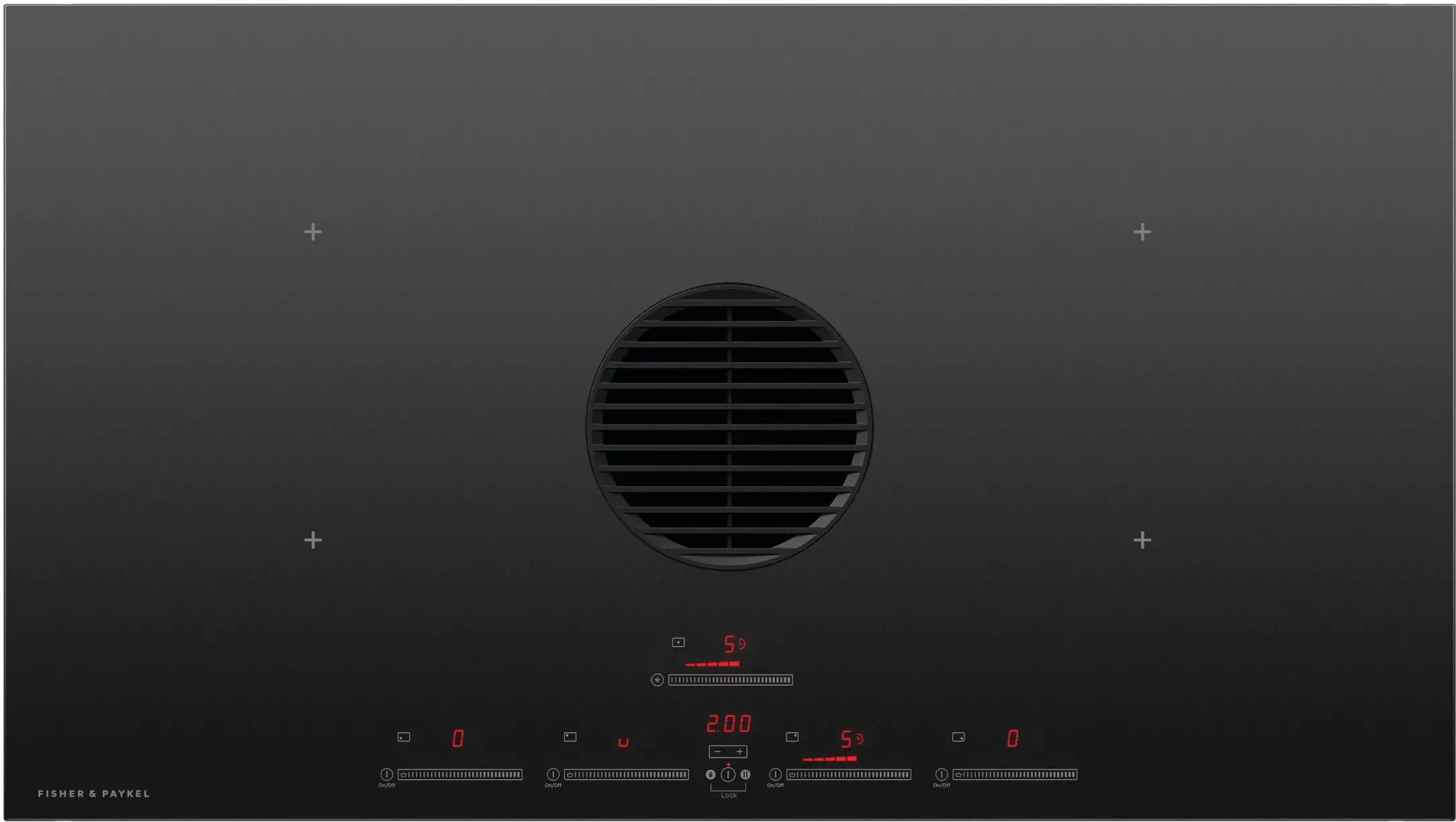

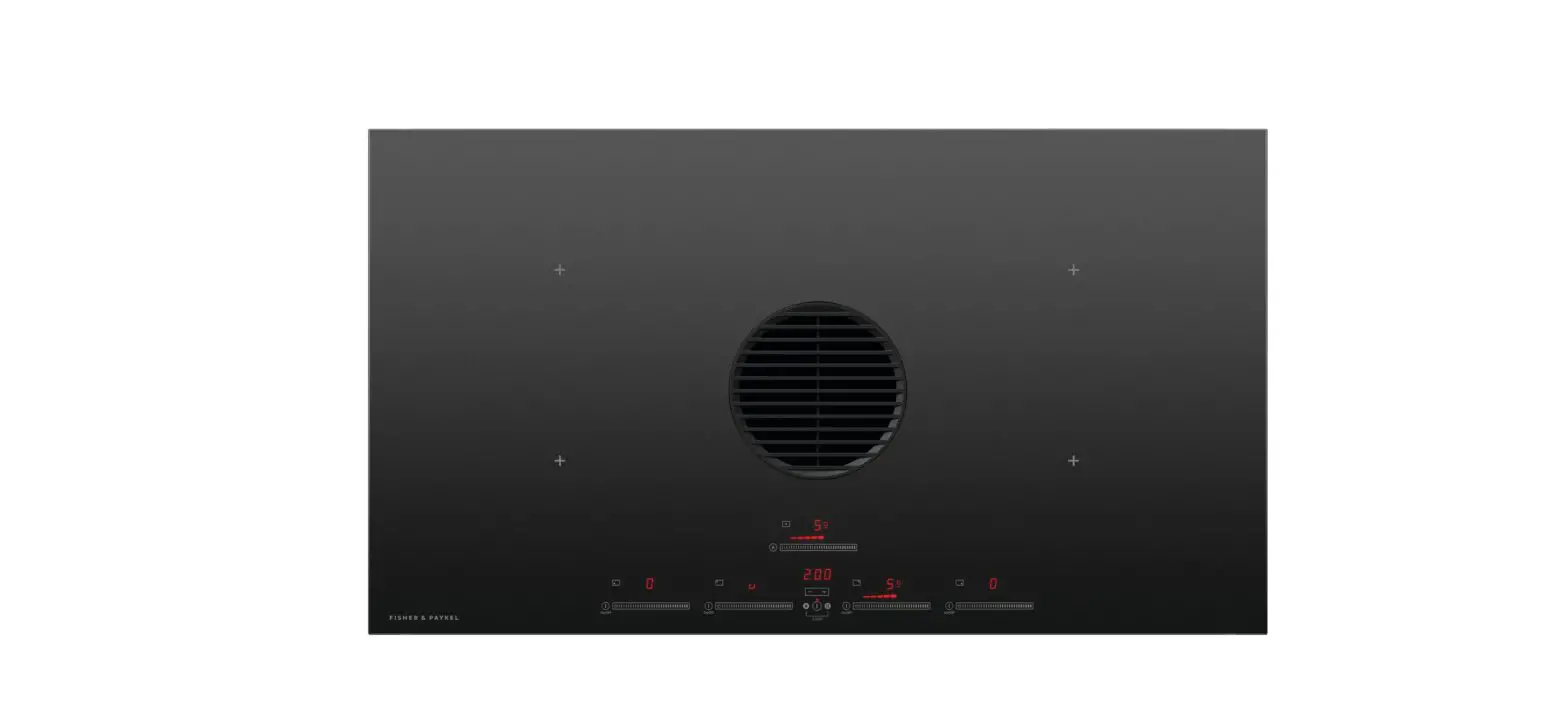

FISHER PAYKEL CID364DTB4 36″ Downdraft Induction Cooktop Duct Out Black
CID364DTB4 FP US CA
PRODUCT CODE: 82229-A
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE | |||
| Fisher & Paykel | 220-240V 50Hz | CID834DTB4 FP US CA | 82229-A |
MODELS
The models covered by this manual are listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

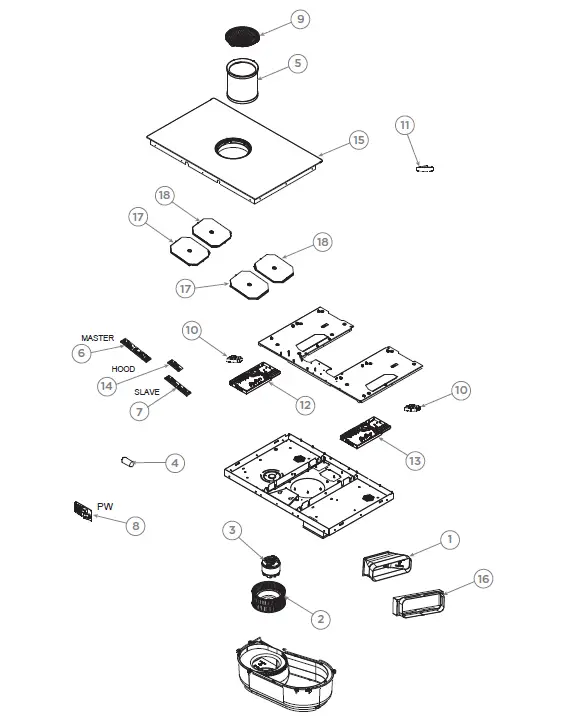

COOK TOP COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 793377 | DUCT RECTANGLE TRANSITION | ||
| 2 | 793379 | FAN WHEEL | ||
| 3 | 793380 | MOTOR UL | ||
| 4 | 793381 | CAPACITOR | ||
| 5 | 793382 | GREASE FILTER UL | ||
| 6 | 793383 | TOUCH CONTROL SLAVE | ||
| 7 | 793384 | TOUCH CONTROL MASTER | ||
| 8 | 793385 | ELECTRONIC VARIATOR | ||
| 9 | 793359 | AIR INLET GRILLE | ||
| 10 | 793386 | FAN (GENERATOR) | ||
| 11 | 793362 | FOAM TPE (INSTALLATION) | ||
| 12 | 793387 | GENERATOR MASTER UL (LEFT) | ||
| 13 | 793388 | GENERATOR SLAVE UL (RIGHT) | ||
| 14 | 793389 | TOUCH CONTROL EXTRACTION FAN UL | ||
| 15 | 793390 | GLASS ASSEMBLY CID364DTB4 | ||
| 16 | 793391 | DUCT SHEETMETAL CONNECT | ||
| 17 | 793392 | INDUCTION PLATE FRONT | ||
| 18 | 793393 | INDUCTION PLATE BACK | ||
| NI | 592355 | BK UG CID364DTB4 USCA | ||
| NI | 592357 | BK INSTALL CID364DTB4 USCA |
© Fisher & Paykel Appliances 2021. All rights reserved.
The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this document correctly describes the product currently available.
For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.
PRODUCT CODE: 82229-A 08.21
