Logitech Rugged Folio For Ipad 7th & 8th Gen User Manual

Power and Connectivity

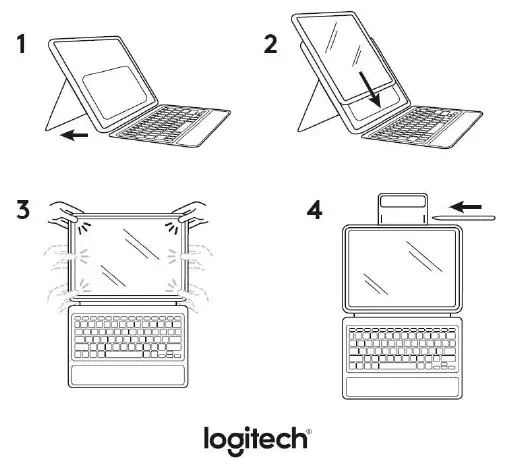

• Upon placing iPad in holder, instantly pairs and powers via Smart Connector

Case

• Space to charge and stow Apple Pencil
• Magnetic latch
• Front and back protection
• Access all ports: Camera / USB-C

Keyboard

• Full-sized, well-spaced keys
• Full row of iPadOS shortcut keys
• 0.71 in (18 mm) key pitch
• 0.05 in (1.2 mm) key travel

Row of iPadOS Shortcut Keys (Left to Right)

• Home: Go to home screen
• Screen brightness: Adjusts brightness down and up
• Virtual Keyboard: Shows/hides the virtual keyboard
• Search: Brings up iPadOS search field
• Siri: Activate digital assistant
• Screenshot: Take photo of current screen
• Media controls: Back, Play/Pause, Forward
• Volume controls: Mute, Volume down, Volume up
• Screen on/off: Locks iPad (7th, 8th and 9th gen) screen

Modes

• Type, View, Sketch, Read

Keyboard Type

• Integrated keyboard

Backlit Keys

• No

Viewing Angles: Adjustable

• 40 degrees of adjustable angles
• Highest angle: 60 degrees
• Lowest angle: 20 degrees
