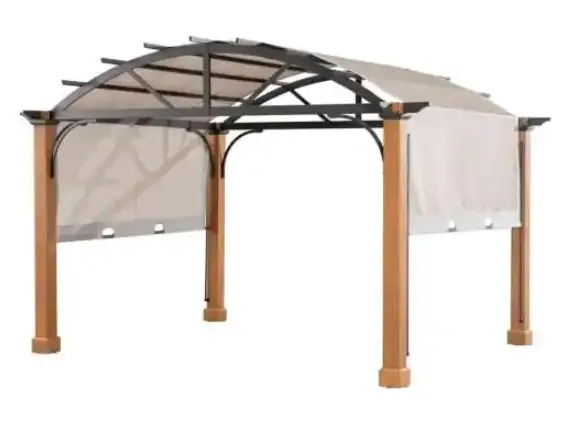

HAMPTON BAY A111015300 Longford 10 ft. x 12 ft. Replacement Canopy Wood Post Pergola

We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this gazebo. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

Assembly

Removing the Canopy Tube

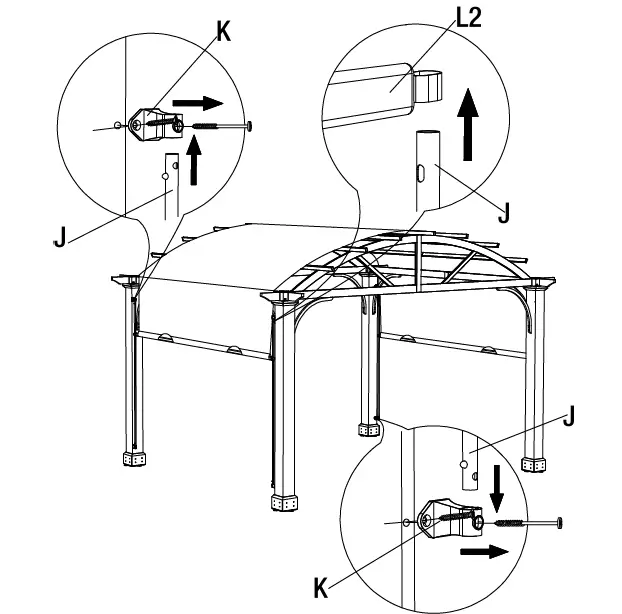

• Remove the guide tube connector (K) from the post, remove the guide tube connector (K) from the guide tube (J}, and then remove the canopy tube 1 /canopy tube 2 ( L 1 /L2) from the guide tube (J) (As shown below).
  NOTE:
  To avoid destroying the finish, do not put the parts on the ground directly

Assembly (continued}

Remove the Canopy

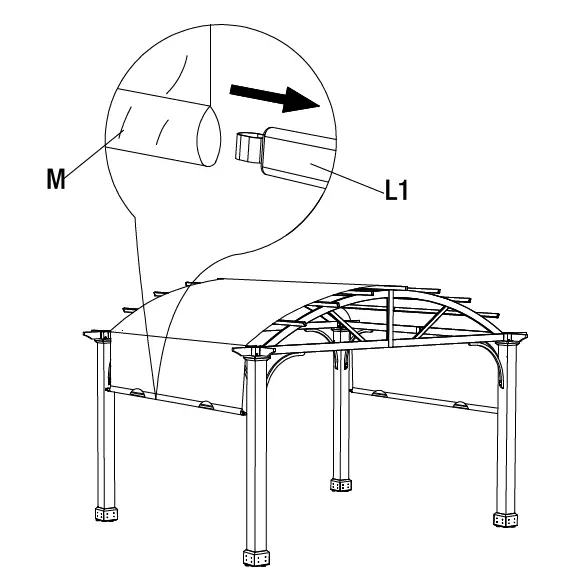

Remove the assembled canopy tube 1/2 (L 1/L2) from the canopy (M} and remove the canopy (M} from the roof of the gazebo (As shown below).
NOTE:
To avoid destroying the finish, do not put the parts on the ground directly.

Assembling the Canopy

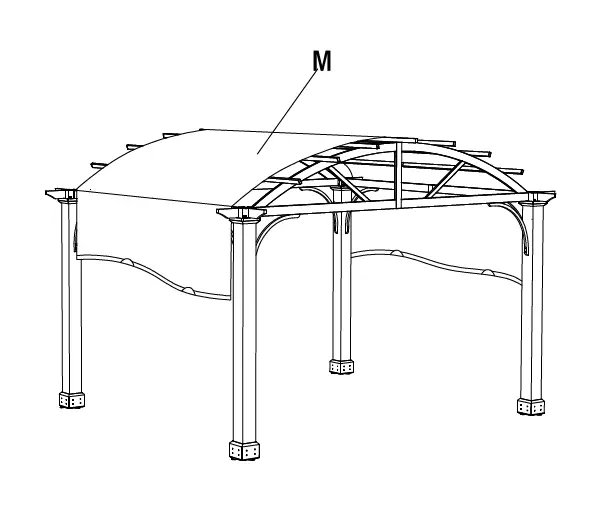

Assemble the canopy (M) on the top of the gazebo (As shown below).
NOTE:
To avoid destroying the finish, do not put the parts on the ground directly.

Assembling the Canopy Tube

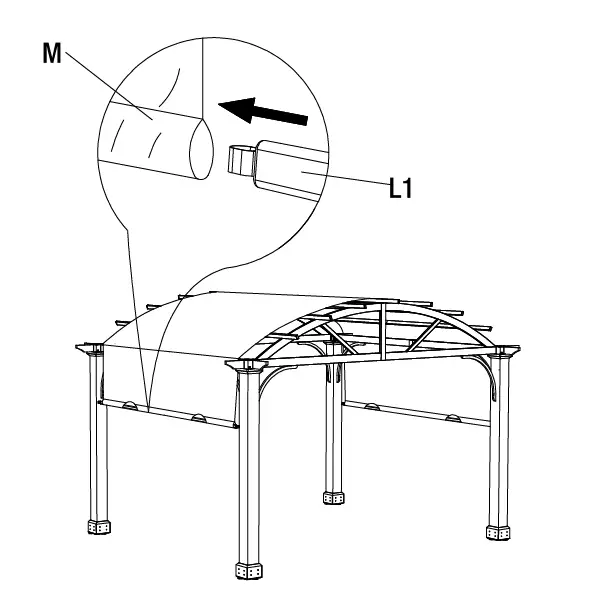

Insert the canopy tube 1 /2 (L 1 /L2) into the canopy (M) (As shown below).
NOTE:
To avoid destroying the finish, do not put the parts on the ground directly

Assembling the Guide Tube

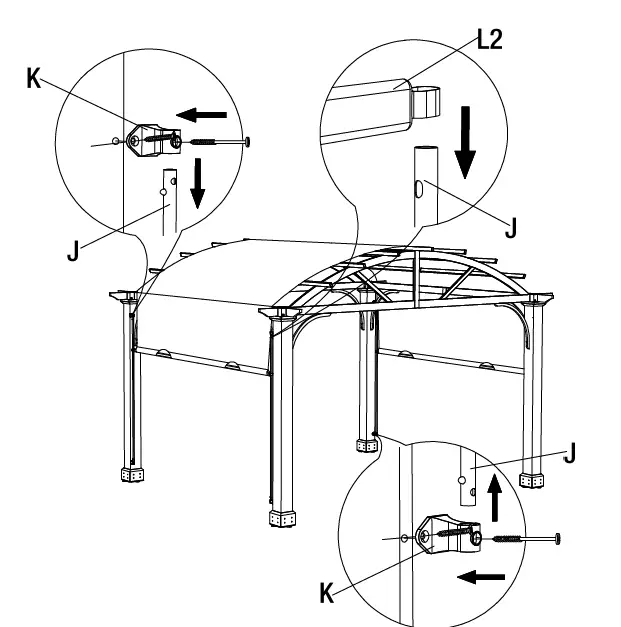

Put the canopy tube 1 /2 (L 1 /L2) on the guide tube (J}, put the guide tube connector (K} on the guide tube (J}, and then lock to the post (As shown below}.
NOTE:
To avoid destroying the finish, do not put the parts on the ground directly
