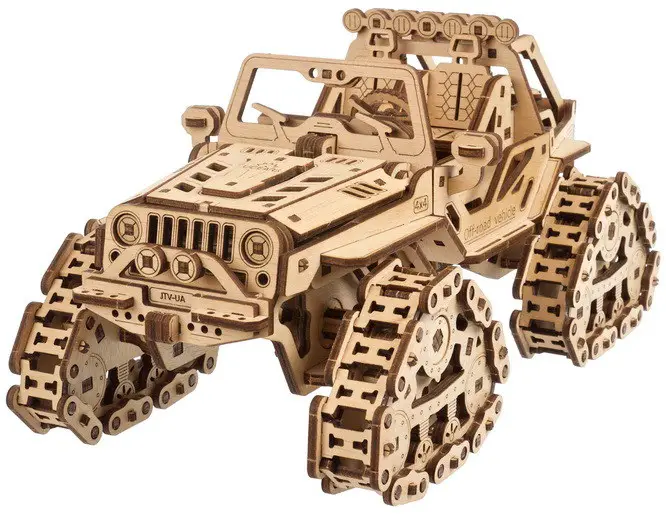

GEARS 4820184121768 Tracked Off-Road Vehicle
ASSEMBLY INSTRUCTION

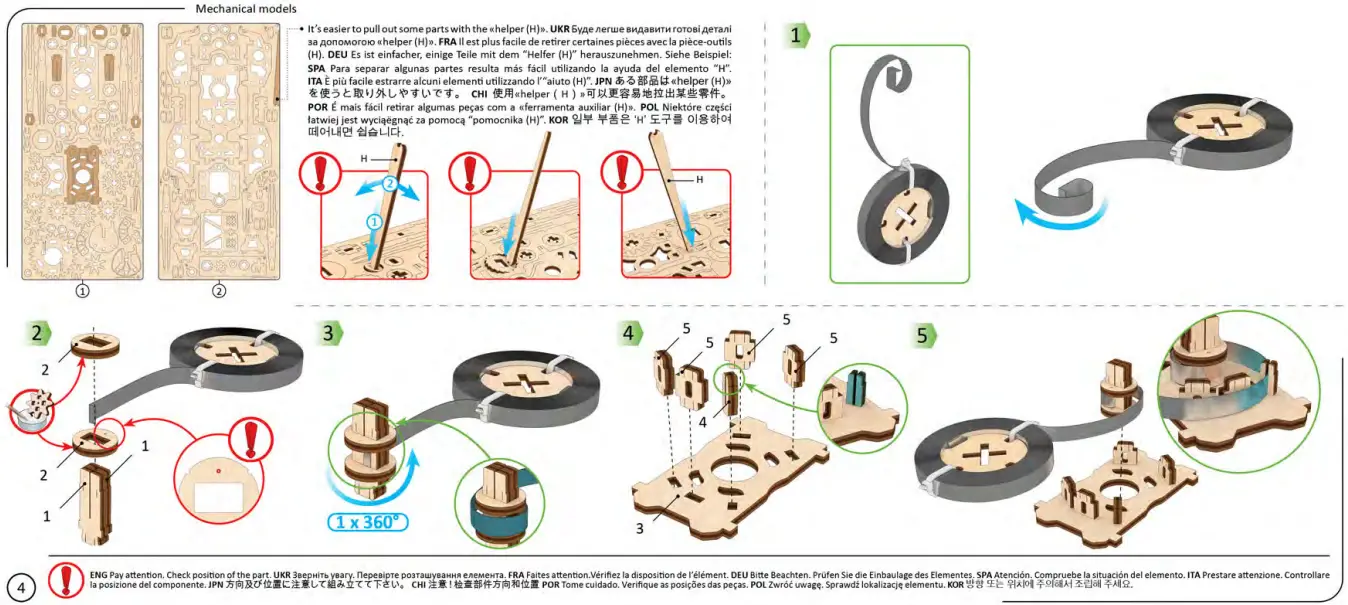

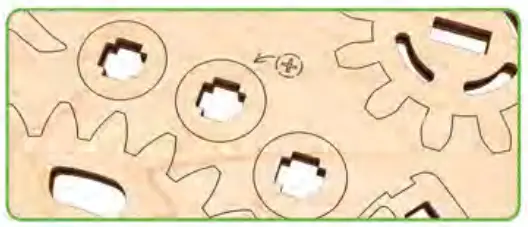

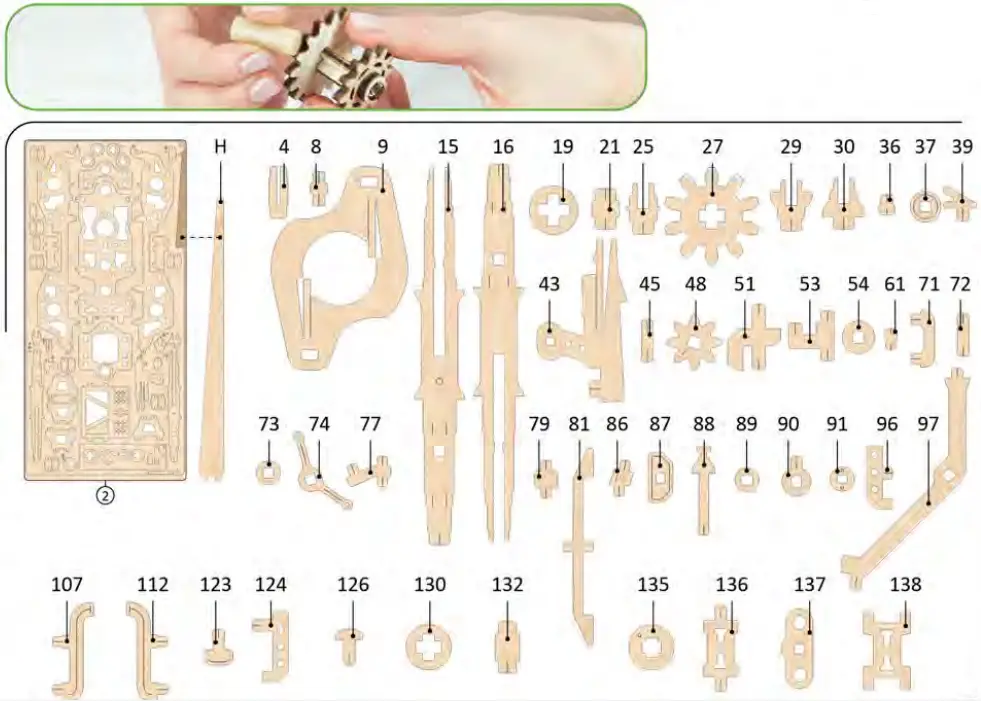

Remove model parts from the hanger board as illustrated below. careful not to break parts. If a part does not remove easily, carefully cut it out with a knifer. This model is intended for self assembly without glue. If you have difficulty installing the axles, try waxing them with a regular candle. All moving parts can also be waxed during assembly to reduce friction when operating the model.

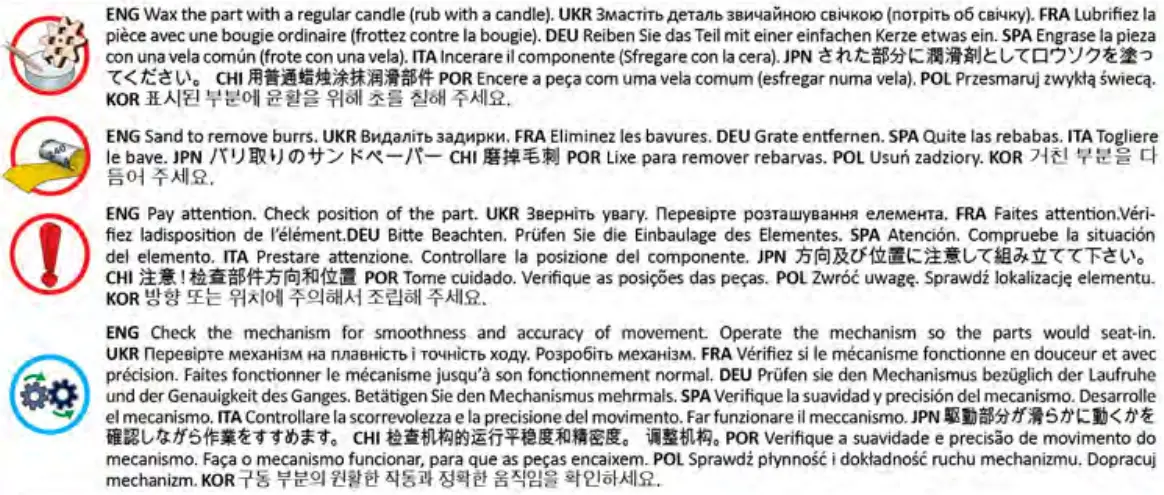

SYMBOLS
This is not a structural component; it is a tool for measurement and assembly.
Specified details come with spare duplicates.
MECHANICAL MODEL
ASSEMBLING INSTRUCTION
